Discovering Bending Beam Load Cell Use Cases
Bending beam load cells are versatile and cost-effective solutions for many weighing and force measurement applications. These miniature load cells are compact in size, making them ideal for use in small testing environments and for embedding into machines or products for continuous performance measurement.
As a quick review, a bending beam load cell converts an applied force into a proportional electrical signal by measuring the flexure of the beam. This is achieved using strain gages arranged in a Wheatstone bridge circuit. The bending beam’s load is typically quantified by its rated output, the signal level at full load. The total physical bending at full load is known as deflection at rated output (RO).
When evaluating your bending beam load cell use case requirements, it is essential to consider that the load cell must operate safely within its safe overload limit to maintain accuracy.
TIP: Interface offers a new Bending Beam Cheat Sheet to help you review terms and abbreviations. This cheat sheet is available in our ForceEDU Resource Hub.
Understanding Bending Beam Specifications to Apply to Unique Use Cases
Understanding the limits of any load cell is crucial, regardless of the application. As you review the dimensions and capacities to determine how this type of force measurement sensor fits your requirements, take a moment to review key specifications. This includes nonlinearity, which is the deviation from a straight calibration curve, and hysteresis, the output difference when approaching the same load from increasing versus decreasing directions, which describes its intrinsic accuracy. These specifications are often combined with nonrepeatability to define the overall static error band.
Reviewing the core specifications, such as rated output and safe overload, enables engineers to confidently select and integrate bending beam load cells that meet the application requirements. Specification details, as outlined in the video of our most popular bending beam MB Load Cell, empower the next generation of automated and data-driven systems.
Bending Beam Load Cell Applications
Bending beam load cells are uniquely suited for applications that require a small sensor to be embedded directly into a system for precise force measurement. Their compact size and reliable output lead to smart, data-driven solutions across various industries.
Automated Check-Weighing and Filling

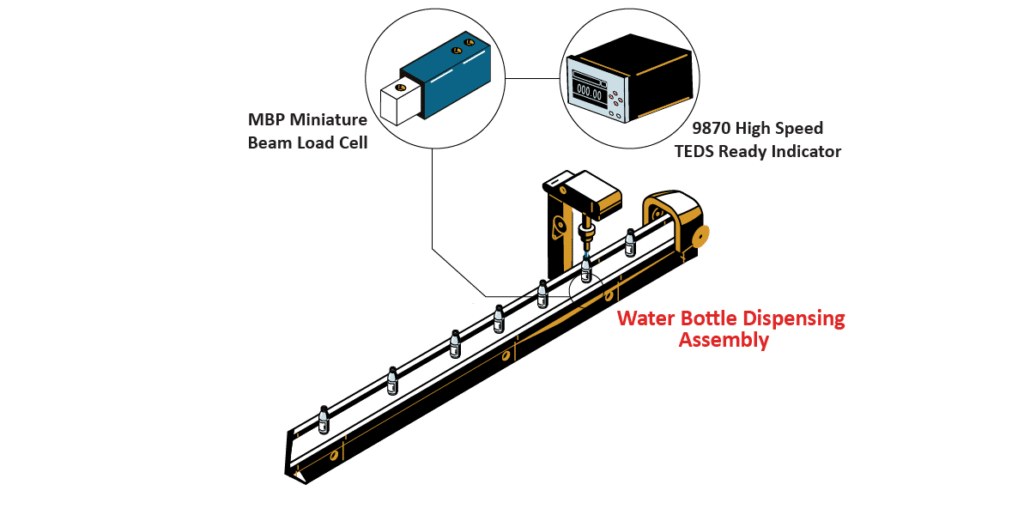

A water bottle manufacturer needs to dispense the right amount of fluid and then verify the weight against the product label to minimize waste. A miniature bending beam load cell, such as the Interface MBP, is attached under a platform where the bottle is placed. For this high-speed, repetitive process, the load cell must deliver consistent readings when measuring the final, stable load. This consistency is ensured by low hysteresis (the output difference when approaching the same load from increasing versus decreasing directions), which guarantees accurate results for every bottle weighed in real-time.
Smart Inventory Management Systems
For high-value or critical component inventory, continuous, real-time stock levels are vital. For this project, a low-capacity bending beam load cell, specifically our MBI Overload Protected Miniature Beam Load Cell, is placed discreetly beneath each storage bin or shelf. As parts are removed, the slight decrease in weight is instantly detected, and the system updates the part count. This application demands a stable sensor, requiring excellent performance to ensure that weight measurements remain accurate over weeks or months of continuous monitoring. Read more about this quality control weighing use case for Inventory Weighing.
Bending Beams for Agricultural Control
Efficiency in agriculture utilizes technology to precisely control the amount of water for the dispensing of seeds or fertilizers. A small bending beam load cell can measure the transient force or weight of seeds as they pass through a key metering section of the planter. By continuously tracking this force, the system can instantly adjust the flow rate to maintain an optimal seeding density. In vertical farming, innovative technology systems are used indoors, using an irrigation system. By integrating a bending beam load cell, such as our MBI Overload Protected Miniature Beam Load Cell, under each corner of the produce trays, the load cell monitors and weighs the amount of water, reducing waste and improving the harvest.
Medical Fluids Dispensing and Monitoring
It is essential to continuously monitor the amount of material in a medical bag to alert staff if the bag is empty or if dispensing tubes are blocked. An Interface MB Miniature Beam Load Cell is used to suspend the medical bag, providing continuous force readings. Since the bag may hang for hours while dispensing, the performance of the load cell is crucial. The load cell must maintain an accurate weight reading over extended periods to ensure that medicine is dispensed correctly and the bag is replaced at the correct time. Read more about Medical Bag Weighing.
From the high-stakes world of aerospace testing to the everyday precision required by smart logistics and ergonomic furniture, the bending beam load cell remains a cornerstone of modern measurement. Its fundamental principle, converting the minute physical deformation of a carefully designed beam into a proportional electrical signal, ensures reliable, accurate data acquisition.
