Interface Application Note Guide
Interface Application Notes
A frequently visited area of these online resources is our Interface Application Notes archive. These resourceful explainers are of interest to engineers, new product designers, metrology and engineering students, as well as T&M industry professionals.
Interface created a large collection of App Notes to showcase how Interface load cells, torque transducers, accessories and instrumentation are used by OEMs and for various test and measurement projects across all types of industries and are now all available in our Application Notes Guide.
Latest White Paper
A Comparison of torque Measurement Systems
Over the past 20 years, non-contact rotary torque measurement systems have become indispensable, especially for high rpm or long duration testing that damages transducers with bearings. To meet these needs, several systems have been offered by different manufacturers including the AxialTQ™ system from Interface.
Latest Product Release

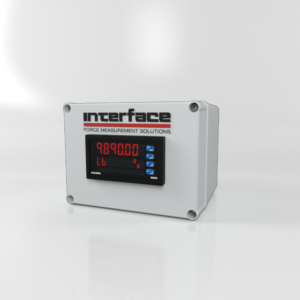

9825 General Purpose Indicator
The Model 9825 is a General Purpose Instrument that works with mV/V Sensors. It has an “easy to navigate” menu structure and fast speed up to 1kHz. This product has Analog Output, Peak Valley Monitoring, USB Connection to PC and 2 Relay Setpoints/Alarms. There is also Digital Input for Remote Reset and Tare. The display counts for this product are ±999,999 digits and the internal resolution for is 1,000,000 count, with greater than ±0.01% Nonlinearity.
Shop Quickship48™
Interface has hundreds of our leading force measurement products online, available for purchase now! Our QuickShip48 online store gives you options for a wide range of products readily available to ship as fast as two business days.
Not sure where to begin?
Interface has a large array of standard and custom products. The first place to start is to search for the criteria that best fits your requirements. We’ve added some filtering options to help. If you can’t find exactly what you need, contact us. We are here to help.
Interface supplies sensor technologies and supporting components to all types of industries. We provide load cells and load pins to launch rockets and build safe bridges. Our sensors are used on farming equipment, for drone delivery, to test automobiles and for industrial robots. We want you to see all the types of use cases, from aerospace to medical devices in over 100 different applications we created to demonstrate there are no limits.

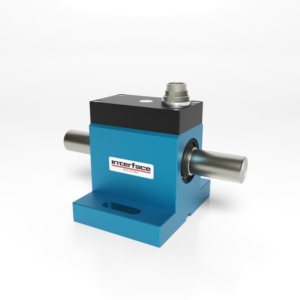

T23 LC Rotary Torque Transducer
Model T23 is an excellent choice for cost sensitive applications requiring good accuracy and resolution.

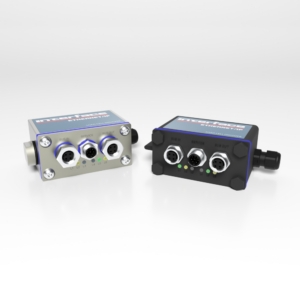

JB1100 4-Channel Advanced Signal Conditioning Transmitter/Indicator and Junction Box
Model JB104SS junction box is designed to connect and trim up to four load cells per board. It may also be used in combination with additional junction boxes through the use of the expansion port on the main board to connect multiple junction boxes. This will allow the summing of more than four load cells if needed. In its most basic form, this junction box provides a convenient method for wiring multiple load cells to a single indicator. Junction boxes are commonly used in weighing applications where a tank or scale is supported by more than one load cell. The individual load cell cables are wired into the junction box and then a single cable connects the junction box to the instrumentation.
The JB104SS is a small 4x6.5x1.75 inch stainless steel NEMA 4 rated box suitable for installations where space is limited. Standard configuration is for 2 to 4 load cells and provides a 20% trim range. Spring clips are used for the load cell connections.
9840TQ mV/V Input Torque Transducer Indicator
Model 9840TQ is a TEDS template 33 & 40 (3-point linearization) Plug & Play Ready! IEEE1451.4 compliant with read and write capability mV/V input torque transducer indicator with lbf-ft, lbf-in, N-m and mV/V measurement units.
Latest Blog Post
Interface Solutions are Designed and Built to Last
Interface was founded by a visionary and entrepreneur, Richard F. Caris, who believed that if you designed and built dependable, quality, and accurate products, you would also build a sustainable company that will last generations. His passion is what drives […]
Read MoreMore Blog PostsLatest App Note
Gaming Simulation Brake Pedal
A gaming company wants to switch from the standard racing pedals, to a load cell based pedal system for their racing simulation game. They want a wireless system that will measure the strength of the pressure received by the pedals that will...
Read MoreMore App NotesCustom Solutions
As the world leader in force measurement solutions…
We unquestionably design and build the highest quality precision load cell and torque transducer products in the industry. We provide standard, engineered-to-order and completely custom sensors and components for all types of use cases in aerospace and defense, energy markets, medical and healthcare, infrastructure, industrial automation and of course, test and measurement. Our team of industry expert application engineers are ready to help.
Educational and Training Videos
We know that by sharing our experience and expertise, we empower you. That is why we’ve built a library of resources to assist. Our Interface videos detail application use cases, product specs, how to guides and functionality of our large array of products and solutions. Tune in and watch our experts share what they know!
Interface Products
Interface products are the world’s best sensors for force and torque measurement.
