1200 and 1201 Series 3-Wire Amplified Load Cell Universal or Compression-Only

3-Wire Amplified Eccentric Load Compensated Tension & Compression

Get Your Free Quote

300 lbf to 100K lbf
1.5 kN to 450 kN

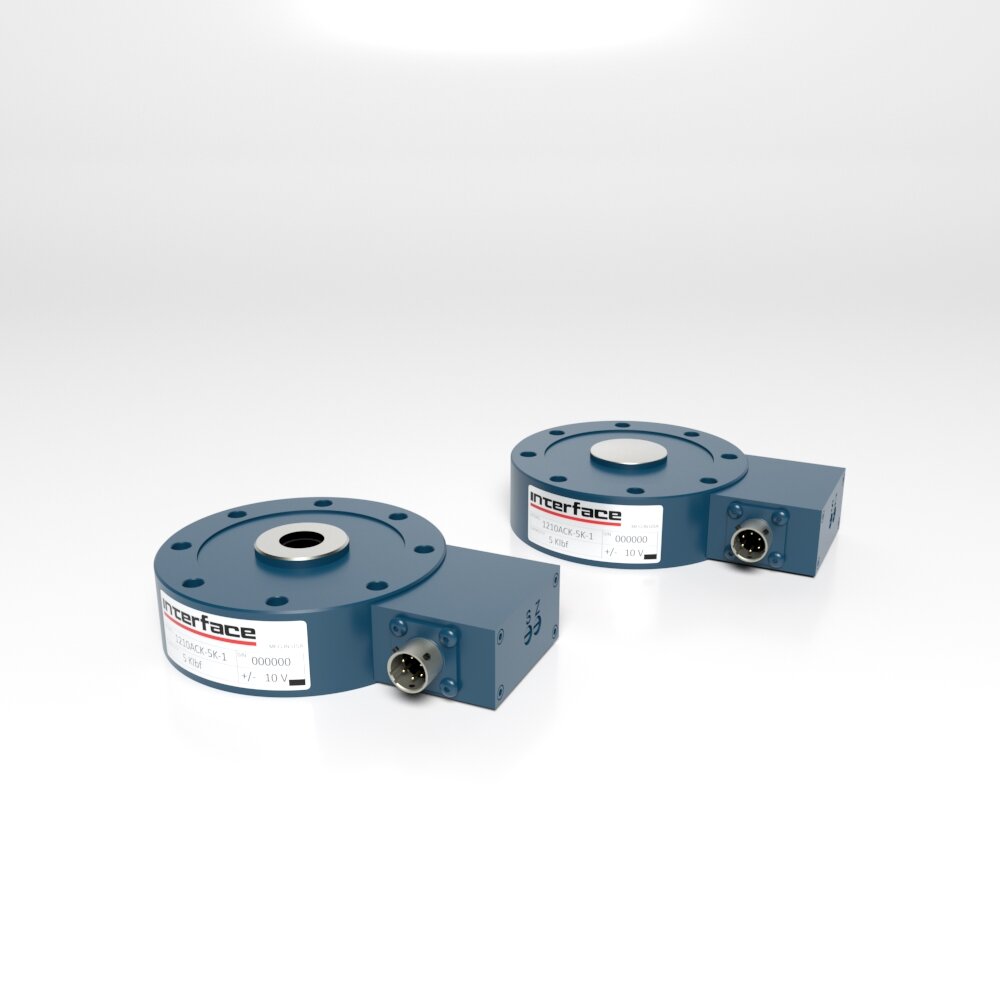

Interface Model 1200 and 1201 Series 3-Wire Amplified Load Cell Universal or Compression-Only is a low profile load cells and is the best in class which is a 3-wire internal amp with a choice of 4-20 mA, ±5V, ±10V, 0-5V, 0-10V. Compact in size with low deflection and eccentric load compensated.

Product Downloads

Interface Model 1200 and 1201 Series 3-Wire Amplified Load Cell Universal or Compression-Only is a low profile load cells and is the best in class which is a 3-wire internal amp with a choice of 4-20 mA, ±5V, ±10V, 0-5V, 0-10V. Compact in size with low deflection and eccentric load compensated.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

Categories: , , , , Tag:

Features and Benefits

Why the Interface model 1200 and 1201 Standard 3-Wire Amplified:

  • Load Cell is best in class
  • Proprietary Interface temperature
  • Compensated strain gages
  • Eccentric load compensated
  • Low deflection
  • Shunt calibration
  • Tension and compression
  • Compact size
  • 3-wire internal amp; choice of 4-20 mA, ±5V, ±10V, 0-5V, 0-10V

Options

  • Base (recommended)
  • Custom calibration
  • Multiple bridge
  • Special threads
  • Dual diaphragm

Connector Options

  • PT02E-10-6P Bayonet Connector

Accessories

  • Mating connector
  • Mating cable
  • Instrumentation
  • Loading hardware

Specifications

Specifications

International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Installation

Download Installation Instructions

Watch the Models 1000, 1100, 1200, and 3200 Series LowProfile Load Cell Typical Tension Installation Video

Watch the Models 1101, 1201, and 3201 Compression-Only Series LowProfile Load Cell Typical Installation Video

Dimensions

Dimensions - Ampilifer Housing

Amplifier Housing

International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions - 1200

1200 Series 3-Wire Amplified Universal Load Cell

International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions - 2101

1201 Series 3-Wire Amplified Compression-Only Load Cell

International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Connector Pin Diagram

CONNECTOR PINOUT
PIN FUNCTION
A + SUPPLY
B SUPPLY GROUND
C OUTPUT GROUND
D OUTPUT
E SHUNT CAL
F SHUNT CAL



AMPLIFIED OUTPUT OPTION
DASH NO. OUTPUT
1 +/- 10V BIPOLAR, TENSION UPSCALE
2 0-10V UNIPOLAR, TENSION UPSCALE
3 0-10V UNIPOLAR, COMPRESSION UPSCALE
5 +/- 5V BIPOLAR, TENSION UPSCALE
6 0-5V UNIPOLAR, TENSION UPSCALE
7 0-5V UNIPOLAR, COMPRESSION UPSCALE
8 4-20mA (+/- 8 mA) BIPOLAR, TENSION UPSCALE
9 4-20mA UNIPOLAR, TENSION UPSCALE
0 4-20mA UNIPOLAR, COMPRESSION UPSCALE

For more information visit Electrical Wiring Diagrams
