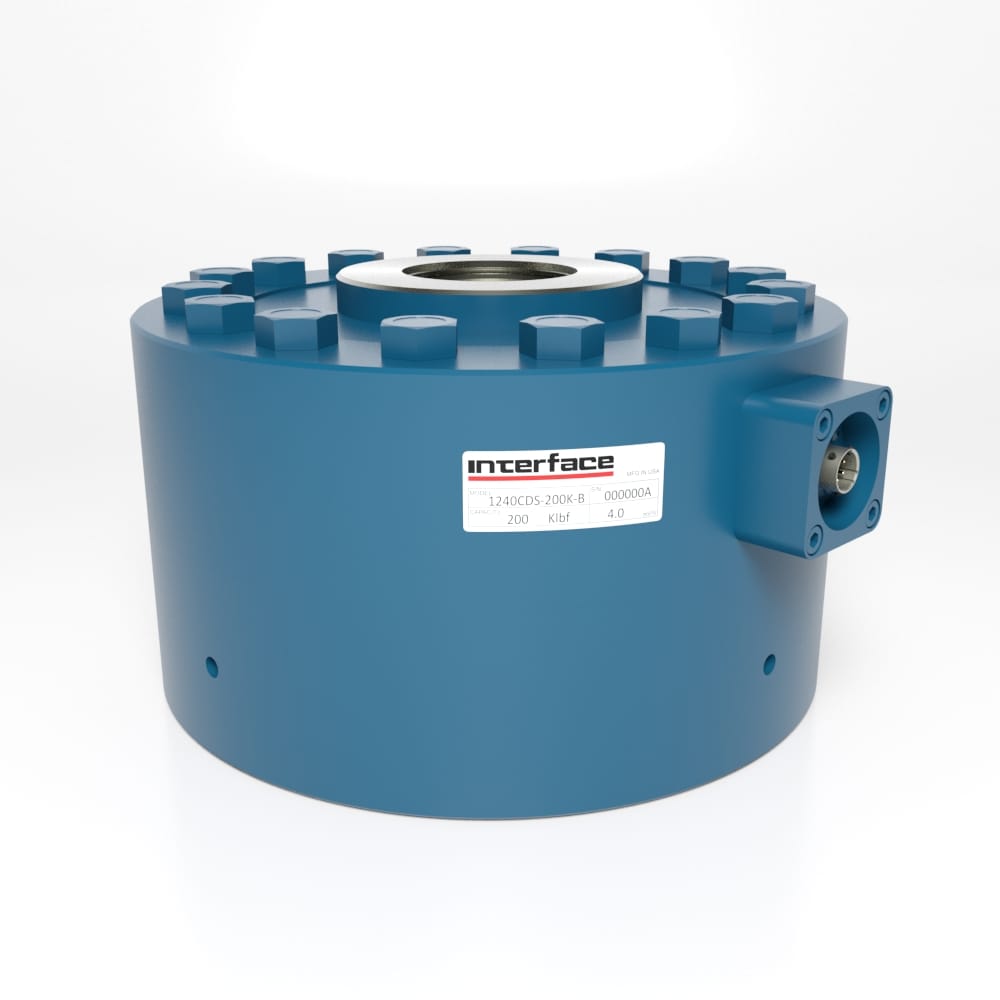

1200 High Capacity Standard Precision LowProfile Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
Model 1200 LowProfile® is Interface’s most popular low profile load cell. The 1200 has higher output than most competitive load cells and is designed for general purpose applications requiring a load cell compensated for eccentric loads. If you need to measure 1 pound (4.45N) or 2 million pounds (9000kN) of force, Interface load cells can do it. The gaged sensors in every load cell are individually inspected and tested, and certified to meet our rigid standards.
Options Available for 2nd, 3rd Bridge and Overload Protection.
Models 1240, 1244, 1252, 1260, 1280, and 1290 are available.
Model 1200 LowProfile® is Interface’s most popular low profile load cell. The 1200 has higher output than most competitive load cells and is designed for general purpose applications requiring a load cell compensated for eccentric loads. If you need to measure 1 pound (4.45N) or 2 million pounds (9000kN) of force, Interface load cells can do it. The gaged sensors in every load cell are individually inspected and tested, and certified to meet our rigid standards.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | INTEGRAL CABLE MODELS | |||
| PIN | 4 WIRE (C1) | 4 WIRE (C1 WITH TEDS OPTION) | COLOR | FUNCTION |
| A | + EXCITATION | + EXCITATION | RED | + EXCITATION |
| B | + SIGNAL | + SIGNAL | GREEN | + SIGNAL |
| C | - SIGNAL | - SIGNAL | WHITE | - SIGNAL |
| D | - EXCITATION | - EXCITATION | BLACK | - EXCITATION |
| E | N/C | TEDS DATA | WHITE/RED | + SENSE |
| F | N/C | TEDS GROUND | WHITE/BLACK | - SENSE |
| WHITE/YELLOW | SHUNT CAL | |||
| SHIELD | N/C | |||
| ALL READ UPSCALE IN TENSION | ||||
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| A | 22 AWG | 7 | BRAID | 10 FT (3 M) | HEAVY-DUTY, PVC JACKET |
For more information visit Electrical Wiring Diagrams
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Configurations | 1240AJ-200K, 1244CDS-270K-B, 1252CDS-400K-B, 1260CDS-600K-B, 1280CDS-1000K-B, 1290CDS-2000K-B |
Configuration Weight Range: lbs: 68, 70, 100, 200, 450, 860 kg: 30.9, 31.8, 45, 90, 205, 390
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | INTEGRAL CABLE MODELS | |||
| PIN | 4 WIRE (C1) | 4 WIRE (C1 WITH TEDS OPTION) | COLOR | FUNCTION |
| A | + EXCITATION | + EXCITATION | RED | + EXCITATION |
| B | + SIGNAL | + SIGNAL | GREEN | + SIGNAL |
| C | - SIGNAL | - SIGNAL | WHITE | - SIGNAL |
| D | - EXCITATION | - EXCITATION | BLACK | - EXCITATION |
| E | N/C | TEDS DATA | WHITE/RED | + SENSE |
| F | N/C | TEDS GROUND | WHITE/BLACK | - SENSE |
| WHITE/YELLOW | SHUNT CAL | |||
| SHIELD | N/C | |||
| ALL READ UPSCALE IN TENSION | ||||
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| A | 22 AWG | 7 | BRAID | 10 FT (3 M) | HEAVY-DUTY, PVC JACKET |
For more information visit Electrical Wiring Diagrams
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Configurations | 1240AJ-200K, 1244CDS-270K-B, 1252CDS-400K-B, 1260CDS-600K-B, 1280CDS-1000K-B, 1290CDS-2000K-B |
Configuration Weight Range: lbs: 68, 70, 100, 200, 450, 860 kg: 30.9, 31.8, 45, 90, 205, 390
| Short Description | Sku | Price |
|---|---|---|
| Model 1200 High Capacity Standard Precision LowProfile Load Cell 200K Capacity, 10-foot Integral Cable with No Installed Base | 1240AJ-200K | $ 3,860 |
| Model 1200 High Capacity Standard Precision LowProfile Load Cell 270K Capacity, PT02E-10-6P Bayonet Connector and Connector Protector with Base | 1244CDS-270K-B | $ 7,085 |
| Model 1200 High Capacity Standard Precision LowProfile Load Cell 400K Capacity, PT02E-10-6P Bayonet Connector and Connector Protector with Base | 1252CDS-400K-B | $ 10,245 |
| Model 1200 High Capacity Standard Precision LowProfile Load Cell 600K Capacity, PT02E-10-6P Bayonet Connector and Connector Protector with Base | 1260CDS-600K-B | $ 18,475 |
| Model 1200 High Capacity Standard Precision LowProfile Load Cell 2000K Capacity, PT02E-10-6P Bayonet Connector and Connector Protector with Base | 1290CDS-2000K-B | $ 77,480 |
| Model 1200 High Capacity Standard Precision LowProfile Load Cell 1000K Capacity, PT02E-10-6P Bayonet Connector and Connector Protector with Base | 1280CDS-1000K-B | $ 44,270 |
