Features and Benefits
- Typically used in higher force applications.
- Capacities to 1million lbf (4450kN)
- Performance to ±0.15% FS
- Compact size
- Metric and English models
- Screw in Handles

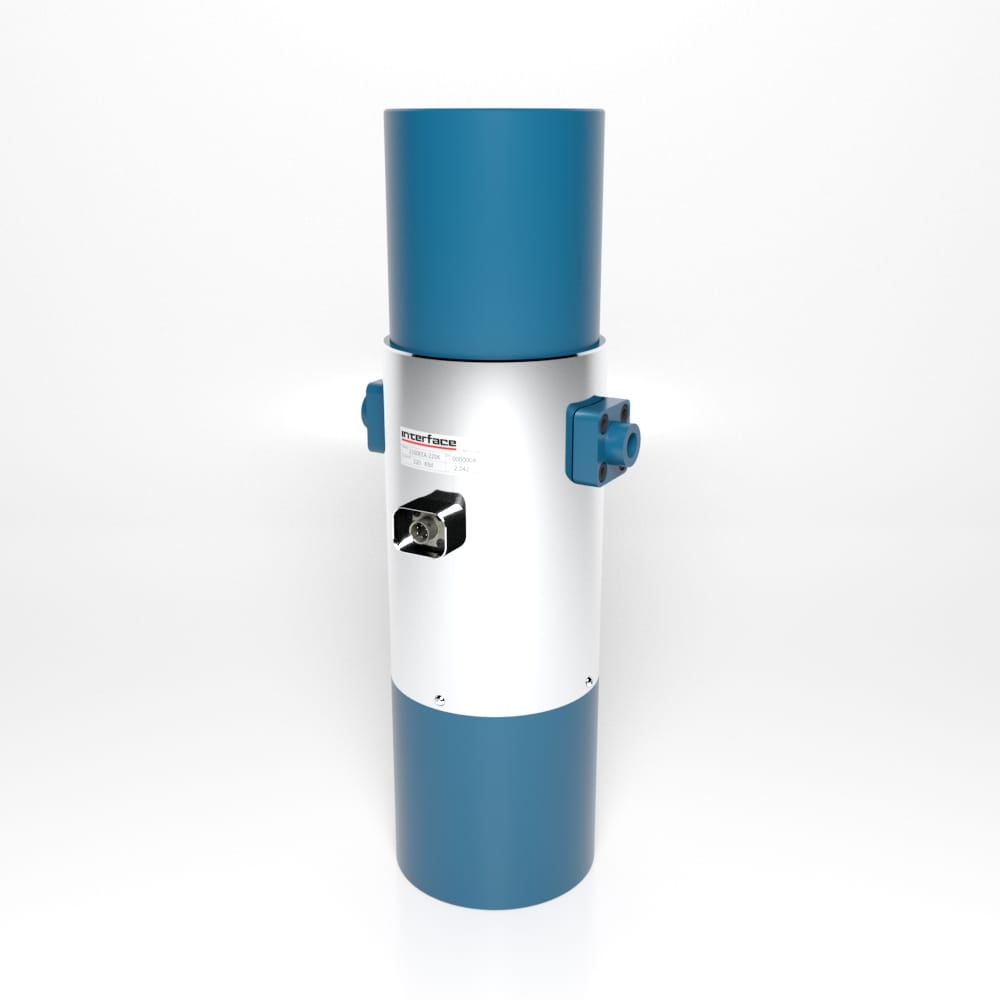

2160 High Capacity Column Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
Model 2160 is a column load cell typically used in higher force applications.
Options Available for 2nd Bridge.
Model 2160 is a column load cell typically used in higher force applications.
Options Available for 2nd Bridge.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Weight | 0.00 lbs |
---|---|
Dimensions | 5.50 × 5.50 × 16.50 in |
Configurations | 2160-1000K, 2160-300K, 2160-400K, 2160-500K, 2160-600K, 2160-700K, 2160XXX-1000K, 2160XXX-300K, 2160XXX-400K, 2160XXX-500K, 2160XXX-600K, 2160XXX-700K |
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Weight | 0.00 lbs |
---|---|
Dimensions | 5.50 × 5.50 × 16.50 in |
Configurations | 2160-1000K, 2160-300K, 2160-400K, 2160-500K, 2160-600K, 2160-700K, 2160XXX-1000K, 2160XXX-300K, 2160XXX-400K, 2160XXX-500K, 2160XXX-600K, 2160XXX-700K |
Short Description | Sku | Price |
---|---|---|
Model 2160, 300K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160-300K | $ 5,800.00 |
Model 2160, 400K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160-400K | $ 6,380.00 |
Model 2160, 500K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160-500K | $ 6,380.00 |
Model 2160, 600K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160-600K | $ 12,370.00 |
Model 2160, 700K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160-700K | $ 12,370.00 |
Model 2160, 1,000K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160-1000K | $ 18,895.00 |
Model 2160, 300K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160EFW-300K | $ 6,380.00 |
Model 2160, 600K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160EFW-600K | $ 22,700.00 |
Model 2160, 700K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160EFW-700K | $ 12,370.00 |
Model 2160, 1,000K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160EFW-1000K | $ 30,780.00 |
Model 2160, 400K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160EFW-400K | $ 0.00 |
Model 2160, 500K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2160EFW-500K | $ 0.00 |
