2200 Calibration Column Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

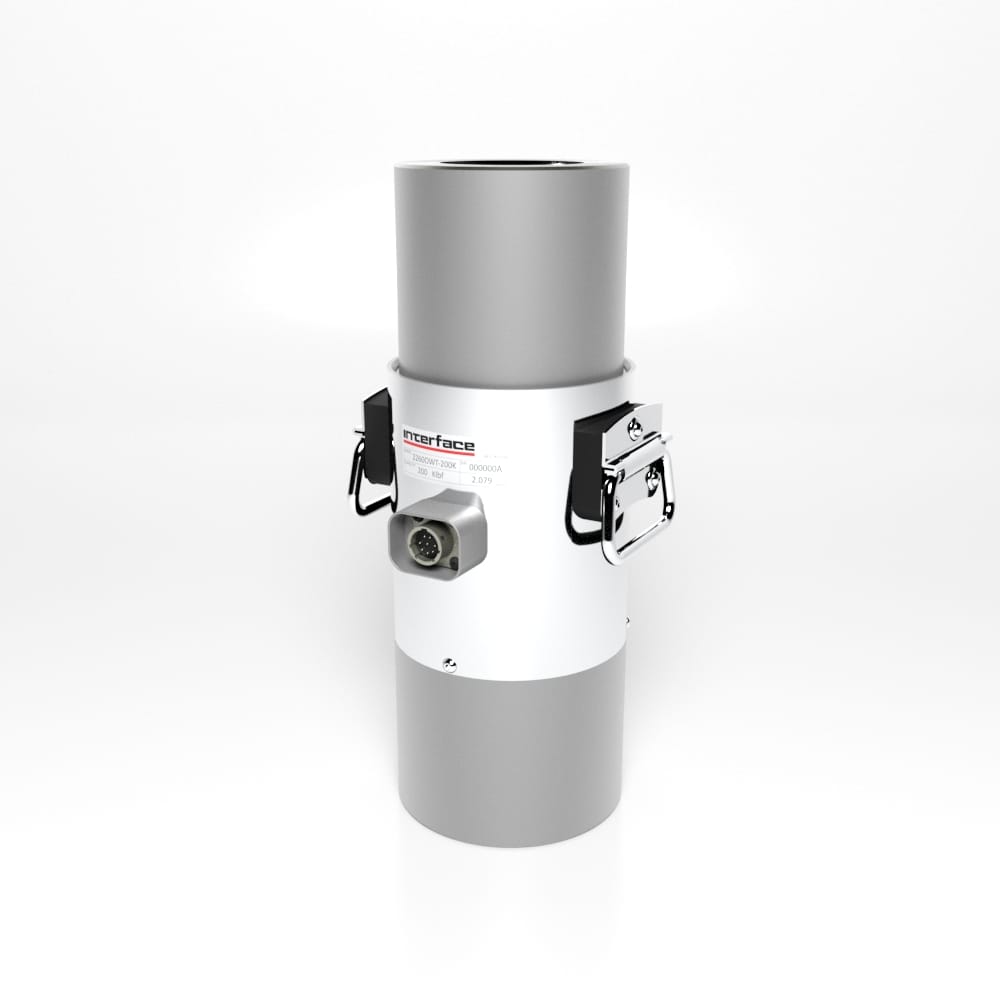

Model 2200 is a Calibration Grade Column Load Cell that is lightweight and portable for use in the field. This product is also excellent for performing calibrations in the lab as well.
Models 2230 and 2240 are available.
Model 2200 is a Calibration Grade Column Load Cell that is lightweight and portable for use in the field. This product is also excellent for performing calibrations in the lab as well.
Models 2230 and 2240 are available.
International System of Units (SI) dimensions and capacities are provided for International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | - SENSE |
| F | +SENSE |
| TENSION UPSCALE | |
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | - SENSE |
| F | + SENSE |
| G | - SHUNT CAL |
| H | IDENT R |
| TENSION UPSCALE | |
| Dimensions | 3.00 × 3.00 × 10.10 in |
|---|
International System of Units (SI) dimensions and capacities are provided for International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | - SENSE |
| F | +SENSE |
| TENSION UPSCALE | |
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | - SENSE |
| F | + SENSE |
| G | - SHUNT CAL |
| H | IDENT R |
| TENSION UPSCALE | |
| Dimensions | 3.00 × 3.00 × 10.10 in |
|---|
| Short Description | Sku | Price |
|---|---|---|
| Model 2230, 100K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2230-100K | $ 6460 |
| Model 2230, 100K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2230XXX-100K | $ 6460 |
| Model 2240, 200K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2240XXX-200K | $ 9135 |
| Model 2240, 200K lbf Capacity, 6 Pin Bayonet Type Connector with Protector, with Screw-In Handles | 2240-200K | $ 9135 |
