Features and Benefits
- Proprietary Interface temperature compensated strain gages
- Hermetically sealed cell
- Performance to 0.03%
- High output – to 4 mV/V
- Eccentric load compensated
- ±0.0008% /˚F – max temperature effect on output
- Low deflection

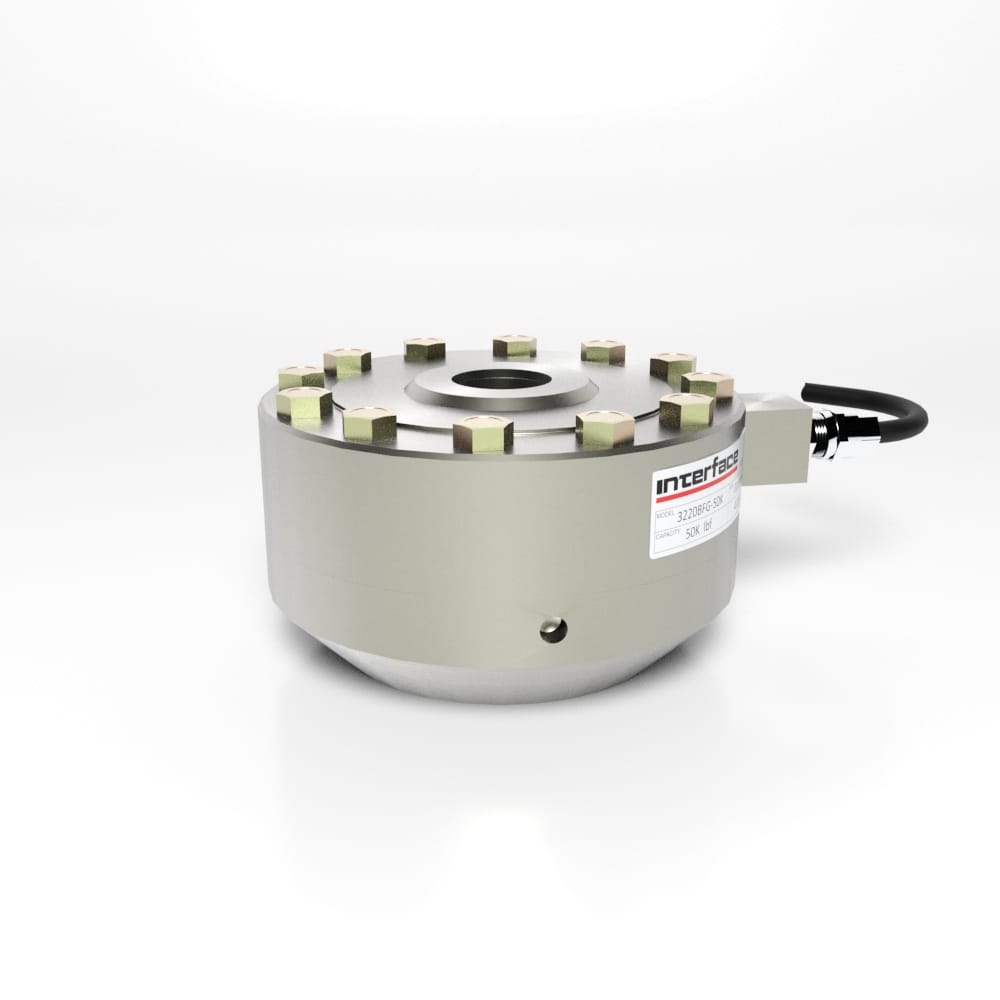

3200 Precision Stainless Steel Universal Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
3200 Precision Stainless Steel Universal Load Cell
Hermetically Sealed LowProfile®
2.5K lbf to 100K lbf
12.5 kN to 445 kN
The 3200 has all the features of the Interface Model 1200 LowProfile® and in addition it is stainless steel and hermetically sealed for harsh applications.
Options Available for 2nd Bridge and Overload Protection.
Models 3210, 3220, and 3232 are available.
Product Downloads
The 3200 has all the features of the Interface Model 1200 LowProfile® and in addition it is stainless steel and hermetically sealed for harsh applications.
Options Available for 2nd Bridge and Overload Protection.
Models 3210, 3220, and 3232 are available.
- Features and Benefits
- Specifications
- Installation
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CABLE CONNECTION | |
| COLOR | FUNCTION |
| RED | + EXCITATION |
| GREEN | + SIGNAL |
| WHITE | - SIGNAL |
| BLACK | - EXCITATION |
| SHIELD | N/C |
| TENSION UPSCALE | |
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| B | 22 AWG | 4 | BRAID | 20 FT (6 M) | HEAVY-DUTY, POLYURETHANE JACKET |
For more information visit Electrical Wiring Diagrams
Additional Information
| Dimensions | 413.00 × 413.00 × 2.51 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Installation
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Proprietary Interface temperature compensated strain gages
- Hermetically sealed cell
- Performance to 0.03%
- High output – to 4 mV/V
- Eccentric load compensated
- ±0.0008% /˚F – max temperature effect on output
- Low deflection
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CABLE CONNECTION | |
| COLOR | FUNCTION |
| RED | + EXCITATION |
| GREEN | + SIGNAL |
| WHITE | - SIGNAL |
| BLACK | - EXCITATION |
| SHIELD | N/C |
| TENSION UPSCALE | |
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| B | 22 AWG | 4 | BRAID | 20 FT (6 M) | HEAVY-DUTY, POLYURETHANE JACKET |
For more information visit Electrical Wiring Diagrams
Additional Information
| Dimensions | 413.00 × 413.00 × 2.51 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model 3200 Series Stainless Steel Low Profile Load Cell 2.5K Capacity, Hermetically Sealed, 20-foot Integral Cable with No Installed Base | 3210BFG-2.5K | $1,950.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 5K Capacity, Hermetically Sealed, 20-foot Integral Cable with No Installed Base | 3210BFG-5K | $1,950.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 10K Capacity, Hermetically Sealed, 20-foot Integral Cable with No Installed Base | 3210BFG-10K | $1,950.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 25K Capacity, Hermetically Sealed, 20-foot Integral Cable with No Installed Base | 3220BFG-25K | $2,745.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 50K Capacity, Hermetically Sealed, 20-foot Integral Cable with No Installed Base | 3220BFG-50K | $2,745.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 100K Capacity, Hermetically Sealed, 20-foot Integral Cable with No Installed Base | 3232BFG-100K | $4,330.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 2.5K Capacity, Hermetically Sealed, 20-foot Integral Cable with Installed Base | 3210BFG-2.5K-B | $2,250.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 5K Capacity, Hermetically Sealed, 20-foot Integral Cable with Installed Base | 3210BFG-5K-B | $2,875.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 10K Capacity, Hermetically Sealed, 20-foot Integral Cable with Installed Base | 3210BFG-10K-B | $2,250.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 25K Capacity, Hermetically Sealed, 20-foot Integral Cable with Installed Base | 3220BFG-25K-B | $3,445.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 50K Capacity, Hermetically Sealed, 20-foot Integral Cable with Installed Base | 3220BFG-50K-B | $3,435.00 |
| Model 3200 Series Stainless Steel Low Profile Load Cell 100K Capacity, Hermetically Sealed, 20-foot Integral Cable with Installed Base | 3232BFG-100K-B | $5,640.00 |
× ![]()
