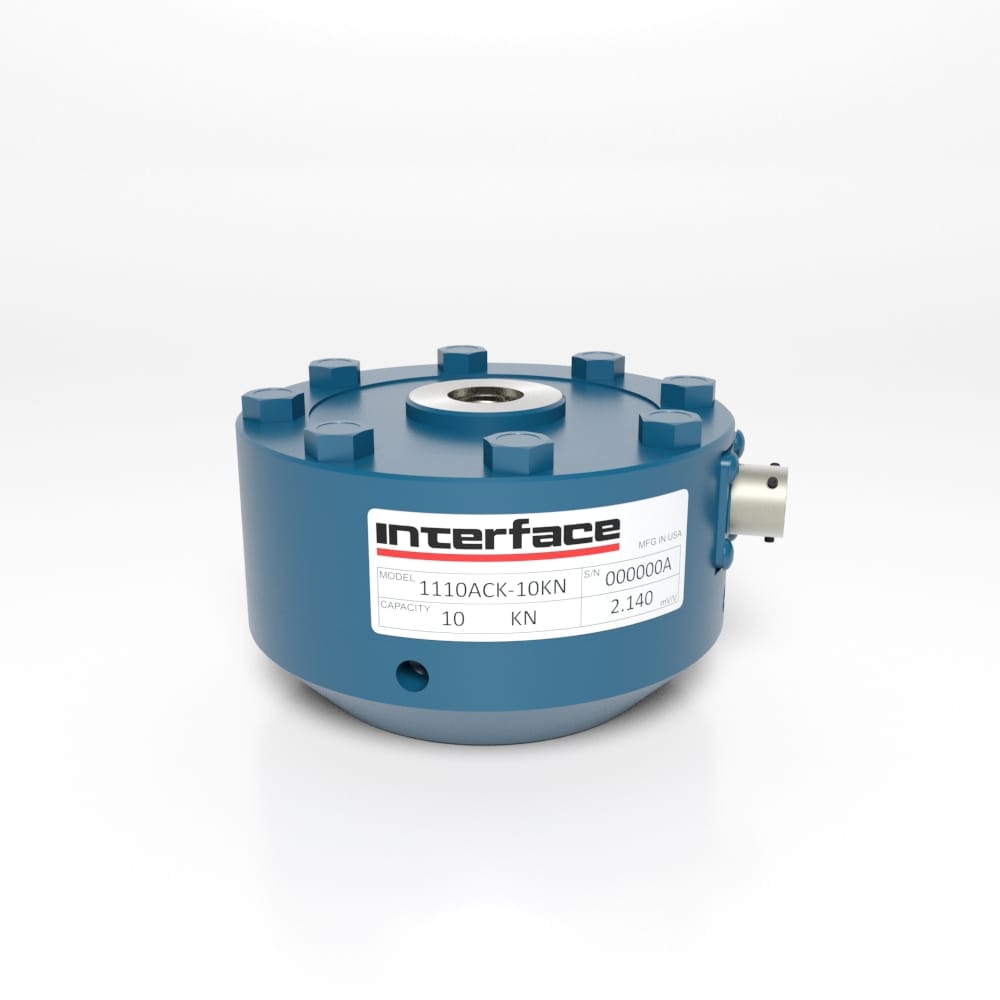

1100 Ultra Precision Universal LowProfile Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
Model 1100 is selected from the best low profile load cells and has very low nonlinearity, hysteresis, eccentric load sensitivity, and temperature sensitivity. The gaged sensors in every model 1100 load cell are individually inspected and tested, and certified to meet our rigid standards. Formed from a unique alloy, our gages provide very low resistivity, for high signal-to-noise ratios for demanding applications.
Options Available for 2nd, 3rd Bridge and Overload Protection.
Models 1110, 1120, 1132, and 1140 are available.
Model 1100 is selected from the best low profile load cells and has very low nonlinearity, hysteresis, eccentric load sensitivity, and temperature sensitivity. The gaged sensors in every model 1100 load cell are individually inspected and tested, and certified to meet our rigid standards. Formed from a unique alloy, our gages provide very low resistivity, for high signal-to-noise ratios for demanding applications.
Options Available for 2nd, 3rd Bridge and Overload Protection.
Models 1110, 1120, 1132, and 1140 are available.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | INTEGRAL CABLE MODELS | |||
| PIN | 4 WIRE (C1) | 4 WIRE (C1 WITH TEDS OPTION) | COLOR | FUNCTION |
| A | + EXCITATION | + EXCITATION | RED | + EXCITATION |
| B | + SIGNAL | + SIGNAL | GREEN | + SIGNAL |
| C | - SIGNAL | - SIGNAL | WHITE | - SIGNAL |
| D | - EXCITATION | - EXCITATION | BLACK | - EXCITATION |
| E | N/C | TEDS DATA | WHITE/RED | + SENSE |
| F | N/C | TEDS GROUND | WHITE/BLACK | - SENSE |
| WHITE/YELLOW | SHUNT CAL | |||
| SHIELD | N/C | |||
| ALL READ UPSCALE IN TENSION | ||||
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| A | 22 AWG | 7 | BRAID | 10 FT (3 M) | HEAVY-DUTY, PVC JACKET |
| Dimensions | 4.13 × 4.13 × 2.51 in |
|---|
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | INTEGRAL CABLE MODELS | |||
| PIN | 4 WIRE (C1) | 4 WIRE (C1 WITH TEDS OPTION) | COLOR | FUNCTION |
| A | + EXCITATION | + EXCITATION | RED | + EXCITATION |
| B | + SIGNAL | + SIGNAL | GREEN | + SIGNAL |
| C | - SIGNAL | - SIGNAL | WHITE | - SIGNAL |
| D | - EXCITATION | - EXCITATION | BLACK | - EXCITATION |
| E | N/C | TEDS DATA | WHITE/RED | + SENSE |
| F | N/C | TEDS GROUND | WHITE/BLACK | - SENSE |
| WHITE/YELLOW | SHUNT CAL | |||
| SHIELD | N/C | |||
| ALL READ UPSCALE IN TENSION | ||||
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| A | 22 AWG | 7 | BRAID | 10 FT (3 M) | HEAVY-DUTY, PVC JACKET |
| Dimensions | 4.13 × 4.13 × 2.51 in |
|---|
| Short Description | Sku | Price |
|---|---|---|
| Model 1100 Series Ultra Precision Low Profile Load Cell 200K Capacity with PC04E-10-6P Screw-type Connector | 1140AF-200K | $ 9385 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 900KN Capacity with PC04E-10-6P Screw-type Connector | 1140AF-900KN | $ 8785 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 300 lbf Capacity with 10-foot Integral Cable | 1110AJ-300 | $ 1950 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 500 lbf Capacity with 10-foot Integral Cable | 1110AJ-500 | $ 2150 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 1K Capacity with 10-foot Integral Cable | 1110AJ-1K | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 2K Capacity with 10-foot Integral Cable | 1110AJ-2K | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 3K Capacity with 10-foot Integral Cable | 1110AJ-3K | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 5K Capacity with 10-foot Integral Cable | 1110AJ-5K | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 10K Capacity with 10-foot Integral Cable | 1110AJ-10K | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 25K Capacity with 10-foot Integral Cable | 1120AJ-25K | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 50K Capacity with 10-foot Integral Cable | 1120AJ-50K | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 100K Capacity with 10-foot Integral Cable | 1132AJ-100K | $ 6565 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 200K Capacity with 10-foot Integral Cable | 1140AJ-200K | $ 8725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 1.5KN Capacity with 10-foot Integral Cable | 1110AJ-1.5KN | $ 2150 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 2.5KN Capacity with 10-foot Integral Cable | 1110AJ-2.5KN | $ 2150 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 5KN Capacity with 10-foot Integral Cable | 1110AJ-5KN | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 10KN Capacity with 10-foot Integral Cable | 1110AJ-10KN | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 25KN Capacity with 10-foot Integral Cable | 1110AJ-25KN | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 50KN Capacity with 10-foot Integral Cable | 1110AJ-50KN | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 100KN Capacity with 10-foot Integral Cable | 1120AJ-100KN | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 250KN Capacity with 10-foot Integral Cable | 1120AJ-250KN | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 450KN Capacity with 10-foot Integral Cable | 1132AJ-450KN | $ 6565 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 900KN Capacity with 10-foot Integral Cable | 1140AJ-900KN | $ 8270 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 300 lbf Capacity with PC04E-10-6P Screw-type Connector | 1110AF-300 | $ 2215 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 500 lbf Capacity with PC04E-10-6P Screw-type Connector | 1110AF-500 | $ 2215 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 1K Capacity with PC04E-10-6P Screw-type Connector | 1110AF-1K | $ 1785 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 2K Capacity with PC04E-10-6P Screw-type Connector | 1110AF-2K | $ 1785 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 3K Capacity with PC04E-10-6P Screw-type Connector | 1110AF-3K | $ 1785 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 5K Capacity with PC04E-10-6P Screw-type Connector | 1110AF-5K | $ 2075 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 10K Capacity with PC04E-10-6P Screw-type Connector | 1110AF-10K | $ 2075 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 25K Capacity with PC04E-10-6P Screw-type Connector | 1120AF-25K | $ 3550 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 50K Capacity with PC04E-10-6P Screw-type Connector | 1120AF-50K | $ 3550 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 100K Capacity with PC04E-10-6P Screw-type Connector | 1132AF-100K | $ 6565 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 1.5KN Capacity with PC04E-10-6P Screw-type Connector | 1110AF-1.5KN | $ 2215 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 2.5KN Capacity with PC04E-10-6P Screw-type Connector | 1110AF-2.5KN | $ 2215 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 5KN Capacity with PC04E-10-6P Screw-type Connector | 1110AF-5KN | $ 1785 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 10KN Capacity with PC04E-10-6P Screw-type Connector | 1110AF-10KN | $ 1785 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 25KN Capacity with PC04E-10-6P Screw-type Connector | 1110AF-25KN | $ 2075 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 50KN Capacity with PC04E-10-6P Screw-type Connector | 1110AF-50KN | $ 2075 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 100KN Capacity with PC04E-10-6P Screw-type Connector | 1120AF-100KN | $ 3550 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 250KN Capacity with PC04E-10-6P Screw-type Connector | 1120AF-250KN | $ 3550 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 450KN Capacity with PC04E-10-6P Screw-type Connector | 1132AF-450KN | $ 6565 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 300 lbf Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-300 | $ 2150 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 500 lbf Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-500 | $ 2150 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 1K Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-1K | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 2K Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-2K | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 3K Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-3K | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 5K Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-5K | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 10K Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-10K | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 25K Capacity with PT02E-10-6P Bayonet-type Connector | 1120ACK-25K | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 50K Capacity with PT02E-10-6P Bayonet-type Connector | 1120ACK-50K | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 100K Capacity with PT02E-10-6P Bayonet-type Connector | 1132ACK-100K | $ 6565 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 200K Capacity with PT02E-10-6P Bayonet-type Connector | 1140ACK-200K | $ 8725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 1.5KN Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-1.5KN | $ 2150 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 2.5KN Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-2.5KN | $ 2150 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 5KN Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-5KN | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 10KN Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-10KN | $ 1725 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 25KN Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-25KN | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 50KN Capacity with PT02E-10-6P Bayonet-type Connector | 1110ACK-50KN | $ 2015 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 100KN Capacity with PT02E-10-6P Bayonet-type Connector | 1120ACK-100KN | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 250KN Capacity with PT02E-10-6P Bayonet-type Connector | 1120ACK-250KN | $ 3490 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 450KN Capacity with PT02E-10-6P Bayonet-type Connector | 1132ACK-450KN | $ 6565 |
| Model 1100 Series Ultra Precision Low Profile Load Cell 900KN Capacity with PT02E-10-6P Bayonet-type Connector | 1140ACK-900KN | $ 8725 |
