Features and Benefits
- Proprietary Interface temperature compensated strain gages
- Stainless steel construction
- Welded diaphragm
- Tension and compression
- Compact size
- Counter-bored mounting holes in 10K lbf model

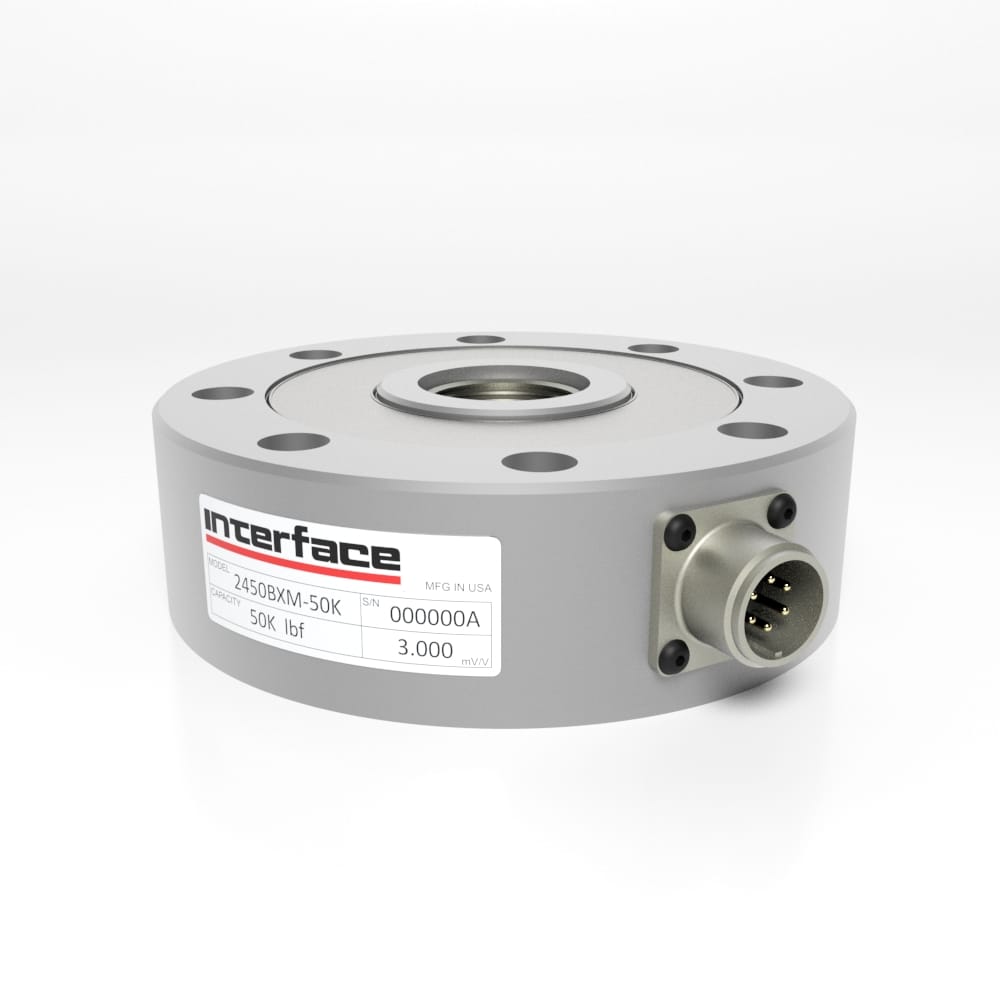

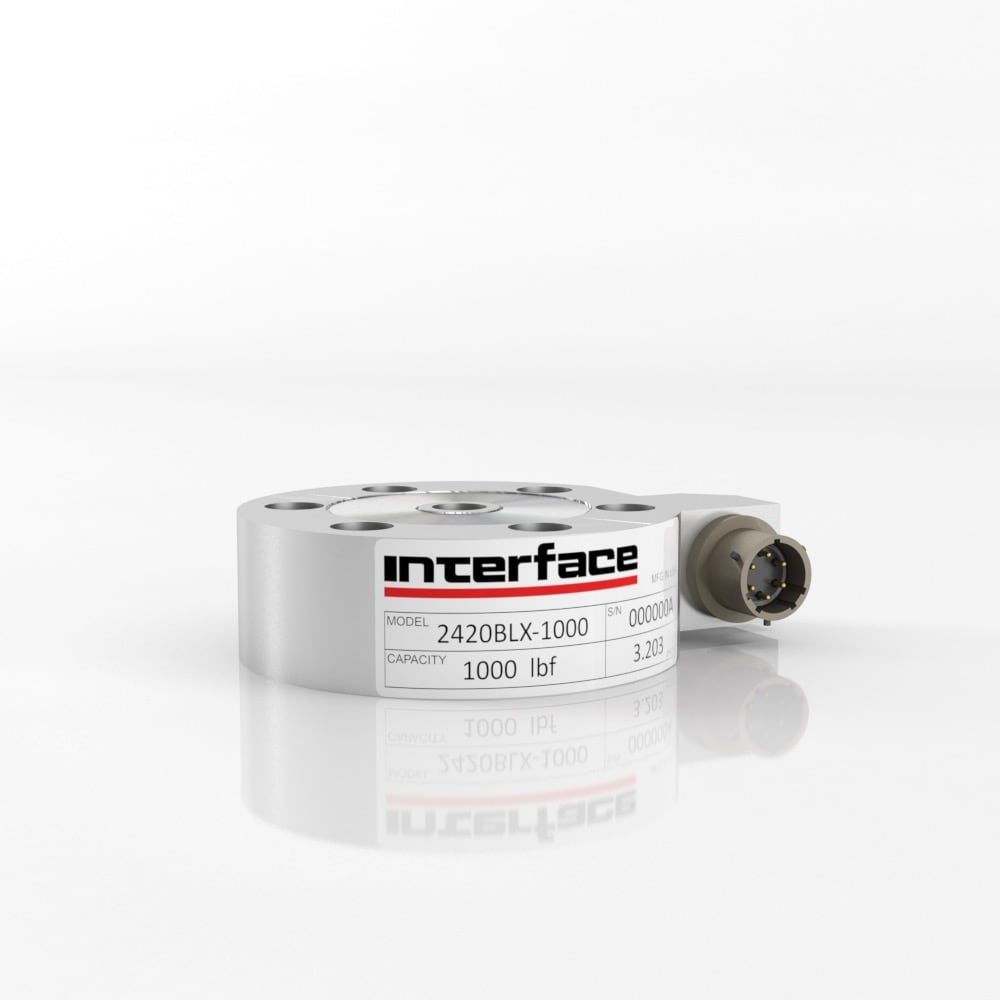

2400 Standard Stainless Steel High Capacity Universal Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
The 2400 is a stainless steel load cell designed for applications requiring a hermetic seal for use in general industrial applications.
Models 2440 and 2450 are available.
The 2400 is a stainless steel load cell designed for applications requiring a hermetic seal for use in general industrial applications.
Models 2440 and 2450 are available.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Weight | 6.00 lbs |
---|---|
Dimensions | 5.50 × 5.50 × 3.55 in |
Configurations | 2440BXM-10K, 2440BXM-10K-B, 2440EQL-10K, 2440EQL-15K, 2450BXM-20K, 2450BXM-20K-B, 2450BXM-50K, 2450BXM-50K-B, 2450EQL-20K, 2450EQL-30K, 2450EQL-50K |
Configuration Weight Range: lbs: 6, 9 kg: 2.7, 4.1
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Weight | 6.00 lbs |
---|---|
Dimensions | 5.50 × 5.50 × 3.55 in |
Configurations | 2440BXM-10K, 2440BXM-10K-B, 2440EQL-10K, 2440EQL-15K, 2450BXM-20K, 2450BXM-20K-B, 2450BXM-50K, 2450BXM-50K-B, 2450EQL-20K, 2450EQL-30K, 2450EQL-50K |
Configuration Weight Range: lbs: 6, 9 kg: 2.7, 4.1
Short Description | Sku | Price |
---|---|---|
Model 2400 Series Standard Stainless Steel Load Cell 10K Capacity, MS3102E-14S-6P Connector with No Installed Base | 2440BXM-10K | $ 1,245.00 |
Model 2400 Series Standard Stainless Steel Load Cell 10K Capacity, 90 Degree Connector Doghouse with MS3102E-14S-6P Connector | 2440EQL-10K | $ 1,440.00 |
Model 2400 Series Standard Stainless Steel Load Cell 10K Capacity, MS3102E-14S-6P Connector with Installed Base | 2440BXM-10K-B | $ 1,780.00 |
Model 2400 Series Standard Stainless Steel Load Cell 15K Capacity, 90 Degree Connector Doghouse with MS3102E-14S-6P Connector | 2440EQL-15K | $ 1,440.00 |
Model 2400 Series Standard Stainless Steel Load Cell 20K Capacity, 90 Degree Connector Doghouse with MS3102E-14S-6P Connector | 2450EQL-20K | $ 1,945.00 |
Model 2400 Series Standard Stainless Steel Load Cell 20K Capacity, MS3102E-14S-6P Connector with No Installed Base | 2450BXM-20K | $ 1,645.00 |
Model 2400 Series Standard Stainless Steel Load Cell 20K Capacity, MS3102E-14S-6P Connector with Installed Base | 2450BXM-20K-B | $ 2,265.00 |
Model 2400 Series Standard Stainless Steel Load Cell 30K Capacity, 90 Degree Connector Doghouse with MS3102E-14S-6P Connector | 2450EQL-30K | $ 1,945.00 |
Model 2400 Series Standard Stainless Steel Load Cell 50K Capacity, MS3102E-14S-6P Connector with No Installed Base | 2450BXM-50K | $ 1,645.00 |
Model 2400 Series Standard Stainless Steel Load Cell 50K Capacity, 90 Degree Connector Doghouse with MS3102E-14S-6P Connector | 2450EQL-50K | $ 1,945.00 |
Model 2400 Series Standard Stainless Steel Load Cell 50K Capacity, MS3102E-14S-6P Connector with Installed Base | 2450BXM-50K-B | $ 2,265.00 |
