Features and Benefits
- Proprietary Interface temperature compensated strain gages
- Overload protected in both tension and compression
- Safe overload to 10X capacity
- High performance
- Low creep
- 1 to 450 lbf
Order QuickShip48™ Now

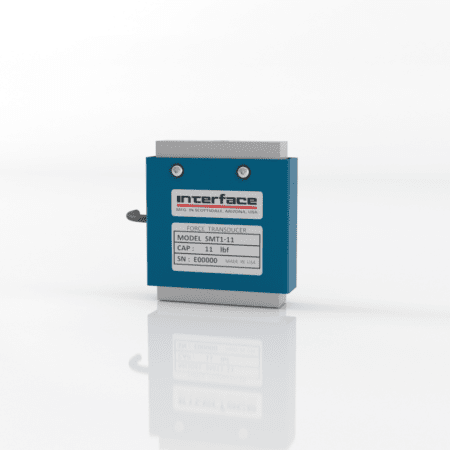

SMT Overload Protected S-Type Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
Model SMT is ideal for low capacity applications where loads cells are often inadvertently overloaded. The SMT has internal mechanical stops which prevents overloads for up to 10 times the rated capacity.
Model SMT is ideal for low capacity applications where loads cells are often inadvertently overloaded. The SMT has internal mechanical stops which prevents overloads for up to 10 times the rated capacity.
Order QuickShip48™ Now
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Weight | 0.4 lbs |
---|---|
Dimensions | 2.33 × 0.65 × 2.48 in |
Configuration | SMT1-1.1, SMT1-100N, SMT1-10N, SMT1-11, SMT1-2.2, SMT1-22, SMT1-250N, SMT1-25N, SMT1-5.6, SMT1-50N, SMT1-56, SMT1-5N, SMT2-1000N, SMT2-112, SMT2-225, SMT2-450 |
Configuration Weight Range: lbs: 0.26, 0.6 kg: 0.12, 0.27
Order QuickShip48™ Now
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Weight | 0.4 lbs |
---|---|
Dimensions | 2.33 × 0.65 × 2.48 in |
Configuration | SMT1-1.1, SMT1-100N, SMT1-10N, SMT1-11, SMT1-2.2, SMT1-22, SMT1-250N, SMT1-25N, SMT1-5.6, SMT1-50N, SMT1-56, SMT1-5N, SMT2-1000N, SMT2-112, SMT2-225, SMT2-450 |
Configuration Weight Range: lbs: 0.26, 0.6 kg: 0.12, 0.27
Short Description | Sku | Price |
---|---|---|
Model SMT Overload Protected S-type Load Cell 2.2 lbf Capacity with 5-foot Integral Cable | SMT1-2.2 | $ 650.00 |
Model SMT Overload Protected S-type Load Cell 5.6 lbf Capacity with 5-foot Integral Cable | SMT1-5.6 | $ 650.00 |
Model SMT Overload Protected S-type Load Cell 11 lbf Capacity with 5-foot Integral Cable | SMT1-11 | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 22 lbf Capacity with 5-foot Integral Cable | SMT1-22 | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 56 lbf Capacity with 5-foot Integral Cable | SMT1-56 | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 5N Capacity with 5-foot Integral Cable | SMT1-5N | $ 650.00 |
Model SMT Overload Protected S-type Load Cell 10N Capacity with 5-foot Integral Cable | SMT1-10N | $ 650.00 |
Model SMT Overload Protected S-type Load Cell 25N Capacity with 5-foot Integral Cable | SMT1-25N | $ 650.00 |
Model SMT Overload Protected S-type Load Cell 50N Capacity with 5-foot Integral Cable | SMT1-50N | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 100N Capacity with 5-foot Integral Cable | SMT1-100N | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 250N Capacity with 5-foot Integral Cable | SMT1-250N | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 112 lbf Capacity with 5-foot Integral Cable | SMT2-112 | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 225 lbf Capacity with 5-foot Integral Cable | SMT2-225 | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 450 lbf Capacity with 5-foot Integral Cable | SMT2-450 | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 1000N Capacity with 5-foot Integral Cable | SMT2-1000N | $ 530.00 |
Model SMT Overload Protected S-type Load Cell 1.1 lbf Capacity with 5-foot Integral Cable | SMT1-1.1 | $ 650.00 |
