6A Series 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz

Featured in these Case Studies

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

6A Series 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz

Name: 6A Series 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz
SKU: 30765

Fx, Fy, Fz, Mx, My, Mz

Get Your Free Quote

Force: 11.2 to 22.5K lbf
Torque: 8.85 to 88.5K lb-in
Force: 50 to 100K N
Torque: 1 to 10K Nm

Interface’s 6-axis load cell measures forces simultaneously in three mutually perpendicular axes and three simultaneous torques about those same axes. Six full bridges provide mV/V output on six independent channels.

Interface’s 6-axis load cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and biomechanical).

A 36-term coefficient matrix is included for calculating the load and torque values in each axis.

An 8-channel amplifier with USB PC interface is also available which simplifies data analysis.

Models 6A27, 6A40, 6A68, 6A80, 6A110, 6A130, 6A150, 6A154, and 6A175 are available.

Product Downloads

Please login or register for Product Pricing and File Access

Interface’s 6-axis load cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and biomechanical).

A 36-term coefficient matrix is included for calculating the load and torque values in each axis.

An 8-channel amplifier with USB PC interface is also available which simplifies data analysis.

Models 6A27, 6A40, 6A68, 6A80, 6A110, 6A130, 6A150, 6A154, and 6A175 are available.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a Quote Request a CAD File

SKU: N/A Categories: 6-Axis, Force and Torque, Multi-Axis Sensors, Quickship Tag: quickship

Features and Benefits

6-Axis – force and torque in all six axes
Capacities: Force N(lbf)/Torque Nm(lbf-in)
50(11.2)/1(8.85) to 100K(22.48K)/10K(88.51K)
Compact size
Force and moment values MUST be calculated using supplied 36-term coefficient matrix
Low crosstalk
Temperature compensated
Optional BX8 amplifier and software can be used for force and moment value calculation

Easy Setup –
6-Axis to BX8-HD44

Features and Benefits

6-Axis – force and torque in all six axes
Capacities: Force N(lbf)/Torque Nm(lbf-in)
50(11.2)/1(8.85) to 100K(22.48K)/10K(88.51K)
Compact size
Force and moment values MUST be calculated using supplied 36-term coefficient matrix
Low crosstalk
Temperature compensated
Optional BX8 amplifier and software can be used for force and moment value calculation

Easy Setup –
6-Axis to BX8-HD44

Search:

Configuration Description	Part Number	Price
Model 6A Series 6–Axis Load Cell, Fx = 100 N, Fy = 100 N, Fz = 200 N, Mx = 10 Nm, My = 10 Nm, Mz = 10 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A154B-F11	$ 11345
Model 6A Series 6–Axis Load Cell, Fx = 100 N, Fy = 100 N, Fz = 200 N, Mx = 10 Nm, My = 10 Nm, Mz = 10 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A154B-Q11	$ 11370
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 20K N, Mx = 100 Nm, My = 100 Nm, Mz = 100 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A68D-F11	$ 7780
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 20K N, Mx = 100 Nm, My = 100 Nm, Mz = 100 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A68D-Q11	$ 7805
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 20K N, Mx = 1k Nm, My = 1k Nm, Mz = 1k Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A175A-F11	$ 15160
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 20K N, Mx = 1k Nm, My = 1k Nm, Mz = 1k Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A175A-Q11	$ 11810
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 20K N, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A68E-F11	$ 7780
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 25K N, Mx = 1K Nm, My = 1K Nm, Mz = 1K Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A150C-F11	$ 9810
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 25K N, Mx = 1K Nm, My = 1K Nm, Mz = 1K Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A150C-Q11	$ 9810
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 25K N, Mx = 750 Nm, My = 750 Nm, Mz = 750 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A110B-F11	$ 9050
Model 6A Series 6–Axis Load Cell, Fx = 10K N, Fy = 10K N, Fz = 25K N, Mx = 750 Nm, My = 750 Nm, Mz = 750 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A110B-Q11	$ 15740
Model 6A Series 6–Axis Load Cell, Fx = 10KN, Fy = 10KN, Fz = 20KN, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A68E-Q11	$ 7805
Model 6A Series 6–Axis Load Cell, Fx = 15K N, Fy = 15K N, Fz = 50K N, Mx = 1.2k Nm, My = 1.2k Nm, Mz = 1.2k Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A130B-F11	$ 9680
Model 6A Series 6–Axis Load Cell, Fx = 15K N, Fy = 15K N, Fz = 50K N, Mx = 1.2k Nm, My = 1.2k Nm, Mz = 1.2k Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A130B-Q11	$ 9720
Model 6A Series 6–Axis Load Cell, Fx = 1K N, Fy = 1K N, Fz = 2.5K N, Mx = 100 Nm, My = 100 Nm, Mz = 100 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A110C-F11	$ 7935
Model 6A Series 6–Axis Load Cell, Fx = 1K N, Fy = 1K N, Fz = 2.5K N, Mx = 100 Nm, My = 100 Nm, Mz = 100 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A110C-Q11	$ 7935
Model 6A Series 6–Axis Load Cell, Fx = 1K N, Fy = 1K N, Fz = 2.5K N, Mx = 200 Nm, My = 200 Nm, Mz = 200 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A130C-F11	$ 9935
Model 6A Series 6–Axis Load Cell, Fx = 1K N, Fy = 1K N, Fz = 2.5K N, Mx = 200 Nm, My = 200 Nm, Mz = 200 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A130C-Q11	$ 9935
Model 6A Series 6–Axis Load Cell, Fx = 1K N, Fy = 1K N, Fz = 2K N, Mx = 20 Nm, My = 20 Nm, Mz = 20 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A68A-F11	$ 7780
Model 6A Series 6–Axis Load Cell, Fx = 1K N, Fy = 1K N, Fz = 2K N, Mx = 20 Nm, My = 20 Nm, Mz = 20 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A68A-Q11	$ 7805
Model 6A Series 6–Axis Load Cell, Fx = 1Kn , Fy = 1KN, Fz = 2.5KN, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A80A-F11	$ 7780
Model 6A Series 6–Axis Load Cell, Fx = 1Kn , Fy = 1KN, Fz = 2.5KN, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A80A-Q11	$ 7805
Model 6A Series 6–Axis Load Cell, Fx = 2 N, Fy = 2 N, Fz = 5 N, Mx = 200 Nm, My = 200 Nm, Mz = 200 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A150A-F11	$ 9810
Model 6A Series 6–Axis Load Cell, Fx = 200 N, Fy = 200 N, Fz = 500 N, Mx = 20 Nm, My = 20 Nm, Mz = 20 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A154C-F11	$ 11345
Model 6A Series 6–Axis Load Cell, Fx = 200 N, Fy = 200 N, Fz = 500 N, Mx = 20 Nm, My = 20 Nm, Mz = 20 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A154C-Q11	$ 11370
Model 6A Series 6–Axis Load Cell, Fx = 200 N, Fy = 200 N, Fz = 500 N, Mx = 5 Nm, My = 5 Nm, Mz = 10 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A40A-F11	$ 6375
Model 6A Series 6–Axis Load Cell, Fx = 200 N, Fy = 200 N, Fz = 500 N, Mx = 5 Nm, My = 5 Nm, Mz = 10 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A40A-Q11	$ 6405
Model 6A Series 6–Axis Load Cell, Fx = 200N, Fy = 200N, Fz = 500N, Mx = 20 Nm, My = 20 Nm, Mz = 20 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A154C-F11	$ 10310
Model 6A Series 6–Axis Load Cell, Fx = 20K N, Fy = 20K N, Fz = 50K N, Mx = 2K Nm, My = 2K Nm, Mz = 5K Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A175B-Q11	$ 15195
Model 6A Series 6–Axis Load Cell, Fx = 2K N, Fy = 2K N, Fz = 4K N, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A68B-F11	$ 7780
Model 6A Series 6–Axis Load Cell, Fx = 2K N, Fy = 2K N, Fz = 4K N, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A68B-Q11	$ 7805
Model 6A Series 6–Axis Load Cell, Fx = 2K N, Fy = 2K N, Fz = 5K N, Mx = 200 Nm, My = 200 Nm, Mz = 200 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A150A-Q11	$ 9845
Model 6A Series 6–Axis Load Cell, Fx = 2KN, Fy = 2KN, Fz = 4KN, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A68B-F11	$ 7070
Model 6A Series 6–Axis Load Cell, Fx = 2KN, Fy = 2KN, Fz = 5KN, Mx = 100 Nm, My = 100 Nm, Mz = 100 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A80B-F11	$ 7780
Model 6A Series 6–Axis Load Cell, Fx = 2KN, Fy = 2KN, Fz = 5KN, Mx = 100 Nm, My = 100 Nm, Mz = 100 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A80B-Q11	$ 7805
Model 6A Series 6–Axis Load Cell, Fx = 30K N, Fy = 30K N, Fz = 90K N, Mx = 3K Nm, My = 3K Nm, Mz = 3K Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A150D-F11	$ 10640
Model 6A Series 6–Axis Load Cell, Fx = 30K N, Fy = 30K N, Fz = 90K N, Mx = 3K Nm, My = 3K Nm, Mz = 3K Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A150D-Q11	$ 10640
Model 6A Series 6–Axis Load Cell, Fx = 4K N, Fy = 4K N, Fz = 10K N, Mx = 250 Nm, My = 250 Nm, Mz = 250 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A110A-F11	$ 7905
Model 6A Series 6–Axis Load Cell, Fx = 4K N, Fy = 4K N, Fz = 10K N, Mx = 250 Nm, My = 250 Nm, Mz = 250 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A110A-Q11	$ 7935
Model 6A Series 6–Axis Load Cell, Fx = 4K N, Fy = 4K N, Fz = 10K N, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A150B-F11	$ 9340
Model 6A Series 6–Axis Load Cell, Fx = 4K N, Fy = 4K N, Fz = 10K N, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A150B-Q11	$ 9810
Model 6A Series 6–Axis Load Cell, Fx = 50 N, Fy = 50 N, Fz = 100 N, Mx = 5 Nm, My = 5 Nm, Mz = 5 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A154A-F11	$ 11345
Model 6A Series 6–Axis Load Cell, Fx = 50 N, Fy = 50 N, Fz = 100 N, Mx = 5 Nm, My = 5 Nm, Mz = 5 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A154A-Q11	$ 11370
Model 6A Series 6–Axis Load Cell, Fx = 50 N, Fy = 50 N, Fz = 200 N, Mx = 1 Nm, My = 1 Nm, Mz = 1 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A27A-F11	$ 6830
Model 6A Series 6–Axis Load Cell, Fx = 50 N, Fy = 50 N, Fz = 200 N, Mx = 1 Nm, My = 1 Nm, Mz = 1 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A27A-Q11	$ 6855
Model 6A Series 6–Axis Load Cell, Fx = 50 N, Fy = 50 N, Fz = 200 N, Mx = 5 Nm, My = 5 Nm, Mz = 10 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A40C-Q11	$ 6410
Model 6A Series 6–Axis Load Cell, Fx = 500 N, Fy = 200 N, Fz = 2K N, Mx = 20 Nm, My = 20 Nm, Mz = 40 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A40B-F11	$ 7140
Model 6A Series 6–Axis Load Cell, Fx = 500 N, Fy = 200 N, Fz = 2K N, Mx = 20 Nm, My = 20 Nm, Mz = 40 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A40B-Q11	$ 6810
Model 6A Series 6–Axis Load Cell, Fx = 500 N, Fy = 500 N, Fz = 1K N, Mx = 20 Nm, My = 20 Nm, Mz = 20 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A80D-F11	$ 8250
Model 6A Series 6–Axis Load Cell, Fx = 500 N, Fy = 500 N, Fz = 1K N, Mx = 20 Nm, My = 20 Nm, Mz = 20 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A80D-Q11	$ 8700
Model 6A Series 6–Axis Load Cell, Fx = 500 N, Fy = 500 N, Fz = 1K N, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A154D-F11	$ 11345
Model 6A Series 6–Axis Load Cell, Fx = 500 N, Fy = 500 N, Fz = 1K N, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A154D-Q11	$ 11370
Model 6A Series 6–Axis Load Cell, Fx = 500N, Fy = 500N, Fz = 1KN, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A154D-F11	$ 10310
Model 6A Series 6–Axis Load Cell, Fx = 50K N, Fy = 50K N, Fz = 100K N, Mx = 5K Nm, My = 5K Nm, Mz = 10K Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A175C-F11	$ 15160
Model 6A Series 6–Axis Load Cell, Fx = 50K N, Fy = 50K N, Fz = 100K N, Mx = 5K Nm, My = 5K Nm, Mz = 10K Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A175C-Q11	$ 15195
Model 6A Series 6–Axis Load Cell, Fx = 50N, Fy = 50N, Fz = 200N, Mx = 5 Nm, My = 5 Nm, Mz = 10 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A40C-F11	$ 6380
Model 6A Series 6–Axis Load Cell, Fx = 5K N, Fy = 5K N, Fz = 10K N, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A68C-F11	$ 7780
Model 6A Series 6–Axis Load Cell, Fx = 5K N, Fy = 5K N, Fz = 10K N, Mx = 50 Nm, My = 50 Nm, Mz = 50 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A68C-Q11	$ 7805
Model 6A Series 6–Axis Load Cell, Fx = 5K N, Fy = 5K N, Fz = 15K N, Mx = 250 Nm, My = 250 Nm, Mz = 250 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A80C-F11	$ 8450
Model 6A Series 6–Axis Load Cell, Fx = 5K N, Fy = 5K N, Fz = 15K N, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A130A-F11	$ 8410
Model 6A Series 6–Axis Load Cell, Fx = 5K N, Fy = 5K N, Fz = 15K N, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A130A-Q11	$ 8445
Model 6A Series 6–Axis Load Cell, Fx = 5KN, Fy = 5KN, Fz = 15KN, Mx = 250 Nm, My = 250 Nm, Mz = 250 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A80C-Q11	$ 8045
Model 6A Series 6–Axis Load Cell, Fx = 8K N, Fy = 8K N, Fz = 20K N, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 24-pin M-type Connector	6A110D-F11	$ 8925
Model 6A Series 6–Axis Load Cell, Fx = 8K N, Fy = 8K N, Fz = 20K N, Mx = 500 Nm, My = 500 Nm, Mz = 500 Nm with 5-meter Cable and Installed 44-pin High Density DSub Connector	6A110D-Q11	$ 8950

MODEL 6A M16 24-PIN CONNECTOR
CHANNEL	SYMBOL	FUNCTION	COLOR	PIN
1	+US (+EXC)	+ BRIDGE SUPPLY	RED	1
	-US (-EXC)	- BRIDGE SUPPLY	BLACK	2
	+UD (+SIG)	+ BRIDGE OUTPUT	GREEN	3
	-UD (-SIG)	- BRIDGE OUTPUT	WHITE	4
2	+US (+EXC)	+ BRIDGE SUPPLY	BLUE	5
	-US (-EXC)	- BRIDGE SUPPLY	YELLOW	6
	+UD (+SIG)	+ BRIDGE OUTPUT	PURPLE	7
	-UD (-SIG)	- BRIDGE OUTPUT	GRAY	8
3	+US (+EXC)	+ BRIDGE SUPPLY	ORANGE	9
	-US (-EXC)	- BRIDGE SUPPLY	BROWN	10
	+UD (+SIG)	+ BRIDGE OUTPUT	PINK	11
	-UD (-SIG)	- BRIDGE OUTPUT	TRANSPARENT	12
4	+US (+EXC)	+ BRIDGE SUPPLY	GREEN/BLACK	13
	-US (-EXC)	- BRIDGE SUPPLY	BLACK/WHITE	14
	+UD (+SIG)	+ BRIDGE OUTPUT	RED/BLACK	15
	-UD (-SIG)	- BRIDGE OUTPUT	WHITE/BLACK	16
5	+US (+EXC)	+ BRIDGE SUPPLY	PURPLE/BLACK	17
	-US (-EXC)	- BRIDGE SUPPLY	YELLOW/BLACK	18
	+UD (+SIG)	+ BRIDGE OUTPUT	BLUE/BLACK	19
	-UD (-SIG)	- BRIDGE OUTPUT	GRAY/BLACK	20
6	+US (+EXC)	+ BRIDGE SUPPLY	PINK/BLACK	21
	-US (-EXC)	- BRIDGE SUPPLY	BROWN/BLACK	22
	+UD (+SIG)	+ BRIDGE OUTPUT	ORANGE/BLACK	23
	-UD (-SIG)	- BRIDGE OUTPUT	TRANSPARENT/BLACK	24

MODEL 6A M16 24-PIN CONNECTOR
CHANNEL	SYMBOL	FUNCTION	COLOR	PIN
1	+US (+EXC)	+ BRIDGE SUPPLY	RED	1
	-US (-EXC)	- BRIDGE SUPPLY	BLACK	2
	+UD (+SIG)	+ BRIDGE OUTPUT	GREEN	3
	-UD (-SIG)	- BRIDGE OUTPUT	WHITE	4
2	+US (+EXC)	+ BRIDGE SUPPLY	BLUE	5
	-US (-EXC)	- BRIDGE SUPPLY	YELLOW	6
	+UD (+SIG)	+ BRIDGE OUTPUT	PURPLE	7
	-UD (-SIG)	- BRIDGE OUTPUT	GRAY	8
3	+US (+EXC)	+ BRIDGE SUPPLY	ORANGE	9
	-US (-EXC)	- BRIDGE SUPPLY	BROWN	10
	+UD (+SIG)	+ BRIDGE OUTPUT	PINK	11
	-UD (-SIG)	- BRIDGE OUTPUT	TRANSPARENT	12
4	+US (+EXC)	+ BRIDGE SUPPLY	GREEN/BLACK	13
	-US (-EXC)	- BRIDGE SUPPLY	BLACK/WHITE	14
	+UD (+SIG)	+ BRIDGE OUTPUT	RED/BLACK	15
	-UD (-SIG)	- BRIDGE OUTPUT	WHITE/BLACK	16
5	+US (+EXC)	+ BRIDGE SUPPLY	PURPLE/BLACK	17
	-US (-EXC)	- BRIDGE SUPPLY	YELLOW/BLACK	18
	+UD (+SIG)	+ BRIDGE OUTPUT	BLUE/BLACK	19
	-UD (-SIG)	- BRIDGE OUTPUT	GRAY/BLACK	20
6	+US (+EXC)	+ BRIDGE SUPPLY	PINK/BLACK	21
	-US (-EXC)	- BRIDGE SUPPLY	BROWN/BLACK	22
	+UD (+SIG)	+ BRIDGE OUTPUT	ORANGE/BLACK	23
	-UD (-SIG)	- BRIDGE OUTPUT	TRANSPARENT/BLACK	24

Industry Solutions

Product Applications

Custom Solutions

Interface Guides

Company Overview

Featured in these Case Studies

PRICING NOTICE

6A Series 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz

Fx, Fy, Fz, Mx, My, Mz

Force: 11.2 to 22.5K lbfTorque: 8.85 to 88.5K lb-inForce: 50 to 100K NTorque: 1 to 10K Nm

Product Downloads

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

Features and Benefits

Specifications

Specifications

Dimensions

Dimensions 6A27

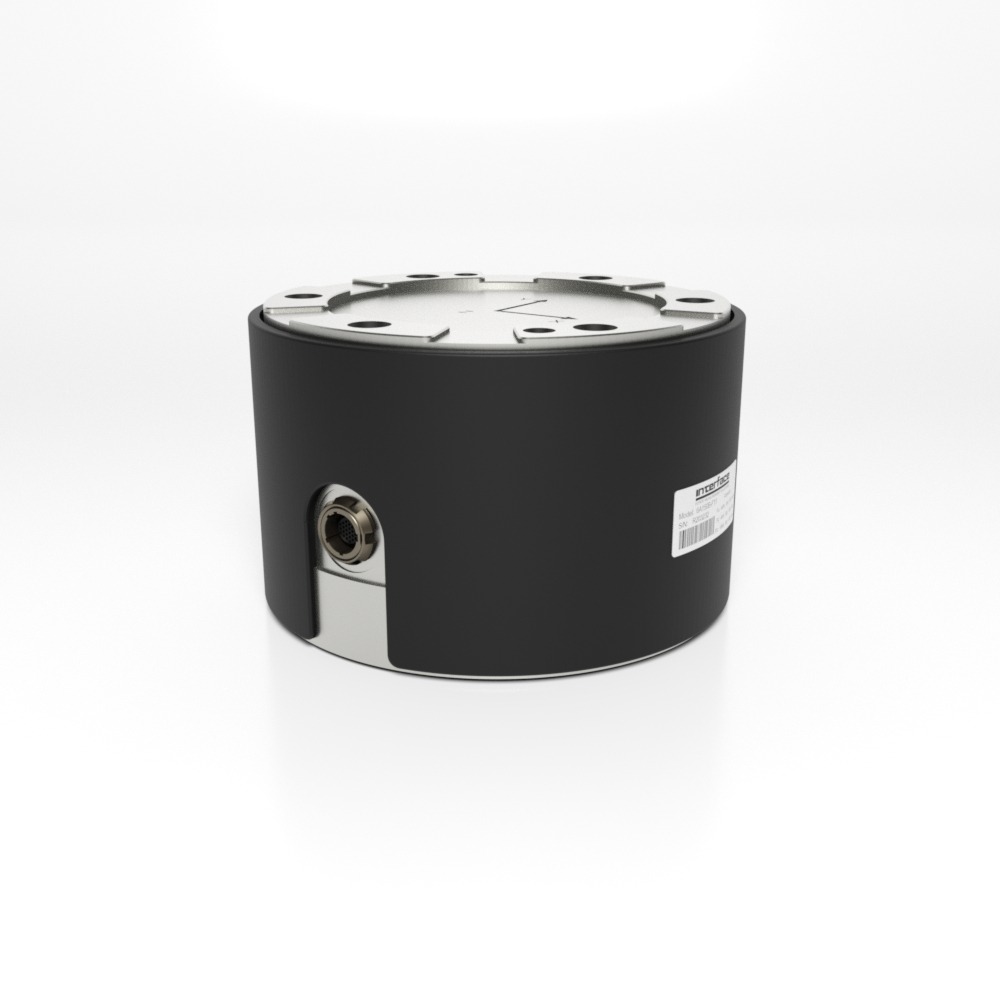

6A27 6-Axis Standard Capacity Load Cell

Dimensions 6A40

6A40 6-Axis Standard Capacity Load Cell

Dimensions 6A68

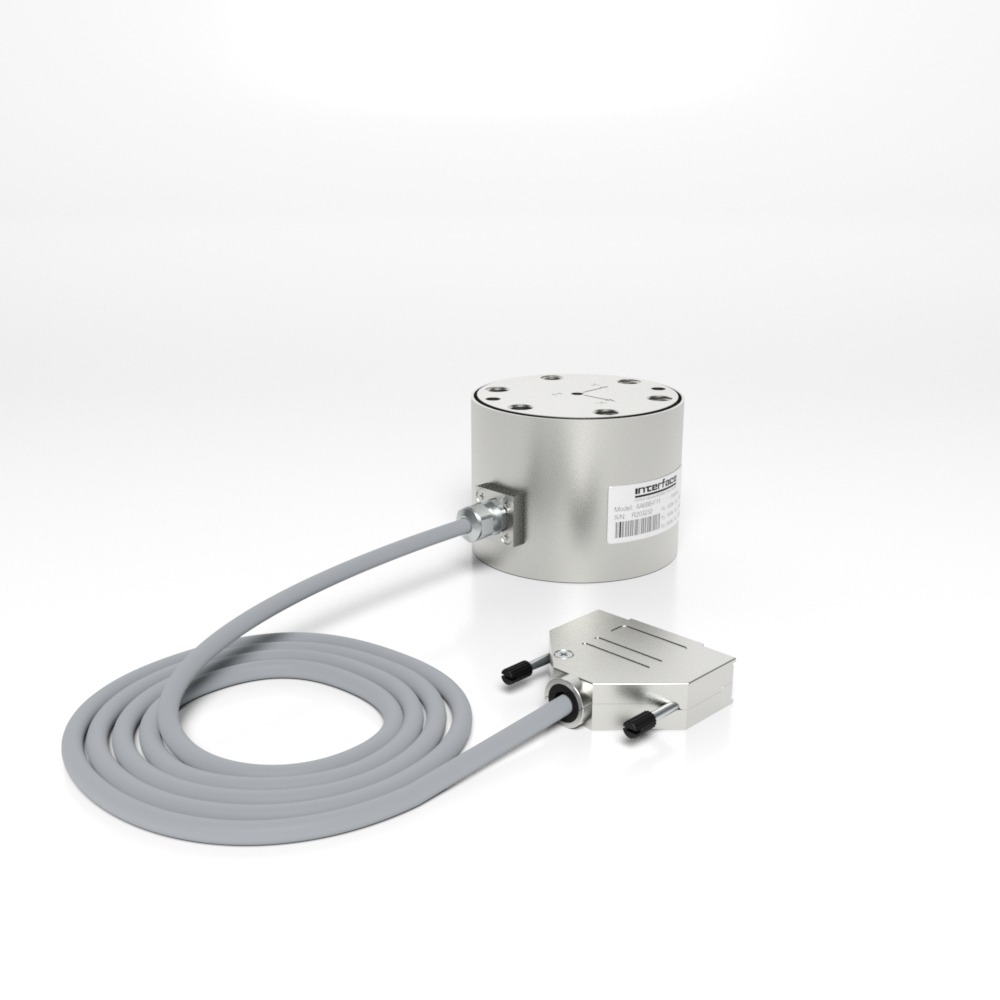

6A68 6-Axis Standard Capacity Load Cell

Dimensions 6A80

6A80 6-Axis Standard Capacity Load Cell

Dimensions 6A110

6A110 6-Axis Standard Capacity Load Cell

Dimensions 6A130

6A130 6-Axis Standard Capacity Load Cell

Dimensions 6A150

6A150 6-Axis Standard Capacity Load Cell

Dimensions 6A154

6A154 6-Axis Standard Capacity Load Cell

Dimensions 6A175

6A175 6-Axis Standard Capacity Load Cell

Connector Pin Diagram

Characteristics

Additional Information

Product Video

Features and Benefits

Specifications

Specifications

Dimensions

Dimensions 6A27

6A27 6-Axis Standard Capacity Load Cell

Dimensions 6A40

6A40 6-Axis Standard Capacity Load Cell

Dimensions 6A68

6A68 6-Axis Standard Capacity Load Cell

Dimensions 6A80

6A80 6-Axis Standard Capacity Load Cell

Dimensions 6A110

6A110 6-Axis Standard Capacity Load Cell

Dimensions 6A130

6A130 6-Axis Standard Capacity Load Cell

Dimensions 6A150

6A150 6-Axis Standard Capacity Load Cell

Dimensions 6A154

6A154 6-Axis Standard Capacity Load Cell

Dimensions 6A175

6A175 6-Axis Standard Capacity Load Cell

Connector Pin Diagram

Characteristics

Additional Information

Product Video
