6-Axis Load Cell Solutions using Raspberry Pi
Customer needs a 6-Axis Load Cell System that can perform tests at a high sample rate and communicate this information via EtherCAT.
Customer needs a 6-Axis Load Cell System that can perform tests at a high sample rate and communicate this information via EtherCAT. In addition to this, the customer would like to connect this 6-Axis System to Ethernet so this same 6-Axis system can be used in a setup process that occurs from time to time with their industrial equipment.

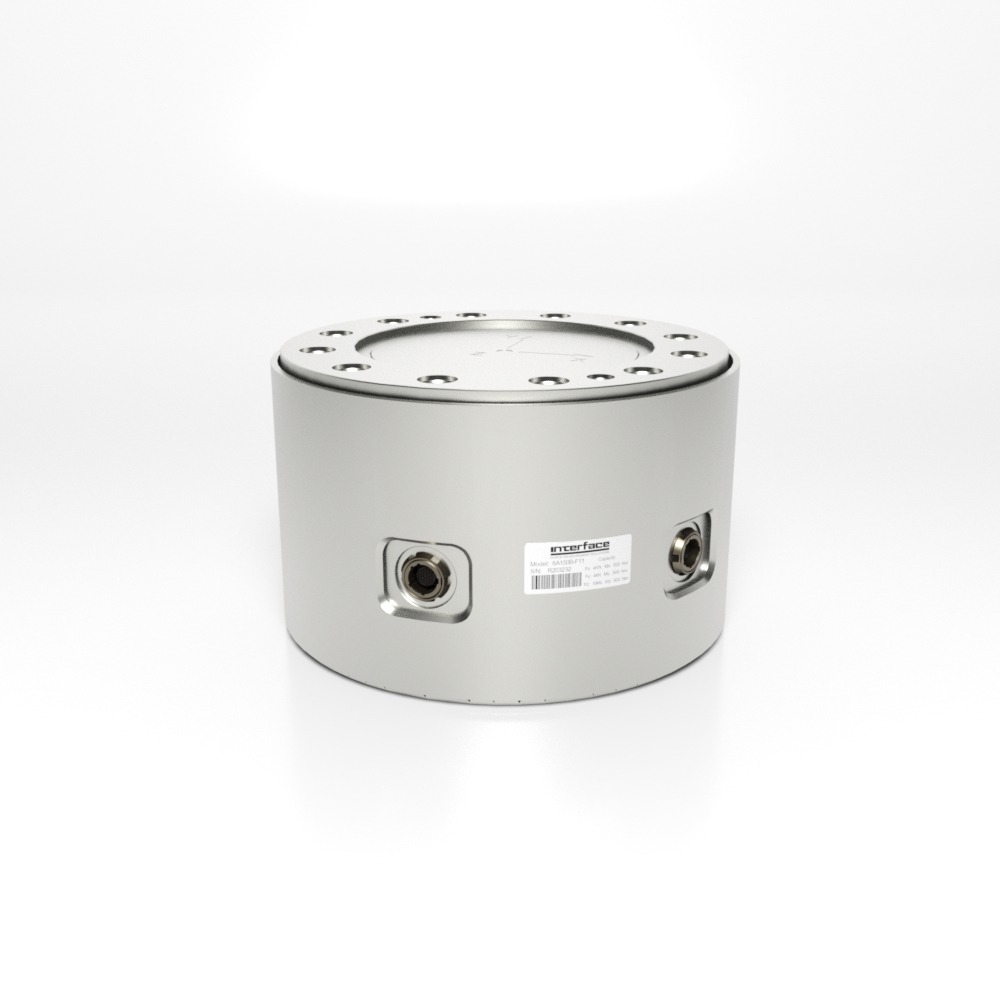

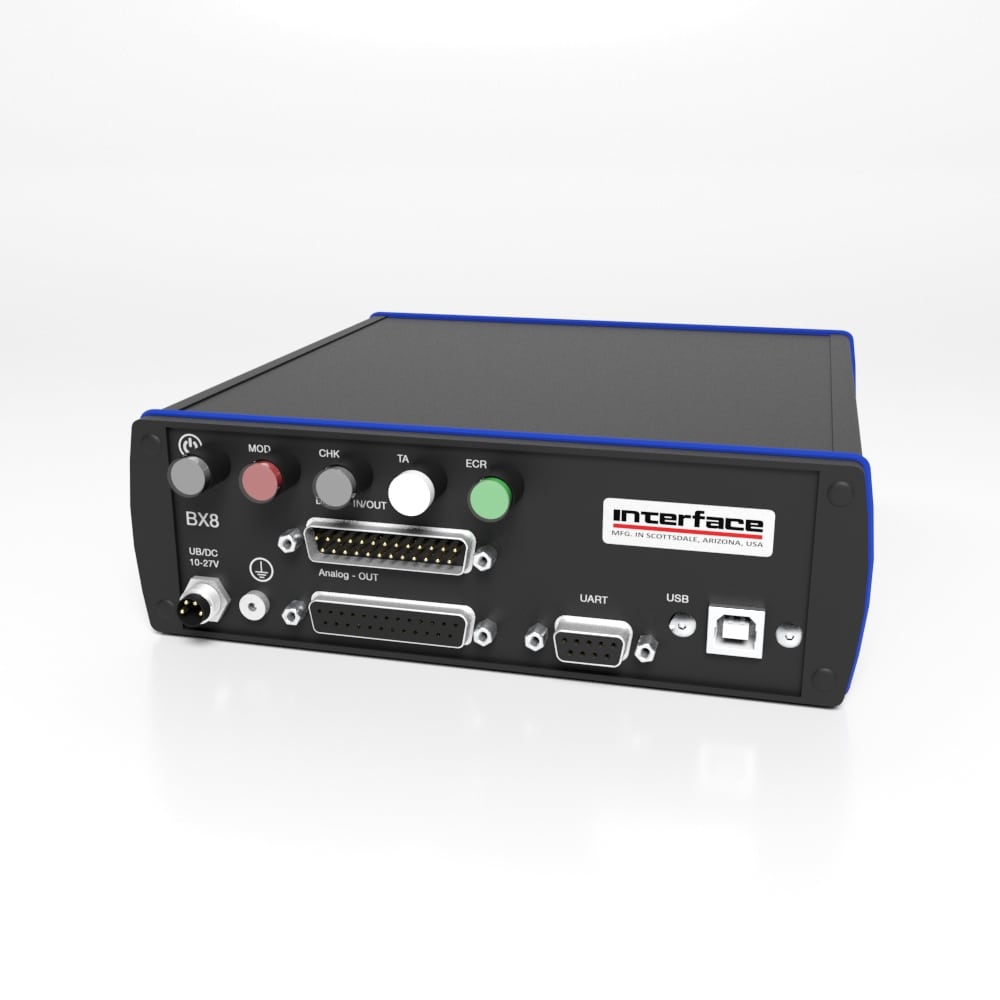

Interface suggests using Model BX8-HD44-EC High Speed Data Acquisition System with integrated EtherCAT protocol with Model 6AXX 6-Axis Load Cell. In addition to this, Interface suggests that they integrate a Raspberry Pi, with custom software, into the 6-Axis EtherCAT System to provide the Ethernet communication this customer needs for their equipment setup.
Interface’s BX8-HD44-EC High Speed Data Acquisition Instrument with 6-Axis Load Cell and the integrated Raspberry Pi was able to take needed measurements and communicate them through EtherCAT protocol. In addition to this, the Raspberry Pi Ethernet solution was able to work successfully with the customers equipment and provide the setup solution they were looking for.
