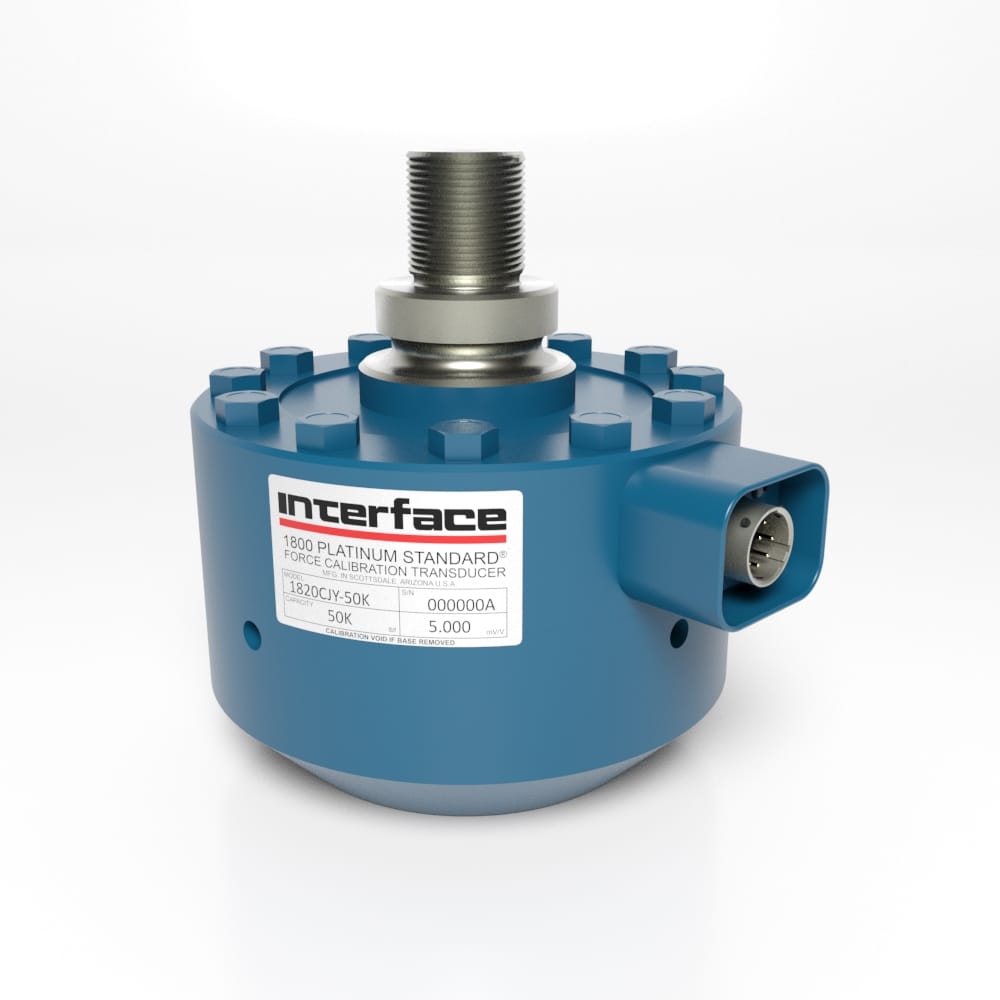

1800 Platinum Standard Calibration Universal LowProfile Load Cell

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

1800 Platinum Standard Calibration Universal LowProfile Load Cell

Name: 1800 Platinum Standard Calibration Universal LowProfile Load Cell
SKU: 29868

Tension and Compression Calibration Grade

Get Your Free Quote

1.1K lbf to 55K lbf
4.89 kN to 245 kN

Model 1800 Platinum Standard® low profile load cell is the ultimate in calibration grade load cells which is capable of a 2% lower limit per ASTM E74 and features an integral stud.

Options Available for 2nd and 3rd Bridge

Models 1810, 1820, and 1830 are available.

Product Downloads

Please login or register for Product Pricing and File Access

Data Sheet
1810 1.1K-5.5Klbf STP File
1810 5kN-25kN STP File
1820 11K-22Klbf STP File
1820 50kN-100kN STP File
1830 55Klbf STP File
1830 250kN STP File
1810 Drawing
1820 Drawing
1830 Drawing

Model 1800 Platinum Standard® low profile load cell is the ultimate in calibration grade load cells which is capable of a 2% lower limit per ASTM E74 and features an integral stud.

Options Available for 2nd and 3rd Bridge

Models 1810, 1820, and 1830 are available.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a Quote Request a CAD File

SKU: N/A Categories: Calibration Equipment, Calibration Grade, Calibration Grade Load Cells, Load Cells, Low Profile Load Cells, Quickship, Side Load Sensitivity, Tension and Compression Tag: quickship

Features and Benefits

Tension and compression in one unit
0.02% creep
High Precision base installed
Tension and compression calibrated
Capable of 2% lower load limit per ASTM E74
ASTM E74 calibration standard
Internal electronic ID
Eccentric load compensated
0.0008%/°F temp. effect on output
Connector protector standard
Transducer Electronic Data Sheet (TEDS)
Handcrafted excellence for the most demanding calibration requirements

Options

Connector protection
Standardized output
Custom calibration
Multiple bridge
Special threads
Dual diaphragm
Special temperature range
Cable length
Add connector to cable

Connector Options

PT02E-12-8P bayonet connector

Accessories

Mating connector
Mating cable
Instrumentation
Loading hardware
Calibration software

Specifications

International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions

Connector Pin Diagram

CONNECTOR PINOUT
PIN	FUNCTION
PIN	8 WIRE (C2)	8 WIRE (C2 WITH TEDS OPTION)
A	+ EXCITATION	+ EXCITATION
B	+ SIGNAL	+ SIGNAL
C	- SIGNAL	- SIGNAL
D	- EXCITATION	- EXCITATION
E	- SENSE	- SENSE
F	+ SENSE	+ SENSE
G	- RCAL	TEDS DATA
H	+ RCAL	TEDS GROUND
ALL READ UPSCALE IN TENSION

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions	4.13 × 4.13 × 4.65 in

Product Video

Features and Benefits

Tension and compression in one unit
0.02% creep
High Precision base installed
Tension and compression calibrated
Capable of 2% lower load limit per ASTM E74
ASTM E74 calibration standard
Internal electronic ID
Eccentric load compensated
0.0008%/°F temp. effect on output
Connector protector standard
Transducer Electronic Data Sheet (TEDS)
Handcrafted excellence for the most demanding calibration requirements

Options

Connector protection
Standardized output
Custom calibration
Multiple bridge
Special threads
Dual diaphragm
Special temperature range
Cable length
Add connector to cable

Connector Options

PT02E-12-8P bayonet connector

Accessories

Mating connector
Mating cable
Instrumentation
Loading hardware
Calibration software

Specifications

Dimensions

Connector Pin Diagram

CONNECTOR PINOUT
PIN	FUNCTION
PIN	8 WIRE (C2)	8 WIRE (C2 WITH TEDS OPTION)
A	+ EXCITATION	+ EXCITATION
B	+ SIGNAL	+ SIGNAL
C	- SIGNAL	- SIGNAL
D	- EXCITATION	- EXCITATION
E	- SENSE	- SENSE
F	+ SENSE	+ SENSE
G	- RCAL	TEDS DATA
H	+ RCAL	TEDS GROUND
ALL READ UPSCALE IN TENSION

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions	4.13 × 4.13 × 4.65 in

Product Video

Short Description	Sku	Price
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 1.1K Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-1.1K	$ 4955
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 2.2K Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-2.2K	$ 5220
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 3.3K Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-3.3K	$ 5140
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 5.5K Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-5.5K	$ 5220
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 11K Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1820CJY-11K	$ 7375
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 22K Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1820CJY-22K	$ 8345
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 55K Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1830CJY-55K	$ 11110
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 5KN Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-5KN	$ 5250
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 10KN Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-10KN	$ 5220
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 15KN Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-15KN	$ 5630
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 25KN Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1810CJY-25KN	$ 5615
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 50KN Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1820CJY-50KN	$ 7375
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 100KN Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1820CJY-100KN	$ 8345
Model 1800 Series Platinum Standard Calibration Grade Low Profile Load Cell 250KN Capacity, PT02E-12-8P Bayonet-type Connector and comes with an ASTM E74 Class A Calibration	1830CJY-250KN	$ 11565
