1700 Flange LowProfile Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

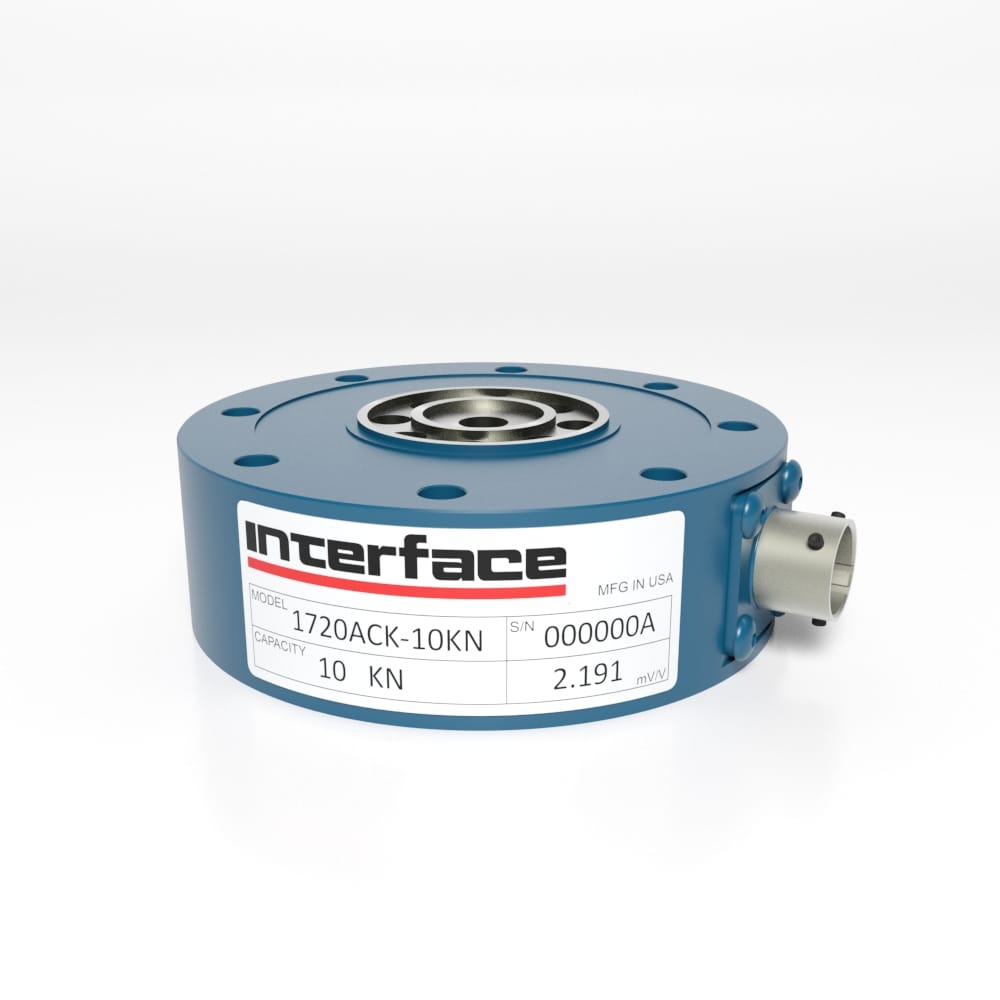

Model 1700 flange-mounted LowProfile® load cell has multiple smaller threads, making installation easier for certain types of cylinders. The LowProfile® configuration of our fatigue-rated load cell provides up to 100 million duty cycles. The gage sensors in every load cell are individually inspected and tested, and certified to meet our rigid standards.
Models 1710, 1720, and 1730 are available.
Model 1700 flange-mounted LowProfile® load cell has multiple smaller threads, making installation easier for certain types of cylinders. The LowProfile® configuration of our fatigue-rated load cell provides up to 100 million duty cycles. The gage sensors in every load cell are individually inspected and tested, and certified to meet our rigid standards.
Models 1710, 1720, and 1730 are available.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | ||
| PIN | FUNCTION | |
| 6 WIRE (C6) | 4 WIRE (C1 W/ TEDS | |
| A | + EXCITATION | + EXCITATION |
| B | + SIGNAL | + SIGNAL |
| C | - SIGNAL | - SIGNAL |
| D | - EXCITATION | - EXCITATION |
| E | - SENSE | TEDS DATA |
| F | + SENSE | TEDS GROUND |
| TENSION UPSCALE | ||
| Dimensions | 3.03 × 3.03 × 1.14 in |
|---|
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | ||
| PIN | FUNCTION | |
| 6 WIRE (C6) | 4 WIRE (C1 W/ TEDS | |
| A | + EXCITATION | + EXCITATION |
| B | + SIGNAL | + SIGNAL |
| C | - SIGNAL | - SIGNAL |
| D | - EXCITATION | - EXCITATION |
| E | - SENSE | TEDS DATA |
| F | + SENSE | TEDS GROUND |
| TENSION UPSCALE | ||
| Dimensions | 3.03 × 3.03 × 1.14 in |
|---|
| Short Description | Sku | Price |
|---|---|---|
| Model 1700 Series Flange Low Profile Load Cell 550 lbf Capacity with 10-foot Integral Cable | 1710AJ-550 | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 1.1K Capacity with 10-foot Integral Cable | 1710AJ-1.1K | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 2.2K Capacity with 10-foot Integral Cable | 1720AJ-2.2K | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 4.5K Capacity with 10-foot Integral Cable | 1720AJ-4.5K | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 11K Capacity with 10-foot Integral Cable | 1730AJ-11K | $1,675.00 |
| Model 1700 Series Flange Low Profile Load Cell 1KN Capacity with 10-foot Integral Cable | 1710AJ-1KN | $1,600.00 |
| Model 1700 Series Flange Low Profile Load Cell 2.5KN Capacity with 10-foot Integral Cable | 1720AJ-2.5KN | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 5KN Capacity with 10-foot Integral Cable | 1710AJ-5KN | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 10KN Capacity with 10-foot Integral Cable | 1720AJ-10KN | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 20KN Capacity with 10-foot Integral Cable | 1720AJ-20KN | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 50KN Capacity with 10-foot Integral Cable | 1730AJ-50KN | $1,675.00 |
| Model 1700 Series Flange Low Profile Load Cell 63KN Capacity with 10-foot Integral Cable | 1730AJ-63KN | $1,800.00 |
| Model 1700 Series Flange Low Profile Load Cell 550 lbf Capacity with PC04E-10-6P Screw-type Connector | 1710AF-550 | $1,600.00 |
| Model 1700 Series Flange Low Profile Load Cell 1.1K Capacity with PC04E-10-6P Screw-type Connector | 1710AF-1.1K | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 2.2K Capacity with PC04E-10-6P Screw-type Connector | 1720AF-2.2K | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 4.5K Capacity with PC04E-10-6P Screw-type Connector | 1720AF-4.5K | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 11K Capacity with PC04E-10-6P Screw-type Connector | 1730AF-11K | $1,675.00 |
| Model 1700 Series Flange Low Profile Load Cell 1KN Capacity with PC04E-10-6P Screw-type Connector | 1710AF-1KN | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 2.5KN Capacity with PC04E-10-6P Screw-type Connector | 1720AF-2.5KN | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 5KN Capacity with PC04E-10-6P Screw-type Connector | 1710AF-5KN | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 10KN Capacity with PC04E-10-6P Screw-type Connector | 1720AF-10KN | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 20KN Capacity with PC04E-10-6P Screw-type Connector | 1720AF-20KN | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 50KN Capacity with PC04E-10-6P Screw-type Connector | 1730AF-50KN | $1,675.00 |
| Model 1700 Series Flange Low Profile Load Cell 63KN Capacity with PC04E-10-6P Screw-type Connector | 1730AF-63KN | $1,675.00 |
| Model 1700 Series Flange Low Profile Load Cell 550 lbf Capacity with PT02E-10-6P Bayonet-type Connector | 1710ACK-550 | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 1.1K Capacity with PT02E-10-6P Bayonet-type Connector | 1710ACK-1.1K | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 2.2K Capacity with PT02E-10-6P Bayonet-type Connector | 1720ACK-2.2K | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 4.5K Capacity with PT02E-10-6P Bayonet-type Connector | 1720ACK-4.5K | $1,495.00 |
| Model 1700 Series Flange Low Profile Load Cell 11K Capacity with PT02E-10-6P Bayonet-type Connector | 1730ACK-11K | $1,675.00 |
| Model 1700 Series Flange Low Profile Load Cell 1KN Capacity with PT02E-10-6P Bayonet-type Connector | 1710ACK-1KN | $1,600.00 |
| Model 1700 Series Flange Low Profile Load Cell 2.5KN Capacity with PT02E-10-6P Bayonet-type Connector | 1720ACK-2.5KN | $1,610.00 |
| Model 1700 Series Flange Low Profile Load Cell 5KN Capacity with PT02E-10-6P Bayonet-type Connector | 1710ACK-5KN | $1,600.00 |
| Model 1700 Series Flange Low Profile Load Cell 10KN Capacity with PT02E-10-6P Bayonet-type Connector | 1720ACK-10KN | $1,800.00 |
| Model 1700 Series Flange Low Profile Load Cell 20KN Capacity with PT02E-10-6P Bayonet-type Connector | 1720ACK-20KN | $1,800.00 |
| Model 1700 Series Flange Low Profile Load Cell 50KN Capacity with PT02E-10-6P Bayonet-type Connector | 1730ACK-50KN | $1,800.00 |
| Model 1700 Series Flange Low Profile Load Cell 63KN Capacity with PT02E-10-6P Bayonet-type Connector | 1730ACK-63KN | $1,800.00 |
