Interface New Products Releases in Winter 2025
In our year-end new products update, we are highlighting a series of new sensors and instrumentation devices added to our expanding catalog of force measurement solutions.
As evidenced by these new products, test and measurement is moving toward high-velocity data, advanced analytics, digital protocols, and continuous feedback to support automation, robotics, miniaturized product designs, and innovation in the test lab. Our latest additions include calibration and lab testing tools, a new multi-axis sensor, new instrumentation, and Interface’s new Complete Systems.
TIP: For all Interface products, use our online selection guides to review load cells, mini load cells, multi-axis sensors, torque transducers, calibration-grade equipment, accessories, and instrumentation for your specific project requirements.
For questions about these products or to request a quote, don’t hesitate to contact our application experts.
NEW INTERFACE PRODUCT RELEASES IN 2025

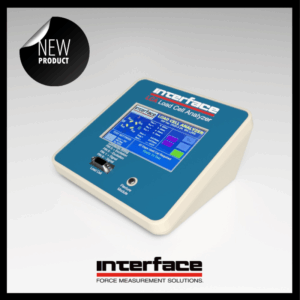

LCA LOAD CELL ANALYZER
The specialized Interface LCA Load Cell Analyzer is a tool created by Interface Engineers for quick, precise testing of load cells. It is a vital diagnostic device for any Interface load cell user. Its compact, easy-to-use design makes it simple to operate in the field and on a test bench. It features a responsive touch screen display. The LCA offers an intuitive interface that enables technicians and engineers to quickly assess critical load cell parameters. Equipped with an AC power adapter and a DB9 connector, this analyzer accommodates a wide variety of load cell configurations and ships ready to use.
Primary LCA Load Cell Analyzer features and benefits:
- Measures Zero Balance
- Provides Bridge Input/Output and Leg Resistances with pass/fail indication
- Analyzes Short Condition
- Measures Insulation Resistance
- Performs TEDS Function Check
- Touch Screen Display
- AC Power Adapter
- DB9 Connector

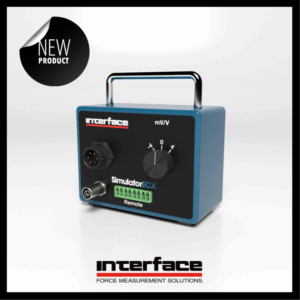

SIMULATORECX
Interface’s new SimulatorECX Precision mV/V Transfer Standard is the most accurate load cell simulator on the market, engineered for high-precision testing laboratories. It mimics the electrical output of a strain gage load cell with absolute precision, allowing technicians to calibrate, troubleshoot, and verify signal conditioners, displays, and data acquisition systems without applying physical force. Featuring NIST traceability and TEDS (IEEE 1451.4) compliance, the E-CX Series acts as a “golden standard” reference. It provides an equivalent bridge impedance of 350 Ohms and ultra-stable mV/V outputs, ensuring that your instrumentation chain maintains the highest levels of integrity and accuracy. It offers unmatched calibration confidence and is audit-ready compliant. It provides modern workflow integration, ideal for in-lab and remote automation.
Primary SimulatorECX Precision mV/V Transfer Standard features and benefits:
- Single Step ±4, ±3, ±2 mV/V
- Low Thermal EMF Design for Superior Thermal Stability
- Individually Calibrated
- Aged And Calibrated
- Rugged Design with IP20 Rating
- Isolated Remote-Control Input
- TEDS IEE1451.4 Compliant
- Rohs Compliant
- Optional Remote Automation Controller
- Option For Custom Mv/V Setting
The SimulatorECX is a modern, compliant, and integrated evolution of the Interface CX model. It maintains the same trusted 0.0025% accuracy in a future-ready package that is RoHS-compliant for safety audits and ready for automated testing, saving your technicians’ time.

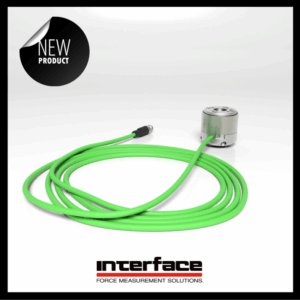

6A55RI 6-AXIS ROBOT FLANGE FORCE-TORQUE SENSOR
The multi-axis 6A55RI 6-Axis Robot Flange Force-Torque Sensor is designed for robotics and medical applications and features an ISO 9409-1 robotic flange interface. The five model capacities to measure Fx (N), Fy (N), Fz (N), Mx (Nm), My (Nm), Mz (Nm) are Force: 11.24 to 449.62 lbf (50 N to 2 kN) and Torque: 44.25 to 442.54 lb-in (5 Nm to 50 Nm). Its integrated EtherCAT P measuring amplifier enables both power supply and data transmission through a single 4-wire connection. The replaceable cable features strain relief beneath the mounting plate and is drag-chain-compatible.
Primary 6A55RI 6-Axis Robot Flange Force-Torque Sensor features and benefits:
- Robotic Flange ISO 9409-1-31.33-4-M5
- Nonlinearity – %FS ± 0.2
- Hysteresis – %FS ± 0.2
- Crosstalk – % 1
- Ultimate Overload – %RO 600
- Data Frequency 1Hz – 1000 Hz
- EtherCAT P Measuring Amplifier
- 5m EtherCAT P Cable, 4-Pole, Shielded, PUR, Suitable for Drag Chains
- Assembled with EtherCAT P Power Source M8 Circular Connector
- Aluminum Alloy and IP 65
- Optional Special Calibration
- Cable Options for 2-, 5-, and 10-Meter Cables with EtherCAT M8 and RJ45 Connectors
NOTE: Review the characteristics of the 6A55RI for models A, B, C, D, and E to define the maximum forces and torques the sensor can accurately and safely measure, as well as its physical dimensions, construction, and resilience to operating environment factors, which are crucial for proper mechanical integration. All characteristics and specifications are available online and in our comprehensive datasheet.

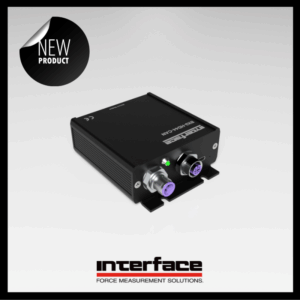

BX3-HD44-CAN 3-CHANNEL CAN BUS AND USB STRAIN GAGE AMPLIFIER
The BX3-HD44-CAN 3-Channel CAN Bus and USB Strain Gage Amplifier offers an easy-to-use measuring amplifier for quarter-bridge strain gauges with 120 Ohms, 350 Ohms, or 1000 Ohms, utilizing three-wire technology. It is powered via a CAN bus cable, with a 10 VDC to 28 VDC range. As an alternative to the CAN bus, measurement data can be transmitted via the USB-C port. Measurement data can be recorded using the integrated USB port or the CAN bus with Interface’s BlueDAQ software. The BlueDAQ software enables reading, recording, and visualizing measurement data. Multiple BX3s can be connected via CAN and then linked to a PC using a PCAN-USB converter. It is ideal for multi-axis sensors.
Primary BX3-HD44-CAN 3-Channel CAN Bus and USB Strain Gage Amplifier features and benefits:
- Amplifier with CAN Bus and USB Port
- 3 Channels for Connecting Sensors with Strain Gages
- USB Interface for Configuration and Data Acquisition
- Aluminum Flange Housing
- Measuring Range: 8, 4, 2, 1 mV/V
- 16-Bit ADC
- Measuring Frequency 0hz – 1000hz
- BlueDAQ Software for Configuration, Viewing, and Logging Data
- Optional 3x M12 Connectors for Sensor Inputs (Model BX3-M12-CAN)
Note that the BX3-HD44-CAN is a direct replacement for Interface’s retired BSC4D Multi-Channel Bridge Instrumentation device.

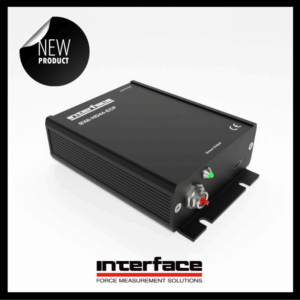

BX6-HD44-ECP STRAIN GAGE AMPLIFIER WITH ETHERCAT PROTOCOL
Interface’s BX6-HD44-ECP Strain Gage Amplifier with EtherCAT Protocol is a digital 6-channel strain gage amplifier featuring EtherCAT P and USB-C interfaces. The BX6-HD44-ECP bridge completion and data acquisition device is housed in a compact, durable aluminum enclosure. It has a ±4 mV/V measuring range and a frequency range of 0 Hz to 1000 Hz. The BX6-HD44-ECP is equipped with 1 Sub-D44HD connector for use with multi-axis sensors, in particular 6-axis load cells.
Primary BX6-HD44-ECP Strain Gage Amplifier with EtherCAT Protocol features and benefits:
- Digital Instrumentation DAQ for Multi-Axis Sensors
- 6 Channels for Connecting Force-Torque Sensors
- Supply And Data Transmission with EtherCAT P
- USB Interface for Configuration and Commissioning with BlueDAQ Software
- 1 kHz Data Frequency
- Signal Conditioner
- Ultra-Miniature Flange Housing 84.0 Mm X 36.0 Mm X 84.30 Mm
- BlueDAQ Software for Configuration, Viewing, And Logging Data
NEW COMPLETE SYSTEMS
In addition to our new individual products, we want to highlight that we have added more Complete Systems to show how popular measurement devices can be easily combined to create an entire test and measurement system, including the sensor, instrumentation, cables and connectors, wireless components, system calibration, and software.
Here are a few of the popular system configurations:
1000 Fatigue-Rated Universal LowProfile® Load Cell and 9325 Portable Sensor Display
WTS 1200 Standard Precision LowProfile Wireless Load Cell and WTS-BS-1-HA Wireless Handheld Display
1200 Series Universal Load Cell IO-Link Compatible System
ITCA Tension and Compression Load Cell and DIG-USB USB Output Module
SSB Sealed Beam Load Cell and 1280 Programmable Weight Indicator and Controller System
SSM or SSM2 Sealed S-Type Load Cell and ILM In-Line IO-Link Amplifier IO-Link Compatible System
3A Series 3-Axis Force Load Cells and BX6-HD44-ECP Strain Gage Amplifier with EtherCat Protocol
ILMP Standard Stainless Steel Load Pin and 9325 Portable Sensor Display System
WTS Wireless 1200 Series Data AQ Pack
Our dedicated application engineers and representatives worldwide are ready to provide expert guidance and support to help you select the ideal products for your specific requirements.
