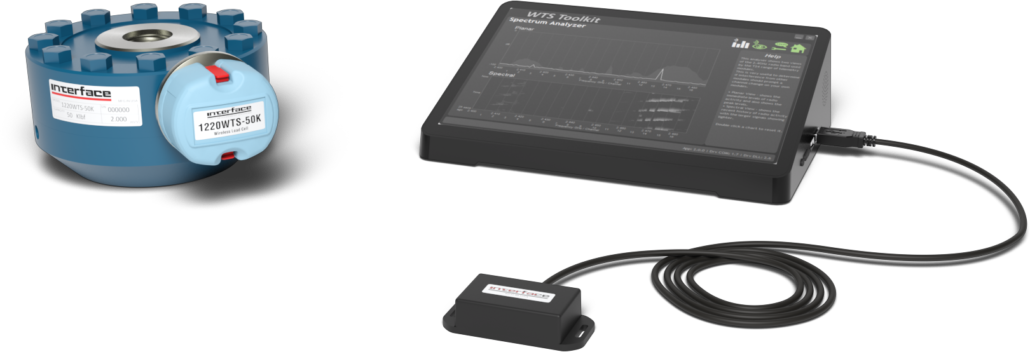

The WTS Wireless Data AQ Pack, featuring an on-cable or integrated wireless acquisition module, provides convenient wireless communication with speeds up to 200 samples per second when connected to your transducers. It offers powerful tools to set up, log, graph, and display data, including application mapping, and is compatible with all Interface force sensors.
Applications:
300 to 100K lbf
1.5 to 450 kN
Model WTS 1200 Standard Precision LowProfile® Wireless Load Cell are designed for general purpose applications requiring a wireless load cell that is compensated for eccentric loads. This load cell can transmit distances up to 2000 feet (610 meters) to a number of different base stations including a USB version and a handheld display. For more information about our full WTS (Wireless Telemetry System) products, please click on this link Wireless Telemetry System.
Higher Capacities are Available.
Options Available for 2nd, 3rd Bridge and Overload Protection.
Models WTS 1210, WTS 1220, and WTS 1232 are available.
The WTS-BS-3E is one of a range of base stations that are required for configuration and calibration of the WTS modular telemetry system. Base stations can also be used for data collection systems by making available the WTS wireless transmitter data over the USB interface.
The data sent by transmitter modules can be utilized by multiple receivers such as displays, handheld readers, analog outputs, relay modules and computer interfaces. Receivers support common industrial power supplies and are available in robust IP rated enclosures with internal antennas optimized to give outstanding coverage.
The WTS-BS-3E is housed in an IP50 enclosure. On Windows PCs the free WTS Toolkit is used to configure and calibrate the WTS modular telemetry system while the free WTS logging and visualization software allows monitoring and data collection.

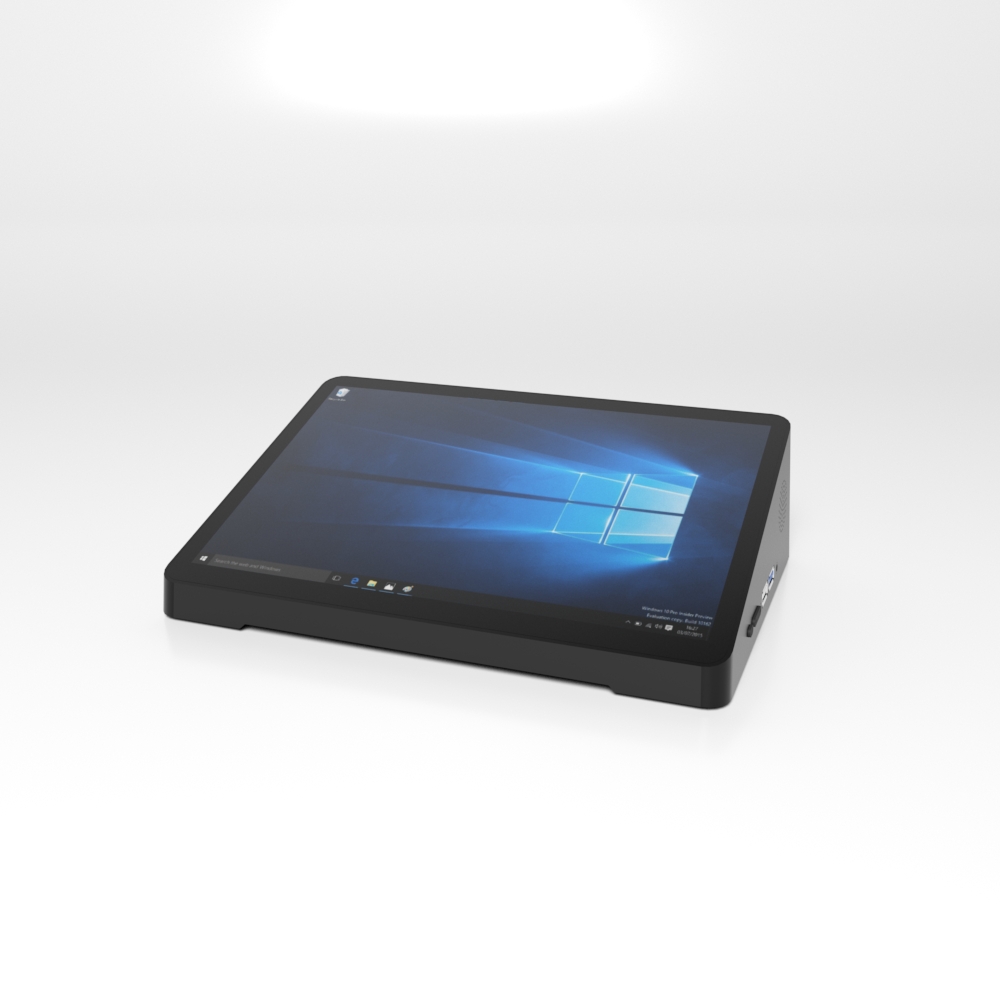

The Pipo X15 is a unique, multifunctional mini PC/tablet hybrid that blends portability with industrial-grade functionality. Its combination of touchscreen display, mounting capability, and rich connectivity makes it suitable for a wide range of environments from storefronts and kiosks to home media setups.

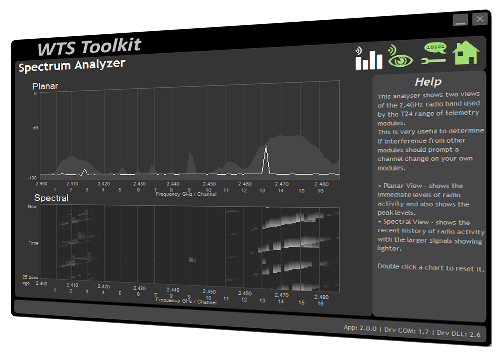

The WTS Toolkit is a free software suite provided by Interface, designed to configure, calibrate, test, and manage their full range of WTS wireless telemetry modules. It supports a variety of hardware, including transmitters, handheld displays, base stations, gateways, and LED displays.
Interface strongly recommends requesting a system-level calibration when purchasing a force measurement sensor with instrumentation. This final step ensures the sensor and instrumentation are properly calibrated and functioning together before leaving Interface.
