3AR100 Round 3-Axis Load Cells

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

3AR100 Round 3-Axis Load Cells

Fx (N), Fy (N), Fz (N)

Get Your Free Quote

Force: 450lbf/2.2Klbf, 1.1Klbf/4.5Klbf, 2.2Klbf/6.7Klbf, 4.5Klbf/13.5Klbf
Force: 2kN/10kN, 5kN/20kN, 10kN/30kN, 20kN/60kN

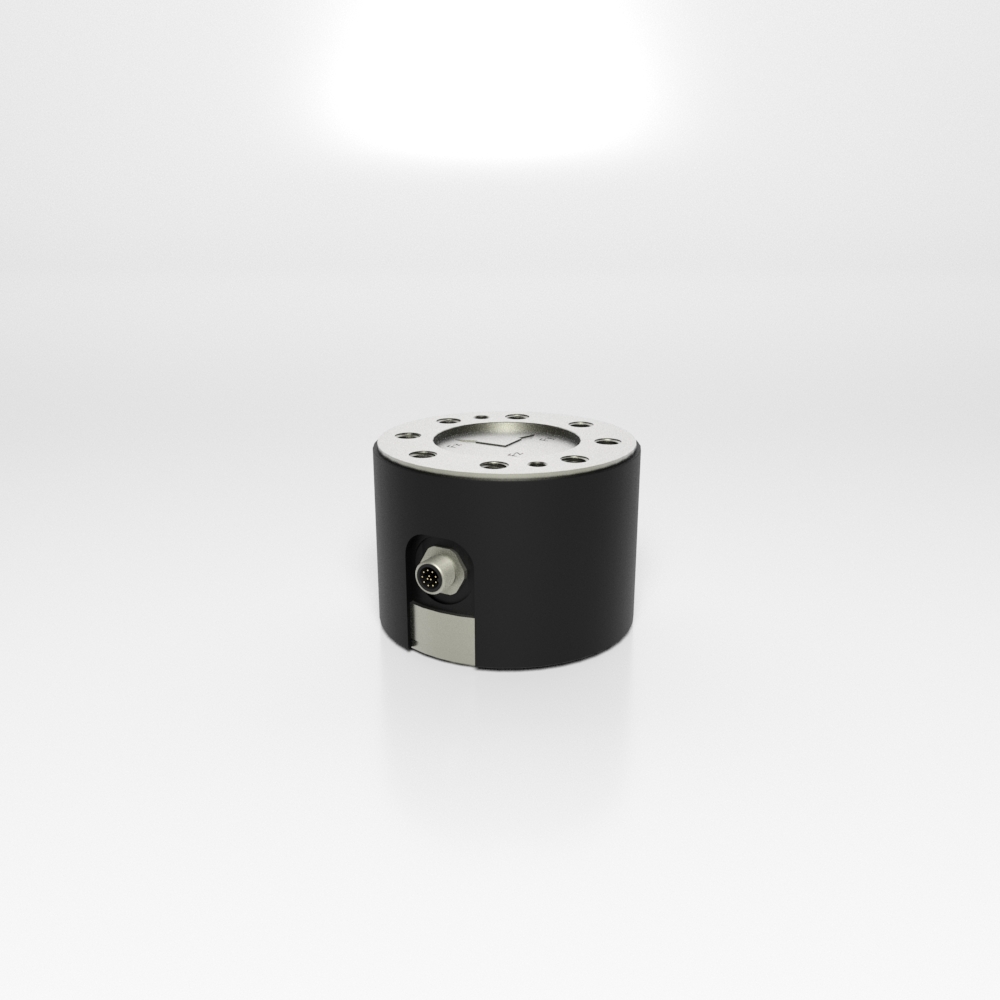

Interface’s 3AR100 3-axis load cell measures forces simultaneously in 3 mutually perpendicular axes: X, Y, and Z – tension and compression. Each axis provides a unique mV/V output and requires no mathematical manipulation. The 3-axis load cell is built to minimize eccentric loading effects and crosstalk between axes. The 3AR Series 3-axis load cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and bio-mechanical). The load cell is provided in various capacity ranges and sizes with each of the three axes providing the same capacity. We are happy to work with your design needs – providing a custom design if warranted for varying capacities (between X, Y, and Z), higher temperature capability, or OEM/private labeling if needed.

Product Downloads

Interface’s 3AR100 3-axis load cell measures forces simultaneously in 3 mutually perpendicular axes: X, Y, and Z – tension and compression. Each axis provides a unique mV/V output and requires no mathematical manipulation.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , ,

Features and Benefits

  • 3-Axis – Fx Fy Fz; independent bridges
  • Capacities – 2kN/10kN, 5kN/20kN, 10kN/30kN, 20kN/60kN (450lbf/2.2Klbf, 1.1Klbf/4.5Klbf, 2.2Klbf/6.7Klbf, 4.5Klbf/13.5Klbf)
  • Compact size
  • Low crosstalk
  • Temperature compensated
  • Optional BSC4A Amplifier can provide scaled analog outputs for all 3 channels simultaneously
  • Optional BX3-HD44-CAN 3-Channel CANbus and USB Strain Gage Amplifier can log, graph and display data for all 3 channels simultaneously

Cable Connection Options (Included with purchase)

  • M12 to 37-Pin D-Sub
  • M12 to M16 24-pin
  • M12 to 44-pin High Density D-Sub

Typical Applications

  • Robotics
  • Medical Technology
  • Measurements in Automation Technology
  • Mounting and Assembling of Parts in Production Lines
  • 6-Axis Force/Torque Platforms Consisting of 4x 3AR Sensors
  • Research and Testing

Specifications

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Characteristics

3AR100 Characteristics

B C D E
Fx (N) 2K 5K 10K 20K
Fy (N) 2K 5K 10K 20K
Fz (N) 10K 20K 30K 60K
Diameter (mm) Ø100 Ø100 Ø100 Ø100
Height (mm) 72 72 72 72
Weight (g) 2.5K 2.5K 2.5K 2.5K
Material Tool Steel
Housing Material Black Anodized Aluminum
Protection (IP) 65 65 65 65
Max Bending Moment 0.5KNm 0.5KNm 0.5KNm 0.5KNm
Torque Limit 1.5kNm 1.5kNm 1.5kNm 1.5kNm

Dimensions

Dimensions


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

Description Wire Color 37-Pin D-Sub 16-Pin M23
Shield Shield Shield 1 N/C
X-Axis + Excitation Brown 20 2
- Excitation White 27 1
+ Output Green 22 3
- Output Yellow 25 4
Y-Axis + Excitation Pink 2 6
- Excitation Gray 9 5
+ Output Blue 4 7
- Output Red 7 8
Z-Axis + Excitation Purple 11 10
- Excitation Black 18 9
+ Output Gray/Pink 13 11
- Output Red/Blue 16 12

For more information visit Electrical Wiring Diagrams

Additional Information

Product Video

Features and Benefits

  • 3-Axis – Fx Fy Fz; independent bridges
  • Capacities – 2kN/10kN, 5kN/20kN, 10kN/30kN, 20kN/60kN (450lbf/2.2Klbf, 1.1Klbf/4.5Klbf, 2.2Klbf/6.7Klbf, 4.5Klbf/13.5Klbf)
  • Compact size
  • Low crosstalk
  • Temperature compensated
  • Optional BSC4A Amplifier can provide scaled analog outputs for all 3 channels simultaneously
  • Optional BX3-HD44-CAN 3-Channel CANbus and USB Strain Gage Amplifier can log, graph and display data for all 3 channels simultaneously

Cable Connection Options (Included with purchase)

  • M12 to 37-Pin D-Sub
  • M12 to M16 24-pin
  • M12 to 44-pin High Density D-Sub

Typical Applications

  • Robotics
  • Medical Technology
  • Measurements in Automation Technology
  • Mounting and Assembling of Parts in Production Lines
  • 6-Axis Force/Torque Platforms Consisting of 4x 3AR Sensors
  • Research and Testing

Specifications

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Characteristics

3AR100 Characteristics

B C D E
Fx (N) 2K 5K 10K 20K
Fy (N) 2K 5K 10K 20K
Fz (N) 10K 20K 30K 60K
Diameter (mm) Ø100 Ø100 Ø100 Ø100
Height (mm) 72 72 72 72
Weight (g) 2.5K 2.5K 2.5K 2.5K
Material Tool Steel
Housing Material Black Anodized Aluminum
Protection (IP) 65 65 65 65
Max Bending Moment 0.5KNm 0.5KNm 0.5KNm 0.5KNm
Torque Limit 1.5kNm 1.5kNm 1.5kNm 1.5kNm

Dimensions

Dimensions


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

Description Wire Color 37-Pin D-Sub 16-Pin M23
Shield Shield Shield 1 N/C
X-Axis + Excitation Brown 20 2
- Excitation White 27 1
+ Output Green 22 3
- Output Yellow 25 4
Y-Axis + Excitation Pink 2 6
- Excitation Gray 9 5
+ Output Blue 4 7
- Output Red 7 8
Z-Axis + Excitation Purple 11 10
- Excitation Black 18 9
+ Output Gray/Pink 13 11
- Output Red/Blue 16 12

For more information visit Electrical Wiring Diagrams

Additional Information

Product Video

Short Description Sku Price
Model 3AR100E Series Round 3-Axis Load Cell, Fx = 20KN, Fy = 20KN, Fz = 60KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR100E $ 5775
Model 3AR100D Series Round 3-Axis Load Cell, Fx = 10KN, Fy = 10KN, Fz = 30KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR100D $ 5500
Model 3AR100c Series Round 3-Axis Load Cell, Fx = 5KN, Fy = 5KN, Fz = 20KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR100C $ 5500
