Interface Crane Use Cases and Application Notes

Manufacturers and engineers of heavy equipment are rigorous about the design quality, performance and most importantly preserving safety. Having tools to test and monitor this type of equipment allows equipment producers and users to review performance at all stages, ultimately maintaining a safe working environment which is critical to any construction, transportation, or infrastructure project job site. That’s why Interface provides quality force measurement products for a host of industrial equipment machines to accurately measure force, load capacity, weight, tension and more.

Interface has been a long-time supplier of force and torque sensors along with instrumentation products for projects involving all types of cranes and lifting machines. We are frequently asked to provide crane force measurement solutions for applications used in hoisting, lifting, moving, and transporting heavy objects. These use cases range across all types of environments, from constructing high rises in metropolitan centers around the world to maritime industry users loading docks and lifting watercraft.

To outline how force measurement is used to monitor cranes, we developed series of application notes explaining the components Interface provided to allow our customer to measure safety, reliability, and efficiency of their equipment.

Crane Capacity Verification

The first application note outlines a project in which the customer wanted to verify that their crane was strong enough to safely lift a heavy load at its rated maximum load capacity. It was determined that because of the size of the crane, a wireless solution was needed to avoid long wires and burdensome installation. Interface provided a Model WTSLTL Lightweight Wireless Tension Link Load Cell to measure the load’s maximum capacity. WTS-RM1 Wireless Relay Output Receiver Modules were also used to trigger an alarm that can be set when the maximum capacity of weight/force has been reached. To review the data the customer could transmit to a PC or laptop with a WTS-BS-4 USB base station. The data can also be reviewed through a WTS-BS-1-HS Wireless Handheld Display. With this solution, the customer was able to verify if the crane is safe and functional enough to lift it’s working load limit (WLL), or safe working load (SWL) capacity.

Read the full Crane Capacity Verification Application Note here.

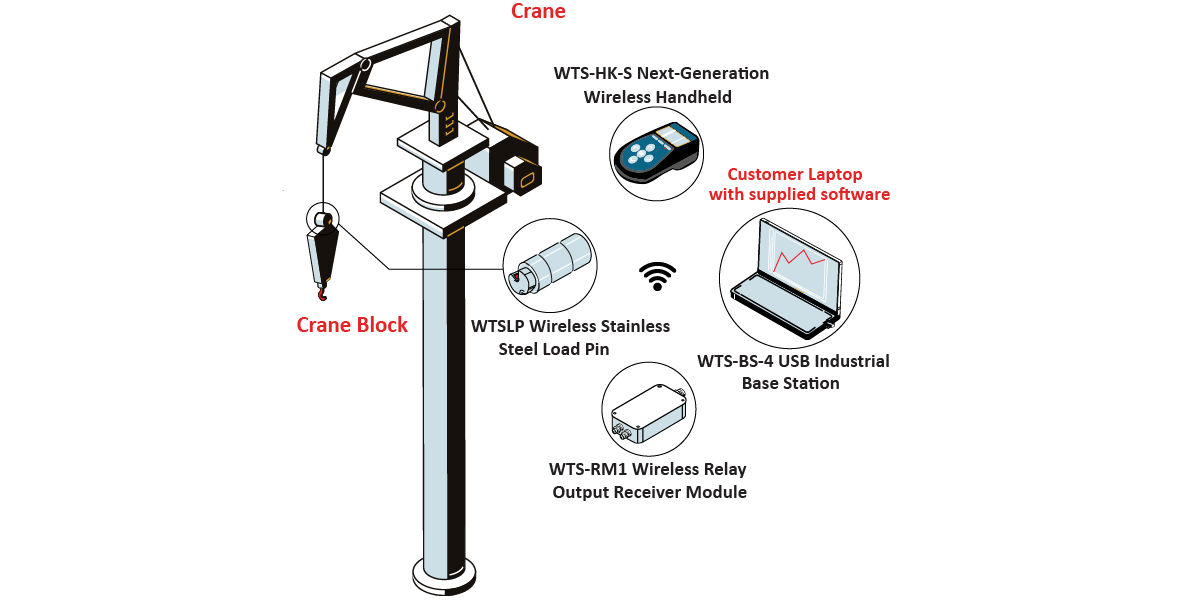

Crane Block Safety Check

The next example features a crane application in which the customer wanted to detect whether a crane block could lift a heavy load securely to keep working conditions safe for personnel. The customer specifically wanted the solution to include an alarm feature that notified them if lifting capacity was exceeded in real-time. Using a WTSLP Wireless Stainless Steel Load Pin in place of a load bearing pin in the crane block, they could measure the force being applied by the heavy load. Data will be transmitted and displayed through both the WTS-BS-4 USB Base Station. It can also be paired with the WTS-BS-1-HA Wireless Handheld for real-time safety monitoring. The WTS-RM1 Wireless Relay Output Receiver Module triggers an alarm when maximum capacity has been reached. The customer was able to verify if the crane was operating safely and was always functional enough to lift it’s working load limit (WLL) or safe working load (SWL) capacity. The added alarm feature is critical for notifying users when the crane reaches unsafe limits during operations.

Read the entire Crane Block Safety Check Application note here.

Crane Force Regulation

In the final application note, a customer wanted to regulate the maximum number of heavy loads being lifted, so that production time was both safe for workers and efficient. The goal was to complete lifting duties faster and with little or no expense. A wireless solution was also preferred, so that there would be no long cable interference during production. Interface supplied a WTSLP Wireless Stainless Steel Load Pin, which can be custom made to be used for any and all types of cranes. It is also great for lifting both short and long distances. The load pin was paired with the WTS Wireless Telemetry System, where force could be measured and logged. The customer was able to monitor the continuous force from the crane, and gather information on loads being lifted for continuous safety and production reporting requirements.

Read the complete Crane Force Regulation Application Note here.

You can read more about heavy equipment testing and use cases in our post, Force Measurement Solutions for the Construction Industry.
