Digging Into Interface Mining Industry Solutions

Sensors are integral to ensuring the safety of mines, including underground, open surface, placer, dredging, highwall, mountaintop, and in-situ. However, one of the most valuable uses for Interface sensor technologies is assuring that equipment is adequately tested, controlled, and monitored to ensure safe operations.

The mining industry is wrought with hazards and extreme environments that can put a job site at risk and, more critically, endanger miners’ lives. Mining equipment and tools manufacturers turn to Interface for various transducers designed for use in unique and hazardous environments. These measurement instruments are essential in meeting the rising safety requirements of the mining industry and significantly improve the quality and reliability of mining equipment.

Interface force and torque measurement products help to efficiently and safely extract and process metals, gemstones, limestone, chalk, coal, oil shale, dimension stone, rock salt, potash, gravel, and clay.

Interface products are essential for designing, testing, and utilizing mining equipment, machines, components, and systems. Our load cells, instrumentation, torque transducers, multi-axis sensors, load shackles, and tension links are used in tools and equipment for the mining industry.

The data gathered from Interface measurement solutions ultimately helps monitor the mine’s structural supports, optimize digging and lifting processes, reduce wear and tear on equipment, and prevent overloading, which can lead to costly downtime and maintenance. This data is typically gathered throughout one of two stages of the product cycle: during thorough product testing or while monitoring the product in real-time. The mining industry heavily utilizes both use cases.

For example, Interface load cells are used for conveyor systems, which rely on force measurement to monitor the tension and load on conveyor belts. Load cells can also be installed on mining shovels, draglines, and excavators to measure the load on the buckets or booms.

Excavator Test and Measurement Applications

Load cells and torque transducers are used to test the performance of excavators. This includes testing the excavator’s digging force, lifting capacity, and swing torque. An Interface load cell can accurately measure the force exerted by the excavator’s bucket as it digs into the ground. The measurement data provides information to determine if the excavator has sufficient digging force to complete the task. Our torque transducers are helpful in accurately measuring the swing torque of the excavator to assess that there is adequate torque to swing the boom and bucket safely and efficiently.

Mining Equipment Design and Testing

Load cells and torque transducers are valuable in the design of mining and excavation equipment. The precision of Interface’s LowProfile Load Cells accurately measures the forces acting on different parts of the equipment, such as the boom, bucket, and undercarriage. The measurement data during extensive testing can also help determine how to optimize the equipment. Our Mini Load Cells, like the SSMH Sealed Hazardous Environment Intrinsically Safe S-Type Load Cell, can be integrated into mining equipment and tools for continuous monitoring and safety alarms to protect from overloading. Torque transducers can measure the torque requirements of different equipment components, such as the rotary drive and swing drive. This information can be used to design more powerful and efficient components.

Monitoring the Safety and Regulation of Cranes

Mining operations worldwide rely on cranes, lifting equipment, and heavy-duty vehicles. This equipment requires rigorous testing of every component and continuous monitoring to safeguard the equipment and, more importantly, operators.

In this video application, the customer verified if the crane is safe and functional enough to lift its working load limit (WLL) or safe working load (SWL) capacity. Using the Interface Model WTSATL-JR Aluminum Compact Wireless Tension Link Load Cell, they can measure the load’s maximum capacity. The WTS-RM1 Wireless Relay Output Receiver Modules can also trigger an alarm that can be set when it reaches the maximum capacity of weight and force. The data is transmitted and can be reviewed with the WTS-BS-1-HS Wireless Handheld Display or on a computer.

See how our measurement solutions are used for crane capacity verification.

Interface offers an intrinsically safe lineup of products designed for rugged and extreme conditions that are of great value in the mining industry. These specialized load cells and force measurement solutions are designed and manufactured so that the materials and electronic components are safe for use in hazardous gas and dust environments when installed per applicable installation instructions. These components play an integral role in the safety of those working in dangerous environments, particularly in natural resource industries like oil, gas, forestry, and mining.

To learn more about our products used in the mining and natural resource industries, contact Interface Application Engineers. They are ready to answer your questions and find the correct measurement solution for your requirements.

Interface Engineered Solutions for Lifting Webinar Recap

Everything from mechanical engineering designs, equipment materials, and the sensors used in lifting machinery is changing the concept of lifting today. Interface experts Keith Skidmore and Ken Bishop explore types of measurement products, applications, technical considerations, and tips for lifting use cases in the Interface recorded webinar Engineered Solutions for Lifting.

Sensors are central in lifting equipment to maintain safety, quality, compliance, and efficiency. Interface provides a useful product selection online resource for lifting applications. Go to the Lifting Solutions Guide.

Interface load cells can help prevent accidents by providing real-time feedback on the weight of the lifted load. The measurement data helps ensure the lifting machinery is not overloaded or unbalanced, leading to structural failure, tipping over, or injury. Sensor technologies improve quality control by ensuring products are lifted to the correct specifications.

Interface LowProfile Load Cells, Load Pins, Load Shackles, and Tension Links improve efficiency by automating the lifting process. For example, load cells can control the speed and movement of a lifting mechanism, ensuring that the load is lifted safely and efficiently. These measurement sensors can reduce costs by minimizing damage to equipment and products. By preventing overloads and ensuring that loads are lifted safely, load cell devices can extend the lifespan of equipment and prevent costly accidents.

In many industries, regulations require load cells for lifting applications to ensure compliance and overload protection. For example, the Occupational Safety and Health Administration (OSHA) requires the use of load cells in many lifting applications for monitoring and reporting.

Automation of lifting is on the rise. Using robotics and component activation is commonly designed into new equipment and retrofitting existing hardware. These features also provide valuable operating safety and alarm systems based on key measurements. Modernizing equipment to meet today’s and future use cases is important to operators and manufacturers of lifting equipment. This includes utilizing wireless components and using cloud-based data (IoT).

Lifting sensors are more commonly found in settings with high-temperature variances and exposure to extreme environmental conditions. The measurement solutions must withstand these variances while providing continuous monitoring capabilities. Today’s use cases require smaller load cells, like our beam load cells, while not sacrificing precision measurement.

Interface products are used for all types of lifting equipment, apparatus, and machines, including:

  • All Purpose Cranes
  • Patient Lifts and Medical Equipment
  • Drones with Lift and Carry Capabilities
  • Aircraft Lifts and Rigging
  • Lifting Gantry Systems and Mobile Gantry Cranes
  • Jib Cranes
  • Engine and Floor Cranes
  • Scaffold Runway Systems
  • Venue and Entertainment AV Equipment
  • Rigging Equipment
  • Pallet Movers
  • Elevators
  • Loaders and Bulldozers

During the webinar, Interface experts shared tips and best practices. Here is a quick summary of tips for lifting use cases.

Top Measurement Tips for Lifting Use Cases

TIP #1 Select the right force sensor. Factors to consider when selecting a force sensor include the maximum force it can measure, accuracy, weight, dimensions, and environmental conditions for use.

TIP #2 Proper installation will define your application’s success. It is important to install the force sensor correctly to ensure accurate measurements.

TIP #3 Calibrate the force sensor regularly, preferably once a year. Regularly run calibration-grade tests if the load cell is embedded into the lifting device.

TIP #4 Based on each use case, instrumentation can make all the difference in your program. For example, a data acquisition system collects force data to monitor the lifting process, identify potential problems, and generate reports.

TIP #5 Design the lifting system with safety in mind. Force measurement can improve the safety of lifting systems by preventing overloading, detecting imbalances in the load, and monitoring the condition of the lifting equipment.

Tune into the webinar to hear Keith Skidmore and Ken Bishop detail best practices, key considerations to identify stable and unstable lifting, and a thorough review of industry applications using Interface products.

Lifting Applications

Crane Capacity Verification

A customer wants to verify that their crane is strong enough to safely lift a heavy load at its rated maximum load capacity. A wireless solution is needed to avoid long cables and to have a faster installation time. Interface’s Model WTSATL Lightweight Wireless Tension Link Load Cell can measure the load’s maximum capacity. The WTS-RM1 Wireless Relay Output Receiver Modules can also trigger an alarm that can be set when the maximum capacity of weight/force has been reached. The data is transmitted and can be reviewed with the WTS-BS-1-HS Wireless Handheld Display or on the customer’s PC.

gantry crane lifting a heavy container

Gantry Crane Wireless Lifting for Heavy Containers

Gantry cranes are used for mobile and lifting applications in industrial and construction. A weighing system is needed to see if the gantry crane can lift heavy containers or loads, preventing crane failure or accidents. Interface’s WTSLP Wireless Stainless Steel Load Pins can be installed into the corners of the lifting mechanism of the gantry crane, where heavy-loaded containers are lifted and moved. The force results are then transmitted to the WTS-BS-1-HS Wireless Handheld Display for Single Transmitters and a connected computer using the WTS-BS-6 Wireless Telemetry Dongle Base Station.

Patient Lifting Device

In the medical field, sometimes it is necessary to weigh or transfer patients who are disabled and cannot walk. A Hoyer lift is used to move patients around. A manufacturer would like a force system to weigh disabled patients and see the maximum weight it can hold. Interface’s WTS 1200 Standard Precision LowProfile® Wireless Load Cell is attached to the top of the Hoyer lift. The force results are wirelessly transmitted to the medical laptop through the WTS-BS-6 Wireless Telemetry Dongle Base Station.

Find additional productions and solutions in our Lifting Solutions Overview.

Lifting Solutions Brochure

Universal Load Cells 101

In the force measurement testing world, versatility has tremendous value. That is why some of Interface’s most popular products are designed to provide adaptability for a broad spectrum of testing and force monitoring processes.

These products are engineered for universal use cases, from standard tension and compression LowProfile Load Cells to Interface’s multi-axis sensors that can measure up to 6 axes for additional data.

Universal load cells can measure both tension and compression forces in testing and monitoring applications. Universal load cells provide the ability to capture data on both forces. They are designed for a broad scope of force or weight measurement applications such as weighing scales, material testing machines, and industrial automation equipment.

These load cells are ideal for installations where the load may change from tension to compression. Universal load cells also suit various product and material destructive testing as they are robust and easily mounted in various applications.

Top Benefits of Universal Load Cells

Range of Standard Capacities: Universal load cells are diverse in dimension and capacities. From miniatures like our model ULC, which is the world’s most accurate ultra-low capacity tension and compression load cell measuring loads from 0.1 to 2 N (10.2 grams to 500 gmf) to 1000 Series High Capacity Fatigue Rated LowProfile Load Cell capable of measuring tension and compression over a million pounds of force, Interface has a range of universal options. The requirements of any testing program will define the type of load cell.

Versatility: Universal load cells can measure force in multiple directions, including compression, tension, and shear forces.

Adaptable Accessories: Universal load cells can be used with various accessories and fixtures to suit specific applications. This includes bases, mounting hardware, adapters, cables and protective enclosures. Wireless sensor options are in high demand for universal load cells.

Engineered to Order: Interface offers engineered to order and customization of our load cells to further the application use and flexibility of use.

Products such as universal load cells appeal to highly regulated industries like aerospace, defense, automotive, and industrial automation. In controlled testing, engineers must meet stringent performance measurement standards for components, equipment, and machinery.

Another area in which universal load cells stand out is in material testing. Measuring tension and compression provides critical force data when testing a material that will be used in system that needs to be both strong and flexible for safety and quality purposes.

One of Interface’s most popular load cell model, the 1200 series, is universal. For example, Interface’s Model 1200 and 1201 Series IO-Link Universal Load Cells are pancake style load cells which are IO-Link compatible with an open standard serial communication protocol that allows for the bi-directional exchange of data from sensors and devices.  We also offer a 1200 and 1201 Series 3-Wire Amplified Universal Load Cell.

Features and benefits of the 1200 and 1201 Series IO-Link Universal Load Cell include:

  • Proprietary Interface strain gages
  • Temperature compensated
  • Eccentric load compensated
  • Low deflection
  • Shunt calibration
  • Tension and compression
  • Compact size
  • 3-wire internal amp choice of 4-20 mA, ±5V, ±10V, 0-5V, 0-10V

Patient Hoyer Lift

A Hoyer lift is used to move patients. A medical equipment manufacturer would like a force system to weigh disabled patients and measure the maximum force when using the equipment. Interface’s WTS 1200 Precision LowProfile Wireless Load Cell is attached to the top of the Hoyer lift. The tension and compression force results are wirelessly transmitted to the medical personal’s computer through the WTS-BS-6 Wireless Telemetry Dongle Base Station. Interface’s wireless force system was able to measure the amount of weight a patient while also clarifying the maximum capacity the Hoyer lift can hold during use. Read more about this application here.

If you need a little more flexibility in your testing and monitoring system, Interface universal load cells may be a great option for you.  The choice of a specific load cell will depend on factors such as the required load capacity, accuracy, environmental conditions, and signal compatibility with the rest of the measurement or control system.

ADDITIONAL RESOURCES

Interface 101 Series

Wireless Telemetry Systems 101

Load Cell Sensitivity 101

LowProfile Load Cells 101

ITCA Tension and Compression Load Cell



Outlining Force Solutions for Structural Outrigging

Across a wide variety of industries, heavy machinery, maritime, construction, and other infrastructure often need additional structural support. This includes support that prevents equipment, vessels, and buildings from falling over, capsizing or collapsing.

Typically, the solution to provide this critical structural support comes in the form of an outrigger. For vehicles, both land and maritime, an outrigger is a projecting structure, with specific meaning depending on types of vessels, or the legs on a wheeled vehicle that are folded out when it needs stabilization.

For buildings, outriggers are interior lateral structural systems provided to improve the overturning stiffness and strength of high-rise buildings. It is a lateral load resisting system that is located within the building. The whole system consists of a core structure connected to the perimeter columns of the building.

These types of structural supports became popularized in the 1980s as an addition to high-rise buildings as they are effective up to 150 floors due to its unique combination of architectural flexibility and structural efficiency. Outrigging has been adapted for large vehicles and boats, such as large cranes that are extremely top heavy and can create balance problems, or yachts that need to be stabilized when stored out of water.

With the addition of these supports, various forms of testing need to be done to ensure the outrigger can support the vehicle or structure it is installed upon. This is where Interface’s force measurement testing and monitoring products are utilized in different outrigging applications.

Interface load cells are used by outrigging engineers, civil engineers and heavy equipment manufacturers, oil and gas, construction industry and marine equipment companies. Read more why Rigging Engineers Choose Interface Measurement Solutions.

The role of force measurement sensor technologies in outrigging is to provide high accuracy measurement of the outrigging equipment in test and actual use. The applications range from integration of sensors into outrigger equipment, to load cells for real-time monitoring of the physical structure using outrigger supports.

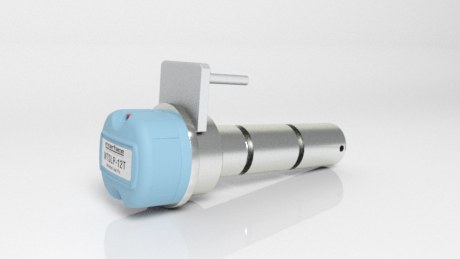

The most common Interface products used for outrigging include:

For example, Interface load shackle cells are used to measure the forces during outrigger testing as well as on the outrigger equipment that support the structure. The data from the sensor is critical information used to assess the structural integrity of the outrigger or structure and to identify any potential weaknesses.

Interface load cells, such as our load shackles or load pins, are typically placed in strategic locations on the outrigger or structure where the force is expected to be greatest. The load cell is then connected to a data acquisition system (DAQ) or indicator that records the force readings. The data can then be analyzed to determine the maximum force applied to the outrigger or structure, as well as the distribution of force over the structure.

Load cells can also be used to monitor the performance of outriggers or structures over time. This can be helpful in identifying any changes in the structural integrity that may be caused by wear and tear, environmental factors, or other factors. Utilizing instrumentation with alarm capabilities is helpful, as well as a tool for maintenance.

Load cells are an important safety feature in outrigging equipment. They can help to prevent accidents and ensure that the equipment is used safely. A load cell is used to prevent a crane collapse during the construction of a high-rise building in a large congested metropolitan city. The crane is used for lifting a heavy beam. The load cell alerts the operator when the load is too heavy.

Ultimately, force measurement provides several benefits to testing and monitoring different outrigger applications, including:

  • Increased safety: By measuring the force applied to the outrigger, a load cell can help to prevent overloading and damage to the outrigger. It is also valuable for continuous monitoring during lifting use cases, such as with a crane or heavy machinery.
  • Improved efficiency: By monitoring the performance of the outrigger, a load cell can help to identify any potential problems early on, which can help to prevent costly downtime.
  • Reduced risk: By providing accurate data on the force applied to the outrigger, a load cell can help to reduce the risk of accidents and injuries.

Examples of how force measurement is used to test outrigger solutions in a variety of industries:

  • In the oil and gas industry, load cells are used to test the outriggers of offshore drilling rigs. This helps to ensure that the rigs are safe to operate in high-wind and wave conditions.
  • In the construction industry, load cells are used to test the outriggers of cranes and other lifting equipment. This helps to ensure that the equipment is safe to use and that it will not overload the outriggers.
  • In civil engineering, load cells are used to test the structural integrity of bridges and other structures. This helps to ensure that the structures are safe to use and that they will not collapse underload.

Outriggers play a critical role in the safety and support of vehicles, infrastructure projects and massive structures. Interface force measurement products also play a necessary role in safeguarding outriggers and the operators. If you have an outrigging use case and are wondering which products are best suiting for your specific requirements, contact Interface Application Engineers for help.

Construction Brochure

Engineered Solutions for Lifting Webinar

Interface’s technical webinar Engineered Solutions for Lifting details measurement devices used in lifting equipment, machines, and vehicles to improve operations and safety. Interface load cells and instrumentation are used to operate cranes, hoist heavy objects, and measure forces in infrastructure projects. Interface experts answer how load cells are used in safety monitoring for lifting equipment. Learn about Interface sensor products suited for integration into existing equipment and test and measurement projects.

Interface Measurement Solutions Support Smart Cities

Various Interface load cell products are used in the development of smart cities. What is a smart city? A smart city is a municipality that uses data and interconnectivity to improve sustainability and quality of life.

According to the Smart City Index of 2023, London is leading the way in the development of its smart city infrastructure. Other top contenders for the lead are Zurich, Oslo, Barcelona, Taiwan, Singapore and New York. There are estimates are there are more than 140 smart cities today in various stages, and the number is growing. They are also showing tremendous potential to transform the way we live, consume, move and work. Most smart city infrastructure is in the early and mid-stages of development.

From research to engineering and building to maintenance, Interface force measurement solutions are being actively used in the design and testing of components used in smart city projects and systems. Force measurement data is valuable for assessing and improving the overall efficiency and sustainability of a city. Learn more by visiting our smart cities solutions here.

Load cells can be used to measure a variety of parameters in smart city design, development of infrastructure and resource management.

  • Interface LowProfile and Mini Load Cells are used to measure the force applied to a structure or object. This information can be used to assess the structural integrity of a building or bridge, or to optimize the design of a new product used in the smart city infrastructure.
  • Interface torque transducers provide data on the rotational equivalent of force. This information can be used to monitor the performance of heavy duty machinery and construction equipment, or to ensure that products are assembled correctly when building.
  • Specialized load cell technologies, like load pins, load shackles and tension links can be used to measure tension, lifting actions and weight, which is the force of gravity acting on an object. This information can be used to weigh products, to monitor the loading of transport vehicles, or to ensure materials or people are not overloading lifting equipment. Go to our Lifting Solutions and Weighing Solutions to learn more about the range of products available for smart city applications.
  • Interface wireless and Bluetooth solutions support the advance ICT (communications) requirements to easily capture accurate data without the cable. Our complete line of wireless telemetry systems and Bluetooth options support the advancements in digital optimization and feedback required for real-time data management.

By using sensors, data, and communications to improve human conditions of our cities, we can create more livable, sustainable, and equitable communities for the future.

SmartInfrastructure_InfographicPoster

How Load Cells and Sensor Devices are Used in Smart Cities

Load cells are versatile and essential tools for a diverse range of smart city applications. They provide accurate and reliable measurements that can be used to improve safety, resource management, and sustainability. Here are some examples of how force measurement solutions are used in smart cities.

  • Improving traffic management: Data acquired from load cells and sensors can be used to monitor the weight of vehicles on bridges and roads. This information can be used to optimize traffic flow and to prevent overloading of infrastructure. Force measurement data can also be used to monitor the movement of people and vehicles. This information can be used to identify potential hazards and to prevent accidents. Read: Interface Powers Smart Transportation Solutions
  • Smart waste management: Force measurement outputs can be used to monitor the weight of waste in bins. This information can be used to optimize waste collection routes and to reduce the amount of waste that is sent to landfills. Learn more in our IoT Waste Management Container Weighing App Note
  • Structural health monitoring: The data from load cells, torque transducers and multi-axis sensors can be used to monitor the structural integrity of buildings and bridges. This information can be used to identify potential problems before they lead to failure. Check out our post Interface Solutions for Structural Testing.
  • Smart farming and agriculture: Data from force measurement solutions can be used to monitor the weight of crops and livestock. This information can be used to optimize irrigation, fertilization, and harvesting. Learn more in our post Solutions to Advance Agriculture Smart Farming and Equipment.
  • Smart transportation: Creating a system of public transportation options, electric vehicles and bicycles, along with autonomous deliveries are part of smart city development projects around the world. Interface force measurement devices are critical in the development, testing and management of smart transportation.
  • Air quality systems: Force measurement data collected in real-time can be used to monitor the emission of pollutants from vehicles and factories. This information can be used to reduce pollution and improve air quality in smart cities.
  • Resource and energy management: Measurement data is important in production and optimization of critical resources like renewable energy and water, as well as for reducing waste and improving efficiency. Force measurement data can be used to monitor the energy consumption of buildings and infrastructure. This information can be used to identify opportunities for energy savings.

Smart cities use various Interface sensors technologies and other data collection instrumentation devices to track the use of resources and transportation. Overall, force measurement solutions are a valuable tool for improving the efficiency, sustainability, and safety of smart cities. As the use of sensors and other data collection devices continues to grow, we can expect to see even more innovative applications for force measurement data in smart city applications.

Keep watch of our smart city applications, as we learn more about how our products are being used in very smart and innovative use cases.

ADDITIONAL RESOURCES

Modernizing Infrastructure with Interface Sensor Technologies

The Rise in Digital Force Measurement Solutions

Why Civil Engineers Prefer Interface Products

Interface Powers Smart Transportation Solutions

Smart Pallet Animated Application Note

Making Products Smarter with Interface OEM Solutions

Solutions to Advance Agriculture Smart Farming and Equipment

Interface Solutions for Heavy Equipment

Vertical Farming for Sustainable Food Production on Earth and Beyond

Innovative Interface Lifting Solutions



Force Measurement Testing Improves Products and Consumer Safety

Across every industry, force measurement solutions are utilized to improve product performance, safety and quality. Sensor technologies are used every day to test various consumer products’ weight, torsion, tension, compression, fatigue, impact, and materials.

Force measurement testing is used throughout the product development lifecycle, from concept and R&D, through engineering and testing, to manufacturing and distribution, leading to eventual utilization. Interface load cells are commonly integrated into actual consumer products for activation and to measure performance during use.

Interface force measurement solutions are also used in the testing of equipment, machines, and tools used in the production of all types of products and goods. Our products are used in industrial automation robotic arms as well as within lifting equipment deployed to move materials around a facility.

The key to all force measurement testing is accuracy and reliability of data, as well as selecting the right type of force sensor for the specific product being testing.

Types of Product Testing Applications Using Interface Measurement Solutions

  • Weighing Applications: Interface miniature load cells are often for product testing to measure the exact weight of consumer products, such as food, beverages, and electronics. This information is critical R&D, as well on the production line and to meet the exact product specifications. Our load cells help to ensure that the products are not underweight or overweight, and comply with regulations. Read more about Load Cells for Smarter and More Efficient Weighing
  • Material Applications: Interface LowProfile load cells are often found in product testing labs to assess the strength of materials used in consumer products such as plastics, metals, and mixtures of composites. The measurements gathered during the product testing safeguards consumers and confirms the product’s durability. Read Interface Solutions for Material Testing Engineers
  • Force Applications: Interface load cells, torque transducers, and instrumentation are used in complete test systems that examine the usability of products such as exercise equipment, appliances and electronics. The data acquired in shear, tensile and force testing is important to understand if the product meets design specifications, is easy to use and does not require excessive force to work.
  • Safety Applications: One of the most important product use cases for Interface measurement solutions is to test the safety of products such as furniture, toys and automobile features. It is a requirement for every maker of products that are not hazardous and will not cause injury to consumers. Read Interface Solutions for Safety and Regulation Testing and Monitoring

To give you a better idea of how our load cells and instrumentation are utilized in distinct types of product tests, we have included a few application notes below outlining real-world examples of force testing projects.

Bicycle Helmet Safety and Impact Product Testing

A high production bicycle manufacturing facility set up a product testing lab to measure the impact of the safety of their helmets when dropped from different heights onto a flat surface such as an anvil. This test is necessary to ensure consumer safety and that the products are made with the highest quality materials to protect the rider. Interface suggests installing the 1101 Compression-Only Ultra Precision LowProfile® Load Cellat the bottom of an anvil. The bike helmet is then dropped from multiple heights and at multiple angles onto the anvil. The measurements from impact are then recorded and logged throughout the product testing using Interface’s INF-USB3 Universal Serial Bus Single Channel PC Interface Module with supplied software. Every design or material change runs through the same rigorous testing protocols using these high accuracy measurement solutions.  Read CPG Bike Helmet Impact Test

Product Weighing of Consumer Water Bottles

A manufacturer of glass bottled water needs to dispense the exact amount of fluid into each bottle and then weigh the water bottle to ensure it is at the labeled weight on the product packaging. The product testing of the manufacturing equipment is used to minimize waste and to meet the weight requirements to ensure consumer satisfaction. Interface suggests using the MBP Miniature Beam Load Cell and attaching it under a plate or platform where the water bottle is placed on while it is being filled with fluids. The force weight is measured by the MBP Miniature Beam Load Cell and connected to the 9870 High Speed High Performance TEDS Ready Indicator where results are captured, displayed, and logged for quality control. Read CPG Water Bottle Dispensing and Weighing

Product Test Lab Conducts High Volume Tensile Force Testing

A product test lab is constantly requested to conduct a series of tensile force tests on different samples and materials until failure. These materials include plastic, steel, or woven fabric, and are utilized in the design and manufacturing of several consumer products. The lab professionals want to measure tensile strength, yield strength, and yield stress for every submitted product material sample. For the tensile test stand, we recommend using Interface’s 1200 Standard Precision LowProfile™ Load Cell be installed into the test frame. As the tensile test is conducted, force results captured by the load cell and extensometer are synchronized through the SI-USB4 4 Channel USB Interface Module. The results are displayed on the customer’s computer with supplied software. Learn more by reading Material Tensile Testing.

Interface’s high precision force sensor technologies used in robotics have revolutionized the manufacturing of consumer products. With automated assembly lines and robotic arms taking charge, these machines work efficiently to mass-produce consumer goods. Quality control of all the products we provide you for testing is one of the main focuses of Interface, as we want to keep your customers happy and safe.

Interface’s experienced team are renowned specialists in force, torque and weight measurement manufacturing and technology. Our depth of knowledge and wide range of capabilities create custom solutions of all types, whether special transducers made to your exact specifications or complete customized sensor, instrumentation, and software systems. We collaborate with you to ensure the product specifications you need are designed to match your precise requirements.

ADDITIONAL RESOURCES

Introducing the Interface Consumer Product Testing Case Study

Interface Solutions for Consumer Products

Force Measurement is Reducing Waste and Automating the Consumer Packaging Industry

Applications for Consumer Products and Packaging

Load Cells for Consumer Product Applications

Why Product Design Houses Choose Interface

Testing Labs Choose Interface High Accuracy Products

Interface Solutions for Material Testing Engineers

How Load Cells Are Transforming the Construction Industry

The construction industry is one the most universal, growing, and dangerous industries in the world. Interface force measurement solutions are used for all types of construction applications from bridge and high-rise building projects to foundation load tests and structural monitoring. Our sensors and instrumentation are used in crane and heavy lifting operations, material testing and equipment calibration.

Accuracy and quality of all measurement products used for design, testing, monitoring, and equipment evaluations is imperative in protecting the project’s assets and workers. One of the leading causes of construction accidents is overloading equipment. When equipment is overloaded, it can fail, leading to serious injuries. It is essential to utilize high accuracy load cell technologies to measure the amount of force being applied to construction equipment.

Interface force measurement solutions can help to prevent overloading accidents by using the measurement data to ensure that equipment is not being extended beyond its safety capabilities. Force measurement solutions can also be used to monitor the performance of equipment and identify potential problems before they lead to an accident.

Interface offers a wide variety of sensor solutions for construction equipment and material testing. Our load cells offer precise measurements of applied forces, furnishing essential data regarding the structural response under various load circumstances. This data plays a critical role in evaluating structural integrity, detecting potential vulnerabilities, and optimizing design to guarantee the safety and dependability of infrastructure.

Interface force measurement solutions can help to improve efficiency and productivity in the construction industry in all areas including engineering, testing and maintenance. By monitoring the performance of equipment, construction companies can identify areas where they can improve efficiency.

It is common to find Interface load cells, including load pins, load shackles, miniature and even jumbo load cells in use for various forms of construction projects, equipment and tools. These products, as well as torque transducers, instrumentation and wireless systems are frequently used in the testing and monitoring of the machinery, rigging and lifting devices, gear, and heavy duty vehicles that are used in various stages of building.

Interface provides various sensors for a range of construction use cases around the world, including:

  • Residential and commercial buildings
  • Infrastructure programs
  • Industrial construction
  • Material testing machines
  • Civil engineering projects
  • Mining and tunneling
  • Environmental remediation
  • Heavy equipment manufacturing
  • Vehicle OEMS
  • Cranes and lifting equipment


Construction is an ever-present and ever-growing industry estimated to reach nearly $13T in global spending with broad and diverse use of measurement solutions. From single dwelling construction tools to heavy machines used to move concrete slabs, measurement is fundamental in construction. Included below we have provided a few examples of how our sensors are being used in construction.

Construction Reach Stacker

A reach stacker is a vehicle used in construction site to lift, move, and stack heavy containers. A force monitoring system was needed to ensure the safety of surrounding personnel, and if the reach stacker can lift heavy loads. Interface’s WTSLP Wireless Stainless Steel Load Pins were installed into the corners of the lifting mechanism of the reach stacker, where heavy loaded containers are lifted and moved. The force results were then wirelessly transmitted to both the WTS-BS-1-HS Wireless Handheld Display for Single Transmitters, or directly to the customer’s PC with the WTS-BS-6 Wireless Telemetry Dongle Base Station. Using this solution, the customer was able to monitor their reach stacker with Interface’s Wireless Telemetry System and ensure its ability to lift heavy loads on site.

Bridge Construction Wind Monitoring

Wind monitoring is a necessary operation during bridge constructions. Strong winds can destroy a bridge under construction since it is a work in progress with poor structural design. Monitoring these winds in real time is much more accurate than using predicted weather forecasts. Interface suggested installing the WTS-WSS Wireless Wind Speed Transmitter Module on the highest point of construction, such as a crane. Wind speed results were wirelessly transmitted to the customer’s PC through WTS-BS-4 Wireless Base Station with USB Interface in Industrial Enclosure. It was transmitted to the WTS-BS-1 Wireless Handheld Display for Unlimited Transmitters Data can be displayed, logged, and graphed with supplied Log100 software. Interface’s WTS-WSS Wireless Wind Speed Transmitter Module combined with Interface’s Wireless Telemetry System was perfect to monitor the wind speed in real-time during the bridge’s construction.

Metal Bending Force Material Testing for Construction

A construction material supplier wanted to know how much force it takes to bend different grades of steel metal used for building and infrastructure projects. They use their metal bending machine to create different metal hardware and wanted to record the amounts of force it takes to bend the metal used for their projects. Interface suggested using a wireless method, so cables do not interfere with the machine. The WTS 1200 Standard Precision LowProfile® Wireless Load Cell was attached to the head of the hydraulic operated steel bender. Results were wirelessly transmit to the customers PC through the WTS-BS-4 Wireless Base Station with USB Interface, where data can be displayed, logged, and graphed with supplied Log100 software. Using this solution, the customer was able to record the force results of his metal bending machine with Interface’s Wireless Telemetry System.

Interface is adept at providing solutions suited for use in construction projects, equipment and ongoing monitoring programs.  If you have questions about what products are suited for your specific project, equipment or testing programs, contact us. We are here to help.

ADDITIONAL RESOURCES

Force Measurement Solutions for the Construction Industry

Interface Solutions for Heavy Equipment

Gantry Crane Weighing

Lifting Heavy Objects

Rigging Engineers Choose Interface Measurement Solutions

Innovative Interface Lifting Solutions

Modernizing Infrastructure with Interface Sensor Technologies

Interface Solutions for Structural Testing

Why Civil Engineers Prefer Interface Products

Innovative Interface Load Pin Applications





Interface Solutions for Heavy Equipment

Interface has collaborated with heavy equipment design engineers and OEMs for many years by providing sensors to measure weight, torque, and force. Heavy equipment, also known as heavy machinery, is used to describe the heavy-duty machines that are vastly utilized in infrastructure, construction, transportation, maritime, forestry, agriculture, and mining industries.

Force measurement plays a crucial role in the design, testing, and use of heavy equipment and vehicles including excavators, bulldozers, loaders, cranes, lifts, mixers, pavers, and compactors. Many of the considerations in designing heavy machinery are mandated by force limitations and equipment performance testing. Reference our Cranes and Lifting case study for examples.

Top Five Heavy Equipment Use Cases for Force Measurement

  1. Performance Valuation: Force measurement is used to evaluate the performance of heavy equipment. It allows engineers and designers to assess the forces and loads experienced by different components, such as hydraulic systems, structural elements, and moving parts. Measuring forces with high accuracy ensures that the equipment is built to operate within safe and efficient limits.
  2. Safety Confidence: Heavy equipment operates in demanding and challenging environments where safety is fundamental. Force measurement solutions from Interface help to identify potential safety risks by monitoring the forces exerted on various components in both testing and actual real-time use. Load cells and other sensor technologies enable engineers to design equipment with appropriate safety factors, ensuring that it can withstand the expected forces without failure or compromising operator safety.
  3. Design Optimization: Force measurement assists engineers to enhance the design of heavy equipment. By accurately measuring forces and loads during operation, and will identify areas of high stress or potential weak points. This information is valuable in refining the design, selecting appropriate materials, and implementing structural modifications to improve durability, efficiency, and overall performance.
  4. Regulatory Standards and Compliance: Heavy equipment is subject to strict industry standards and regulations, globally, nationally, and locally that specify performance and safety requirements. Force measurement is used for measuring and monitoring compliance. By accurately measuring and documenting forces, engineers can demonstrate that the equipment meets the specified criteria, aiding in regulatory approvals and certifications.
  5. Troubleshooting and Maintenance: Periodically measuring forces to monitor the condition of critical components and identify any abnormal or excessive forces is useful for identifying issues or wear. This information is critical for preventive maintenance, identifying the root causes of problems, and extending the equipment’s lifespan.

In the construction industry, heavy equipment is extensively used for retail, commercial and civic construction projects. Interface supplies load cells, tension links, load shackles, load pins and other measurement solutions for testing and monitoring.

Excavators are equipped with a hydraulic arm and a bucket, allowing them to dig, excavate, and move enormous amounts of earth, debris, or materials. Sensors are used in design, performance monitoring and maintenance of this type of machinery.

Loaders are powerful machines used for loading materials onto trucks, stockpiling, and general material handling. Overloading is the most common failure. Testing loads for these machines used in construction sites, quarries, and mining operations ensures safety and compliance.

Bulldozers need to be evaluated for earthmoving and grading projects. Rigorous force measurement evaluations help to validate power and maneuverability.

Cranes extensively utilize sensors, including load pins and tension links. During crane lifting capacity tests, force sensors are used to verify if a design for the crane can handle the loads it is required to lift and carry while in movement. This can be done with a variety of different force sensors. Interface tension link sensors are a smart choice as it can be used inbetween the crane hook and the load to provide a more accurate reading on the force. This example of force testing is critical to not only moving the required load, but also in verifying that the crane is safe to operate around workers below. If the crane lift capacity cannot be verified, individuals below the crane are at risk of massive loads dropping from great heights.

Lifts depend on sensors. In the shipping and transportation industry, heavy equipment must have carrying capacities verified or the machines and vehicles may break down or lose control due to excessive loading. In addition, operators need to be cognizant of their load limits and current use in cases. This verification is done using load cells in the testing of the vehicle, but load cells are also used at truck stops with weigh stations. Interface load cells can provide fully accurate data at extremely high weight. In addition, the engines on these trucks need to be able to move the vehicle while under large loads. For this challenge, torque transducers can be used to evaluate and refine an engine’s capability to move vehicles at required loads.

Interface sensors are used in the test and monitoring of maritime heavy equipment, both onshore and near-shore. Cranes and forklifts used in moving cargo plus maritime equipment used for securing lines often use sensor technologies. We also supply measurement devices used for heavy equipment that is submersible. This includes engine testing, mooring and fishing lines, boat hoists and more. Interface offers a complete lineup of sealed sensors that excel while submerged, allowing maritime users to test equipment in real time.

Included below, we have outlined a few heavy machinery testing examples in which Interface products were used:

Gantry Crane Weighing

Gantry cranes are used for several mobile and lifting applications within industrial or construction environments. A weighing system is needed to see if the gantry crane can manage lifting heavy containers or loads, preventing crane failure or accidents. Interface’s WTSLP Wireless Stainless Steel Load Pins can be installed into the corners of the lifting mechanism of the gantry crane, where heavy loaded containers are lifted and moved. The force results are then wireless transmitted to both the WTS-BS-1-HS Wireless Handheld Display for Single Transmitters, or directly to the customer’s PC with the WTS-BS-6 Wireless Telemetry Dongle Base Station. Using this solution, a customer can monitor the loads lifted from their gantry crane with Interface’s Wireless Telemetry System and determine whether their gantry crane was able to manage lifting heavy loads.

Overall, force measurement provides valuable insights into the performance, safety, and reliability of heavy equipment, enabling designers, manufacturers, and operators to make informed decisions and ensure efficient and safe operation.

We have a wide range of solutions for the design and testing challenges of heavy equipment used for lifting, weighing, and measuring force and torque. Contact us for any help you need with heavy equipment solutions.

ADDITIONAL RESOURCES

Infrastructure Projects Rely on Interface

Lifting Solutions

Weighing Solutions Brochure

Heavy Truck Test and Measurement Solutions

Force Measurement Solutions for the Construction Industry

Bridge Construction Wind Monitoring

Solutions to Advance Agriculture Smart Farming and Equipment

Why Machine and Equipment Manufacturers Choose Interface

LIFTING: Lifting Heavy Objects

LIFTING: Crane Block Safety Check

LIFTING: Crane Force Regulation
