Vehicle Quality and Safety Testing
In the high-stakes world of automotive engineering, safety is not defined by a single catastrophic event. While crash wall data captures the headline-grabbing metrics of severe impacts, true vehicle safety and quality are forged in the thousands of minuscule interactions that happen across all moving platforms.
From autonomous delivery shuttles to heavy commercial transport, physical vehicle testing acts as the ultimate validation of structural integrity. Achieving strict compliance with global quality and safety standards requires objective data that translates the complex forces of everyday vehicle operation and emergency maneuvers into highly precise, actionable information.
In automotive safety and quality, the environment extends from simulation to real-world interactions. Automotive engineers must look deep into every dimension of a vehicle. This requires precision sensor technology capable of capturing dynamic loads, rotational torque, and subtle deflections in real time. This applies to both the vehicle’s exterior safety and quality testing and interior testing.
Exterior Safety and Quality Testing Use Cases
The exterior of a vehicle serves as the first line of defense against structural failure and environmental stress. Engineers use force measurement sensors to monitor external components under realistic operating conditions.
Exterior Use Case #1: Door and Latches Under Dynamic Loading
Side-impact and rollover safety standards require that doors remain securely closed during a collision yet remain operable afterward. To test this, miniature load cells are embedded directly into latch assemblies, while load pins replace standard hinge pins during active track testing. Using wireless telemetry, these sensors transmit the exact forces acting on the latch mechanisms as the vehicle maneuvers through high-g turns or rough durability tracks, confirming that impacts or body flex do not cause latch failure.
Exterior Use Case #2: Aerodynamic Roof and Hood Deflection
Wind forces at highway speeds place immense structural stress on body panels. Engineers use wireless LowProfile load cells mounted beneath the mounting brackets of hoods and roof panels on outdoor test tracks. Utilizing a wireless telemetry system, the sensors send real-time compression and tension data to a receiver inside the cabin, verifying that panels do not buckle or detach under high aerodynamic lift.
Exterior Use Case #3: Low-Speed Bumper Impact and Quality Validation
Bumpers are engineered to absorb low-speed impacts without transferring structural damage to the vehicle chassis or expensive sensor arrays. To validate the energy-absorption limits of bumper fascia and internal crumple structures, engineers use 1101 LowProfile compression load cells mounted behind simulated impact barriers on test rigs. As a vehicle bumper is subjected to low-speed pendulum impacts, these high-capacity sensors record the exact peak force and duration of the strike. This data confirms that the bumper properly manages impact energy in accordance with regional safety standards while ensuring that the structural components return to their original shape during minor parking-speed impacts.
Interior Safety and Quality Testing Use Cases
Inside the vehicle cabin, safety testing centers on occupant protection and ergonomics, ensuring that every interface performs flawlessly during an emergency while maintaining long-term consumer quality.

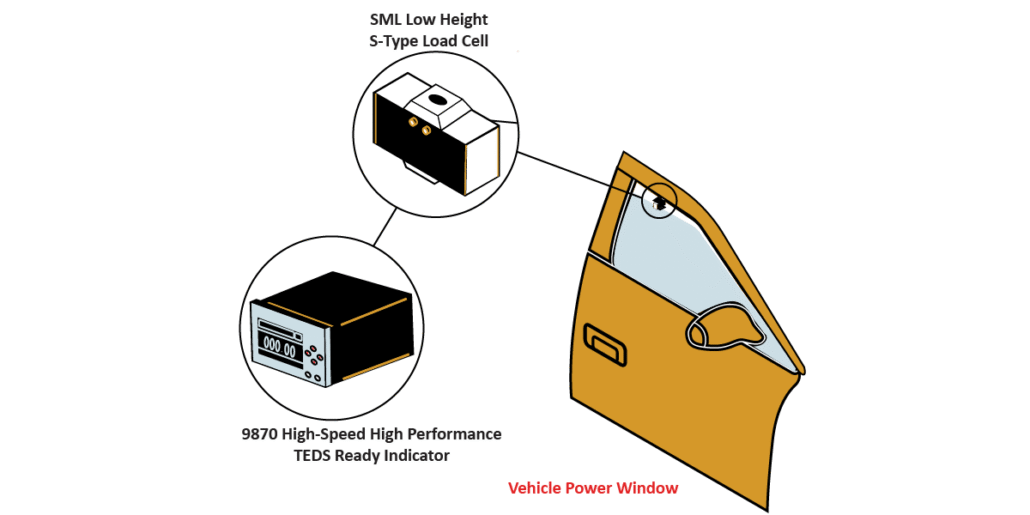

Interior Use Case #1: Anti-Pinch Power Window Systems
Automated windows and sunroofs must immediately reverse direction if an obstruction is detected, a critical requirement for preventing passenger injury. Testing teams deploy S-beam or miniature load cells that are installed directly into the window track. As the window closes against the sensor, the peak force is transmitted instantly to a tablet or data acquisition system to verify that the motor shuts off well before reaching regulatory injury thresholds.
Interior Use Case #2: Steering Wheel Control and Reaction Torque
For both driver-operated and autonomous vehicles, the tactile resistance and structural integrity of the steering column are fundamental to maintaining control. Reaction torque transducers and multi-axis sensors are integrated into the steering column assembly during rig testing. These sensors track the precise rotational torque required to turn the wheel, along with any side loads applied by the driver or an autonomous actuator, confirming that the steering assembly operates smoothly without binding or mechanical slip.
Interior Use Case #3: Interior Headrest Testing Rig
Types of Sensors for Vehicle Safety and Quality Testing
Every sensor type serves a distinct purpose in confirming that a vehicle can withstand stresses and protect its occupants.
Multi-Axis Sensors for Complex Component Testing – Vehicle impacts and structural failures rarely occur along a single straight line. Components such as suspension joints, steering columns, and door latches experience multidirectional forces during an accident. Multi-axis sensors measure force and torque along three perpendicular axes simultaneously. This capability is essential for simulating complex stress environments in test rigs. When testing a steering column safety collapse mechanism, a multi-axis sensor tracks the precise axial force required to collapse the column while monitoring side loads that could cause the mechanism to bind and fail. Check out how multi-axis sensors are used in seat testing.
Precision Load Cells in Restraint System Validation – Seat belts and airbags must deploy with perfect timing and exact force. To validate restraint systems without relying solely on full-scale crashes, test engineers use specialized load cells inside the cabin. Miniature load cells fit directly into seat belt anchors and buckle assemblies. During sudden deceleration tests, these sensors measure the exact tension spike on the webbing to verify the seat belt restrains the occupant without inflicting severe chest trauma. Similarly, Interface LowProfile load cells are mounted beneath seating structures to track occupant weight distribution, supplying data to smart airbag systems that adjust deployment force based on passenger size.
Brake Pedal Load Cells for Driver Control and Active Safety – Active safety relies heavily on driver control and automated braking systems. To meet global quality standards for braking efficiency, engineers must map the physical force applied by a driver or automated actuator to the actual stopping distance. Brake pedal load cells are engineered to mount directly onto the vehicle’s existing pedals. These sensors feature a low-profile design that preserves natural pedal feel while recording the exact force applied during emergency stop scenarios. This data allows engineers to calibrate brake assist technologies and confirm that the mechanical systems meet stopping-distance mandates under maximum-payload conditions. Watch to see this sensor in action.
Torque Transducers for Autonomous and Electric Powertrains – The rise of autonomous steering systems and high-torque electric motors introduces new safety variables. Autonomous driving computers must actuate steering systems with flawless precision, requiring continuous monitoring of rotational forces. Rotary and reaction torque transducers measure the rotational forces within the steering column and drivetrain. In autonomous vehicle validation, torque sensors verify that the electronic power steering actuators can overcome unexpected road feedback without losing control. For electric vehicles, these sensors monitor the sudden torque output of electric motors to ensure the drivetrain components can endure rapid acceleration cycles without structural cracking.
Specialized Load Washers and Pins for Battery Integrity – Electric vehicle battery packs are major structural components that sit low in the vehicle chassis. Protecting these high-voltage packs from puncture or deformation during a side impact or ground strike is a primary safety objective. Load washers and load pins integrate seamlessly with the battery enclosure’s structural mounting bolts. During frame twist and simulated side-pole impact tests, these sensors measure the direct loads transferred through the chassis to the battery frame. This ensures the protective housing absorbs impact energy correctly, preventing high-voltage isolation failures or thermal events.
Sensor Instrumentation and High-Speed Wireless Collection
Capturing raw mv/V sensor data from these varied areas requires a robust instrumentation backbone. Advanced sensor instrumentation, including digital indicators, signal conditioners, and high-speed data acquisition modules, acts as the vital link between physical forces and engineering analysis. These instruments process signals at high speeds to capture the millisecond-long force spikes that occur during component failures or sudden impacts.
Modern test configurations require data from deep within rotating assemblies, sealed enclosures, and moving sub-assemblies where traditional instrumentation cables are prone to twisting or snapping. Integrating advanced wireless telemetry systems and Bluetooth-enabled sensors into the instrumentation backbone eliminates physical data links, reducing cable weight and routing constraints while preventing signal degradation in high-voltage testing environments. This combination of cordless flexibility and high measurement resolution gives engineering teams a complete, synchronized view of vehicle performance.
Engineering the Future of Vehicle Safety
As vehicle advancements are adopted, such as autonomous systems and electrified powertrains, and the innovations in standard vehicles set new boundaries, automotive test and measurement use cases continue to expand. Virtual modeling and software simulations provide excellent predictive baselines, but they cannot replace physical validation. The real-world data gathered by highly accurate load cells, torque transducers, and specialized instrumentation remains the definitive benchmark for structural integrity.
Meeting rigorous global quality standards demands testing solutions that are as advanced as the vehicles themselves. By implementing precise force-measurement arrays across both interior and exterior subsystems, test engineers secure the empirical evidence required to validate new designs, mitigate mechanical risk, and ultimately ensure passenger safety on the road ahead.
Be sure to visit Interface as we exhibit at Automotive Testing Expo in Stuttgart and Novi. In between these events, connect with our application experts to ensure you have the right hardware for your vehicle safety and quality testing projects.
