Long-Haul and Heavy-Duty Vehicle Test & Measurement
Heavy-duty vehicles such as long-haul semi-trucks, severe-duty construction machinery, and global freight equipment operate under immense physical stress. To ensure structural integrity and fleet safety, engineers must precisely measure force, load, and torque during both the development phase and live operations. Faulty mechanical components can lead to structural failures or safety hazards on public highways.
Continuous test and measurement data is essential for analyzing drive cycles, reducing fuel consumption, and preventing unscheduled maintenance. Gathering this precise mechanical feedback allows manufacturers to confidently adopt high-voltage powertrain technologies and optimize electric vehicle range.
There are an estimated 30 million active heavy-duty vehicles worldwide, with manufacturers spending billions to update and modernize these vehicles to meet global transportation demand. This immense global volume underscores why continuous test and measurement is so critical.
With millions of these heavy-duty rigs traversing varying terrain daily, optimizing component structural integrity, tracking load distribution, and capturing physical operational data are vital to keeping global supply chains running efficiently and safely. Ultimately, accurate data on force, torque, and weight allows manufacturers and fleet operators to validate component life, monitor structural fatigue, and optimize vehicle performance.

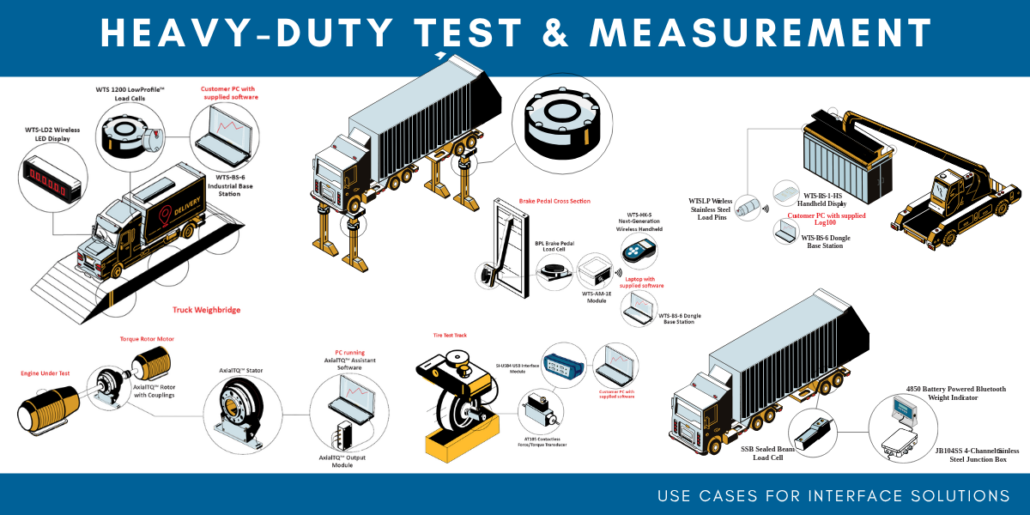

Interface Sensor Applications for Heavy-Duty Vehicles
Sensors must integrate into key mechanical joints and subassemblies to track forces without modifying the structural profiles of the vehicles. Different locations require distinct sensor designs to capture precise operational data.
#1 – Powertrain and Drivetrain Diagnostics
Validating the performance of internal combustion engines and electric powertrains requires capturing continuous mechanical stress data. Torque transducers are integrated directly into transmission shafts and power take-off units to verify rotary torque during acceleration and load changes. High-capacity load cells are installed beneath engine mounts to isolate and measure the multidirectional forces exerted by the engine against the chassis frame.
#2 – Chassis and Suspension Mechanics
Truck frames experience extreme torsional stress over long operating miles. Engineers map chassis twist by positioning multi-axis sensors at critical frame points, allowing them to isolate vertical, lateral, and longitudinal forces simultaneously. For suspension validation, heavy-duty load cells track leaf spring compression and air suspension performance under varying cargo loads, ensuring the vehicle maintains stability and correct weight distribution across multiple axles.
#3 – Coupling and Cargo Systems
The mechanical link between a tractor and trailer handles the entire pulling and stopping force of the load. Load pins and tension links are built directly into fifth-wheel coupling systems and drawbars to verify pull force and vertical load distribution. On the trailer bed, tension load shackles and links monitor cargo tie-down straps to ensure heavy machinery remains secure during transit.
#4 – Actuation and Cabin Ergonomics
Safety systems require precise profiling of mechanical inputs. Load cells are attached to brake pedals and calipers to map the exact relationship between driver foot pressure and brake actuator response. Inside the cabin, miniature sensors record the physical wear and tear on seating mechanisms, console switches, and doors to confirm long-term durability.
Sensor Selection for Long-Haul and Heavy-Duty Vehicle Test & Measurement
Choosing the correct measurement tool depends on the operating environment and the specific mechanical forces involved.
- Interface LowProfile Load Cells are built for fatigue-rated applications, high-capacity weighing, and general tension and compression measurements. They are used in all types of testing, including stress, impact, fatigue, cyclic, and material testing. They are excellent for fitting into lab equipment and for use within a vehicle structure under tight space constraints. Their stiff design resists extraneous side loads, making them ideal for structural frame testing.
- Load Pins are sensors that can replace standard structural pins in existing mechanical joints. By installing a measurement pin, engineers can measure lifting and pulling forces directly without altering the vehicle’s mechanical configuration.
- Torque Transducers are very commonly used for various types of automotive testing, including in heavy-duty vehicles. Available in both slip ring and non-contact rotary configurations, these units install in line with drive shafts to capture real-time rotational forces and mechanical efficiency.
- Sealed Miniature Load Cells are built with stainless steel housings. These sensors resist water ingress, road salt, and extreme temperature swings encountered during over-the-road testing.
Streaming Data to Keep Big Rigs Moving
Gathering accurate data from a moving vehicle requires instrumentation. Traditional wired systems feed sensor signals into onboard data acquisition systems to sync load, torque, and strain measurements during track testing.
For long-haul monitoring, wireless telemetry systems remove the need for complex wire routing across articulated joints. Transmitters mounted directly to the sensors broadcast force data to a central receiver inside the cabin or an external tracking unit. This allows operators to monitor gross weight distribution, brake performance, and structural fatigue in real time, preventing component failures before they occur.
The Evolution Toward Autonomous Freight
The mechanical landscape of the heavy-duty transport sector has fundamentally transformed over the decades. What began as simple, purely mechanical diesel rigs has evolved into highly sophisticated platforms powered by alternative fuels and complex electronic architectures.
This evolution is hitting its stride with the emergence of the next generation of automated and fully autonomous transport trucks. In an uncrewed vehicle, human sensory feedback is entirely removed from the cabin. The automated driving system cannot feel trailer sway, softer brake pedals, or a shifting load pulling the chassis off balance. High-precision force, load, and torque sensors serve as the digital nervous system for these vehicles.
By feeding real-time physical measurement data directly into the automated systems, these sensors enable the vehicle to make instant, safety-critical adjustments to braking, steering, and power distribution, ensuring structural longevity and absolute safety on roadways around the world.
Interface Drives Heavy-Duty Testing
Whether managing standard long-haul regional freight, developing autonomous electric transport systems, or maintaining conventional diesel fleets, force monitoring demands industrial-grade reliability. From the high vibrations of remote backroads to the sustained speeds of interstate highways, instrumentation must perform flawlessly across every square inch of the vehicle, including specialized sleeping cabs and multi-axle trailers.
Interface’s sensors and measurement systems advance modern heavy-duty vehicle safety, tracking, and operational performance. Solutions for testing and measurement span a wide array of critical transport applications:
- Heavy Vehicle Brake Pedal, Caliper, and Actuation Force Profiling
- Interior Cabin Component, Seating, and Console Wear and Tear Testing
- Fleet Transportation Weighing and Scale Calibration
- Tractor-Trailer Fifth-Wheel Coupling and Drawbar Pull Verification
- Heavy-Duty Truck Chassis Frame Twist and Torsional Fatigue Mapping
- Multi-Axle Over-the-Road Gross Weight Distribution Analysis
- Fleet Trailer Suspension and Leaf Spring Compression Tests
- Big Rig Drivetrain Transmission and Driveshaft Rotary Torque Testing
- Electric and Diesel Powertrain Engine Mount Structural Loading
- Cargo Tie-Down and Heavy Lift Flatbed Strap Tension Monitoring
- Power Take-Off Unit Fluid Pump Shaft Torque Verification
- Severe-Duty Dump Truck Bed Lift Hydraulic Cylinder Force Profiling
- Commercial Fleet Steering Linkage and Tie-Rod Structural Validation
Contact the test and measurement application engineers at Interface today to integrate standard or custom measurement hardware into your next heavy-duty vehicle design and testing plans.
