Solution

Truck Weighbridge

A customer owns a truck company and needs to record the weight or loads being carried by their trucks. They would like a wireless weighing bridge that is able to transmit, log, and display the results in real time.

Contact an Application Engineer

Summary

Customer Need / Challenge
A customer owns a truck company and needs to record the weight or loads being carried by their trucks. They would like a wireless weighing bridge that is able to transmit, log, and display the results in real time.
Interface Solution
Interface suggests installing multiple WTS 1200 LowProfile™ Load Cells under a weighing bridge. When a truck drives over it, the load cells will transmit the force results wirelessly to the WTS-BS-4 Industrial Base Station connected to the customer’s PC with provided Log100 software. The WTS-LD2 Wireless Large LED Display can also display the weight inside for the driver to see in real time.
Results
The customer was able to measure, log, and graph the different loads their trucks carried wirelessly onto the weighbridge with success.

Materials

WTS 1200 Standard Precision LowProfile™ Wireless Load Cells
WTS-BS-4 USB Industrial Base Station
WTS-LD2 Wireless Large LED Display
WTS Toolkit and Log100 Software
Customer PC or Laptop

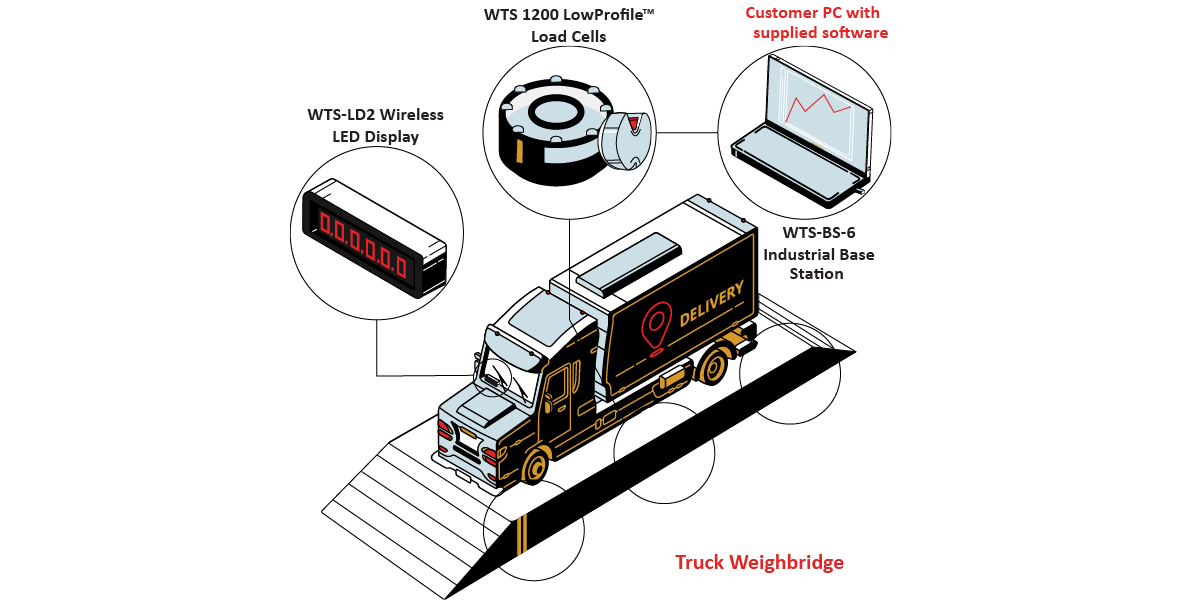

How it Works

Multiple WTS 1200 Standard Precision LowProfile™ Wireless Load Cells are installed and mounted to the bottom of the truck weighbridge.
The load cells collect the force measurements and sum the total weight of the truck that is carrying a heavy load.
The data is transmitted to the customer’s laptop through the WTS-BS-4 USB Industrial Base Station using the Log100 Software. The sum weight data can be logged, graphed, and sent to the cloud using the supplied software.
The WTS-LD2 Wireless Large LED Display can also display the weight inside of the vehicle for the driver to see in real time.

Download PDF
