WWWP Wireless Wheel Weighing Platform

Featured in these Case Studies

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

WWWP Wireless Wheel Weighing Platform

Wireless Wheel Weighing Platforms

Get Your Free Quote

The model WWWP Wireless Wheel Weighing Platforms offers an adaptable, high accuracy solution for vehicle weighing, with unmatched performance. For easy, on-site positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. The built-in weight display is equipped with a 2.4Ghz RF industrial radio communication for transmitting data wirelessly to the optional remote touchscreen indicator up to 160 ft away.

Product Downloads

The model WWWP Wireless Wheel Weighing Platforms offers an adaptable, high accuracy solution for vehicle weighing, with unmatched performance. For easy, on-site positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: WWWP Categories: , , , ,

Features and Benefits

  • Up to 16 individual pads communicate wireless to the indicator
  • Industrial RF radio module to communicate with optional indicator
  • Integrated wheels and nonslip rubber under platform
  • Internal rechargeable battery with 40 hours of battery life
  • Built-in indicator on each scale with 1 in character display
  • IP67 rating
  • Cover plate protects built-in indicator

Optional Remote indicator

  • Integrated Printer in Carrying Case
  • ABS carrying case: 12 in × 18 in × 7 in (304.8 mm x 457.2 mm x 177.8 mm)
  • Backlit graphic display with touchscreen technology
  • Internal battery with 10 hours of battery life
  • Real-time clock
  • Permanent data storage
  • Direct thermal receipt printer

Options

  • Leveling modules
  • Aluminum ramps

Specifications

Specifications

WWWP Specification Table

Power DC
Power DC Rechargeable battery Approximately 40 hours of battery life (uL approved AC wall adapter)
Operating Interface
Display 1 in character display on each scale
System Accuracy
Rated Capacity 0.05%
Communication
Wireless - GHz 2.4
Line of Sight Typical ft 160
m 50
Environmental
Operating Temperature °F 14 to 104
°C -10 to 40
Storage Temperature °F -4 to 104
°C -20 to 60
Mechanical
Material Aluminum alloy

Dimensions

Dimensions


WWWP Dimension Table

See Drawing Model

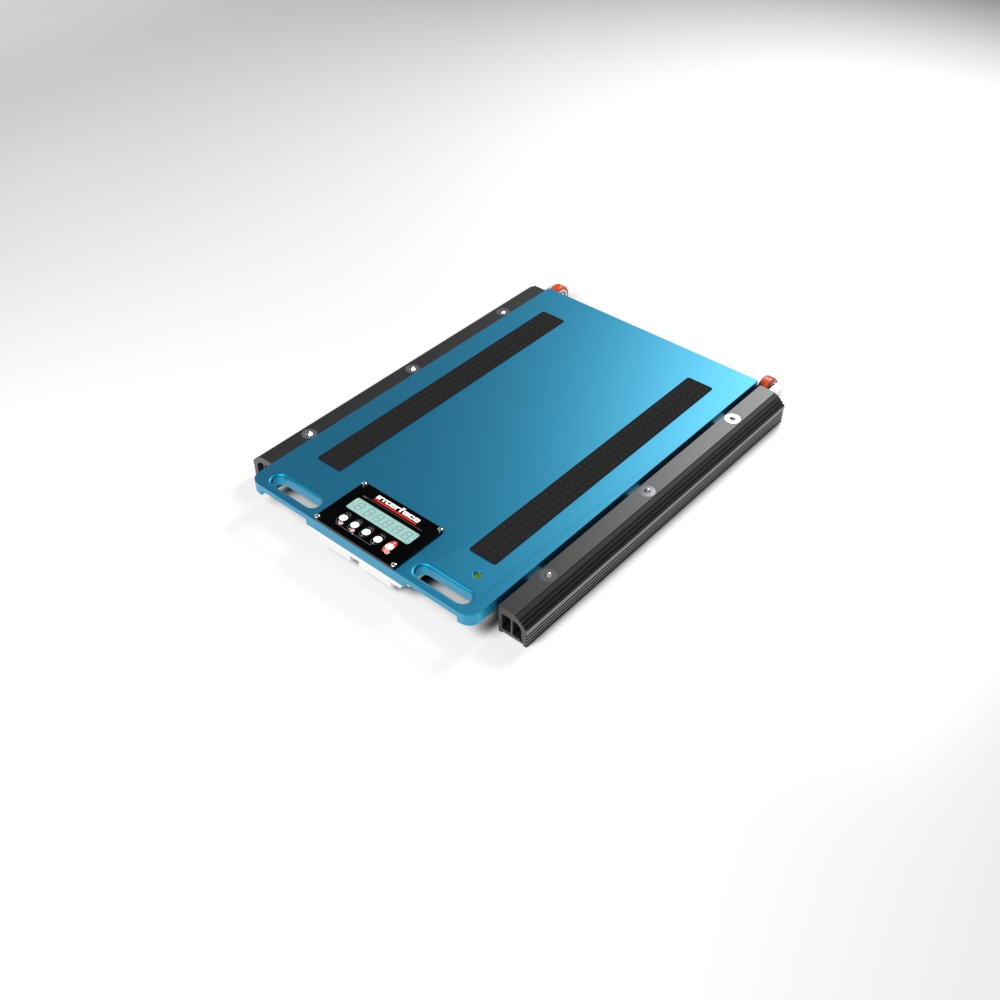

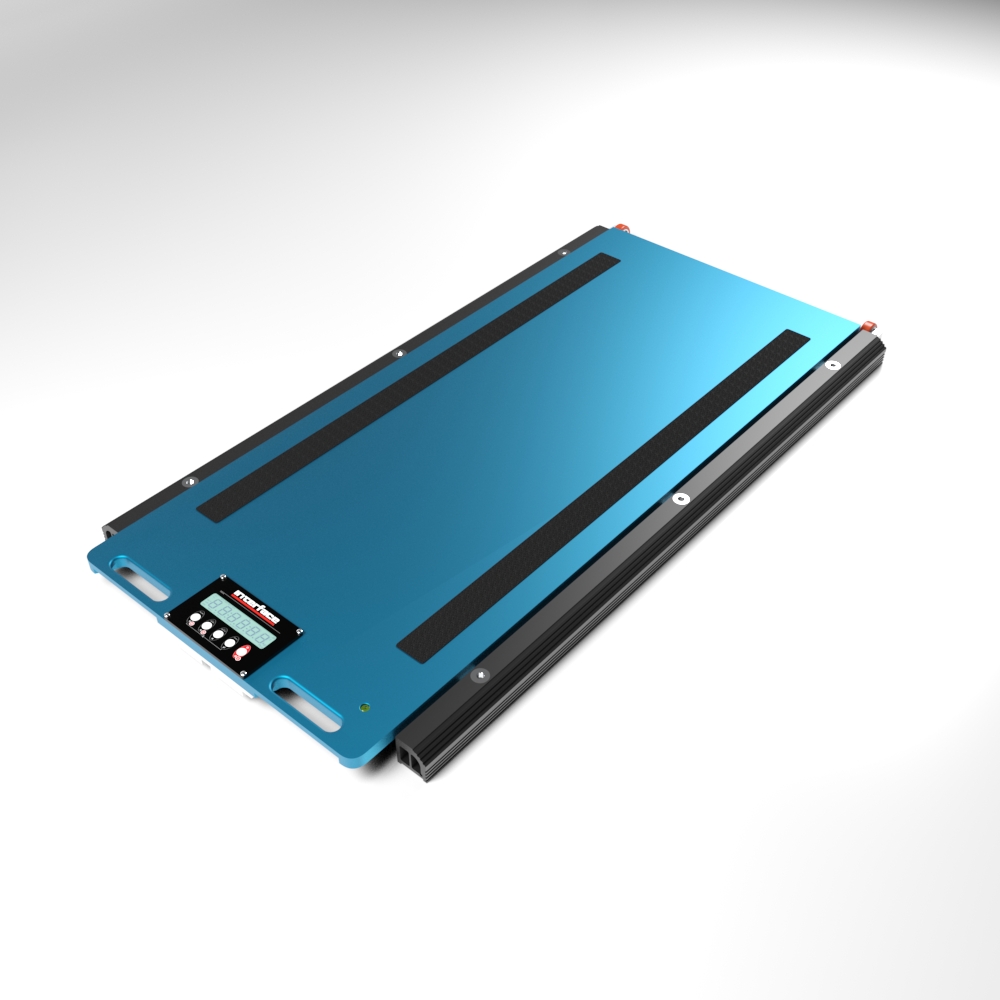

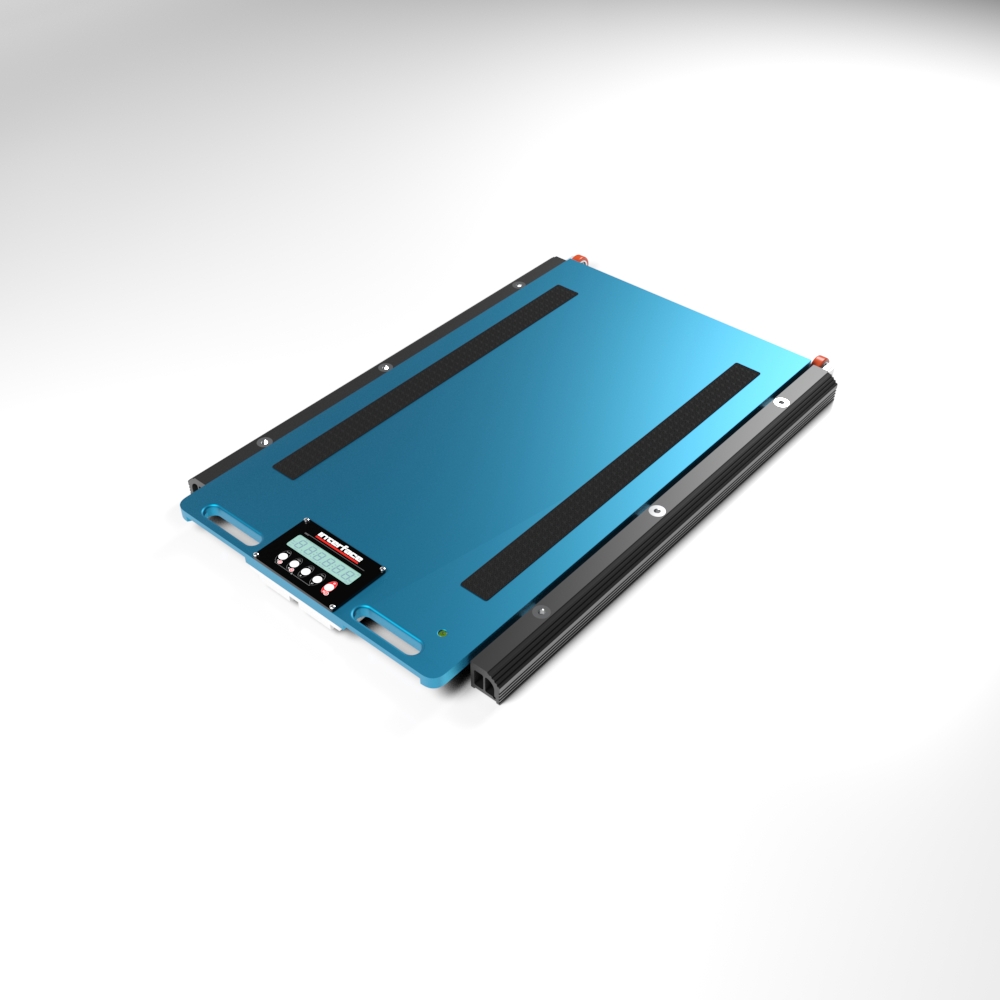

WWWP-XWD WWWP-WD WWWP-MD
Capacity
U.S. (lbs) Metric (kg) U.S. (lbs) Metric (kg) U.S. (lbs) Metric (kg)
13K to 44K 5.9K to 20K 13K to 33K 5.9K to 15K 3K to 33K 1.4K to 15K
in mm in mm in mm
Platform Dimensions
(1) 20.0 511 22.0 564 24.00 611
(2) 24.0 611 32.00 813 39.00 991
(3) 2.28 58 2.28 58 2.28 58
(4) 16.0 406 18.00 457 20.00 511
(5) 22.0 546 30.00 750 37.00 950
Loading Surface Dimensions
(6) 15.0 381 23.00 584 29.00 737
(7) 16.0 406 18.00 457 20.00 511
Optional Aluminum Ramps
(8) 5.91 150 5.91 150 5.91 150
(9) 1.18 30 1.18 30 1.18 30
(10) 19.66 500 27.56 700 35.43 900

International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
