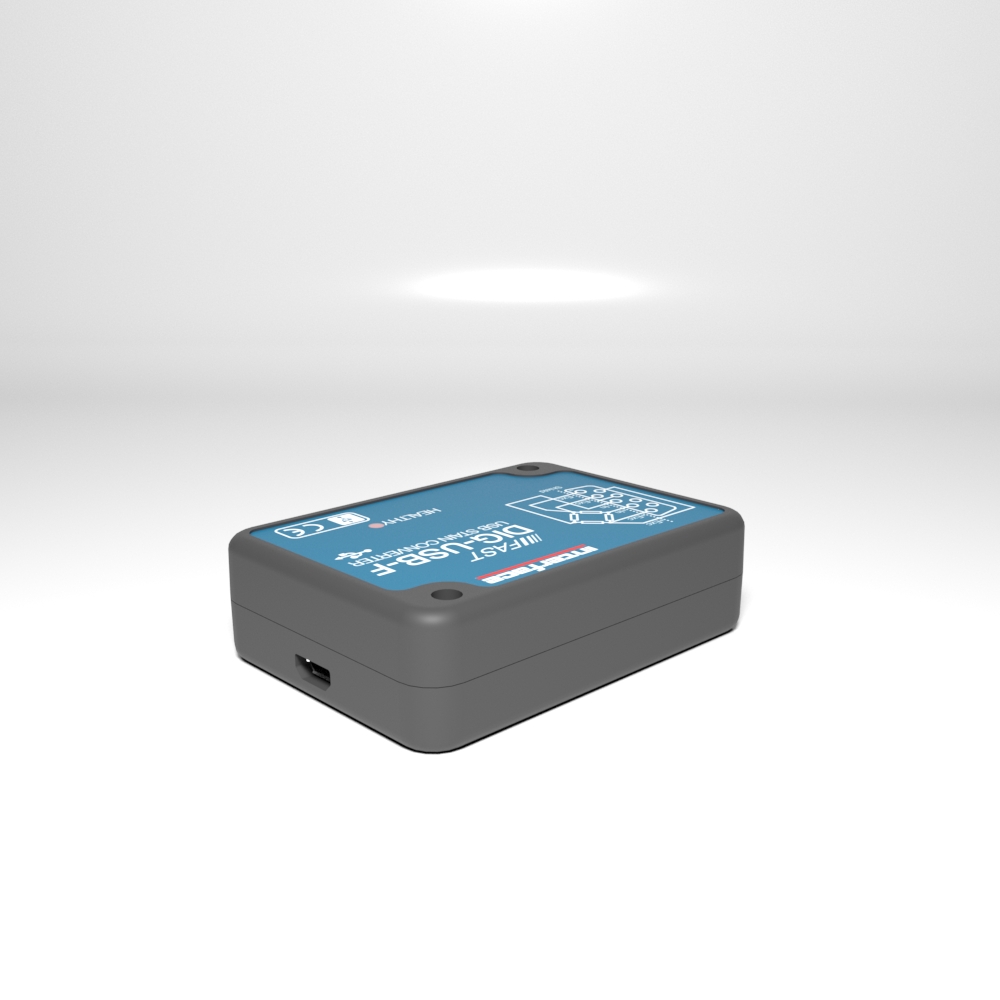

DIG-USB-F Fast USB Output Module

Fast PC Interface Module

  • Up to 4,800 samples / second
  • 13-bit noise-free resolution
  • Extremely low temperature drift
  • Simple USB ‘Plug and Measure’ device connects directly to a PC
  • Powers up to four 350 ohm load cells
  • Works with mV/V force and torque transducer
  • Rugged ABS IP50 enclosure (DIG-USB)
  • Includes configuration, calibration, graphing, logging and display software
  • Peak, valley recording, and monitoring
  • OEM PCB version available
  • Windows driver DLLs available



✔ DIG-USB-F Software Download
Request a Quote

Getting Started –
DIG-USB-F Fast Output Module

Request a Quote

Request a CAD File

Product Downloads

  • Data Sheet
  • Quick Start Guide
  • Manual
  • Software

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

The DIG-USB-F product is a compact, high-precision Strain Gauge Converter; converting a strain gauge sensor input to a digital output and is connected to a PC via a USB port. This product allows high precision measurements to be made and communicated directly to a PC and is aimed at applications which require high-accuracy measurement repeatability. With the appropriate drivers installed, the DIG-USB-F appears as a virtual serial port to the PC.

Simply by plugging the device into a PC, data can be extracted from most strain gage bridge input sensors and acquired by software which allows data manipulation removing the need for amplifiers, filters & multi-meters.

See datasheet for available models, additional capacities, connectors, options, and accessories.
