Compression Testing for Mechanical Evaluations

Compression testing is a fundamental mechanical evaluation method used to determine how materials, components, and complete structures behave under opposing axial pushing or crushing forces.

During a compression test, you apply controlled displacement or force to press, compact, or deform a specimen along a single axis. Evaluating compressive response proves critical to material design limits, including compressive yield strength, ultimate crush resistance, elastic modulus, and post-yield deformation behavior.

In strain gage-based load cells, applying an axial compressive force physically deforms the internal flexure, causing bonded strain gages to compress along the principal axis. This mechanical strain alters the electrical resistance across an internal Wheatstone bridge circuit. Instrumentation collects the analog output and digitizes the resulting proportional mV/V signal to quantify the exact physical load.

For original equipment manufacturers (OEMs) and materials testing laboratories, empirical compression measurement data provides the verification required to validate finite element analysis (FEA) simulations. Because unexpected mechanical buckling, localized yielding, or structural collapse under sustained service loads can cause catastrophic failure, continuous physical measurement serves as the foundational data loop for both universal testing machines (UTMs) and custom automated test stands.

Compression Testing Applications

Nearly every industry sector performs some form of compression testing, whether it’s for a robotic gripper, a consumer product touchscreen, or material response testing of aircraft or infrastructure. Transducer data in compression analysis defines success and failure across the spectrum.

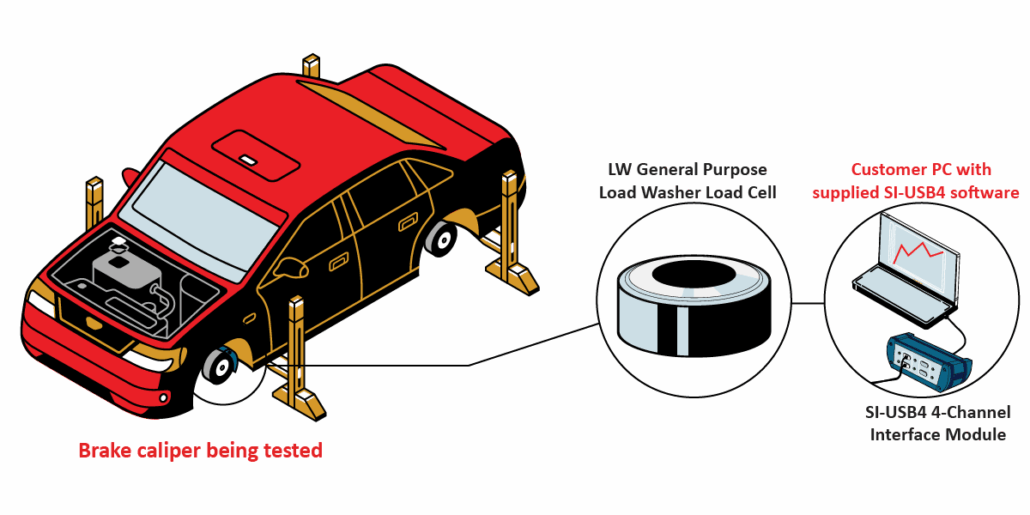

Automotive Brake Pedal Actuation and Caliper Clamping

Braking systems rely on human-to-machine and hydraulic force transfer. Evaluating brake pedal performance requires measuring driver foot pressure versus pedal travel to assess mechanical advantage, pedal return rate, and booster-assist response. Engineers mount low-profile or load-button load cells directly to the pedal face during dynamometer and vehicle track testing to map force-displacement curves. At the same time, custom through-hole load washers or miniature compression sensors sit between the hydraulic brake piston and the brake pad backing plate to measure caliper clamping force directly against the rotor. This dual measurement verifies hydraulic pressure transmission efficiency, tracks brake fade under thermal stress, and confirms consistent clamping across repeated high-deceleration cycles. Read more in Brake Caliper Testing.

Aerospace Composite Panel Buckling and Yield Analysis

Carbon fiber reinforced polymers and honeycomb sandwich panels used in aircraft fuselages and wing skins carry high compressive flight loads. Compression-after-impact (CAI) and end-loaded compression testing determine damage tolerance and structural stability. Specimens are secured in rigid anti-buckling fixtures within a universal testing machine equipped with a fatigue-rated compression LowProfile load cell. As opposing crossheads apply compressive loads, the load cell captures micro-yielding, inter-laminar shear failures, and ultimate core crushing. The sensor’s high stiffness and moment compensation prevent platen misalignment from corrupting strain data as the anisotropic specimen deforms.

Battery Energy Storage System (BESS) Cell Expansion

Prismatic and pouch lithium-ion battery cells expand and contract during continuous electrochemical charge-discharge cycling. In high-density battery modules, unconstrained volumetric swelling generates internal mechanical stress that can deform structural containment frames, damage thermal interface plates, or puncture separators. Test engineers place miniature compression load cells or thin load washers between individual cells and the rigid module endplates. These sensors continuously track swelling force over thousands of electrical cycles, providing battery management system (BMS) engineers with empirical data to set mechanical preload tolerances and structural containment limits.

Electronics Tactile Key-Switch and Push-Button Profiling

In consumer devices such as keyboards, smartphone controls, and automotive dashboards, user interface switches must actuate with consistent tactile feedback. Characterizing a micro-switch requires measuring initial resistance, tactile peak force, snap-through drop, and bottom-out travel. Automated test actuators equipped with miniature compression load cells or sub-miniature load buttons descend onto the switch at low velocities. The load cell records high-frequency force changes within fractional-pound ranges, capturing the exact snap-over ratio. High natural frequency and micro-force resolution are required to distinguish compliant switch travel from physical electrical contact closure. Learn more in Touchscreen Force Testing.

Interface Compression-Only Load Cell Architectures

Interface manufactures an array of compression-focused load cells engineered for specific capacity ranges, environmental constraints, and mounting configurations:

• 1101 Ultra Precision LowProfile Load Cell: Engineered for high-accuracy laboratory testing and reference standards requiring minimal non-linearity.
• 1201 Standard Precision LowProfile Load Cell: The industry standard for static and dynamic material test frames, featuring proprietary moment compensation.
• 1200 / 1201 Amplified and IO-Link Series: Integrated 3-wire analog output or IO-Link digital connectivity for direct integration into industrial automation and PLC architectures.
• 1331 Compact Compression-Only Load Cell: Designed for space-restricted test fixtures and automated production presses.
• 1601 Gold Standard Calibration LowProfile Load Cell: ASTM E74-compliant compression transfer standard utilized for primary calibration of other force transducers.
• 2101 Dual Range Standard Compression Load Cell: Stacks two load cells with internal overload stops to provide high resolution across both low preloads and high-capacity peak forces.
• 2161 High-Capacity Column Load Cell: Compact column architecture designed for high-tonnage structural proof testing and heavy press monitoring.
• 3201 Stainless Steel Compression-Only Load Cell: Hermetically sealed, corrosion-resistant sensor for harsh industrial or high-humidity test environments.
• 3411 Intrinsically Safe LowProfile Load Cell: Certified for hazardous locations and explosive environments where compression monitoring is required.
• MCC Compression-Only Mini Load Cell: High-accuracy performance to 0.10% and is available in a low height for easy integration into machines.
• ICPW and ICPA Series: Wireless and amplified stainless steel compression sensors for remote and embedded structural monitoring.
• LBM  Load Buttons: Miniature, high-stiffness sensors designed for embedded press-fit monitoring, medical device fixtures, and space-constrained cavities.
• LWCF Clamping Force Load Cells: Low-profile through-hole geometry optimized for monitoring bolt clamping, platen force, and die-set compression.

Compression Testing Management

The primary engineering challenge in compression testing is eliminating measurement errors caused by off-axis loading, eccentric force application, and machine platen misalignment. When a specimen yields or crushes asymmetrically, it introduces severe side loads and extraneous bending moments. Standard load cells can interpret these extraneous vectors as false axial load or suffer permanent mechanical damage to internal flexures.

Isolating pure axial compression requires transducers engineered with internal moment-compensating flexures. These structures isolate the primary axial vector and cancel extraneous side-load inputs. Interface’s LowProfile form factors and load buttons further minimize lateral forces by maintaining a single, centered point of contact throughout the displacement cycle.

A second critical consideration is sensor deflection and mechanical compliance. In stiff materials testing or high-rate spring characterization, internal flexure deflection can distort displacement data. Selecting high-stiffness, low-deflection compression-only load cells preserves measurement fidelity across both high-tonnage proof testing and delicate initial preloads.

Relying on theoretical modeling or hydraulic pressure calculations alone introduces uncertainty due to dynamic friction, platen friction, and asymmetric specimen yield. Integrating dedicated compression-only load cells provides the mechanical stiffness, moment rejection, and measurement fidelity required to resolve true axial forces.

Whether evaluating micro-switch mechanics or high-capacity civil structural bearings, precision compression telemetry enables engineers to validate simulations, refine safety margins, and confirm operational reliability.
