1331 Compression Only Load Cell
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

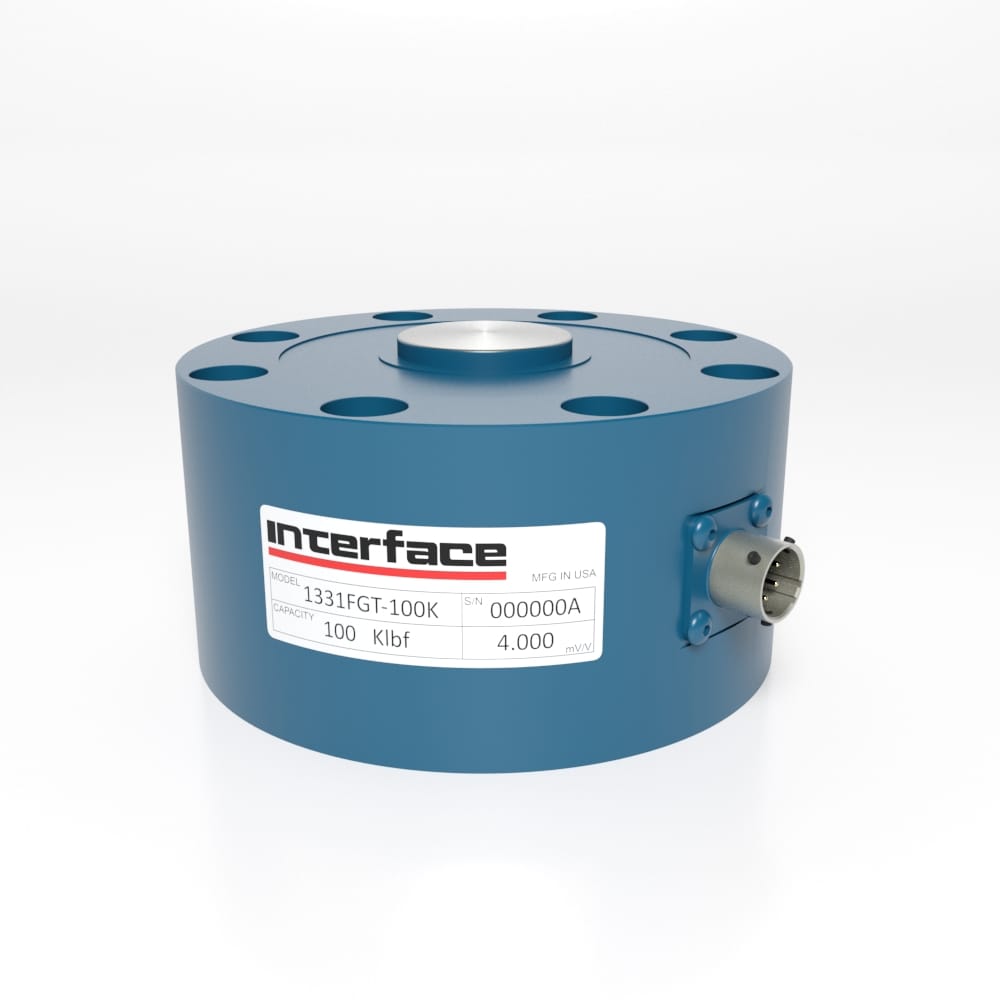

Model 1331 Compression Only LowProfile® Load Cell has a compact design with performance of +/-0.07% or better. This product has a high output of 4mV/V and is eccentric load compensated to ensure the highest accuracy during measurements. Model 1331 is available in 100K lbf (450kN) Capacity.
Options Available for 2nd Bridge and Overload Protection.
Model 1331 Compression Only LowProfile® Load Cell has a compact design with performance of +/-0.07% or better. This product has a high output of 4mV/V and is eccentric load compensated to ensure the highest accuracy during measurements. Model 1331 is available in 100K lbf (450kN) Capacity.
Options Available for 2nd Bridge and Overload Protection.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | N/C |
| F | N/C |
| COMPRESSION UPSCALE | |
| Dimensions | 5.00 × 5.00 × 4.68 in |
|---|
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | N/C |
| F | N/C |
| COMPRESSION UPSCALE | |
| Dimensions | 5.00 × 5.00 × 4.68 in |
|---|
| Short Description | Sku | Price |
|---|---|---|
| Model 1331, 100K lbf Capacity, 6 Pin Bayonet Type Connector, with Base | 1331FGT-100K-B | $ 2330 |
| Model 1331, 100K lbf Capacity, 6 Pin Bayonet Type Connector | 1331FGT-100K | $ 1910 |
| Model 1331, 100K lbf Capacity, 6 Pin ScrewType Connector, with Base | 1331EGJ-100K-B | $ 2330 |
| Model 1331, 100K lbf Capacity, 6 Pin Screw Type Connectorv | 1331EGJ-100K | $ 1910 |
