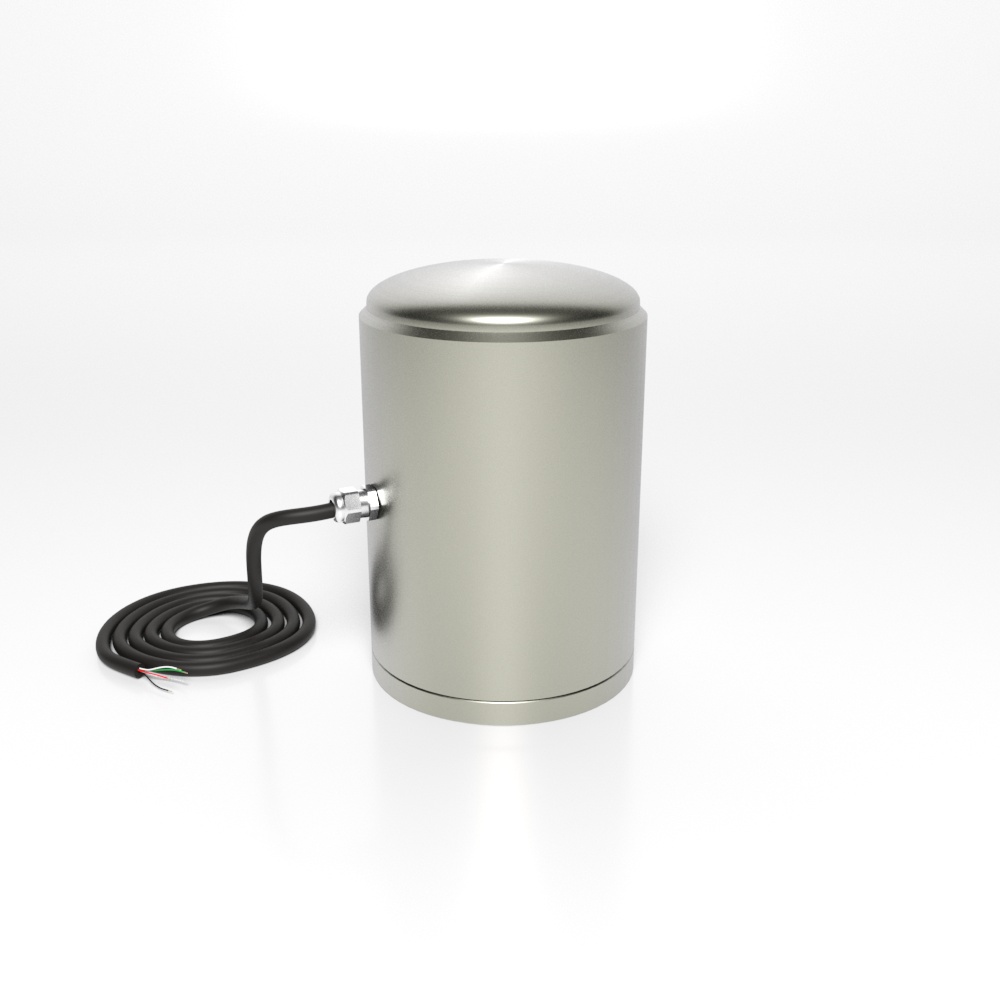

ICPA Stainless Steel Compression Load Cell

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

ICPA Stainless Steel Compression Load Cell

Name: ICPA Stainless Steel Compression Load Cell
SKU: 51637

Stainless Steel Compression-only Load Cell

Get Your Free Quote

4.4K lbf to 2204K lbf
2 MT to 1K MT

The Interface range of model ICPA compression load cells are designed for general use and are suitable for use in laboratories or in permanent outdoor installations. They are built to exacting standards with versions available that are suitable for full immersion in water. The standard product is constructed from stainless steel. The ICPA series can be supplied as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated. The ICPA range can be supplied on its own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

Product Downloads

Please login or register for Product Pricing and File Access

Data Sheet
ICPA-300MT with dome top STEP File

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a Quote Request a CAD File

SKU: N/A Categories: Compression Only, High Capacity, Load Cells, Quickship, Stainless Steel Tags: Moment Compensated, quickship

Features and Benefits

Ranges: 2 to 1000 MT (4.4K to 2204K lbf)
Stainless steel construction
Environmentally sealed to IP67
Many special versions available

Options

Special ranges and sizes available
Special electrical connections
Integral signal conditioning
Submersible versions available
Domed top/loading cap option
Verification Standard versions available
Mounting base
Handles for lifting and carrying
TEDS (Transducer Electronic Data Sheet)

Typical Applications

Hydraulic press calibration
Pile force measurement
Structural proof testing
Center of gravity (module) weighing
Jack force measurement

Specifications

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CABLE CONNECTION
SYMBOL	FUNCTION	COLOR
+ve	+ SUPPLY	RED
-ve	- SUPPLY	BLUE
+ve	+ SIGNAL	GREEN
-ve	-SIGNAL	YELLOW

INTERGRAL CABLE
CABLE TYPE	WIRE SIZE	NUMBER OF WIRES	SHEILD	CABLE LENGTH	DESCRIPTION
PUR	-	4	-	16 FT (5 M)	4-CORE SCREENED PUR CABLE

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions	4.13 × 4.13 × 2.51 in

Product Video

Features and Benefits

Ranges: 2 to 1000 MT (4.4K to 2204K lbf)
Stainless steel construction
Environmentally sealed to IP67
Many special versions available

Options

Special ranges and sizes available
Special electrical connections
Integral signal conditioning
Submersible versions available
Domed top/loading cap option
Verification Standard versions available
Mounting base
Handles for lifting and carrying
TEDS (Transducer Electronic Data Sheet)

Typical Applications

Hydraulic press calibration
Pile force measurement
Structural proof testing
Center of gravity (module) weighing
Jack force measurement

Specifications

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CABLE CONNECTION
SYMBOL	FUNCTION	COLOR
+ve	+ SUPPLY	RED
-ve	- SUPPLY	BLUE
+ve	+ SIGNAL	GREEN
-ve	-SIGNAL	YELLOW

INTERGRAL CABLE
CABLE TYPE	WIRE SIZE	NUMBER OF WIRES	SHEILD	CABLE LENGTH	DESCRIPTION
PUR	-	4	-	16 FT (5 M)	4-CORE SCREENED PUR CABLE

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions	4.13 × 4.13 × 2.51 in

Product Video

Short Description	Sku	Price
Model ICPA-1000-LC Loading Cap Option for Model ICPA-1000 Load Cell	ICPA-1000-LC	Price on Inquiry
Model ICPA-1000 Compression Dome Top Column Load Cell 1k Metric Ton Capacity	ICPA-1000	Price on Inquiry
Model ICPA-750-LC Loading Cap Option for Model ICPA-750 Load Cell	ICPA-750-LC	Price on Inquiry
Model ICPA-750 Compression Dome Top Column Load Cell 750 Metric Ton Capacity	ICPA-750	Price on Inquiry
Model ICPA-500-LC Loading Cap Option for Model ICPA-500 Load Cell	ICPA-500-LC	Price on Inquiry
Model ICPA-500 Compression Dome Top Column Load Cell 500 Metric Ton Capacity	ICPA-500	Price on Inquiry
		Price on Inquiry
		Price on Inquiry
		Price on Inquiry
		Price on Inquiry
		Price on Inquiry
Model ICPA-200 Compression Dome Top Column Load Cell 200 Metric Ton Capacity	ICPA-200	$1,945.00
Model ICPA-200-LC Loading Cap Option for Model ICPA-200 Load Cell	ICPA-200-LC	$310.00
Model ICPA-3000 Compression Dome Top Column Load Cell 300 Metric Ton Capacity	ICPA-300	$2,130.00
Model ICPA-300-LC Loading Cap Option for Model ICPA-300 Load Cell	ICPA-300-LC	$340.00
Model ICPA-10 Compression Dome Top Column Load Cell 10 Metric Ton Capacity	ICPA-10	$1,120.00
Model ICPA-10-LC Loading Cap Option for Model ICPA-10 Load Cell	ICPA-10-LC	$205.00
Model ICPA-10-MB Mounting Base Option for Model ICPA-10 Load Cell	ICPA-10-MB	$250.00
Model ICPA-100 Compression Dome Top Column Load Cell 100 Metric Ton Capacity	ICPA-100	$1,430.00
Model ICPA-100-LC Loading Cap Option for Model ICPA-100 Load Cell	ICPA-100-LC	$245.00
Model ICPA-100-MB Mounting Base Option for Model ICPA-100 Load Cell	ICPA-100-MB	$390.00
Model ICPA-2 Compression Dome Top Column Load Cell 2 Metric Ton Capacity	ICPA-2	$1,050.00
Model ICPA-2-LC Loading Cap Option for Model ICPA-2 Load Cell	ICPA-2-LC	$160.00
Model ICPA-2-MB Mounting Base Option for Model ICPA-2 Load Cell	ICPA-2-MB	$180.00
Model ICPA-25 Compression Dome Top Column Load Cell 25 Metric Ton Capacity	ICPA-25	$1,120.00
Model ICPA-25-LC Loading Cap Option for Model ICPA-25 Load Cell	ICPA-25-LC	$205.00
Model ICPA-25-MB Mounting Base Option for Model ICPA-25 Load Cell	ICPA-25-MB	$250.00
Model ICPA-5 Compression Dome Top Column Load Cell 5 Metric Ton Capacity	ICPA-5	$1,050.00
Model ICPA-5-LC Loading Cap Option for Model ICPA-5 Load Cell	ICPA-5-LC	$160.00
Model ICPA-5-MB Mounting Base Option for Model ICPA-5 Load Cell	ICPA-5-MB	$180.00
Model ICPA-50 Compression Dome Top Column Load Cell 50 Metric Ton Capacity	ICPA-50	$1,275.00
Model ICPA-50-LC Loading Cap Option for Model ICPA-50 Load Cell	ICPA-50-LC	$220.00
Model ICPA-50-MB Mounting Base Option for Model ICPA-50 Load Cell	ICPA-50-MB	$270.00
