Features and Benefits
- Simple wireless configure and calibration
- Wireless range up to 800 m (2,625 ft)
- Low power mode for long battery life
- Free Visualization software
- Ideal for conditioned transducers
WTS-AM-3 Wireless 4-20 mA Transmitter Module
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
WTS-AM-3 Wireless 4-20 mA Transmitter Module

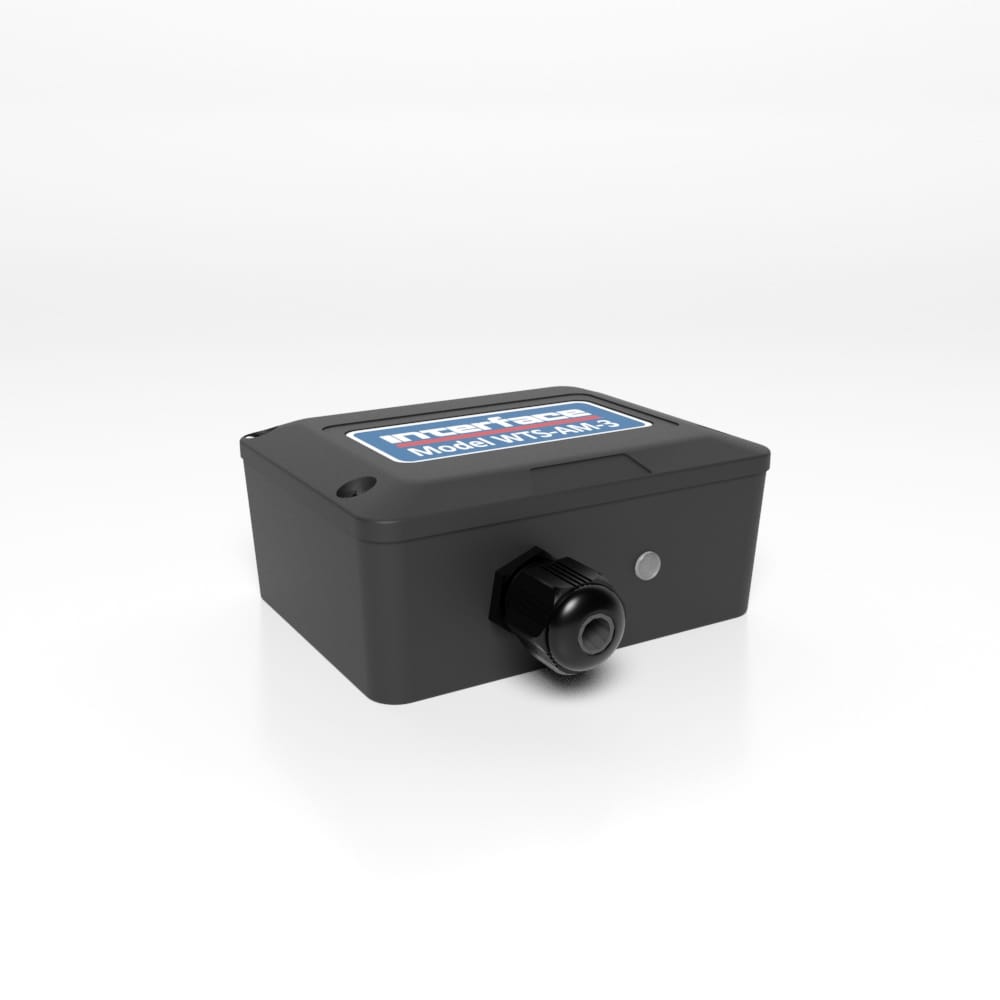

Wireless 4-20 mA Transmitter Module
The WTS-AM-3 transmitter module connects to 4-20 mA conditioned sensors such as pressure, %RH, inclinometer, accelerometer, depth, vibration, temperature and flow. It forms part of the WTS modular telemetry system. The data transmitted by the WTS-AM-3 can be received by multiple WTS receivers that include displays, handheld readers, analog outputs, relay modules and computer interfaces.
WTS transmitters have been designed for battery operation and support an ultra low-power sleep mode whilst offering class leading wireless coverage and range. Configurable transmission rates from once per day to 200 per second cope with a wide range of measurement and monitoring applications. A choice of enclosures enabling battery connection, field connectivity and environmental sealing up to IP67 ensure these modules provide a flexible solution to your wireless sensor requirements.
The WTS-AM-3 provides 5 V excitation to power external sensors. This transmitter provides up to nine point linearization giving quality measurements from a wide range of sensors.
Product Downloads
The WTS-AM-3 transmitter module connects to 4-20 mA conditioned sensors such as pressure, %RH, inclinometer, accelerometer, depth, vibration, temperature and flow. It forms part of the WTS modular telemetry system. The data transmitted by the WTS-AM-3 can be received by multiple WTS receivers that include displays, handheld readers, analog outputs, relay modules and computer interfaces.
WTS transmitters have been designed for battery operation and support an ultra low-power sleep mode whilst offering class leading wireless coverage and range. Configurable transmission rates from once per day to 200 per second cope with a wide range of measurement and monitoring applications. A choice of enclosures enabling battery connection, field connectivity and environmental sealing up to IP67 ensure these modules provide a flexible solution to your wireless sensor requirements.
The WTS-AM-3 provides 5 V excitation to power external sensors. This transmitter provides up to nine point linearization giving quality measurements from a wide range of sensors.
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions - WTS-AM-3 (2) "AA" Size Batteries
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - WTS-AM-3-D (2) "D" Size Batteries
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
Connections
WTS-AM-3-OEM-EA, WTS-AM-3-OEM-IA
Power
Attach power supply wiring to the module as shown below:
This module is not reverse polarity protected!
The maximum voltage is 3.6 V!
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
Sensor
Voltage input connected as follows:
WTS-AM-3-D
Power
Power can be supplied by fitting two D cell alkaline 1.5 V batteries or the module can be supplied from an external 5 Vdc to 18 Vdc source.
In both cases you need to fit the JP1 power jumper to supply power to the transmitter module.
When powered from the external DC source the LED will illuminate.
Sensor
The strain gauge input is connected to the module via a 2 part screw terminal block.
| SCREW TERMINAL | FUNCTION |
| 1 | +5 V Excitation |
| 2 | +I |
| 3 | -I |
| 4 | -Excitation |
| 5 | Shield |
| A | |
| B |
WTS-AM-2
Power
The enclosure is designed to accept two AA batteries. Maximum voltage 1.8 V per cell.
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
Sensor
| SCREW TERMINAL | FUNCTION |
| 1 | Shield |
| 2 | -Excitation |
| 3 | -I in |
| 4 | +I in |
| 5 | +5 V Excitation |
WTS-AM-6
Power
Power is supplied by connecting a 3V supply to the:
Connecting WTS-BB1
Power to transmitter modules in this enclosure can also be supplied by a WTS-BB1 battery box which contains two AA 1.5 V batteries.
Sensor
| SCREW TERMINAL | FUNCTION |
| 5 | -Excitation |
| 6 | -I in |
| 7 | +I in |
| 8 | +5 V Excitation |
Shield Connections (All Enclosures)
We recommend the following rules to determine whether there should be a connection between the transmitter module shield and the sensor chassis or cable:
- If the sensor is remote to the transmitter module and the screen of the signal cable is NOT connected to the sensor chassis then the cable screen should be connected to the transmitter module shield connection.
- If the sensor is remote to the transmitter module and the screen of the signal cable IS connected to the sensor chassis then the cable screen should be NOT connected to the transmitter module shield connection.
- If the transmitter module is integral to the sensor or mounted very close and the module is mounted on a metal chassis then the answer to whether the transmitter module shield connection should be connected to the metal chassis is a matter of experimentation. This connection must be as short as possible. The T24 Toolkit can be used to chart the signal levels and tests should be undertaken to determine whether there is a better radio signal with or without the shield/chassis connection. The quality of the measured reading should also be looked at. In cases where the shield/chassis connection makes no difference to the radio signal or the reading quality then the connection should be made.
For more information visit Electrical Wiring Diagrams
Additional Information
| Dimensions | 2.40 × 3.10 × 1.30 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Simple wireless configure and calibration
- Wireless range up to 800 m (2,625 ft)
- Low power mode for long battery life
- Free Visualization software
- Ideal for conditioned transducers
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions - WTS-AM-3 (2) "AA" Size Batteries
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - WTS-AM-3-D (2) "D" Size Batteries
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
Connections
WTS-AM-3-OEM-EA, WTS-AM-3-OEM-IA
Power
Attach power supply wiring to the module as shown below:
This module is not reverse polarity protected!
The maximum voltage is 3.6 V!
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
Sensor
Voltage input connected as follows:
WTS-AM-3-D
Power
Power can be supplied by fitting two D cell alkaline 1.5 V batteries or the module can be supplied from an external 5 Vdc to 18 Vdc source.
In both cases you need to fit the JP1 power jumper to supply power to the transmitter module.
When powered from the external DC source the LED will illuminate.
Sensor
The strain gauge input is connected to the module via a 2 part screw terminal block.
| SCREW TERMINAL | FUNCTION |
| 1 | +5 V Excitation |
| 2 | +I |
| 3 | -I |
| 4 | -Excitation |
| 5 | Shield |
| A | |
| B |
WTS-AM-2
Power
The enclosure is designed to accept two AA batteries. Maximum voltage 1.8 V per cell.
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
Sensor
| SCREW TERMINAL | FUNCTION |
| 1 | Shield |
| 2 | -Excitation |
| 3 | -I in |
| 4 | +I in |
| 5 | +5 V Excitation |
WTS-AM-6
Power
Power is supplied by connecting a 3V supply to the:
Connecting WTS-BB1
Power to transmitter modules in this enclosure can also be supplied by a WTS-BB1 battery box which contains two AA 1.5 V batteries.
Sensor
| SCREW TERMINAL | FUNCTION |
| 5 | -Excitation |
| 6 | -I in |
| 7 | +I in |
| 8 | +5 V Excitation |
Shield Connections (All Enclosures)
We recommend the following rules to determine whether there should be a connection between the transmitter module shield and the sensor chassis or cable:
- If the sensor is remote to the transmitter module and the screen of the signal cable is NOT connected to the sensor chassis then the cable screen should be connected to the transmitter module shield connection.
- If the sensor is remote to the transmitter module and the screen of the signal cable IS connected to the sensor chassis then the cable screen should be NOT connected to the transmitter module shield connection.
- If the transmitter module is integral to the sensor or mounted very close and the module is mounted on a metal chassis then the answer to whether the transmitter module shield connection should be connected to the metal chassis is a matter of experimentation. This connection must be as short as possible. The T24 Toolkit can be used to chart the signal levels and tests should be undertaken to determine whether there is a better radio signal with or without the shield/chassis connection. The quality of the measured reading should also be looked at. In cases where the shield/chassis connection makes no difference to the radio signal or the reading quality then the connection should be made.
For more information visit Electrical Wiring Diagrams
Additional Information
| Dimensions | 2.40 × 3.10 × 1.30 in |
|---|
Product Video
