Lightweighting for Efficiency Demands Force Measurement

Lightweighting, once a design trend, has become a necessity driven by global efficiency and sustainability mandates. It involves reducing the mass of components or entire systems to improve performance and efficiency, most notably by reducing fuel consumption and energy usage.

For product designers and engineering teams, lightweighting is not simply about removing material. It’s an intricate trade-off that requires continuous monitoring of structural integrity. This is why precision force measurement is critical. If lightweight components cannot withstand the required operational loads, the failure will be catastrophic. In almost all phases, load cells provide data to determine whether a design is sufficient to withstand the anticipated use and lifespan.

Let’s explore how these concepts intersect by using load cells and data to engineer lighter, stronger products, components, and systems.

The Science of Load Cells in the Lightweighting Context

Load cells and torque transducers measure mechanical force (often static or dynamic loads, tension, or compression) and convert it to an electrical signal. In a typical scenario, a force-sensing element known as a strain gage deforms slightly when force is applied. This strain creates a change in electrical resistance, which is measured and output.

In lightweighting, the primary role of a load cell is not simply to weigh a part but to measure how forces are distributed through that part, and at what point it might fail. Engineers and product designers need high-fidelity data on applied loads versus material response.

To succeed in lightweighting, engineers require high-fidelity data, which we define as a precision-grade signal that captures the most subtle mechanical nuances without interference from electronic noise. Load cells are critical in three areas of lightweighting.

 #1 – Simulation Validation

Before manufacturing, engineers use Finite Element Analysis (FEA) to simulate how forces and stresses affect a design. To trust that the simulation accurately predicts where a component is over-engineered or under-engineered, these models must be validated through physical testing. Load cells quantify actual real-world loading, allowing engineers to refine their FEA models.

 #2 – Material Testing

Creating lighter structures requires new materials, particularly high-strength composites such as carbon fiber-reinforced polymers, aluminum alloys, and high-strength steels. Load cells are used in universal testing machines (UTMs) to measure tens of thousands of cycles (fatigue testing) to quantify materials’ tensile strength, compressive strength, and flexibility. This data is critical for understanding the limits of a new, lightweight material.

 #3 – Structural Integrity Monitoring (SIM)

Increasingly, engineers integrate sensors into the final product. SIM systems embed load cells to monitor structural loads during operation. If a critical load threshold is exceeded, the system can provide alerts, prevent failure, or adjust operating parameters. In lightweight designs, there is less safety margin, making this monitoring essential. Learn more in Interface Solutions for Structural Testing.

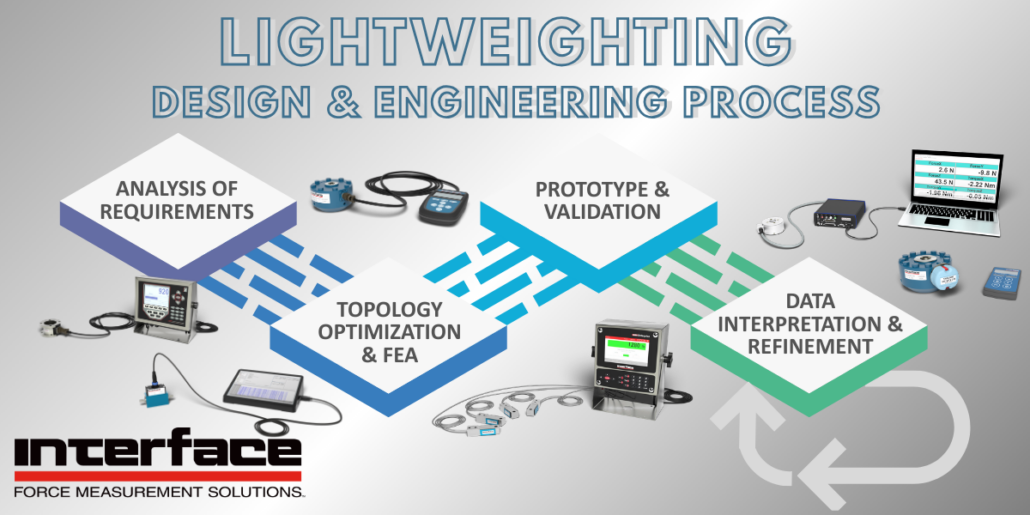

 The Lightweighting Design and Engineering Cycle

The process for engineering a lightweight component using force measurement data generally follows a structured methodology.

STEP 1 – Analysis of Requirements: The first step is a clear understanding of the functional requirements. What loads must the component withstand? What is the expected fatigue life? Engineers determine key constraints.

STEP 2 – Topology Optimization and FEA: Engineers use topology optimization, a mathematical approach that determines the optimal material distribution within a defined design space, given the specified loads and constraints. FEA software is used to model this design and predict areas of high and low stress. The model highlights parts of the design that can be lightened or eliminated.

STEP 3 – Prototype and Validation: A prototype is then manufactured, often through additive manufacturing and 3D printing, which supports complex geometries. This prototype is subjected to rigorous testing. Load cells are integrated into test fixtures to measure tensile, compressive, and fatigue loads. Multi-axis sensors are particularly useful if the component must handle complex, off-center, or multi-directional loading.

 STEP 4 – Data Interpretation and Refinement: The measured load data from the physical test is compared against the predicted data from the FEA model. If discrepancies occur, engineers refine the model (adjust material properties, mesh density, etc.). The cycle of design, simulation, testing, and refinement is iterative. Precision load cells provide the data integrity needed to make engineering decisions with confidence.

Practical Applications and Use Cases for Lightweighting with Sensor Technologies

The impact of lightweighting is cross-sectoral, as reducing mass often directly correlates with improved performance and lower costs throughout a product’s life cycle.

Lightweighting in Aviation and Aerospace

Mass has a disproportionate impact on fuel consumption in aviation. Load cells are used extensively in testing flight-critical structures, including wings, fuselage sections, and landing gear. Fatigue testing validates how these structures hold up after thousands of takeoffs and landings, ensuring that lightweight composites meet rigorous safety standards. For instance, testing a composite aircraft wing section to failure on a test rig to validate FEA predictions of stress distribution. Check out an example of Airplane Static Stress Testing and Aircraft Wing Testing Requires Force Measurement Accuracy.

Lightweighting in Automotive and for Electric Vehicles (EVs)

The rise of EVs is perhaps the largest driver of lightweighting. Every extra kilogram reduces battery range. Manufacturers apply load cells to test chassis components, battery enclosures, and safety systems. During crash testing, load sensors measure structural loads at critical points for seat belts and airbags, ensuring that the optimized, lighter chassis provides occupant safety. In manufacturing, torque transducers, a variation of load measurement, ensure assembly fasteners meet precise, verified specifications.

Lightweighting in Renewable Energy

Optimizing wind turbine blades is essential for efficiency. Longer, lighter blades capture more wind energy, but they also experience complex aerodynamic loads. Strain gages and multi-axis load cells are used in wind tunnel testing and on prototypes to measure the forces applied to the blades. Multi-axis sensors are critical here as they measure simultaneous loads across X, Y, and Z planes for lift, drag, and twisting torque.

Trends in Lightweighting and Force Measurement

The convergence of material science and sensor technology is driving several key trends. The intersection is clear, as demand for smaller, easy-to-integrate sensors is on the rise. Complete measurements are driving more advanced analysis and aiding in complex design decisions.

The requirements for smart devices mean that the systems used to build and maintain these products must be smart. And science is changing as materials change. The introduction of lighter materials, such as plastics, affects weight, force, and torque capacities.

#1 Trending Miniaturization and Sensor Integration – As components shrink, so must the sensors. Demand is increasing for miniature load cells that can be integrated directly into structures without significantly altering their mass or structural properties.

#2 Trending Multi-Axis Force and Torque Measurement – Real-world forces are rarely simple. Testing is moving beyond single-axis compression or tension. Multi-axis sensors that measure three forces (Fx, Fy, Fz) and three moments (Mx, My, Mz) simultaneously provide a much fuller picture of a lightweight component’s behavior.

#3 Trending Data-Driven, Smart Systems: Data from load monitoring is increasingly being used for predictive maintenance and digital twins. Engineers can feed data from operational load sensors back into an immediate digital twin to monitor the remaining fatigue life of a critical component, optimizing maintenance and operational schedules based on actual load data.

#4 Trending Advances in Material Science – Advanced composites, biomimetics (designs inspired by nature, like bone structure), and new superalloys continue to emerge, requiring a deeper level of load analysis and materials testing.

By understanding how lightweight design, material behavior, and high-fidelity load data interrelate, engineers can effectively extend performance limits while maintaining safety and reliability. Accurate force measurement isn’t an optional extra. It is essential for making advanced lightweight engineering measurable, demonstrable, and verifiable.
