Interface Explores Maritime Applications Near and Offshore

Land, air, and sea are all the places where Interface force measurement devices are used to test and confirm product designs and measure real-time functions of equipment. Interface has long been providing an array of sensor solutions for use in the maritime industry.

The solutions are diverse including hydrofoil watercraft testing, yacht rigging inspections, and safety weight monitoring on massive cranes used on shipping docks and offshore. Interface provides various load cells, load pins, tension links, load shackles, instrumentation, and wireless products for splash zone, offshore and underwater sites.

The reason we are a top choice for products in or around the water is because of our line of submersible and rugged load cells and sensors designed for underwater applications and use in harsh weather conditions. From rigs and docks to structural waterways and bridges, our load cells can survive through underwater submersions at different capacities, and still be able to relay reliable and accurate data to instrumentation and receivers at the surface level. Interface measurement technologies are helping customers regulate harsh maritime situations including underwater tension lines for commercial fishing, nearshore hoisting apparatus at shipyards, undersea energy exploration, as well as storm and tsunami monitoring.

Specifically, our wireless load pins, load shackles, and tension links are ideal for marine applications. These products can be paired with our different wireless sensor transmitters, receivers, and handheld displays. Our Wireless Crosby Bow Load Shackles have been used for line tension testing and rigging. Our load shackles are inter-changeable with our WTSTL Wireless Tension Link Load Cell. The WTS-BS-4 Wireless Industrial USB Base Station is also a popular transmitter that gives outstanding coverage and can be easily paired with one of our handheld displays such as the WTS-BS-1-HA Wireless Handheld Display for Multiple Transmitters or the WTS-BS-1-HS Wireless Handheld for Single Transmitters.

Check out a few of our applications notes to see how these products can be used for testing in the maritime industry:

Hydrofoil Testing in a Wave Tank

Hydrofoil design for watercraft is a delicate balance between performance and complexity. Finding the right shape without using overly complex angles to achieve the desired amount of lift is crucial when designing a successful hydrofoil. Once an engineer’s concepts are ready for testing, using the best force measurement equipment is required to sense the subtle differences between hydrofoil designs. Lift and drag are the most important characteristics of a hydrofoil. The Interface Model 3A120 3-Axis Load Cell is needed to read these forces. The Fz senses lift and the Fx and Fy sense the drag. Using a model BSC4D-USB bridge amplifier increases the visibility of the load cells output signals. When using the load cell and bridge amplifier, the engineers can record the real-world lift and drag forces the hydrofoils are having on the watercraft. This data allows a more in-depth comparison of proposed hydrofoil designs to find the best model for the job. Learn more.

Mooring Line Tension Testing

Due to the changing weather conditions, mooring cable lines undergo wear and tear. Users want to ensure all mooring lines for ships or vessels are securely docked at the same loading tension so that they do not risk the mooring lines to break or cause damage. Interface WTSLTL Lightweight Wireless Tension Link can be attached to each mooring cable in use. Results are sent to the customers through the WTS-BS-4 USB Industrial Base Station when connected to the customer’s supplied PC computer or laptop. Data can also be transmitted to the WTS-BS-1-HA Handheld Display for Multiple Transmitters, giving the customer the option to view multiple mooring cable line tensions. Using these Interface products, the customer was able to verify the tensions to multiple mooring cable lines. Thus, resulting in the security of their ship being safely docked on shore. Check out the app note here.

WTS Yacht Rigging Inspection

For a customer who wants to have a complete rigging inspection to make sure the mast, still lines, and all movable hoisting lines are functional and meet the proper specifications for sailing, Interface has the products to help. To test the tension of the forestay, shroud, and backstay cables, and the tension of the movable lines when sailing, Interface provided a WTSSHK-B Wireless Crosby™ Bow Load Shackle paired with the WTS-BS-1 Wireless Handheld Display for Unlimited Transmitters. This allows customers to switch and view between multiple shackles being tested during the inspection. The WTS-BS-4 USB Industrial Base Station can also be attached to the customer’s PC or laptop to display real time measurements from the shackles and log data. With this combination of technology, the customer was able to conduct both a running and standing rigging inspection of their ship or vessel and was able to determine if all lines were functional and met safety standards. Learn more here.

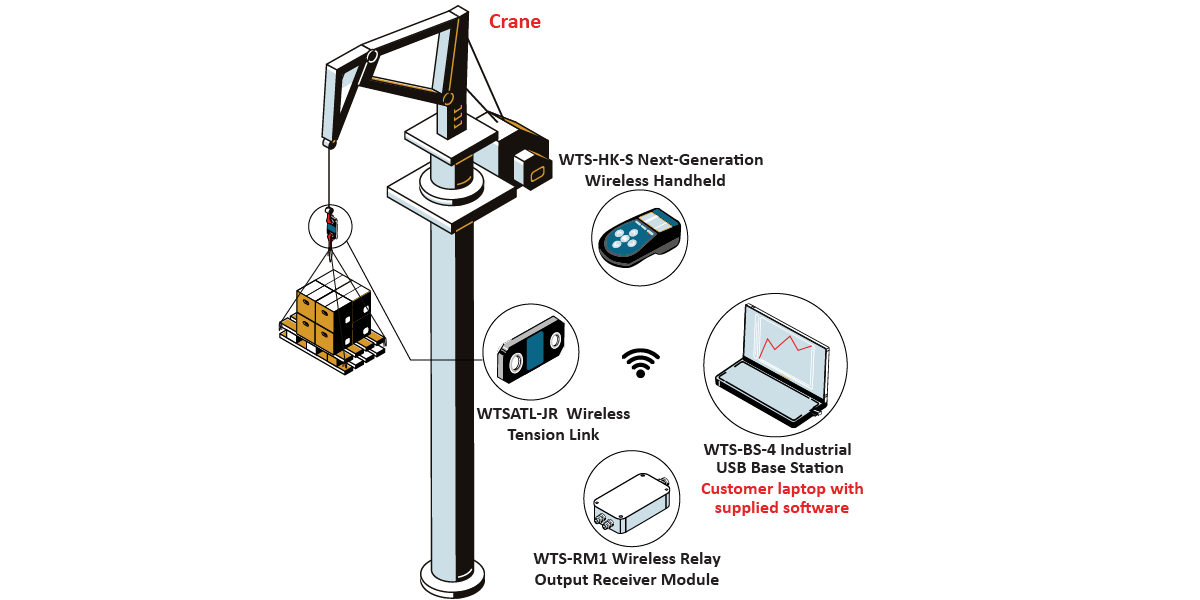

Dock Crane Safety and Capacity Verification

It is essential that heavy equipment used on the dock can verify that their crane is strong enough to safely lift a heavy load. For productivity and timing, it also is helpful to constantly measure and rate maximum load capacity. In these environments, a wireless solution is needed to avoid long cables, and to have a faster installation time. Using the WTSLTL Lightweight Wireless Tension Link Load Cell, operators can measure the load’s maximum capacity. The WTS-RM1 Wireless Relay Output Receiver Modules also can trigger an alarm that can be set when the maximum capacity of weight and force. The data is transmitted and can be reviewed with the WTS-BS-1-HS Wireless Handheld Display, or, on the customer’s receiving technology. Read more here.

As you can see, Interface has got Maritime covered with a wide variety of products suitable for submersion and the harsh weather that can be found at sea. In addition, if our off-the-shelf products don’t quite meet your use case, Interface’s custom solutions team will work alongside you to create the most effective and efficient solution based on your needs.
