Engineering Thrills Using Sensor Technologies for Theme Parks and Venues
Entertainment venues and theme parks rely on complex mechanical systems to create immersive guest experiences while meeting strict safety requirements. From roller coasters and motion platforms to automated stages and animatronic characters, engineers depend on precise force, torque, and weight measurements to ensure attractions operate safely and reliably.
The global theme park market is scaling rapidly, driven by a new generation of entertainment and high-tech attractions, including robotic ride vehicles, advanced animated characters, and interactive mechanical systems that require constant monitoring. Interface provides high-accuracy sensor technologies that help engineers monitor structural loads, dynamic g-forces, tension, and rotational resistance throughout the design, testing, and operational phases.
Test and Measurement for Attractions and Experiences
Managing attractions at theme parks and venues requires exact measurement of physical forces to ensure compliance with global safety standards. Because equipment wear or overloading can cause mechanical failure, developers rely on real-time feedback during prototyping and operations.
In early design, engineers test every part used in the entertainment structure, whether it is a thrill-seeking coaster or a simulation encounter. Embedding high-performance sensors in mechanical parts allows maintenance teams to detect tool fatigue, stress, and friction early, preventing system shutdowns. Primary applications for these sensor technologies include:
- Roller coaster chassis and track testing to measure dynamic g-forces, vertical, lateral, and longitudinal loads, and structural strain.
- Passenger restraint verification to validate the lock mechanisms in the design phase and monitor forces applied during operation to secure riders.
- Stage automation and backstage rigging for tracking aerial arts wire tension, hoist capacities, and theater tracking systems.
- Interactive robotics and animatronics for testing limb torque and end-effector grip compliance.
- Venue infrastructure analysis and inspection of lift and ride platforms, staging, large-scale LED display support structures, and fountain effects.
The main engineering challenge in theme park and venue environments is maintaining long-term sensor accuracy in equipment, from rides to gigantic displays, amid high vibrations and movement, varying weather conditions, humidity, and mechanical impacts.
Amusement park rides run continuously for up to 16 hours a day, subject to cyclical mechanical fatigue. Integrating smart force-measuring capabilities directly into wheel assemblies and structural track foundations enables operators to transition from scheduled to predictive maintenance, preventing unexpected downtime that can cost venues thousands of dollars per hour.
Safe force capture requires high-quality sensors and instrumentation to provide immediate visibility for automation systems in both indoor theatrical sets and harsh outdoor environments.
NOTE: The safety standard profile requires rigorous global standards, such as ASTM F2291, for amusement ride design; maximum positive forces are tightly restricted to brief instances of 5-6 Gs, while negative vertical forces are limited to short bursts between -1.5 and -2 Gs. Measuring these rapid, multi-directional force spikes leaves zero margin for error, requiring high-speed, ultra-precise telemetry during track and restraint verification.
Top Interface Measurement Products Used in Amusement Parks and Venues
Interface offers a comprehensive line of sensor hardware designed to measure weight, torque, and forces, while providing actionable insights for structural testing teams and system designers. Common Interface product categories used for these types of applications include:
#1 LowProfile Load Cells – Built for structural monitoring, column support testing, and large weight distribution analysis.
#2 Miniature Beam and S-Type Load Cells – Tailored for tight spaces, such as inside lap bars, shoulder harnesses, or robotic limbs.
#3 Torque Transducers and Multi-Axis Sensors – Designed for evaluating rotational resistance in animatronics and multi-directional forces on wheel assemblies.
#4 Load Pins and Shackles – Used for lifting, weighing, and replacing standard structural pins to measure shear forces directly at pivot joints.
#5 Wireless Telemetry Systems and Digital Instrumentation – Instruments that enable high-speed data transmission to PCs or handheld devices without the constraints of physical cabling for continuous monitoring and initial design tests.
Testing and Analysis Applications for Theme Parks and Amusement Venues

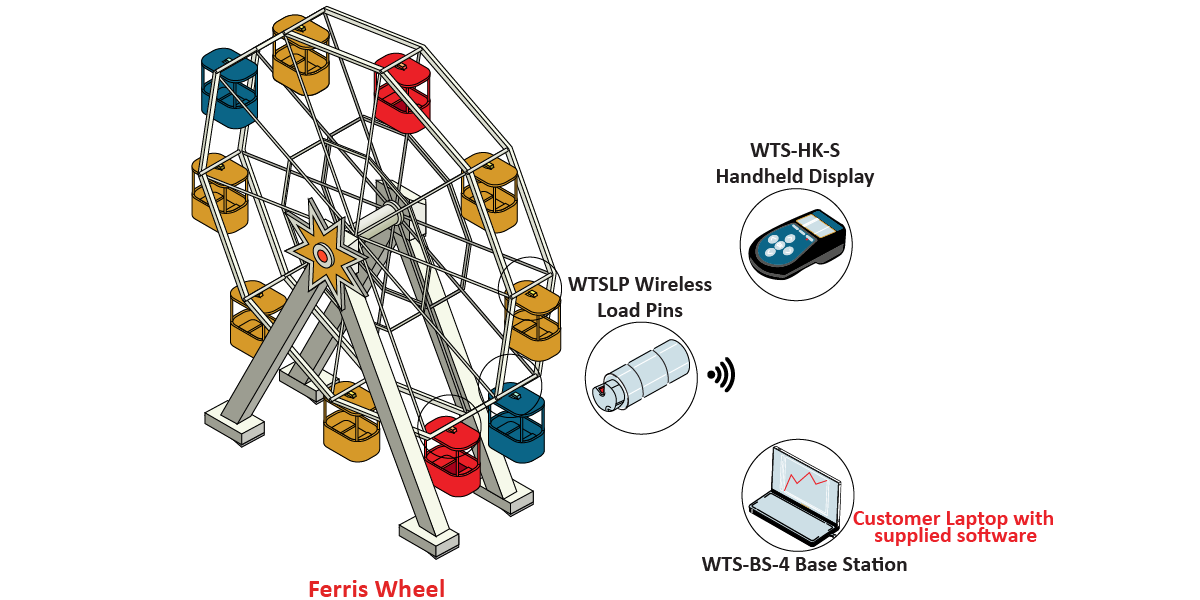

Ferris Wheel Gondola Load Testing
Ferris wheel operators must ensure passenger gondolas remain safely supported. As cabins rotate, forces transfer through hanger assemblies and pivot connections.
Interface solves this by implementing custom wireless load pins directly into the gondola hanger connection, replacing standard structural pins. As the ride operates, the pins capture shear forces and wirelessly transmit data to an engineer’s PC via an industrial base station using specialized logging software, or to a handheld wireless device. This allows operators to identify abnormal loading conditions and validate structural safety before maintenance concerns arise. Learn more: Ferris Wheel Gondola Load Testing.
Amusement Park Ride Restraint Testing
Ride restraints must secure passengers under rapidly changing, multi-directional forces. To validate performance, fatigue-rated S-type load cells are integrated into lap and shoulder bar assemblies to measure the forces applied to riders.
Concurrently, wireless custom stainless steel load pins are integrated into the pivot joints to monitor shear forces during engagement and locking cycles. The data is transmitted wirelessly to a PC for logging and graphing, providing engineers with specific insights to improve restraint design and enhance rider safety. The WTS-HK-S Next-Generation Wireless Handheld is a tool for real-time seating monitoring. Learn more: Amusement Park Ride Restraint Testing.

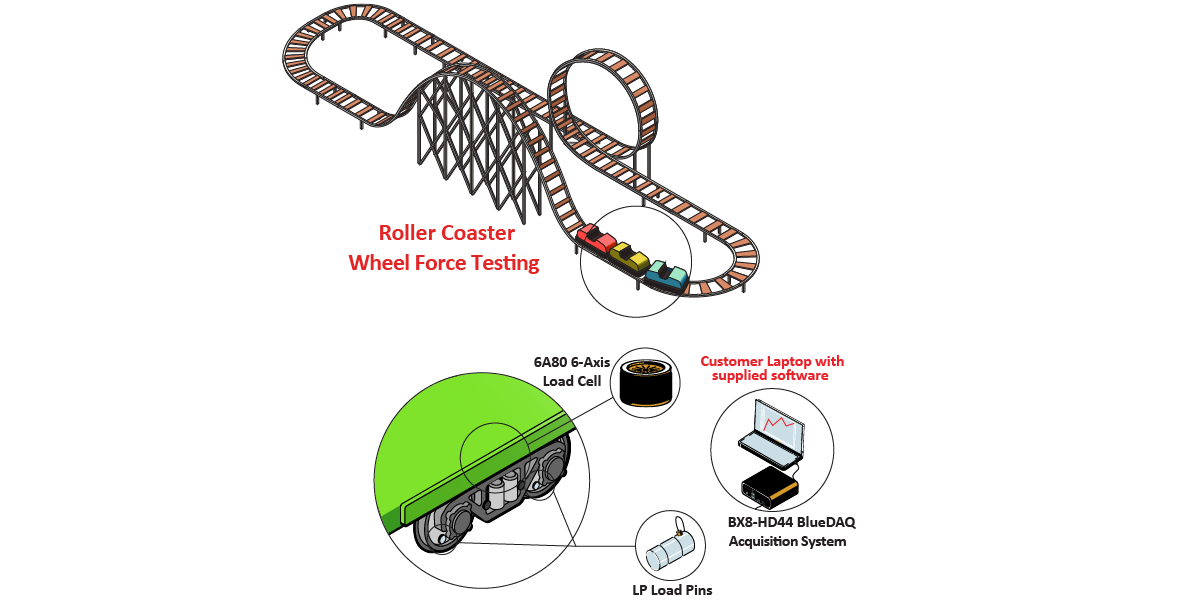

Roller Coaster Wheel Force Analysis
Roller coaster wheel assemblies experience extreme force shifts during acceleration, braking, curves, and inversions. To capture real-world data at the wheel, Interface 6A80 6-Axis Standard Capacity Load Cells are installed within the wheel bogie assemblies to measure vertical, lateral, and longitudinal forces simultaneously.
Custom stainless steel load pins are placed at axle mounting points to capture localized structural loading. Connected to the BX8-HD44 high-speed data acquisition system, these sensors continuously record data during live tracks, helping engineers understand wheel behavior to increase component lifespan and ride smoothness. Learn more: Roller Coaster Wheel Force.
Roller Coaster Structural Testing
Track systems must withstand cyclical dynamic loading from high-speed trains without developing structural fatigue. Interface addresses this by placing standard precision Wireless LowProfile 1200 Series Load Cells beneath critical support columns and track attachment points.
As the train travels the circuit, the sensors capture compression forces. When connected to a wireless telemetry dongle base station, the data from all column points appears on a central PC. Engineers can set up colored alarms to flag force overloads instantly, ensuring safer ride operations and more efficient maintenance planning. Learn more: Roller Coaster Structural Testing.
Interface Confirms the Thrill
As illustrated in this infographic, the need for quality measurement solutions is essential. Whether adding a new, thrilling attraction at the traveling fair or installing a creature that can immerse, educate, and amuse attendees in theme parks around the world, these experiences must be proven through testing and continuously monitored for safety.
Interface provides highly stable, durable instrumentation for tracking structural loading, force, weight, and torque across all types of entertainment environments. By delivering accurate measurements at critical mechanical intersections, Interface enables engineers to confidently confirm safety, extend equipment longevity, and maintain seamless operations. Contact our team to explore the options available for your specific testing and design projects.
