Measuring Control in Animatronics and Entertainment Robotics
The world of animatronics is no longer just for old-school theme park rides or B-list sci-fi movies. Animatronics are complex mechatronic systems that require precise control to achieve lifelike movements and ensure safety. This control isn’t a one-time setup, but a continuous process of measurement, feedback, and adjustment.
In animatronics, the control system, acting as the “brain,” uses sensors as its “eyes” and “ears,” providing real-time data on position, force, and torque. This feedback loop allows the system to make tiny, instantaneous adjustments to maintain the desired movement, much like a human balancing a pen on their finger.
Animatronics is a dynamic field of entertainment. It is a fusion of puppetry, anatomy, mechatronics, and robotics, and it is experiencing explosive growth, with a market projected to reach over $18 billion by 2032. The magic behind this expansion lies in technological advancements and the increasing demand for immersive, interactive experiences supported through high-accuracy force, torque, and weight measurements.
Sensors Make Movements Lifelike and Safe
At the core of modern animatronics are sensors that are crucial for achieving realistic, reliable, and safe motion capture performance. They are used throughout the entire lifecycle, from design and prototyping to real-time monitoring. The detailed orchestration of simulation requires the precision of measurement that load cells, torque transducers, multi-axis sensors, and load-measuring pins provide.
Interface force and torque sensors are embedded within the animatronics framework. They provide real-time data on movement and force, allowing the figure to react dynamically to its environment and even to people. This creates a more natural and engaging interaction.
Load cells and torque transducers help to ensure that the movements of animatronic limbs and components stay within safe operating limits. This prevents damage to the expensive equipment and, more importantly, protects nearby individuals. It’s a vital part of both the initial design validation and ongoing maintenance. Continuous monitoring with load cells and instrumentation provided by Interface can aid in the long-term success of animatronics. The data helps engineers calibrate movements, maintain peak performance, and identify potential issues before they lead to mechanical failure. This proactive approach ensures the equipment runs smoothly for its entire lifespan.
Where Sensor-Enabled Animatronics are Bringing Stories to Life
Animatronics are expanding their reach across the entertainment industry, going beyond just theme park attractions.
- Amusement and theme parks have adopted animatronics at a rapid pace. From classic rides to new, immersive worlds, animatronics create unforgettable, interactive experiences. From hyper-realistic immersive environments to autonomous robotic creatives performing complex acrobatics, parks are providing a modernized level of entertainment.
- Special effects in film and television provide a tangible realism that digital effects sometimes struggle to match. They allow fantasy creatures and robotic characters to have a physical presence on set, interacting with actors and their environment in a way that feels unquestionably real.
- Interactive experiences are now used in museums, retail spaces, and public venues to engage audiences with dynamic displays. Beyond entertainment, they’re also being used in consumer products, such as robotic pets for therapy, and are being explored in fields like education and healthcare.
The need for precise measurement and control extends to all aspects of animatronics, from movie magic to theme park thrills and even robotic bartenders. For example, measuring the torque of a motor or a joint is crucial. It ensures the animatronics’ limbs have enough force to move a prop or character, but don’t exceed safe limits that could cause damage or injury.
Creators and engineers use force and torque measurement solutions to test these movements during design and ongoing maintenance, proving that as animatronics become more complex and interactive, the role of precise test and measurement will only grow.
Applications Using Interface Sensors for Animatronics Testing and Monitoring
Animatronics must deliver accurate, repeatable, and safe movements. A key challenge is measuring the torque of the motors and joints that power these movements to ensure proper calibration and prevent them from exceeding safe limits. This testing is vital during the design phase and for ongoing maintenance.
- Simulation Environments
- Motion Platforms
- Robotic Actuators
- Wearable Robotics for Entertainment
- Theme Ride Testing
- Creature Robotic Tests
- Grips and Reach Testing
- Center of Gravity Testing
In an animatronics test lab, Interface’s MRTP Miniature Overload Protected Flange Style Reaction Torque Transducer was connected to the servo motors in the limbs of the animatronics that make it move. The customer monitoring the animatronics viewed torque results on their PC when the transducers are connected to the BX8-AS BlueDAQ Series Data Acquisition with Industrial Enclosure. Using this setup, the customer was able to record the force results of his metal-bending machine with Interface’s Wireless Telemetry System.

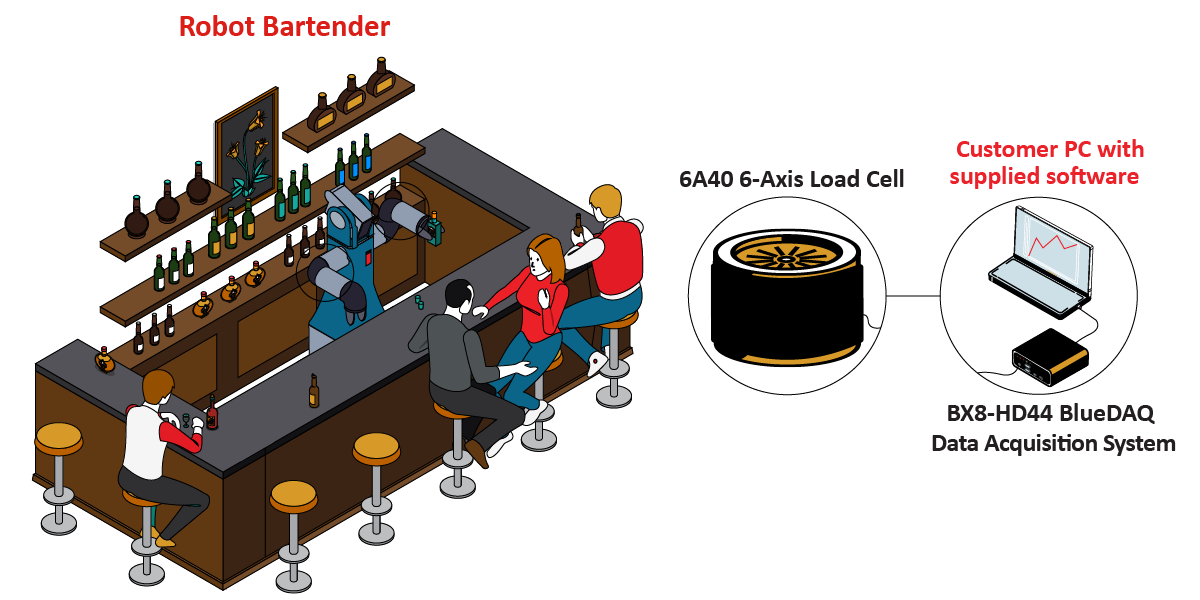

Event venues can utilize animatronics for entertainment and create immersive experiences. An efficient alternative to tradition is robotic bartenders. However, force testing is required to detect subtle shifts in shaking and pouring mechanics to prevent spillage or error. Interface’s 6A40 6-Axis Load Cell measures force and torque along several directions simultaneously, vital for accurate drink preparation under dynamic conditions. The testing results can be logged, displayed, and measured when connected to Interface’s BX8-HD44 BlueDAQ Series Data Acquisition System with included BlueDAQ software.
The future of animatronics is brighter and more lifelike than ever, blending cutting-edge robotics and AI with artistic vision to create magical, memorable, and safe experiences.
