Interface Entertainment and Amusement Industry Solutions

The special effects of a movie or the thrills you experience on a roller coaster take a lot of engineering work behind the scenes. Force measurement plays a major role in the design, development, testing, manufacturing, and maintenance of equipment used in creating entertainment and amusement features.

Interface load cells, torque transducers and instrumentation are used when quality, safety, and durability matters. You see our products used in a variety of entertainment and amusement industry solutions. This includes testing gaming simulation devices, monitoring outdoor stage equipment, designing interactive displays, operating lifting equipment, testing film drones and cameras, as well as for designing amusement rides and theme park robotics.

The part engineering plays and use of sensor technologies has grown significantly over the years in the entertainment and amusement industry. The expertise and products propel the machinery that delights audiences, while keeping purveyors, operators, and consumers safe.

Interface offers force measurement products for testing, monitoring, and embedding sensors into products by makers for various equipment used in theatre, film, video gaming, television, theme parks and entertainment venues, as well as creating spectacular multimedia attractions.

With the entertainment industry’s growth into many different submarkets, Interface’s deep range of load cells and other sensor products are used for quality testing and accurate data collection. Beyond our standard products, Interface’s experts often collaborate with specialty engineers to design customizable measurement solutions for unique applications in the entertainment industry. Interface offers highly accurate sensor systems to ensure safety and eliminate risks when building and maintaining equipment used by industry professionals.

In our industry solutions, we’ve outlined how Interface is taking part in the entertainment markets. Learn about the products and application examples that demonstrate how engineers in the entertainment industry take advantage of our robust force measurement catalog.

Entertainment Applications Using Interface Measurement Solutions

  • Display Equipment
  • Cranes and Lifts for Rigging
  • Animatronics
  • Amusement Park Rides
  • Stage Equipment and Design
  • Touch Screens and Monitors
  • Theme Park Robotics
  • Drones for Videography
  • Camera and Multimedia Equipment
  • Outdoor Festival Wind Monitoring
  • Stunt Devices
  • Operating Equipment and Machines
  • Set and Venue Designs
  • Equipment Safety Monitoring

Drone Videography

A videographer team wanted to ensure the propeller motors compensate for weight shifting or uneven weight distribution of the video camera being attached when they film landscapes and other aerial shots. Four Interface WMC Sealed Stainless Steel Miniature Load Cells were installed to the necessary propeller motors to compensate for an uneven weight load. The WMC’s measure the weight of the film camera attached and detect weight shifting or uneven weight distribution of the video camera. The four WMC load cells accurately measured the payload weight and maintained stability of the propeller motors to when the drone was in air with the attached film camera. This information was communicated to the drone’s on-board processor for monitoring and recording this information during flight. More information is available here.

Entertainment LED Screens

A customer constructing a huge venue wanted to weigh their extremely large LED display screens. They also wanted to measure the force of the structure that is supporting the screens, to ensure stability and structural integrity. Interface suggested their LW General Purpose Load Washer Load Cells being assembled within rods that are part of the support structure. The LED screen hangs off the structure, which connects to the rods. The compression forces applied to the rod will be measured by the LW’s installed in between. The load washers are paired with WTS-AM-1E Wireless Strain Bridge Transmitter Modules, where the force results are wirelessly transmitted to both the WTS-BS-1 Wireless Handheld Display for Unlimited Transmitters and the WTS-BS-4 Wireless Base Stations with included Log100 software. Interface’s wireless load washer system successfully weighed the forces of the large LED screen for the customer’s new venue. Learn more.

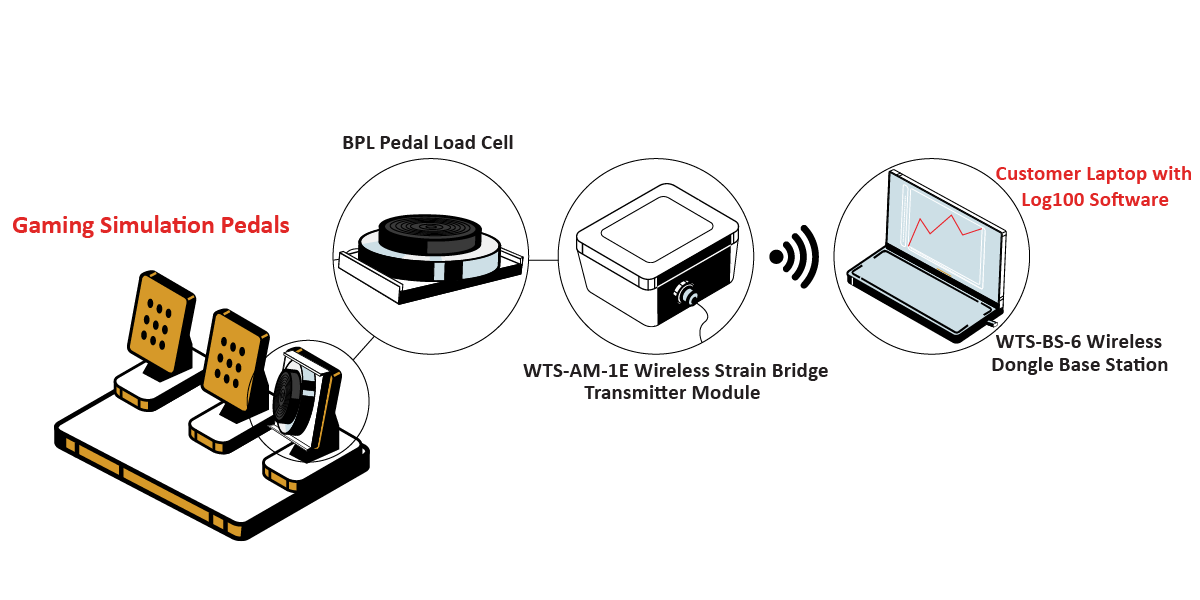

Gaming Simulation Brake Pedal

A gaming company wanted to switch from the standard racing pedals to a load cell based pedal system for their racing simulation game. Compared to the standard racing simulation pedals, load cell pedals are more advanced and offer more accurate results. They also wanted a wireless system that will measure the strength of the pressure received by the pedals that will detect the perfect amount of braking power. Interface’s BPL Pedal Load Cell was installed onto the gaming brake pedal to measure the force applied when someone puts their foot on it. Forces were measured and recorded using the WTS-AM-1E Wireless Strain Bridge Transmitter Modules, where data is transmitted to the WTS-BS-6 Dongle Base Station when connected to the customer’s PC or laptop. Interface’s BPL Pedal Load Cell measured and recorded the pedal forces applied to their racing gaming brake pedals. In comparison to traditional simulation pedals that measure the distance of the pedals when pressed, Interface’s load cell pedal system provided a more realistic experience for gamers. Read more.

Interface enables incredible innovation across industries and the entertainment world is no different. We’re proud to help customers create incredible experiences and find new ways to captivate audiences. To learn more about our work in the entertainment industry here.
