Understanding Ultra Miniature Load Cells

One of the challenges product and test engineers face is integrating high-performance force measurement into constrained physical envelopes. In response, Interface offers a range of options we classify as ultra miniature load cells, with dimensions from less than 0.5 inches to under 2 inches in height or width.

Interface Ultra Mini Load Cells maintain the demanding performance standards of larger models while addressing the spatial limitations inherent in testing small components or integrating them into devices, parts, or end-products.

Selecting an ultra miniature sensor requires understanding the specific form factor and how it handles external loads. The core of this category includes using load cells that fit dimensionally and by capacity and capabilities. Here are a few of Interface’s models designed for these requirements.

• ULC Ultra Low Capacity Load Cell is engineered for light force measurement, where sensor mass could interfere with test results.
• SuperSC S-Type Miniature Load Cell and SMA Miniature S-Type Load Cell models take advantage of the standard S-Type geometries scaled down for tension and compression in tight vertical spaces.
• MBS Parallelogram Load Cells utilize a beam design to provide high accuracy in low-capacity scales and weighing equipment.
• WMC Sealed Stainless Steel Miniature Load Cells are a very popular option for their industrial design and performance, making them a good choice for environments where moisture or debris are factors.
• MTFS Miniature Tension Force Load Cell and SMTM Micro S-Type Load Cell are specialized micro-designs for tension-only or micro-scale force monitoring.
• MCC Miniature Compression Load Cell is a miniature compression-only cell for high-capacity applications.

TIP:  Use Interface’s Mini Load Cell Selection Guide to review all of Interface’s Mini Load Cells.

A Comparative Performance Review of the Interface’s ULC versus SuperSC

Within the ultra mini grouping, the ULC and the SuperSC represent different engineering philosophies for small-envelope force measurement. While both occupy a footprint under 2 inches, they are optimized for opposite ends of the force spectrum.

The ULC is engineered for micro-force precision, measuring forces as low as 0.1 Newton. Its internal parallelogram structure is designed to be highly sensitive while remaining robust enough to handle accidental sideloading. This design ensures that the load remains centered and minimizes the impact of off-center placement, which is common when working with microscopic components or delicate filaments.

In contrast, the SuperSC is designed for high-density force. It allows an engineer to measure up to 1,000 lbf in a package roughly the height of a matchbox and the diameter of a quarter coin. Its S-type form factor geometry makes it much easier to integrate into tension links or threaded assemblies using rod-end bearings.

While the ULC is often used in stationary benchtop micro-testing, the SuperSC is frequently found in in-line industrial applications or integration into equipment like this 4D Bio Printing machine.

The primary distinction for selection is resolution versus capacity. The ULC is used when the priority is detecting sub-gram changes in force, where extraneous cable weight could be a factor. SuperSC is the choice when high-capacity tension and compression data are required within a confined mechanical linkage.

Technical Tips for Ultra Mini Load Cells in Testing

Using ultra miniature sensors reduces the overall weight of the test assembly. This is critical in dynamic applications where the sensor mass affects the system’s frequency response or natural resonance.

Tip #1 Signal-to-Noise Ratio and Cabling

Because these sensors often operate at lower capacities, the output signal in millivolts is small. Users must prioritize high-quality shielded cabling and keep cable runs as short as possible to prevent electromagnetic interference from degrading the data. In many ultra-miniature load cell model designs, the cable diameter itself can exert a parasitic force on the sensor if not properly routed or free of strain.

 Tip #2 Mounting and Alignment

The reduced surface area of ultra miniature load cells makes them more sensitive to off-center loading and side loads. For S-Type models SMA, the use of rod-end bearings is recommended to ensure the load remains axial. For compression-only models like the MCC, the loading surface must be flat and parallel to avoid introducing bending moments that skew accuracy. The SuperSC is designed to reduce off-center loading.

Tip #3 Thermal Management

Smaller sensor bodies have less thermal mass, meaning they react more quickly to ambient temperature shifts. While these cells include internal temperature compensation, sudden thermal gradients can cause a zero shift. Engineers should consider the proximity of the sensor to heat-generating components like motors or processors in compact housings.

Ultimately, the successful use of these ultra load cells relies on acknowledging the physical sensitivity of the small form factor while leveraging its ability to provide data at the primary point of force contact.

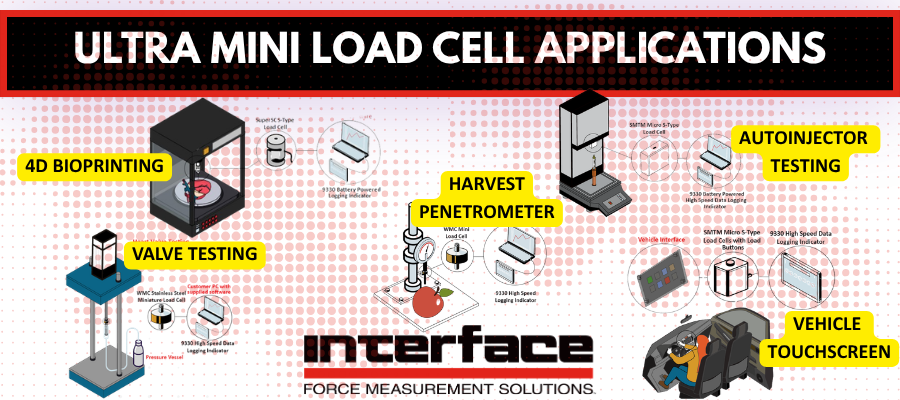

Interface Ultra Mini Load Cell Application Examples



Surgical Robotics and Medical Haptics

In robotic-assisted surgery, miniature sensors like the MCC or SMTM are integrated into the distal ends of surgical instruments. These sensors provide real-time force feedback, known as medical hapticals, to the operator, allowing for precise tissue manipulation and suturing without the risk of over-tensioning delicate materials.  Get more details by reviewing the robotic surgery force feedback application.

Food Quality

Agriculture, food storage, and produce quality control require a reliable and quantifiable method to assess the ripeness of fruits and vegetables. Interface suggested implementing the WMC Stainless Steel Miniature Load Cell, which was integrated into a penetrometer device equipped with a penetrating tip, as noted in our harvest penetrometer app note.

Medical Devices and Research

The MBS Parallelogram Load Cell is often embedded within medical infusion devices to monitor fluid weight or detect occlusions in the tubing. The compact beam design allows for integration into portable, battery-operated units where every millimeter of space is allocated to electronics or fluid reservoirs. A requirement for DNA replication, or DNA synthesis, is the process of a cell making an identical copy of its DNA.  Interface’s SMTM Micro S-Type Load Cells are placed in the column where fluids from the synthesizer are dispensed. Read the DNA Replication App Note.

Electronics Testing and Assembly

In automated assembly, the MTFS can monitor the force applied during the pick-and-place process. This prevents fragile components from being crushed while ensuring that electrical connections are fully seated under the correct amount of pressure. Interface’s SMTM Micro S-Type Load Cell is ideal for touchscreen testing. The SMTM can be easily integrated into a force testing machine. The touchscreen is laid flat under the machine, and force tests are conducted in different locations of the touchscreen. Learn more.

Drone and UAV Thrust Stand Testing

Miniature S-Type sensors, such as the SuperSC, are used in small-scale propulsion labs to measure the thrust and torque of micro-drones. The high accuracy-to-size ratio allows researchers to build compact test stands that can be used in wind tunnels without significantly disrupting the airflow.

Considerations Utilizing Ultra Minis

The integration of Ultra Mini Load Cells requires a disciplined approach to mechanical coupling and signal conditioning. Because these sensors are often deployed in systems where the margin for error is measured in microns or grams, the boundary between the sensor and the application must be rigid and perfectly aligned. Any parasitic friction or unintended mechanical shunts will disproportionately affect the accuracy of a miniature cell compared with that of its larger counterparts.

From a data acquisition perspective, the high natural frequency of these compact sensors makes them excellent candidates for high-speed sampling. However, to fully realize the precision of these very small sensors, including our ULC or SuperSC series, instrumentation must be capable of resolving low-level signals in high-vibration or electrically noisy environments. Utilizing instrumentation with high input impedance and dedicated excitation regulation is essential to maintain the stability of the bridge circuit over long-term testing cycles.

Ultimately, classifying a load cell as ultra mini reflects its volumetric efficiency. Whether the application requires the delicate micro-force resolution of a parallelogram beam or the high-capacity tension capabilities of an S-Type, these sensors provide the necessary bridge between extreme spatial constraints and laboratory-grade measurement certainty. Contact Interface for additional information about our ultra miniature load cells.
