High-Capacity Column Load Cell Technology
While standard sensor geometries often prioritize versatility, the column load cell, also known as a canister load cell, is a solution for axial integrity engineering.
By utilizing a central vertical element as the primary flexure, this design offers a superior capacity-to-size ratio and mechanical stiffness that alternative geometries cannot match in high-tonnage applications.
For test and measurement engineers, the primary advantage of a column-style sensor is its high spring rate. In dynamic testing environments, such as aerospace structural fatigue or rocket motor stand calibration, the rigidity of the internal column ensures a high natural frequency. This minimizes mechanical resonance and ringing during rapid force increments, allowing for cleaner data acquisition during transient events. Unlike beam-style sensors that rely on bending or shear, column sensors compress along their longitudinal axis. This results in extremely low deflection, maintaining the test rig’s structural geometry even when forces can exceed 1,000,000 lbf.
Mitigating Extraneous Loads and Thermal Expansion
Large-scale measurement projects, particularly those located outdoors or in heavy industrial plants, face significant challenges from side loading and thermal expansion. When a massive storage silo expands due to temperature, or a freight train applies horizontal force during braking on a track scale, the sensor must decouple these extraneous forces to maintain accuracy.

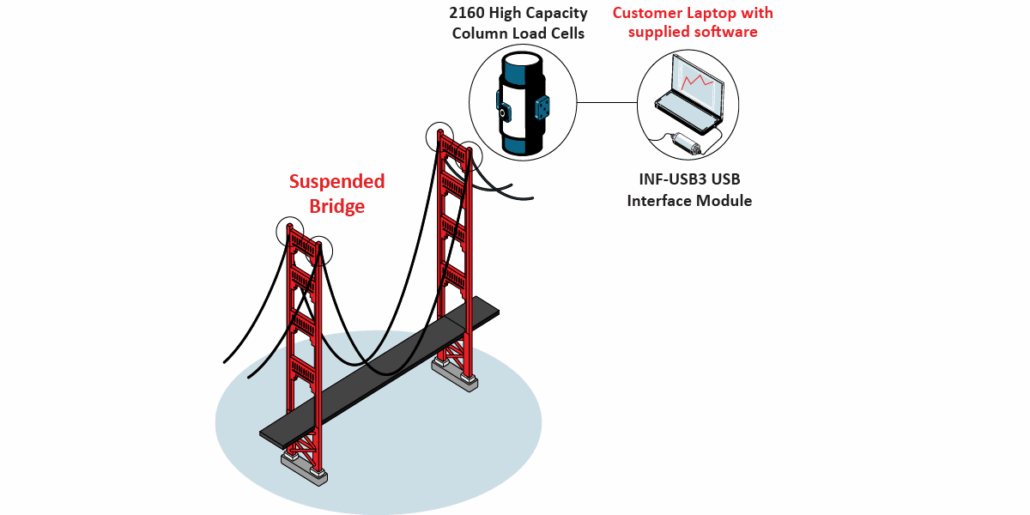

Suspension bridges rely on massive wire ropes or cables that support the entire structure, carrying the weight of the bridge deck, vehicles, wind loads, and environmental stresses. Wire rope testing evaluates tensile strength, elasticity, tension distribution, and structural integrity to ensure safety. Interface’s 2160 High-Capacity Column Load Cells, integrated into a custom anchoring system, measure reactive compressive forces caused by cable tension. Data is transmitted to our INF-USB3 PC Interface Module for monitoring. Read more about this application here.
Canister load cells address this through mechanical geometry. High-performance models often use spherical loading surfaces or rocking designs. This allows the cell to accommodate slight angular misalignments or horizontal shifts by tilting and self-centering under the load’s weight. This ensures that the strain gage bridge registers only the vertical force component, protecting the data from non-axial noise that would induce errors in less rigid sensors.
Environmental Isolation and Signal Stability
The technical appeal of the canister design lies in its construction. Most high-capacity column cells feature a stainless-steel outer shell that is hermetically sealed by laser welding and backfilled with an inert gas. This creates a controlled, isolated internal environment protected from humidity, corrosive vapors, and debris.
For the technical buyer, this is a hedge against signal drift. In environments such as chemical processing or offshore mooring tension monitoring, moisture ingress is the leading cause of sensor failure. The welded canister ensures that the bond between the strain gage and the sensing element remains pristine over decades, providing long-term baseline stability and reducing the frequency of recalibration.

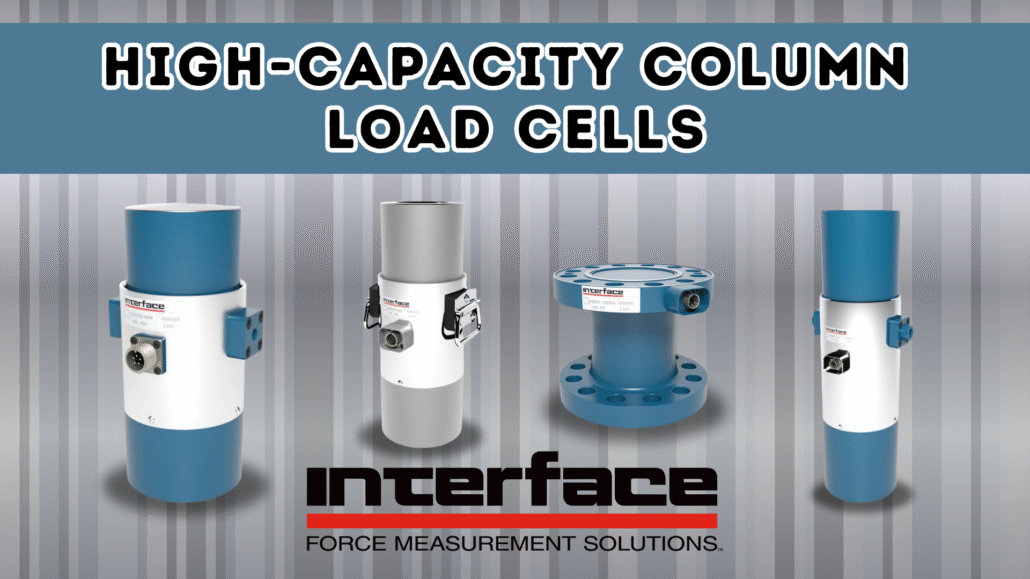

Interface High-Capacity Column Series
To address specific high-capacity requirements, Interface provides specialized column architectures ranging from calibration standards to redundant-bridge industrial models.
#1 – 2160 High-Capacity Series (Tension & Compression) is critical for applications where the load path may reverse or where pre-loading is required, such as aircraft weight and balance or cable tension testing. These support forces up to 1 million lbf.
#2 – 2161 High-Capacity Compression-Only Series is streamlined for unidirectional force measurement in heavy-duty truck scales and foundation testing, offering a durable, high-capacity solution with optional second-bridge redundancy.
#3 – 2200 Calibration Series is engineered for the metrology lab and field calibration. It features a guided column design with quadruple the number of strain gages of a standard cell, achieving performance of <0.10% FS. Its lightweight, portable nature makes it the primary choice for calibrating aerospace and industrial test stands that mandate ASTM E74 accuracy.
#4 – 2300 High-Capacity Flange Mount Series is for an application that requires a fixed, bolted connection to prevent lateral shifting. The 2300 series provides a flange-mounted solution. With accuracy classes up to 0.05% FS and dual-bridge redundancy, this model is preferred for axial force measurement applications that require easy installation and high signal integrity.
Additional column load cells include our 2000 Series and 3450.
Column Selection Requires Matching Architecture to Environment
Selecting the optimal column load cell requires balancing mechanical flexibility with the need for absolute axial data integrity.
When a project involves bidirectional testing, such as aerospace airframe tests where the load string may transition from tension to compression without changing hardware, the 2160 Series is the right choice. Conversely, for high-volume logistics or compression-only environments, such as truck scales or silo weighing, the 2161 Series offers a more streamlined, ruggedized solution for high-tonnage vertical force.
If accuracy is the primary KPI, as in field metrology or laboratory reference standards, the 2200 Series provides the gage density required for laboratory-grade calibration. In contrast, for rigid machinery installations where the sensor must be bolted directly to a frame to prevent lateral shifting, the 2300 Series and its flange-mount design ensure a perfectly axial, secure load path.
For any mission-critical safety application, such as bridge monitoring or rocket stands, selecting a multi-bridge configuration (available across these series) provides the vital signal redundancy needed to prevent data loss in the event of a single-bridge failure.
Summarizing the Technical Advantage of Column Designs
In the hierarchy of force measurement, the column load cell remains the primary choice for extreme-scale engineering. While LowProfile “pancake” cells are prized for their versatility and compact height, the canister’s vertical-column geometry provides the mechanical stiffness essential for high-capacity projects.
The decision to use a canister ultimately prioritizes axial dominance. By isolating the strain gages in a hermetically sealed, inert environment and using a structure that resists the distorting effects of side-loading and thermal expansion, the canister provides long-term data stability that other sensors cannot maintain under high-tonnage stress.
Whether supporting a million-pound aerospace test or providing redundant data in a precision manufacturing line, these sensors serve as the structural anchors of the force measurement world. Contact us to explore your high-capacity load cell options.
