Clarity in Measurement Requires a Clear Display of Accurate Results

The test and measurement data obtained from our high-precision sensors, whether you’re meticulously measuring force with a load cell, quantifying rotational effort with a torque transducer, or capturing complex interactions with a multi-axis sensor, is only as valuable as your ability to manage the output, including displaying the results.

Displays are a crucial bridge, converting raw electrical signals into easily understandable values. They provide immediate feedback, enabling real-time adjustments, critical process monitoring, and confident data collection. This ensures the integrity and accuracy of your entire test and measurement program, whether in a controlled lab environment, a dynamic on-site setting, or managing continuous measurement monitoring.

The correct display offers essential data, boosts operational efficiency, and minimizes potential errors. By providing a direct visual representation of the measured parameters, displays enable users to quickly spot trends, identify anomalies, and make informed decisions without relying on cumbersome post-processing or complex software analysis. This immediate insight is crucial for ensuring test validity, optimizing processes, and upholding the highest quality control standards across various applications.

Interface Displays

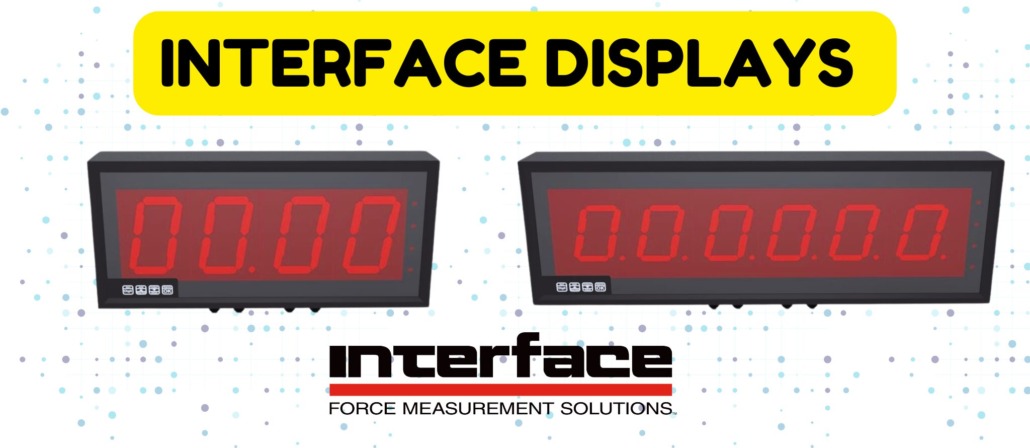

WTS-LD1 Wireless Large LED Display

The Wireless Large LED Display offers a large-format four-digit display that shows individual WTS transmitter values or the summed value of up to eight modules. The large screen features a 4-digit module with a 102 mm (4 in) LED display. Mounting options include ceiling suspension or wall mounting.

The data transmitted by the modules can be utilized by various receivers, including displays, handheld readers, analog outputs, relay modules, and computer interfaces. These receivers are compatible with standard industrial power supplies and housed in durable, IP-rated enclosures incorporating internal antennas for optimal coverage.

Interface’s WTS Toolkit software and a USB base station enable users to quickly and easily select and configure the appropriate transmitter modules. The WTS Toolkit also provides configuration options for the display format and zero functions. Additionally, wired Logic Inputs allow users to control the Tare and Net/Gross toggle functions remotely.

WTS-LD2 Wireless Large LED Display

The Wireless Large LED Display LD2 provides the same features as the WTS-LD1 Display, with a large six-digit format that shows individual WTS transmitter values or the total value from up to eight modules.

Interface Instrumentation Displays

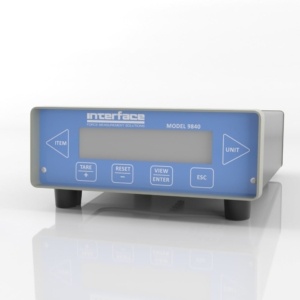

9840 Calibration Grade Multi-Channel Load Cell Indicator

Interface’s 9840 Indicator and Display is ideal for calibration labs, field service, or any setting where high accuracy is crucial. This product features a bipolar 6-digit, 2-line display, remote sensing, low noise, 24-bit internal resolution, a USB port with RS232 communication, mV/V calibration, storage for calibrations for up to 25 sensors, 6-point linearization, unit conversion, and front-panel tare. Additionally, this unit includes self-calibration via TEDS and is Plug and Play ready with IEEE 1451.4 compliance.



9870 High-Speed High-Performance TEDS Ready Indicator

Interface’s 9870 Indicator measures and displays load, pressure, and torque measurements accurately and graphically. The 9870 brings features to a 1/8 DIN size indicator that are typically found in larger HM/ displays, with a high-performance color graphic LCD screen. Its vivid display gives immediate process status. Each alarm intuitively and independently advises process conditions. The 9870 is Plug-and-Play (TEDS). The 9870 Supports IEEE 1451.4 TEDS by utilizing Interface load cells; auto-calibration is performed, which eliminates complicated calibration and prevents human error.



9812 Panel Mount Display for Single mV/V Transducer

Interface’s 9812 Panel Mount Display is our most popular 1/8 DIN load cell input panel meter with high precision and stability. The load cell readout is provided by a 6-digit 7-segment LED display, which is coupled with an ultra-high resolution 20-bit A/D converter and highly stable strain gage bridge excitation source to provide your instrumentation with perfect resolution and stability. The digital indicator utilizes a modular construction technique, enabling you to configure it with the required functionality. This flexible approach ensures that you only pay for the features you need. It is ideal for weight, torque, strain, pressure, and stress measurements.

TIP: Use Interface’s Instrumentation Selection Guide to review your options.

Additional Instrumentation Solutions with Functional Displays for Test and Measurement Applications

9894 Analog Input Process Indicator and display boast specifications and functionality, making it one of the most advanced process meters available.

9325 Portable Sensor Display allows a simple display of strain bridge-based measurements such as load cells, torque transducers, and pressure gauges with sensitivity up to +/-1 V/V.

1280 Programmable Weight Indicator and Controller is a programmable digital weight indicator with a color display touchscreen, web server view, and multiple protocol types that deliver uncompromising speed.

4850 Battery Powered Bluetooth Weight Indicators are wireless capable digital indicators housed in a stainless steel NEMA 4X enclosure.

9812-WTS Wireless Panel Mount Display for Single Transmitters displays data from any of the WTS wireless transmitter modules and forms part of the WTS modular telemetry system

WTS-BS-1-HA Wireless Handheld Display for Multiple Transmitters is a portable display for up to 12 wireless transmitter modules and forms part of the WTS modular telemetry system.

WTS-BS-1 Wireless Handheld Display displays unlimited transmitter data from any WTS wireless transmitter module and form.

Selecting the appropriate display is integral in building a robust and effective test and measurement system. From large, easily visible LED readouts for quick monitoring to sophisticated multi-channel indicators with advanced calibration features, Interface offers a comprehensive range of display solutions tailored to any application’s diverse needs. By providing a clear and reliable view of your sensor data, these displays empower you to harness the full potential of your measurements, ensuring accuracy, efficiency, and confidence in your results.
