In the recent article, Force sensors find opportunity in electric vehicles, battery assembly by Dan O’Shea of Fierce Electronics, the feature details increasing use of force measurement technologies in the EV industry.
In this must-read piece, Brian Peters was interviewed to share Interface’s role and growing support for the testing of electric vehicle components including electric vehicle battery testing.
In the article, the author highlights the different use cases for sensor technologies in the EV market. Interface shared our experience in supplying vehicle force measurement solutions for EV batteries chemical mixing, batch weighing scales, battery assembly machines, tension monitoring, material tests, structural tests and more.
Dan writes, “In the automotive sector, one of the most important areas where force sensor technology can play a role is in the manufacturing of electric vehicle batteries, as well as testing and monitoring batteries for quality assurance.”
He continues, “Brian Peters, vice president of global sales at Interface Force Measurement Solutions, told Fierce Electronics that the need for force sensors in EV battery applications has grown rapidly as more new automakers and battery manufacturers have appeared on the scene and consumer interest in EVs has risen.”
An example of one of these applications is detailed in use case of Electric Vehicle Battery Monitoring.
ELECTRIC VEHICLE BATTERY MONITORING

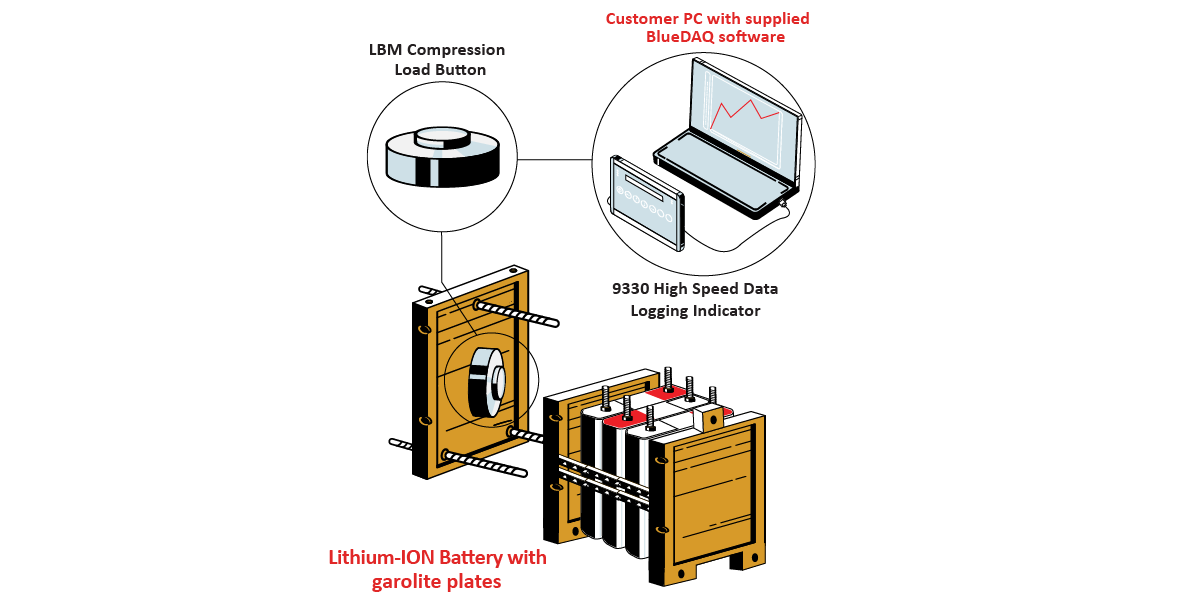

Interface’s customer was designing a system to monitor lithium-batteries used in electric vehicles. Typically, lithium-batteries are measured through ICV to monitor and analyze life and performance. Interface suggested using our LBM Compression Load Button Load Cell in between two garolite end plates, and measuring the force that is created from cell swelling or expansion. Instead of monitoring through voltage (ICV), this method is based on measured force (ICF). Paired with the 9330 Battery Powered High Speed Data Logging Indicator, force results can be displayed, recorded, and logged with supplied software.
