Center of Gravity Case Study Highlights Testing for Stability and Safety

In today’s world of advanced machinery, robotics, and aerospace engineering, precisely measuring an object’s center of gravity (CoG) is paramount. CoG, the point at which an object’s weight is evenly distributed, is crucial for stability, performance, and safety.

A new case study from Interface, The Force Behind Accurate Center of Gravity Testing, highlights the critical role of accurate CoG measurement and showcases how precision force measurement solutions address the challenges of this complex validation and assessment process. The following are key takeaways from the case study and expand on the importance of CoG testing across various applications.

The Challenge of Precision

The case study illustrates that even the slightest imbalance can significantly affect mission-critical applications. Accurate CoG testing ensures stability and performance, from spacecraft design to advanced robotics. However, achieving the required precision presents significant challenges:

• Complexity – CoG measurements often require precise measurements for critical design and analysis assessments, sometimes in confined spaces or for very large test articles, just as a rocket or grain silo.
• Sensitivity –Minor deviations in CoG results can significantly impact, leading to expensive flaws and, ultimately, failures. Safety is one of the primary reasons for center of gravity testing.
• Environmental Constraints – Testing often occurs in limited conditions, demanding robust yet miniaturized sensors that don’t disrupt performance. Environmental conditions impacting testing or performance monitoring, such as weather or extreme temperatures, must also be considered.
• Data Consistency – It is critical to ensure consistent and accurate data acquisition during tests. Inconsistent readings can lead to inconsistent CoG calculations and costly mistakes. Pairing your sensor technology with accurate input and output instruments is very important.

Interface Solutions for Precision Center of Gravity Measurement

Interface offers advanced force sensor solutions and instrumentation that meet the mandatory needs for accurate and reliable CoG testing. The case study details several examples of how Interface technology is used in diverse applications.

Robotic Arm Design

Interface recommends a force plate solution using high-performance 3-Axis Load Cells and the BX8 Multi-Channel Bridge Amplifier and Data Acquisition System for robotic arm testing. This setup allows for dynamic monitoring and adjusting the robot’s stability and CoG. As robotics becomes more sophisticated, precise CoG measurement becomes even more critical.

Robotics Control

The case study emphasizes the growing importance of CoG testing in robotics. As robots become more complex and are deployed in increasingly diverse environments, accurate CoG measurement is crucial for properly located CoG to prevent tipping and ensure safe operation. Optimizing the CoG improves maneuverability and precision of movements. CoG testing helps meet safety regulations and prevents accidents.

Interface’s precision load cells, including miniature load cells like the ConvexBT Load Button Load Cell and MBI Overload Protected Miniature Beam Load Cell, are ideal for CoG testing in robotics due to their accuracy, repeatability, and ease of integration. These sensors provide detailed data to optimize robotic performance and ensure safety. Here is a demonstration of a 3-axis load cell monitoring a robotic arm.

As discussed in the case study, factors like stability, performance, and safety all hinge on accurate CoG determination. This is especially true in applications like surgical robotics, where haptic feedback and precise movements are essential.



Rocket Test Frame for Center of Gravity Testing

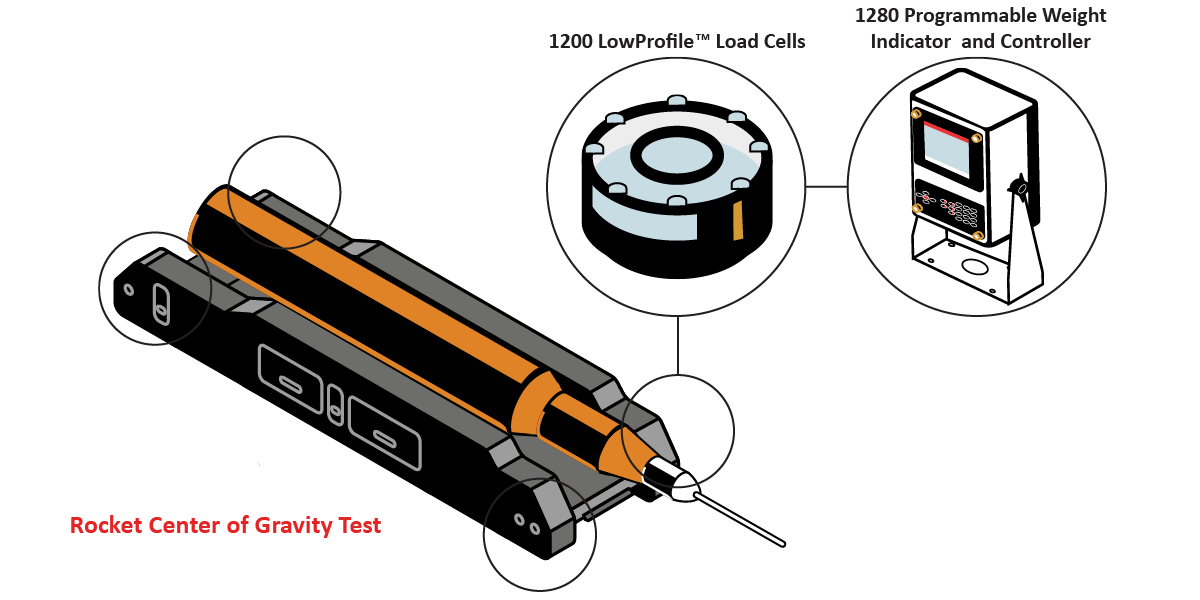

In aerospace, Interface’s 1200 Standard Precision LowProfile™ Load Cells, integrated into a rocket test frame and coupled with the 1280 Programmable Weight Indicator and Controller, provide the precise measurements needed for CoG calculations, ensuring stability and safety during launch. Read more in our Rocket Center of Gravity application.



Crew Module Center of Gravity Testing

The Interface WTSSHK-B Wireless Crosby™ Load Shackles provide a reliable solution for weight distribution and calculating CoG for spacecraft crew modules, ensuring balance and meeting stringent safety standards.

Aerospace applications rely heavily on accurate CoG measurements. Similarly, understanding the CoG is crucial for ensuring the stability and integrity of buildings, bridges, and other structures in structural engineering. CoG monitoring can prevent catastrophes and optimize material management even in seemingly simple applications like tank weighing. For tank weighing, Interface’s A4200 and A4600 Weigh-Check Load Cells help monitor material levels and CoG, optimizing load distribution and ensuring safety. Learn about this use case here.

Interface’s case study demonstrates the critical role of accurate CoG testing in various industries. By providing high-precision force measurement solutions, Interface empowers engineers to ensure stability, optimize performance, and enhance the protection of people, products, structures, and environments in applications.

As technology advances, the demand for precise CoG measurement will only grow, making Interface’s solutions an essential tool for innovation and progress. Contact Interface today to learn more about its solutions for center of gravity measurement projects, including its range of load cells, sensors, and data acquisition systems.

The Force Behind Accurate Center of Gravity Testing
