Solution

Lug Nut Assembly

Customer is looking for a way to increase productivity for automobile wheel installation while ensuring that the lug nuts are installed to the proper torque values for safety purposes.

Contact an Application Engineer

Summary

Customer Need / Challenge
Customer is looking for a way to increase productivity for automobile wheel installation while ensuring that the lug nuts are installed to the proper torque values for safety purposes.
Interface Solution

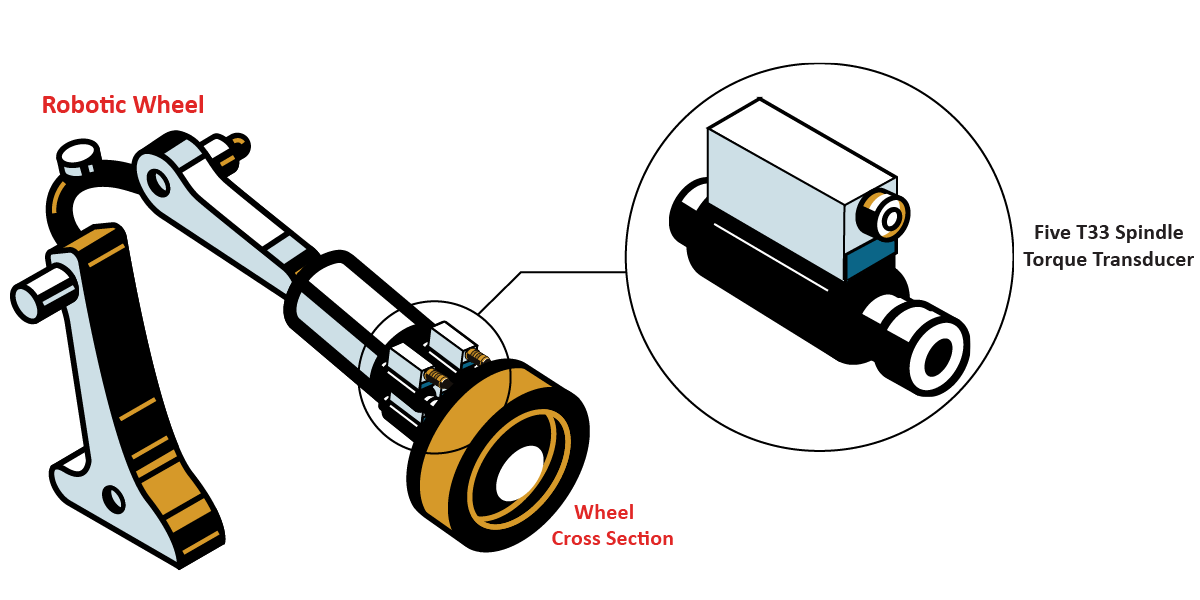

Interface supplied five T33 Spindle Torque Transducers for use in customer’s Wheel Installation Assembly Machine which come standard with +/-5VDC analog output for torque measurements and a 360 pulse, 2-track encoder for Speed/Angle measurement.
Results
Customer was able to perform five simultaneous torque measurements during wheel installation in seconds. The T33 Spindle Torque Transducer provided a +/-5VDC Signal for torque and TTL Signal for angle measurement back to customer’s control system so proper values could be applied and recorded.

Materials

T33 Spindle Torque Transducer with standard +/-5VDC Signal for Torque with Integrated Angle Measurement
Customer’s control and data acquisition system

How it Works

Customer installs multiple T33 Spindle Torque Transducers into assembly machine.
Customer connects T33 interconnect cables to their control and data acquisition system.
Customer performs wheel installation process while torque and speed/angle readings are automatically sent back to customers instrumentation for control and recording purposes.

Download PDF
