Additional Interface Calibration Grade Solutions

As a leading supplier to testing labs around the world, Interface has designed specialized strain gage products that are classified as calibration grade. Our most popular calibration grade load cells are the 1600 Gold Standard LowProfile Load Cells and 1800 Platinum Standard model series. Both series provide tension and compression in one unit. These products are commonly used to calibrate and monitor test equipment, as well as to perform in-house calibrations.

What is not as widely known is that we offer more than our precision calibration grade load cells. We also offer an array of additional calibration grade products including instrumentation, torque sensors, accessories, adapters, and complete calibration systems.

Here are just a few examples of additional calibration grade products Interface offers.

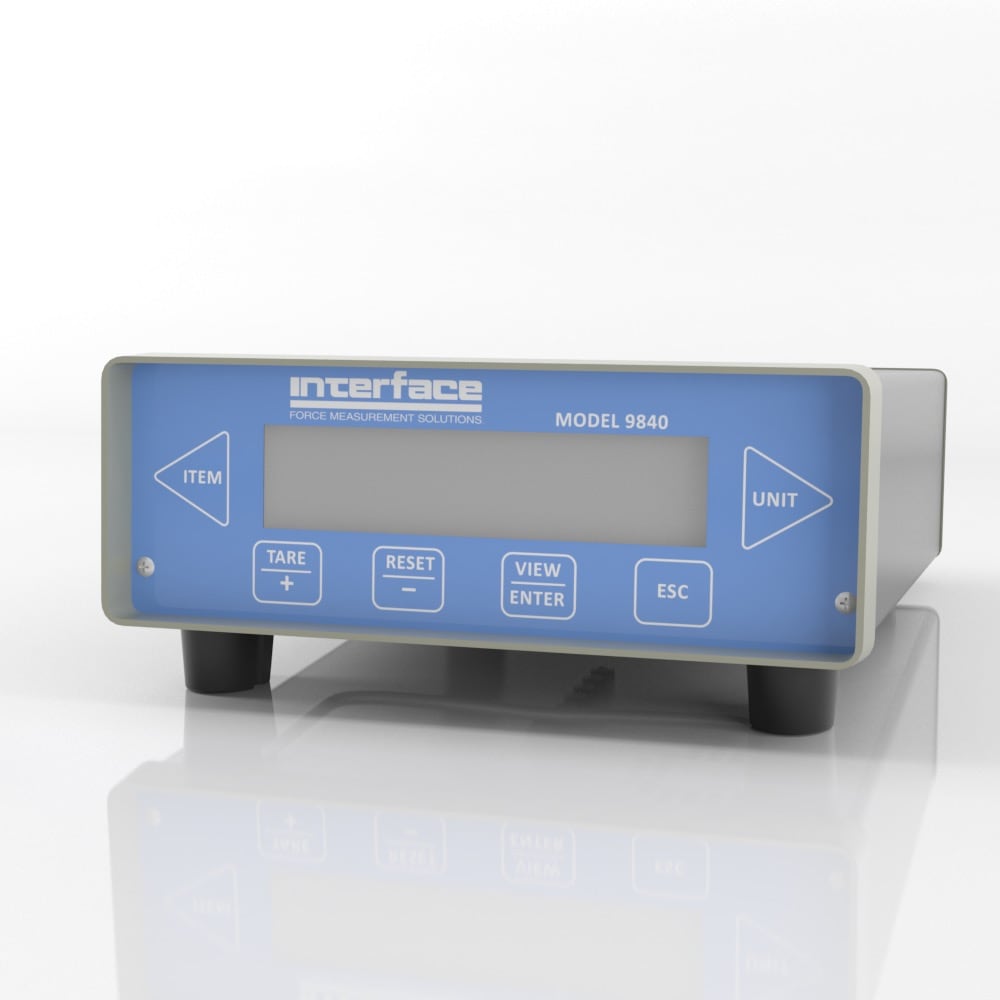

9840 CALIBRATION GRADE MULTI-CHANNEL LOAD CELL INDICATOR

The 9840 indicator is suitable for use in calibration labs, field service, or anywhere high accuracy is important. This product’s features include a bipolar 6-digit 2-line display, remote sense, low noise, 24-bit internal resolution, USB port with RS232 communication, mV/V calibration, store calibrations for up to 25 sensors. It offers 6-point linearization, unit conversion and front-panel tare. This unit also has self-calibration via TEDS Plug and Play ready IEEE 1451.4 compliance.

5500 CALIBRATION GRADE REACTION TORQUE TRANSDUCER

The 5500 series is a flange-type calibration grade reaction torque transducer. Its rugged design offers low deflection, high torsional stiffness, and the ability to withstand large overhung moments. ASTM E2428 Calibrations are available on most capacities. There are multiple models available in this series.

4 Channel 9840-400-1-T Intelligent IndicatorDIGITAL CALIBRATION GRADE 4 CHANNEL 9840-400-1-T INTELLIGENT INDICATOR

The model 9840 intelligent digital indicator is frequently selected for calibration labs and as part of complete calibration systems. It features two interactive graphical touch screen displays, remote sense, low noise, 24-bit internal resolution, USB port with RS232 communication, mV/V calibration, store calibrations for up to 25 sensors.

IFVF CAPACITY FORCE VERIFICATION FRAME

The IFVF is a portable high force capacity frame and accessories that can be used be used to verify operation of a device under test or calibrate relative to a second reference load cell. It is designed to apply tension and compression forces with high resolution and accuracy. IFVF features a reaction frame, manual actuator, thread and adapter accessories, and optional force sensors and instrumentation.

CALIBRATION GRADE INTERFACE 2200 COLUMN LOAD CELL

This special lightweight column load cell model series is a tension and compression calibration ready design. It is portable for use in the field or in a lab.

Our Interface Load Cell Calibration Systems provide all the components for rigid and portable systems. Our strain gage load cell calibration systems are versatile and can be customized based on the application requirements.
