BX6-HD44-ECP Strain Gage Amplifier with EtherCat Protocol
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

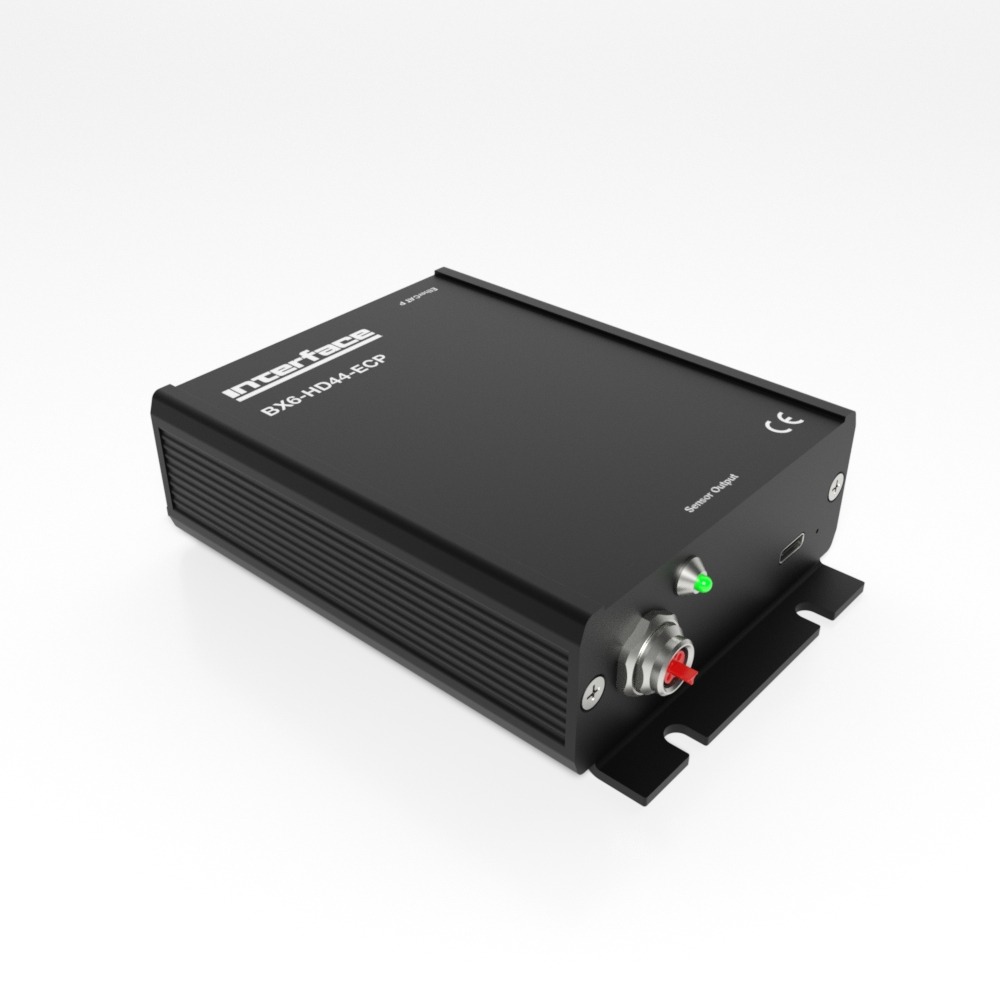

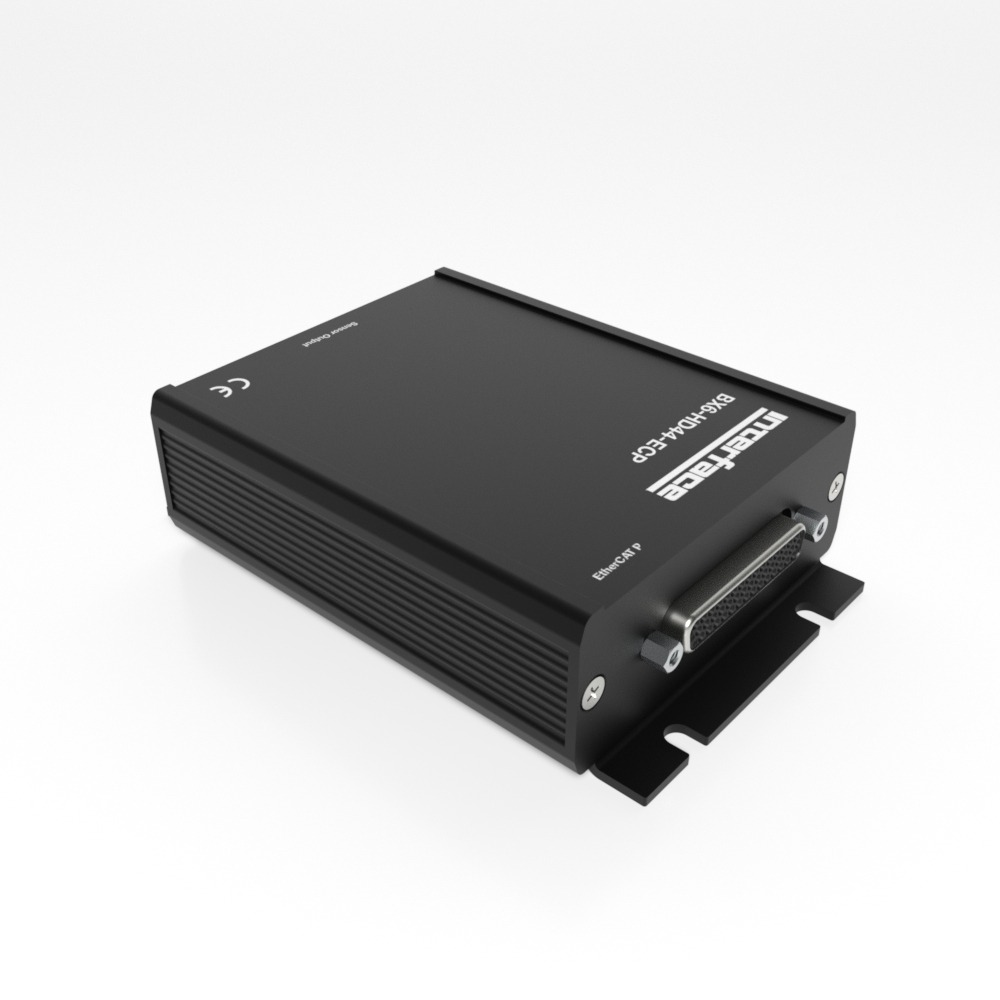

The BX6-HD44-ECP Strain Gage Amplifier with EtherCat P Protocol is a 6-channel strain gage amplifier with EtherCAT P and USB-C interface. The BX6-HD44-ECP is housed in a compact durable aluminum enclosure. It has a Measuring range of up to ±4 mV/V and a measuring frequency of 0 Hz to 1000Hz. The BX6-HD44-ECP is equipped with 1 Sub-D44HD connector for 6-axis sensors.
The BX6-HD44-ECP Strain Gage Amplifier with EtherCat P Protocol is a 6-channel strain gage amplifier with EtherCAT P interface.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connection of the EtherCAT Wires
The BX6-HD44-ECP Strain Gage Amplifier with EtherCat Protocol is powered through the M8 EtherCAT connector conforming to the EtherCAT P technology.
| SIGNAL | FUNCTION | PIN-NO. M8 CONNECTOR | PIN-NO. RJ45 |
| TD+ | Transmit Data +, GNDs | 1 | 1 |
| TD- | Transmit Data - , Us:+24VDC | 4 | 2 |
| RD+ | Receive Data + | 2 | 3 |
| RD- | Receive Data - | 3 | 6 |
D-Sub HD44 Connector
| CHANNEL | SYMBOL | FUNCTION | COLOR | PIN |
| 1 | +US (+EXC) | + BRIDGE SUPPLY | RED | 2 |
| -US (-EXC) | - BRIDGE SUPPLY | BLACK | 5 | |
| +UD (+SIG) | + BRIDGE OUTPUT | GREEN | 3 | |
| -UD (-SIG) | - BRIDGE OUTPUT | WHITE | 4 | |
| 2 | +US (+EXC) | + BRIDGE SUPPLY | BLUE | 9 |
| -US (-EXC) | - BRIDGE SUPPLY | YELLOW | 12 | |
| +UD (+SIG) | + BRIDGE OUTPUT | PURPLE | 10 | |
| -UD (-SIG) | - BRIDGE OUTPUT | GRAY | 11 | |
| 3 | +US (+EXC) | + BRIDGE SUPPLY | ORANGE | 17 |
| -US (-EXC) | - BRIDGE SUPPLY | BROWN | 20 | |
| +UD (+SIG) | + BRIDGE OUTPUT | PINK | 18 | |
| -UD (-SIG) | - BRIDGE OUTPUT | TRANSPARENT | 19 | |
| 4 | +US (+EXC) | + BRIDGE SUPPLY | GREEN/BLACK | 24 |
| -US (-EXC) | - BRIDGE SUPPLY | BLACK/WHITE | 27 | |
| +UD (+SIG) | + BRIDGE OUTPUT | RED/BLACK | 25 | |
| -UD (-SIG) | - BRIDGE OUTPUT | WHITE/BLACK | 26 | |
| 5 | +US (+EXC) | + BRIDGE SUPPLY | PURPLE/BLACK | 32 |
| -US (-EXC) | - BRIDGE SUPPLY | YELLOW/BLACK | 35 | |
| +UD (+SIG) | + BRIDGE OUTPUT | BLUE/BLACK | 33 | |
| -UD (-SIG) | - BRIDGE OUTPUT | GRAY/BLACK | 34 | |
| 6 | +US (+EXC) | + BRIDGE SUPPLY | PINK/BLACK | 39 |
| -US (-EXC) | - BRIDGE SUPPLY | BROWN/BLACK | 42 | |
| +UD (+SIG) | + BRIDGE OUTPUT | ORANGE/BLACK | 40 | |
| -UD (-SIG) | - BRIDGE OUTPUT | TRANSPARENT/BLACK | 41 |
For more information visit Electrical Wiring Diagrams
| Dimensions | 6.65 × 4.17 × 1.25 in |
|---|
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connection of the EtherCAT Wires
The BX6-HD44-ECP Strain Gage Amplifier with EtherCat Protocol is powered through the M8 EtherCAT connector conforming to the EtherCAT P technology.
| SIGNAL | FUNCTION | PIN-NO. M8 CONNECTOR | PIN-NO. RJ45 |
| TD+ | Transmit Data +, GNDs | 1 | 1 |
| TD- | Transmit Data - , Us:+24VDC | 4 | 2 |
| RD+ | Receive Data + | 2 | 3 |
| RD- | Receive Data - | 3 | 6 |
D-Sub HD44 Connector
| CHANNEL | SYMBOL | FUNCTION | COLOR | PIN |
| 1 | +US (+EXC) | + BRIDGE SUPPLY | RED | 2 |
| -US (-EXC) | - BRIDGE SUPPLY | BLACK | 5 | |
| +UD (+SIG) | + BRIDGE OUTPUT | GREEN | 3 | |
| -UD (-SIG) | - BRIDGE OUTPUT | WHITE | 4 | |
| 2 | +US (+EXC) | + BRIDGE SUPPLY | BLUE | 9 |
| -US (-EXC) | - BRIDGE SUPPLY | YELLOW | 12 | |
| +UD (+SIG) | + BRIDGE OUTPUT | PURPLE | 10 | |
| -UD (-SIG) | - BRIDGE OUTPUT | GRAY | 11 | |
| 3 | +US (+EXC) | + BRIDGE SUPPLY | ORANGE | 17 |
| -US (-EXC) | - BRIDGE SUPPLY | BROWN | 20 | |
| +UD (+SIG) | + BRIDGE OUTPUT | PINK | 18 | |
| -UD (-SIG) | - BRIDGE OUTPUT | TRANSPARENT | 19 | |
| 4 | +US (+EXC) | + BRIDGE SUPPLY | GREEN/BLACK | 24 |
| -US (-EXC) | - BRIDGE SUPPLY | BLACK/WHITE | 27 | |
| +UD (+SIG) | + BRIDGE OUTPUT | RED/BLACK | 25 | |
| -UD (-SIG) | - BRIDGE OUTPUT | WHITE/BLACK | 26 | |
| 5 | +US (+EXC) | + BRIDGE SUPPLY | PURPLE/BLACK | 32 |
| -US (-EXC) | - BRIDGE SUPPLY | YELLOW/BLACK | 35 | |
| +UD (+SIG) | + BRIDGE OUTPUT | BLUE/BLACK | 33 | |
| -UD (-SIG) | - BRIDGE OUTPUT | GRAY/BLACK | 34 | |
| 6 | +US (+EXC) | + BRIDGE SUPPLY | PINK/BLACK | 39 |
| -US (-EXC) | - BRIDGE SUPPLY | BROWN/BLACK | 42 | |
| +UD (+SIG) | + BRIDGE OUTPUT | ORANGE/BLACK | 40 | |
| -UD (-SIG) | - BRIDGE OUTPUT | TRANSPARENT/BLACK | 41 |
For more information visit Electrical Wiring Diagrams
| Dimensions | 6.65 × 4.17 × 1.25 in |
|---|
