T11 Bearingless Low Capacity Shaft Style Rotary Torque Transducer

Shaft-type

  • Capacities from 0.005 Nm to 150 Nm (0.04 lbf-in to 1.3K lbf-in)
  • Bearingless Design
  • High speed – to 30K RPM
  • ±5VDC output Standard (±10VDC Optional)
  • Ultra low range model available
  • 10 kHz Sample Rate
  • 12-28VDC Power Supply



Request a Quote

Request a CAD File

Request a Quote

Request a CAD File

Product Downloads

  • Data Sheet
  • T11 0.005-0.01Nm STP FIle
  • T11 0.02-1Nm STP FIle
  • T11 2-5Nm STP FIle
  • T11 10Nm STP FIle
  • T11 20-150Nm STP FIle
  • T11 0.005-0.01 Nm Drawing
  • T11 0.02-0.05 Nm Drawing
  • T11 0.1-0.2 Nm Drawing
  • T11 0.5-1 Nm Drawing
  • T11 2-5 Nm Drawing
  • T11 10 Nm Drawing
  • T11 20-100 Nm Drawing
  • T11 Floating Mount Single Flex T-Series Couplings Datasheet

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

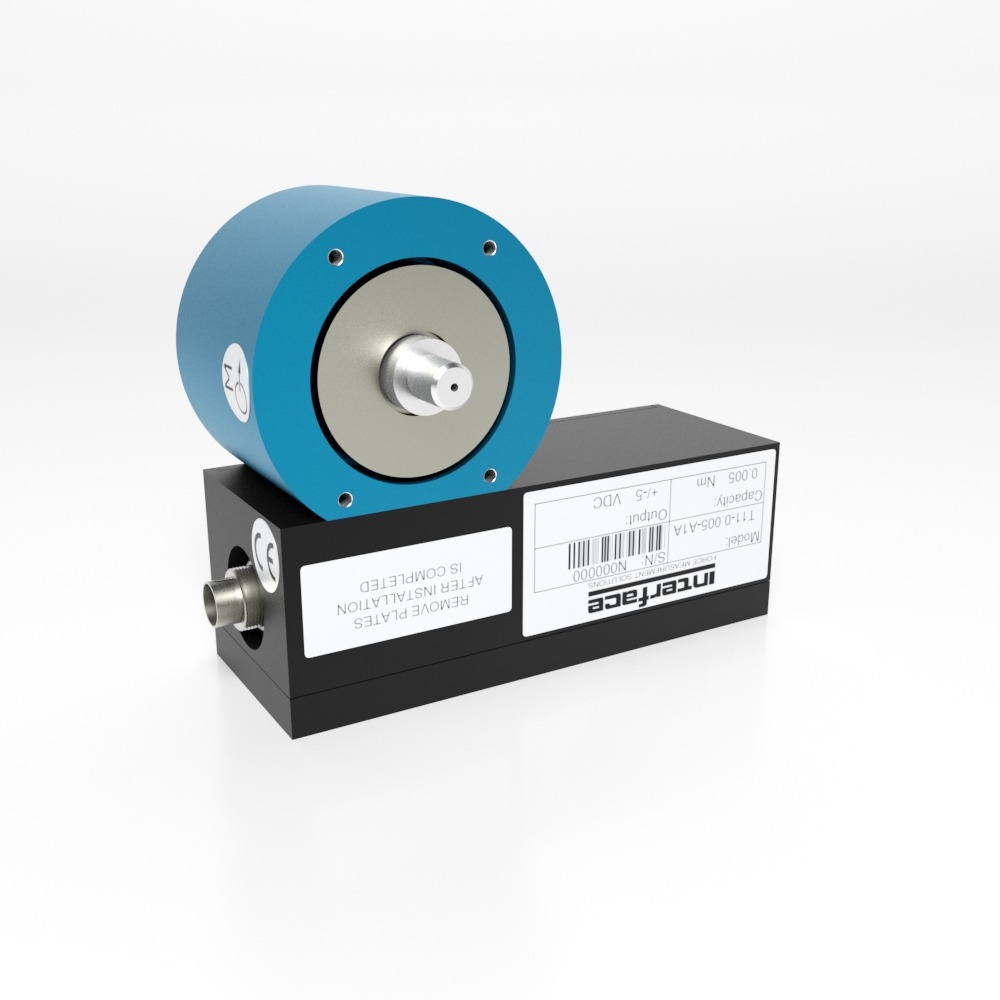

Model T11’s bearingless design is perfect for high-speed applications and when bearing friction is undesirable. Available in very low capacities starting at 0.005Nm (0.64 oz-in), the T11 includes 0.1% combined error, high-level ± 5V or ± 10V analog output, 16-bit resolution and 3khz bandwidth. A remotely activated, internal shunt calibration resistor provides a known 5V calibration signal. Optional speed measurement provides a 6 pulse/revolution +5V TTL signal.

See datasheet for available models, additional capacities, connectors, options, and accessories.
