T12 Square Drive Style Rotary Torque Transducer
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

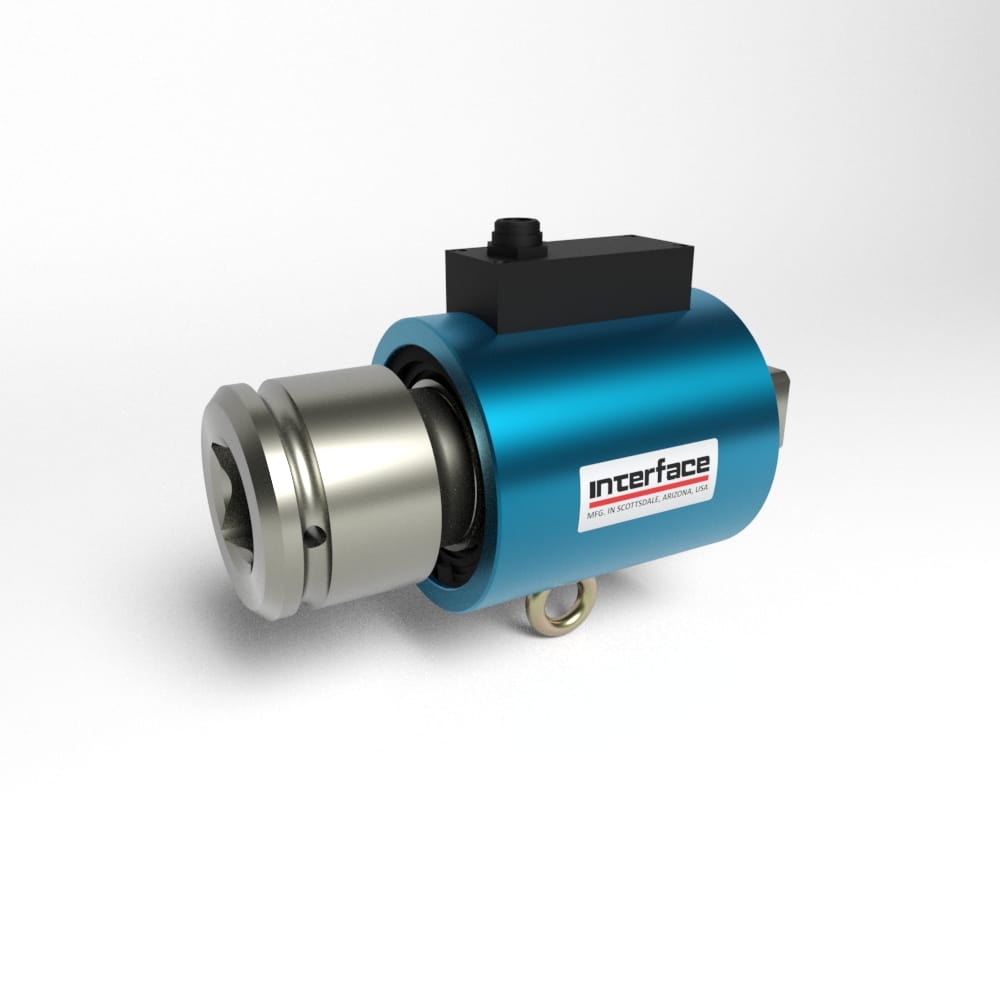

Model T12 features square drive socket fittings. Applications include fastener testing, torque to turn, installation monitoring and torque vs. clamping force. The optional angle encoder allows 0.25 degree rotation resolution.
Model T12 features square drive socket fittings. Applications include fastener testing, torque to turn, installation monitoring and torque vs. clamping force. The optional angle encoder allows 0.25 degree rotation resolution.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | SIGNAL ANGLE B (OPTION) | 5V TTL |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL ANGLE A (OPTION) | 5V TTL |
| H | N/C | - |
| J | N/C | - |
| K | CONTROL SIGNAL | L<2.0V H>3.5V |
| L | N/C | - |
| M | SHIELD | - |
| 12-PIN RS485 ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | N/C | - |
| C | N/C | - |
| D | N/C | - |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | N/C | - |
| H | N/C | - |
| J | RS485 | - RS485 |
| K | N/C | - |
| L | RS485 | + RS485 |
| M | SHIELD | - |
| Dimensions | 5.81 × 1.57 × 2.32 in |
|---|
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | SIGNAL ANGLE B (OPTION) | 5V TTL |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL ANGLE A (OPTION) | 5V TTL |
| H | N/C | - |
| J | N/C | - |
| K | CONTROL SIGNAL | L<2.0V H>3.5V |
| L | N/C | - |
| M | SHIELD | - |
| 12-PIN RS485 ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | N/C | - |
| C | N/C | - |
| D | N/C | - |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | N/C | - |
| H | N/C | - |
| J | RS485 | - RS485 |
| K | N/C | - |
| L | RS485 | + RS485 |
| M | SHIELD | - |
| Dimensions | 5.81 × 1.57 × 2.32 in |
|---|
| Short Description | Sku | Price |
|---|---|---|
| Model T12 Square Drive Rotary Torque Transducer 15 Nm Capacity, 1/4″ Square Drive, +/- 5VDC Output with Speed/Angle Option | T12-15-A3A | $3,780.00 |
