Features and Benefits
- Proprietary Interface temperature compensated strain gages
- Low capacity – As low as 1.77 in-lb (0.2Nm)
- Small size – 1.6 in OD x 1.25 in
- Excellent linearity and repeatability
- Low deflection
MRT Miniature Flange Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
MRT Miniature Flange Style Reaction Torque Transducer
Flange-type
1.77 lbf-in to 177 lbf-in
0.2 Nm to 20 Nm

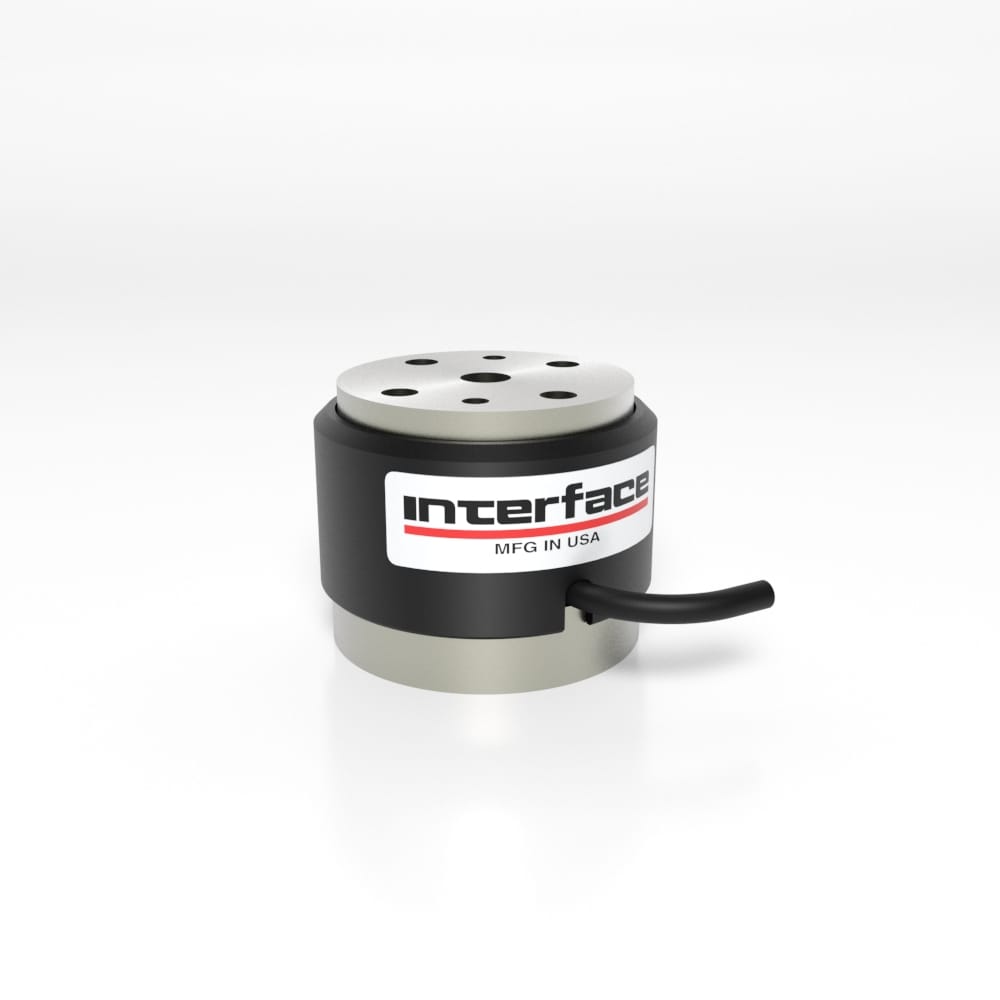

Model MRT’s flange design offers ease of installation in a low capacity, compact design. The low deflection and high torsional stiffness make the MRT a good choice for reciprocating measurements.
Product Downloads
Model MRT’s flange design offers ease of installation in a low capacity, compact design. The low deflection and high torsional stiffness make the MRT a good choice for reciprocating measurements.
- Flange Style, Floating, Miniature
- Reaction (Static)
- 0.10 lbs
- 1.38 × 1.38 × 1.25 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
| Accuracy – (max error) | ||
| Nonlinearity – %FS | ± 0.10 | |
| Hysteresis – %FS | ± 0.10 | |
| Nonrepeatability – %RO | ± 0.05 | |
| Creep, in 20 min – % | ± 0.10 | |
| Temperature | ||
| Effect on Zero – %RO / deg | °F | ±0.002 |
| Effect on Output – % / deg | °F | ±0.001 |
| Compensated Range | °C | -10 to +45 |
| °F | +15 to +115 | |
| Operating Range | °C | -55 to +90 |
| °F | -65 to +200 | |
| Electrical | ||
| Rated Output – mV/V | 2.00 ± 0.30 | |
| Zero Balance – %RO | ±1.0 | |
| Input Resistance – Ohms | 700 +100/-7 | |
| Output Resistance – Ohms | 700 ±7 | |
| Insulation Resistance – Megohm | > 5000 | |
| Excitation – VDC NOM | 10 | |
| Excitation – VDC MAX | 20 | |
| Mechanical | ||
| Overload: | ||
| Safe Torsion – %CAP | ±150 | |
| Ultimate Torsion – %CAP | ±400 | |
| Safe Side Load | N | 13, 110, 160, 280, 400 |
| lbf | 3, 25, 36, 63, 90 | |
| Safe Overhung Moment – %CAP | 100 | |
| Safe Mounting Torque | Nm | 0.3, 3, 5, 6, 9 |
| lbf-in | 2.7, 27, 44, 55, 80 | |
| Deflection at Capacity – Radian | 0.007, 0.003, 0.003, 0.003, 0.003 | |
| Cable Length | m | 1.5 |
| ft | 5 | |
| Material | Aluminum | |
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
| See Drawnig | CAPACITY | |
| Metric (Nm) | U.S. (lbf-in) | |
| 0.2, 2, 5, 10, 20 | 1.77, 17.7, 44, 89, 177 | |
| mm | in | |
| (1) | M5x0.8 - 6H x ↧ 5.1 | M5x0.8 - 6H x ↧ 0.20 |
| (2) | Ø3.02±0.03 ↧ 3.0 | Ø0.119±0.001 ↧ 0.12 |
| (3) | Ø6.02+0.03 THRU | Ø0.237 THRU |
| (4) | Ø25.0 | Ø0.984 |
| (5) | Ø34.93 | Ø1.375 |
| (6) | 31.8 | 1.25 |
| (7) | 40.6 | 1.60 |
| (8) | 38.1 | 1.50 |
| (9) | M5x0.8 - 6H x ↧ 5.1 | M5x0.8 - 6H x ↧ 0.20 |
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CABLE CONNECTION | |
| COLOR | FUNCTION |
| RED | + EXCITATION |
| GREEN | + SIGNAL |
| WHITE | - SIGNAL |
| BLACK | - EXCITATION |
| SHIELD | N/C |
| CLOCKWISE UPSCALE | |
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| D | 28 AWG | 4 | SPIRAL | 10 FT (3 M) | ULTRA-FLEXIBLE, BLACK PVC JACKET |
Additional Information
| Dimensions | 1.38 × 1.38 × 1.25 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Proprietary Interface temperature compensated strain gages
- Low capacity – As low as 1.77 in-lb (0.2Nm)
- Small size – 1.6 in OD x 1.25 in
- Excellent linearity and repeatability
- Low deflection
Specifications
Specifications
| Accuracy – (max error) | ||
| Nonlinearity – %FS | ± 0.10 | |
| Hysteresis – %FS | ± 0.10 | |
| Nonrepeatability – %RO | ± 0.05 | |
| Creep, in 20 min – % | ± 0.10 | |
| Temperature | ||
| Effect on Zero – %RO / deg | °F | ±0.002 |
| Effect on Output – % / deg | °F | ±0.001 |
| Compensated Range | °C | -10 to +45 |
| °F | +15 to +115 | |
| Operating Range | °C | -55 to +90 |
| °F | -65 to +200 | |
| Electrical | ||
| Rated Output – mV/V | 2.00 ± 0.30 | |
| Zero Balance – %RO | ±1.0 | |
| Input Resistance – Ohms | 700 +100/-7 | |
| Output Resistance – Ohms | 700 ±7 | |
| Insulation Resistance – Megohm | > 5000 | |
| Excitation – VDC NOM | 10 | |
| Excitation – VDC MAX | 20 | |
| Mechanical | ||
| Overload: | ||
| Safe Torsion – %CAP | ±150 | |
| Ultimate Torsion – %CAP | ±400 | |
| Safe Side Load | N | 13, 110, 160, 280, 400 |
| lbf | 3, 25, 36, 63, 90 | |
| Safe Overhung Moment – %CAP | 100 | |
| Safe Mounting Torque | Nm | 0.3, 3, 5, 6, 9 |
| lbf-in | 2.7, 27, 44, 55, 80 | |
| Deflection at Capacity – Radian | 0.007, 0.003, 0.003, 0.003, 0.003 | |
| Cable Length | m | 1.5 |
| ft | 5 | |
| Material | Aluminum | |
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
| See Drawnig | CAPACITY | |
| Metric (Nm) | U.S. (lbf-in) | |
| 0.2, 2, 5, 10, 20 | 1.77, 17.7, 44, 89, 177 | |
| mm | in | |
| (1) | M5x0.8 - 6H x ↧ 5.1 | M5x0.8 - 6H x ↧ 0.20 |
| (2) | Ø3.02±0.03 ↧ 3.0 | Ø0.119±0.001 ↧ 0.12 |
| (3) | Ø6.02+0.03 THRU | Ø0.237 THRU |
| (4) | Ø25.0 | Ø0.984 |
| (5) | Ø34.93 | Ø1.375 |
| (6) | 31.8 | 1.25 |
| (7) | 40.6 | 1.60 |
| (8) | 38.1 | 1.50 |
| (9) | M5x0.8 - 6H x ↧ 5.1 | M5x0.8 - 6H x ↧ 0.20 |
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CABLE CONNECTION | |
| COLOR | FUNCTION |
| RED | + EXCITATION |
| GREEN | + SIGNAL |
| WHITE | - SIGNAL |
| BLACK | - EXCITATION |
| SHIELD | N/C |
| CLOCKWISE UPSCALE | |
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| D | 28 AWG | 4 | SPIRAL | 10 FT (3 M) | ULTRA-FLEXIBLE, BLACK PVC JACKET |
Additional Information
| Dimensions | 1.38 × 1.38 × 1.25 in |
|---|
Product Video
