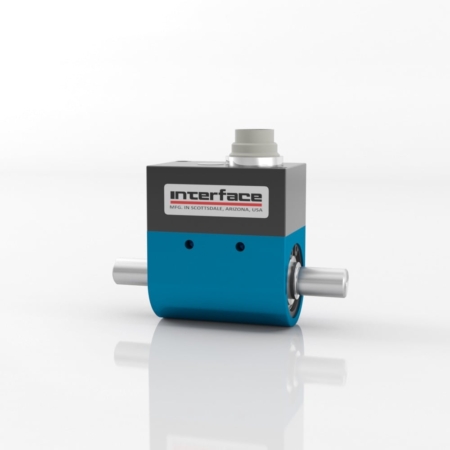

T4 Standard Precision Shaft Style Rotary Torque Transducer

Shaft-type

QuickShip48 Product
  • Capacities from 0.1 Nm to 1K Nm (0.88 lbf-in to 8.85K lbf-in)
  • ±5 VDC Output Standard (±10VDC Optional)
  • Digital Electronics
  • 12-28VDC Supply
  • Contactless Design
  • 10 kHz Sample Rate

Order QuickShip48™ Now

Request a Quote

Request a CAD File

Clicking "Order Now" below will take you to our new Quickship 48 site so you can place your order.

Order Now

Request a Quote

Request a CAD File

Product Downloads

  • Data Sheet
  • T4 0.1-5Nm STP FIle
  • T4 10-15Nm STP FIle
  • T4 20-30Nm STP FIle
  • T4 50-100Nm STP FIle
  • T4 200-500Nm STP FIle
  • T4 1000Nm STP FIle
  • T4 20-30Nm Drawing
  • T4 50-100Nm Drawing
  • T4 200-500Nm Drawing
  • T2, T4, & T6 Floating Mount Single Flex T-Series Couplings Datasheet

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions-0.1 Nm - 10 Nm


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions-20 Nm - 500 Nm


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions-1k Nm


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Electrical

Model T4 is an excellent choice for general-purpose torque measurement. At lower cost than the T2, the T4’s non-contact design features ± 5V or ± 10V output, 0.2% combined error, 12-bit resolution digital electronics and a remote-activated, internal shunt calibration resistor directly at the strain gage bridge. Speed and angle can be measured with the optional encoder.

See datasheet for available models, additional capacities, connectors, options, and accessories.
Can’t view product drawings? For a free downloadable CAD viewer, click here.
