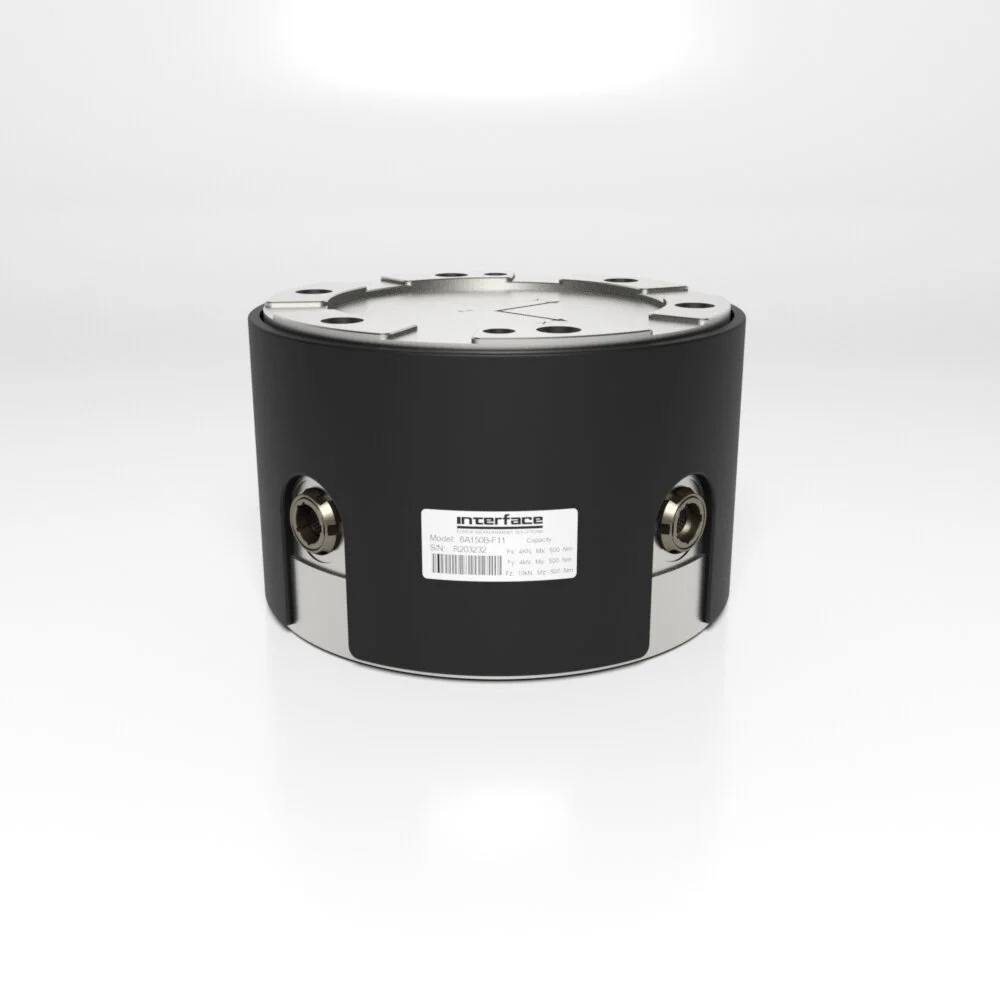

6A175RA 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz

Featured in these Case Studies

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

6A175RA 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz

Fx, Fy, Fz, Mx, My, Mz

Force/Torque: 2.2Klbf/8.8Klbf-in, 4.4Klbf/17.7Klbf-in, 112.4Klbf/44.2Klbf-in
Force/Torque: 10kN/1kNm, 20kN/2kNm, 50kN/5kNm

Interface’s 6A175RA 6-axis load cell measures forces simultaneously in three mutually perpendicular axes and three simultaneous torques about those same axes. 12 full bridges provide mV/V output on 12 independent channels. Interface’s 6-axis load cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and biomechanical). A 72-term coefficient matrix is included for calculating the load and torque values in each axis. Interface’s BX8 Amplifiers including BlueDAQ software greatly simplify the data acquisition process.

Product Downloads

Interface’s 6A175RA 6-axis load cell measures forces simultaneously in three mutually perpendicular axes and three simultaneous torques about those same axes.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

Categories: , ,

Features and Benefits

  • 6-Axis – force and torque in all six axes
  • Capacities – Force/Torque: 10kN/1kNm, 20kN/2kNm, 50kN/5kNm (2.2Klbf/8.8Klbf-in, 4.4Klbf/17.7Klbf-in, 112.4Klbf/44.2Klbf-in)
  • Compact size
  • Force and moment values MUST be calculated using supplied 72-term coefficient matrix
  • Low crosstalk – <1%
  • Temperature compensated
  • Optional BX8 amplifier and software can be used for force and moment value calculation

Recommended:

  • Two BX8-HD44 or BX8-AS’s are recommended for calculating the 72 term coefficient matrix

Connector Options

  • 24-Pin M16
  • 44-Pin High Density D-Sub

Typical Applications

  • Collision detection
  • Teach-in
  • Presence or error detection
  • Force or torque-controlled operation
  • Load measurement in medical technology / prosthetics / orthopedic technology / gait analysis
  • Measurements in sports medicine
  • Comfort measurements / ergonomics measurements

Specifications

Specifications

6A80-175 Specifications

Accuracy – (max error)
Nonlinearity – %FS ± 0.1
Hysteresis – %FS ± 0.1
Nonrepeatability – %RO ± 0.5
Creep, in 20 min – % ± 0.1
Temperature
Effect on Zero – %RO / deg °C ± 0.01
Effect on Output – % / deg °C ± 0.05
Compensated Range °C -10 to +70
°F +14 to +158
Operating Range °C -10 to +85
°F +14 to +185
Electrical
Rated Output – mV/V (Nominal) ±0.4
Excitation Voltage – V MAX 5
Crosstalk – % ±1
Zero Balance − mV/V < 2
Input Resistance – Ω 1K ±10
Output Resistance – Ω 1K ±10
Input Resistance – Ω 350 ±10
Output Resistance – Ω 350 ±10
Mechanical
Safe Overload – %CAP 150
Ultimate Overload – %RO 300

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Characteristics

Characteristics define the maximum forces and torques the sensor can accurately and safely measure, as well as its physical dimensions, construction, and resilience to the operating environment factors that are crucial for proper mechanical integration.

A B C
Fx (N) 10K 20K 50K
Fy (N) 10K 20K 50K
Fz (N) 20K 50K 100K
Mx (Nm) 1K 2K 5K
My (Nm) 1K 2K 5K
Mz (Nm) 1K 5K 10K
Diameter (mm) Ø175 Ø175 Ø175
Height (mm) 116 116 116
Weight (kg) 11,000 11,000 11,000
Material Stainless Steel Stainless Steel Stainless Steel
Protection (IP) IP65 IP65 IP65

Systems


6A Series 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz and BX8-AS BlueDAQ Series Data Acquisition System with Industrial Enclosure

6A Series 6-Axis Standard Capacity Load Cells – Fx Fy Fz Mx My Mz and BX8-AS BlueDAQ Series Data Acquisition System with Industrial Enclosure

Dimensions

Dimensions


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CHANNEL SYMBOL FUNCTION COLOR PIN
1 +US (+EXC) + BRIDGE SUPPLY RED 2
-US (-EXC) - BRIDGE SUPPLY BLACK 5
+UD (+SIG) + BRIDGE OUTPUT GREEN 3
-UD (-SIG) - BRIDGE OUTPUT WHITE 4
2 +US (+EXC) + BRIDGE SUPPLY BLUE 9
-US (-EXC) - BRIDGE SUPPLY YELLOW 12
+UD (+SIG) + BRIDGE OUTPUT PURPLE 10
-UD (-SIG) - BRIDGE OUTPUT GRAY 11
3 +US (+EXC) + BRIDGE SUPPLY ORANGE 17
-US (-EXC) - BRIDGE SUPPLY BROWN 20
+UD (+SIG) + BRIDGE OUTPUT PINK 18
-UD (-SIG) - BRIDGE OUTPUT TRANSPARENT 19
4 +US (+EXC) + BRIDGE SUPPLY GREEN/BLACK 24
-US (-EXC) - BRIDGE SUPPLY BLACK/WHITE 27
+UD (+SIG) + BRIDGE OUTPUT RED/BLACK 25
-UD (-SIG) - BRIDGE OUTPUT WHITE/BLACK 26
5 +US (+EXC) + BRIDGE SUPPLY PURPLE/BLACK 32
-US (-EXC) - BRIDGE SUPPLY YELLOW/BLACK 35
+UD (+SIG) + BRIDGE OUTPUT BLUE/BLACK 33
-UD (-SIG) - BRIDGE OUTPUT GRAY/BLACK 34
6 +US (+EXC) + BRIDGE SUPPLY PINK/BLACK 39
-US (-EXC) - BRIDGE SUPPLY BROWN/BLACK 42
+UD (+SIG) + BRIDGE OUTPUT ORANGE/BLACK 40
-UD (-SIG) - BRIDGE OUTPUT TRANSPARENT/BLACK 41

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 4.30 × 4.30 × 2.40 in
