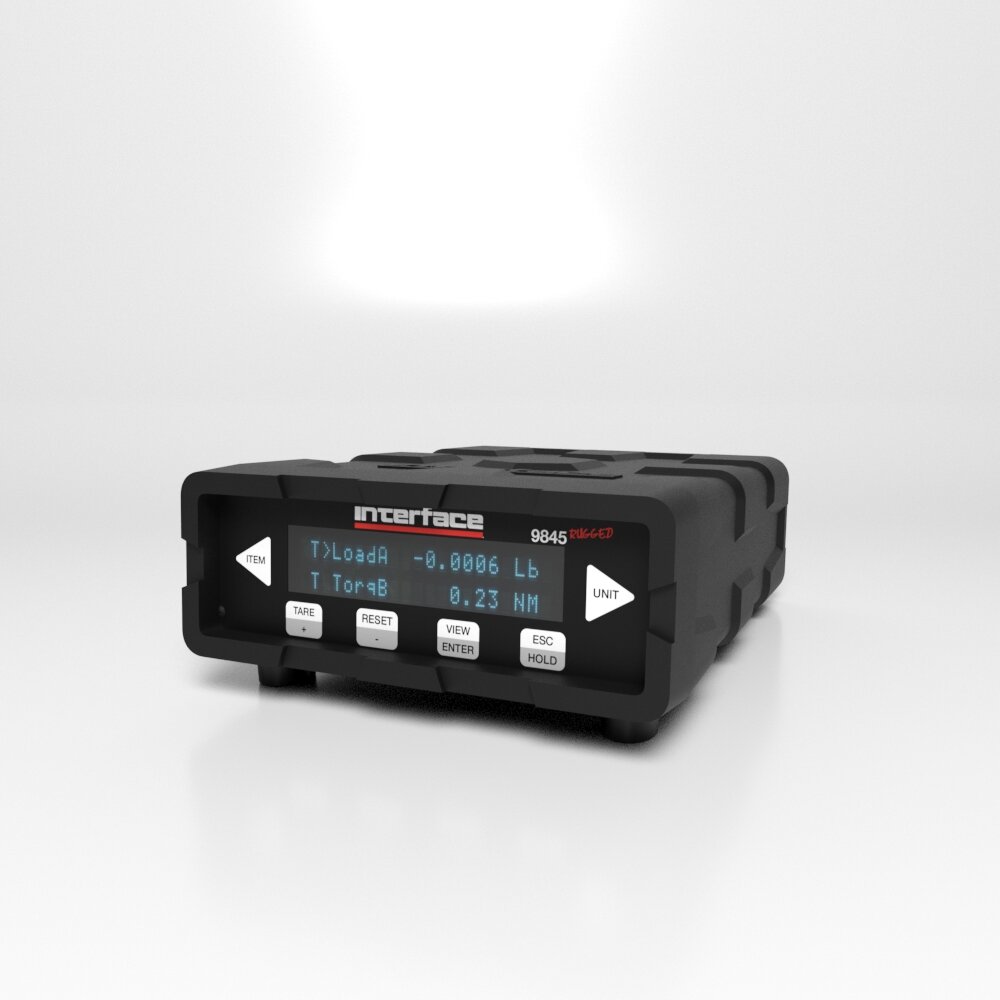

9845 Rugged Calibration Grade Multi-Channel Load Cell Indicator

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

9845 Rugged Calibration Grade Multi-Channel Load Cell Indicator

Digital, Intelligent, Rugged

Get Your Free Quote

The Model 9845 Rugged Calibration Grade Load Cell Indicator delivers high accuracy for calibration labs, field service, and industrial use. It features a bipolar 6-digit, two-line display, 24-bit resolution, remote sense excitation, and low-noise circuitry. Standard features include TEDS Plug & Play (IEEE 1451.4), mV/V calibration, 5- & 6-point linearization, auto setup for multiple sensors, ±10 VDC analog output, and unit conversion across multiple engineering units. Options include a second channel, 4–20 mA output, RS485, multi-drop RS232, and quadrature encoder support—making the 9845 a compact, flexible, and reliable tool for precision measurement.

Product Downloads

The Model 9845 Rugged Calibration Grade Load Cell Indicator delivers high accuracy for calibration labs, field service, and industrial use. It features a bipolar 6-digit, two-line display, 24-bit resolution, remote sense excitation, and low-noise circuitry.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , , , , , , ,

Features and Benefits

  • TEDS Plugs & Play Ready IEEE 1451.4 compliant
  • 1 or 2 channel
  • Remote sense excitation
  • 5 & 6 point linearization
  • Bipolar
  • ±999,999 display counts
  • Nonlinearity < ±0.005%
  • Auto setup for multiple load cells
  • Fast, direct analog output
  • ±10 VDC scalable analog output – 16 bit
  • Full duplex RS232C communication
  • Peak/valley hold with front panel reset
  • Front panel and remote tare
  • 8 selectable digital filters
  • Auto zero
  • Front panel shunt calibration with two selectable resistors
  • Display units conversion: Lb, Kg, N, Psi, Mpa, Klb, kN, t, mV/V, lbf-in, oz-in, Nm
  • Two-line display
  • Quadrature encoder channel available
  • mV/V calibration
  • USB port
  • Low noise circuitry
  • Faster processor speed
  • TEDS read/write template 33, 40, 41
  • Display Freeze/Remote Display Freeze
  • 10 segment polynomial linearization
  • Front Panel access to data streaming
  • External power adapter
  • 100VAC – 240VAC external power supply included
  • Detachable US power cord included

Options

  • Mechanical power readout
  • Temperature thermocouple channel for temperature readout
  • Enhanced processor facilitates custom factory programmed math function calculations
  • 2nd channel
  • 2nd 16-bit scalable analog output
  • 4-20 mA analog output
  • Quad Limits
  • RS485
  • Multi-drop RS232
  • Encoder Channel
  • Keylock
  • International power cord

Specifications

Specifications

9845 Specs Table

EXCITATION
Voltage – VDC 5 or 10
Current – MAX – mA 180
OUTPUTS
Serial Interface RS232 duplex, USB & TCP/IP
Output – Analog, 16 bit – VDC Scalable, ±10
Output – Analog, Direct – Hz 1.5K
Output – Analog – mA 4–20 (optional)
Limits Quad-programmable
PERFORMANCE
Maximum Display Counts ±999,999
Display Update / sec. 4
Internal Resolution – bits 24
Signal Input Range – mV/V ±4.5
Programmable Count - by 1, 2, 5, 10, and 20
Conversion Rate / sec. 60
Maximum Error – %FS 0.01 ±1 count
CMRR – dB 115
TEMPERATURE
Operating Range °F +32 to +122
°C 0 to +50
Storage Range °F +14 to +140
°C -10 to +60
Relative Humidity – % MAX °F 95 (104) non-condensing
°C 95 (40) non-condensing
POWER
AC Power – VAC, Hz 115 or 230, 50–60
DC Power (option) 24V
Power Consumption – watts 12
MECHANICAL
Dimensions - W x H x D in 7.5 x 2.5 x 9.5
mm 190. 50 x 63.50 x 241.30
Weight lbs 5
kg 2.26796
Display Vacuum Fluorescent
Unit Annunciator Lb, Kg, Klb, kN, N, mV/V, lbf-in, oz-in, Nm

Additional Information

Dimensions 9.5 × 7.5 × 2.5 in

Product Video

Features and Benefits

  • TEDS Plugs & Play Ready IEEE 1451.4 compliant
  • 1 or 2 channel
  • Remote sense excitation
  • 5 & 6 point linearization
  • Bipolar
  • ±999,999 display counts
  • Nonlinearity < ±0.005%
  • Auto setup for multiple load cells
  • Fast, direct analog output
  • ±10 VDC scalable analog output – 16 bit
  • Full duplex RS232C communication
  • Peak/valley hold with front panel reset
  • Front panel and remote tare
  • 8 selectable digital filters
  • Auto zero
  • Front panel shunt calibration with two selectable resistors
  • Display units conversion: Lb, Kg, N, Psi, Mpa, Klb, kN, t, mV/V, lbf-in, oz-in, Nm
  • Two-line display
  • Quadrature encoder channel available
  • mV/V calibration
  • USB port
  • Low noise circuitry
  • Faster processor speed
  • TEDS read/write template 33, 40, 41
  • Display Freeze/Remote Display Freeze
  • 10 segment polynomial linearization
  • Front Panel access to data streaming
  • External power adapter
  • 100VAC – 240VAC external power supply included
  • Detachable US power cord included

Options

  • Mechanical power readout
  • Temperature thermocouple channel for temperature readout
  • Enhanced processor facilitates custom factory programmed math function calculations
  • 2nd channel
  • 2nd 16-bit scalable analog output
  • 4-20 mA analog output
  • Quad Limits
  • RS485
  • Multi-drop RS232
  • Encoder Channel
  • Keylock
  • International power cord

Specifications

Specifications

9845 Specs Table

EXCITATION
Voltage – VDC 5 or 10
Current – MAX – mA 180
OUTPUTS
Serial Interface RS232 duplex, USB & TCP/IP
Output – Analog, 16 bit – VDC Scalable, ±10
Output – Analog, Direct – Hz 1.5K
Output – Analog – mA 4–20 (optional)
Limits Quad-programmable
PERFORMANCE
Maximum Display Counts ±999,999
Display Update / sec. 4
Internal Resolution – bits 24
Signal Input Range – mV/V ±4.5
Programmable Count - by 1, 2, 5, 10, and 20
Conversion Rate / sec. 60
Maximum Error – %FS 0.01 ±1 count
CMRR – dB 115
TEMPERATURE
Operating Range °F +32 to +122
°C 0 to +50
Storage Range °F +14 to +140
°C -10 to +60
Relative Humidity – % MAX °F 95 (104) non-condensing
°C 95 (40) non-condensing
POWER
AC Power – VAC, Hz 115 or 230, 50–60
DC Power (option) 24V
Power Consumption – watts 12
MECHANICAL
Dimensions - W x H x D in 7.5 x 2.5 x 9.5
mm 190. 50 x 63.50 x 241.30
Weight lbs 5
kg 2.26796
Display Vacuum Fluorescent
Unit Annunciator Lb, Kg, Klb, kN, N, mV/V, lbf-in, oz-in, Nm

Additional Information

Dimensions 9.5 × 7.5 × 2.5 in

Product Video

Short Description Sku Price
Model 9845 Rugged Calibration Grade Multi-Channel Load Cell Indicator Dual Channel 9845-100-2 $ 5035
Model 9845 Rugged Calibration Grade Multi-Channel Load Cell Indicator Single Channel 9845-100-1 $ 4085
