Solution

Soil Compression Testing

Soil compression testing, or soil compaction testing, is used to assess soil and if it is able to withstand external loads without cracking or deformation. This is especially needed for construction applications and other foundational design testing. A force measurement system is needed during this test.

Contact an Application Engineer

Summary

Customer Need / Challenge
Soil compression testing, or soil compaction testing, is used to assess soil and if it is able to withstand external loads without cracking or deformation. This is especially needed for construction applications and other foundational design testing. A force measurement system is needed during this test.
Interface Solution
Interface suggests using the 2161 High Capacity Column Compression Only Load Cell for this application. The 2161 can be used in the large compression test frame, where it will compress a block of solidified soil. Force results during the test will be sent and displayed to the customer’s control center when connected to the 9840 Calibration Grade Multi-Channel Load Cell Indicator.
Results
Interface’s compression column load cell successfully measured the forces it took to deform a soil sample during the soil compression test.

Materials

2161 High Capacity Column Compression Only Load Cell
9840 Calibration Grade Multi-Channel Load Cell Indicator
Soil Compression Test Frame

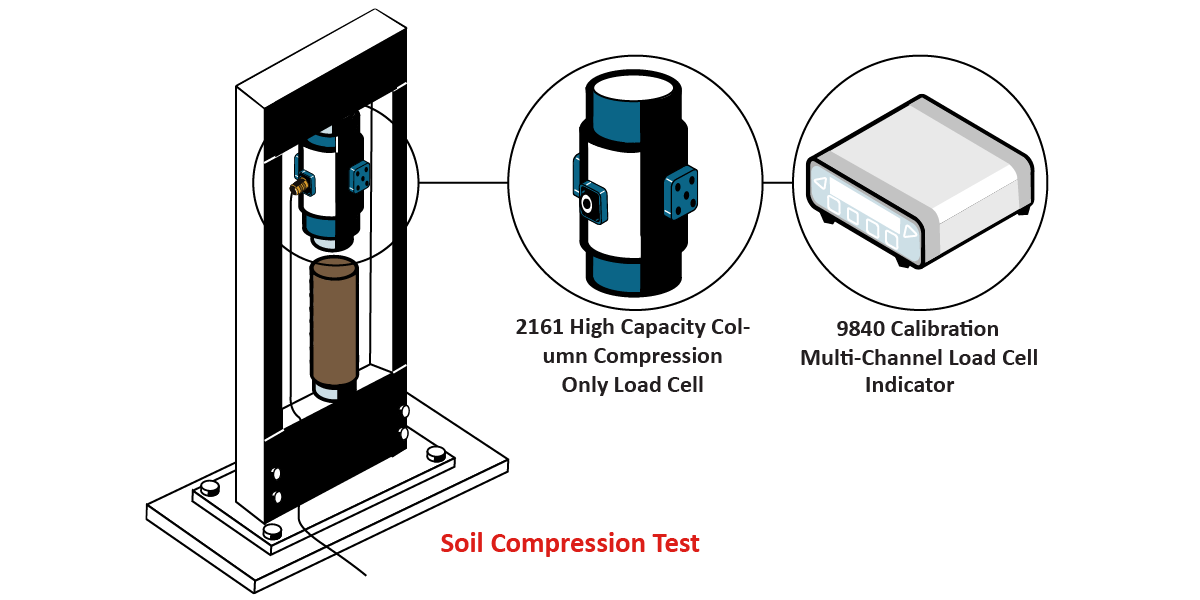

How it Works

The 2161 High Capacity Column Compression Only Load Cell is installed into the soil compression test frame.
A soil compression test is performed.
The compression results are displayed and reviewed when the 9840 Calibration Grade Multi-Channel Load Cell Indicator is connected to the customer’s system though the analog output or RS232 Serial Interface.
