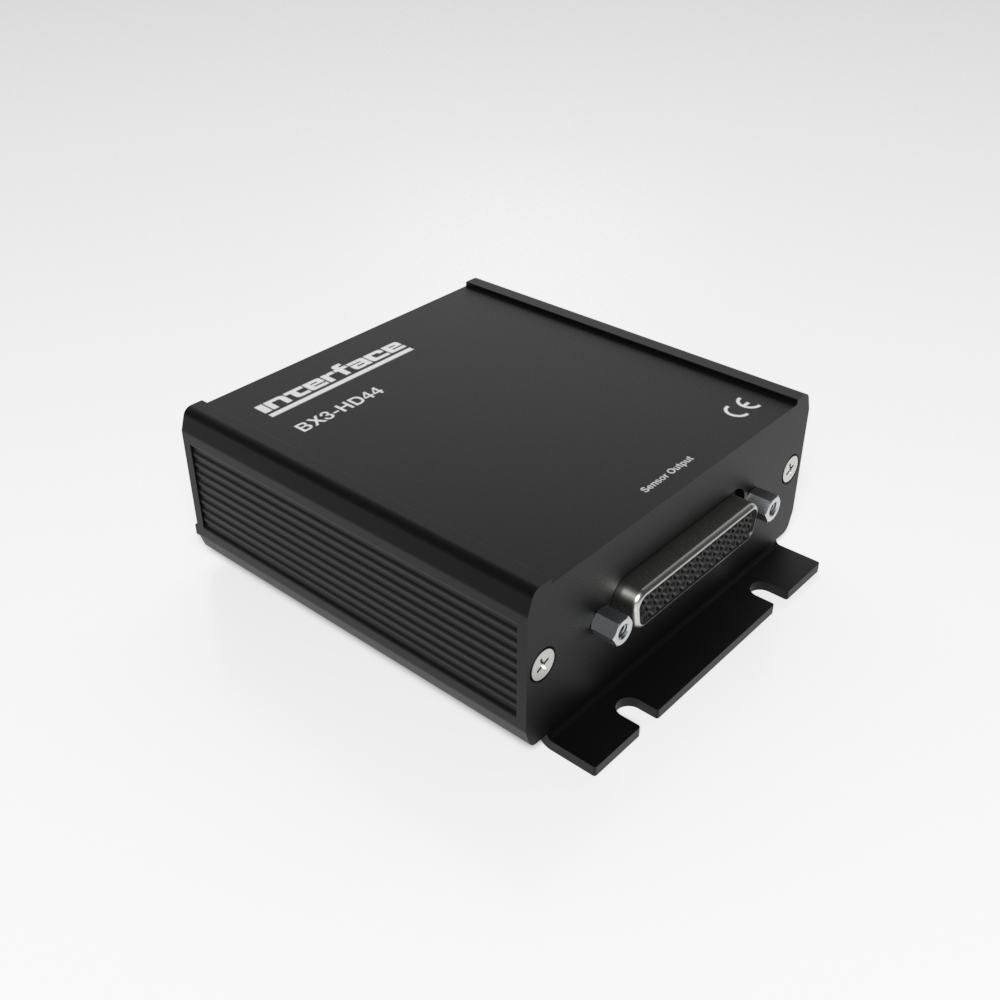

BX6-HD44 6-Channel Strain Gage Amplifier

R14F82R

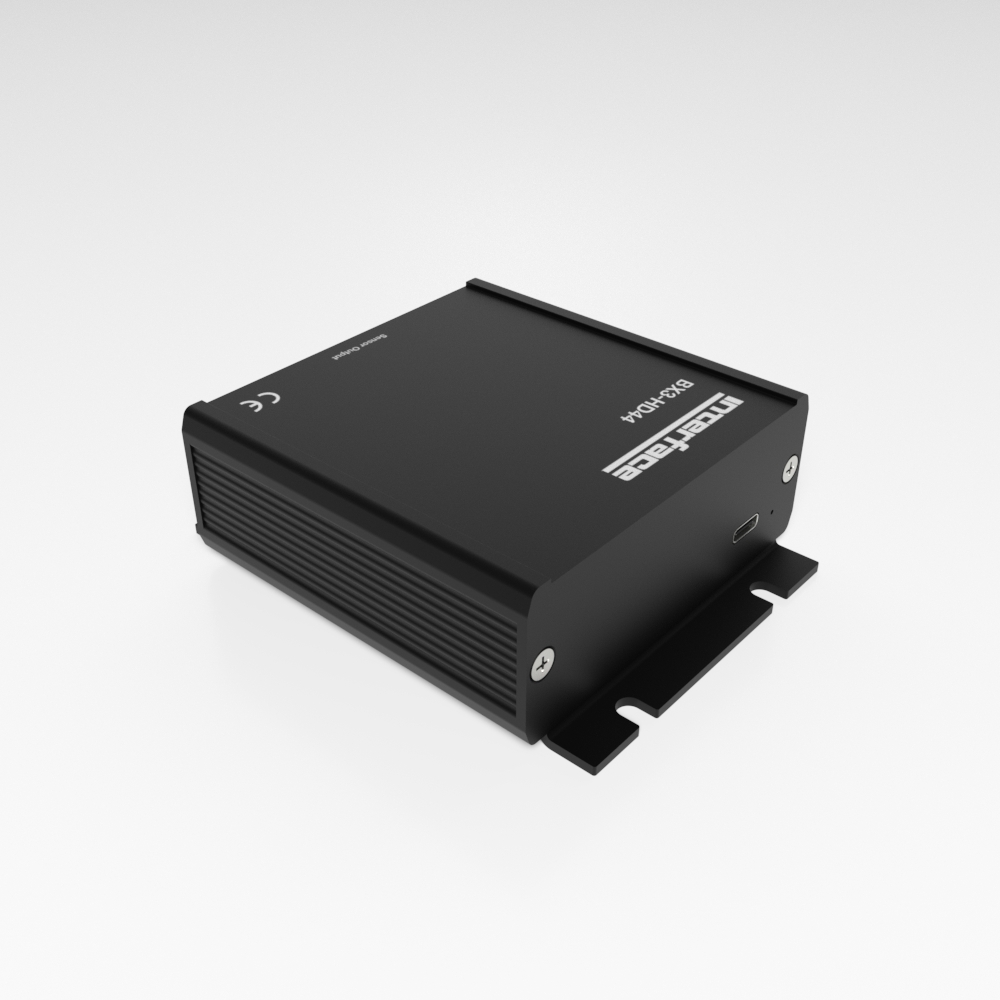

BX6 HD44 Back

Featured in these Case Studies

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

BX6-HD44 6-Channel Strain Gage Amplifier

6-Channel Capability

Get Your Free Quote

The BX6-HD44 is a compact six-channel strain gage measuring amplifier designed for force and torque sensors. It features a USB-C interface, 24-bit resolution, selectable measuring ranges, and data frequencies up to 750 Hz. Its durable aluminum housing and Sub-D44 HD connection provide easy integration with 6A multi-axis sensors.







Product Downloads

The BX6-HD44 is a compact six-channel strain gage measuring amplifier designed for force and torque sensors.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , , , , , , Tag:

Features and Benefits

  • 6-channel strain gage measuring amplifier with USB interface
  • Internal calculation of axis load values for 6-axis sensors
  • USB-C Port
  • Aluminum housing
  • Dimensions: 104mm x 84mm x 35mm
  • Measuring range up to 4 mV/V
  • 24-Bit ADC
  • Measuring frequency 0Hz – 750Hz
  • Connection 1 x Sub-D44 HD socket for 6A sensor

Specifications

Specifications

Bridge Input
Number of Bridge Inputs 6
Excitation - VDC 4
Input sensitivity-steps - mV/V 0.05 - 4
Performance
Accuracy Class - % 0.05
Relative Linearity Error - % 0.02
Temperature Effect on the Zero Point - % 0.01
Temperature Effect on the Measuring Seneitivity - % 0.01
Resolution - Bit 24
Strain-Gage-Full-Bridge Resistance - Ohm 120 - 5,000
Measuring frequency
Data Frequency - Hz 0 - 750
Electrical
Supply Voltage - VDC - USB-C 4.5 - 5.5
Current - mA 200 - 450
Interface
USB-C USB 2.0 Full Speed
Environmental
Operating temperature range °C -20 to 65
°F -4 to 149
Rated temperature range °C 0 to 50
°F 32 to 122
Mechanical
Housing Aluminum
Connection Plug connector
Connection Type Sub-D44HD
IP Rating IP50
Dimensions - W x L x H mm 104.0 x 84.3 x 36.0
in 4.09 x 3.32 x 1.42

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions

BX6-HD44 Dimensions Table

mm in
(1) 97.0 3.82
(2) 43.3 1.70
(3) 4.50 0.18
(4) 84.3 3.32
(5) 36.0 1.42
(6) 2.0 0.08
(7) 84.0 3.31
(8) 104.0 4.09
(9) 70.3 2.77
(10) USB-C
(11) D-Sub HD44 Connector (Sensor Input)

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

D-Sub HD44 Connector

CHANNEL SYMBOL FUNCTION COLOR PIN
1 +US (+EXC) + BRIDGE SUPPLY RED 2
-US (-EXC) - BRIDGE SUPPLY BLACK 5
+UD (+SIG) + BRIDGE OUTPUT GREEN 3
-UD (-SIG) - BRIDGE OUTPUT WHITE 4
2 +US (+EXC) + BRIDGE SUPPLY BLUE 9
-US (-EXC) - BRIDGE SUPPLY YELLOW 12
+UD (+SIG) + BRIDGE OUTPUT PURPLE 10
-UD (-SIG) - BRIDGE OUTPUT GRAY 11
3 +US (+EXC) + BRIDGE SUPPLY ORANGE 17
-US (-EXC) - BRIDGE SUPPLY BROWN 20
+UD (+SIG) + BRIDGE OUTPUT PINK 18
-UD (-SIG) - BRIDGE OUTPUT TRANSPARENT 19
4 +US (+EXC) + BRIDGE SUPPLY GREEN/BLACK 24
-US (-EXC) - BRIDGE SUPPLY BLACK/WHITE 27
+UD (+SIG) + BRIDGE OUTPUT RED/BLACK 25
-UD (-SIG) - BRIDGE OUTPUT WHITE/BLACK 26
5 +US (+EXC) + BRIDGE SUPPLY PURPLE/BLACK 32
-US (-EXC) - BRIDGE SUPPLY YELLOW/BLACK 35
+UD (+SIG) + BRIDGE OUTPUT BLUE/BLACK 33
-UD (-SIG) - BRIDGE OUTPUT GRAY/BLACK 34
6 +US (+EXC) + BRIDGE SUPPLY PINK/BLACK 39
-US (-EXC) - BRIDGE SUPPLY BROWN/BLACK 42
+UD (+SIG) + BRIDGE OUTPUT ORANGE/BLACK 40
-UD (-SIG) - BRIDGE OUTPUT TRANSPARENT/BLACK 41

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 6.65 × 4.17 × 1.25 in

Product Video

Features and Benefits

  • 6-channel strain gage measuring amplifier with USB interface
  • Internal calculation of axis load values for 6-axis sensors
  • USB-C Port
  • Aluminum housing
  • Dimensions: 104mm x 84mm x 35mm
  • Measuring range up to 4 mV/V
  • 24-Bit ADC
  • Measuring frequency 0Hz – 750Hz
  • Connection 1 x Sub-D44 HD socket for 6A sensor

Specifications

Specifications

Bridge Input
Number of Bridge Inputs 6
Excitation - VDC 4
Input sensitivity-steps - mV/V 0.05 - 4
Performance
Accuracy Class - % 0.05
Relative Linearity Error - % 0.02
Temperature Effect on the Zero Point - % 0.01
Temperature Effect on the Measuring Seneitivity - % 0.01
Resolution - Bit 24
Strain-Gage-Full-Bridge Resistance - Ohm 120 - 5,000
Measuring frequency
Data Frequency - Hz 0 - 750
Electrical
Supply Voltage - VDC - USB-C 4.5 - 5.5
Current - mA 200 - 450
Interface
USB-C USB 2.0 Full Speed
Environmental
Operating temperature range °C -20 to 65
°F -4 to 149
Rated temperature range °C 0 to 50
°F 32 to 122
Mechanical
Housing Aluminum
Connection Plug connector
Connection Type Sub-D44HD
IP Rating IP50
Dimensions - W x L x H mm 104.0 x 84.3 x 36.0
in 4.09 x 3.32 x 1.42

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions

BX6-HD44 Dimensions Table

mm in
(1) 97.0 3.82
(2) 43.3 1.70
(3) 4.50 0.18
(4) 84.3 3.32
(5) 36.0 1.42
(6) 2.0 0.08
(7) 84.0 3.31
(8) 104.0 4.09
(9) 70.3 2.77
(10) USB-C
(11) D-Sub HD44 Connector (Sensor Input)

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

D-Sub HD44 Connector

CHANNEL SYMBOL FUNCTION COLOR PIN
1 +US (+EXC) + BRIDGE SUPPLY RED 2
-US (-EXC) - BRIDGE SUPPLY BLACK 5
+UD (+SIG) + BRIDGE OUTPUT GREEN 3
-UD (-SIG) - BRIDGE OUTPUT WHITE 4
2 +US (+EXC) + BRIDGE SUPPLY BLUE 9
-US (-EXC) - BRIDGE SUPPLY YELLOW 12
+UD (+SIG) + BRIDGE OUTPUT PURPLE 10
-UD (-SIG) - BRIDGE OUTPUT GRAY 11
3 +US (+EXC) + BRIDGE SUPPLY ORANGE 17
-US (-EXC) - BRIDGE SUPPLY BROWN 20
+UD (+SIG) + BRIDGE OUTPUT PINK 18
-UD (-SIG) - BRIDGE OUTPUT TRANSPARENT 19
4 +US (+EXC) + BRIDGE SUPPLY GREEN/BLACK 24
-US (-EXC) - BRIDGE SUPPLY BLACK/WHITE 27
+UD (+SIG) + BRIDGE OUTPUT RED/BLACK 25
-UD (-SIG) - BRIDGE OUTPUT WHITE/BLACK 26
5 +US (+EXC) + BRIDGE SUPPLY PURPLE/BLACK 32
-US (-EXC) - BRIDGE SUPPLY YELLOW/BLACK 35
+UD (+SIG) + BRIDGE OUTPUT BLUE/BLACK 33
-UD (-SIG) - BRIDGE OUTPUT GRAY/BLACK 34
6 +US (+EXC) + BRIDGE SUPPLY PINK/BLACK 39
-US (-EXC) - BRIDGE SUPPLY BROWN/BLACK 42
+UD (+SIG) + BRIDGE OUTPUT ORANGE/BLACK 40
-UD (-SIG) - BRIDGE OUTPUT TRANSPARENT/BLACK 41

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 6.65 × 4.17 × 1.25 in

Product Video

Short Description Sku Price
Model BX6-HD44 6-Channel Strain Gage Amplifier BX6-HD44 $2,085.00
