SP10 Single Point Load Cell

Featured in these Case Studies

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

SP10 Single Point Load Cell

Single Point Platform-Type

Get Your Free Quote

6.6 to 198.4 lbf
3 to 90 kg

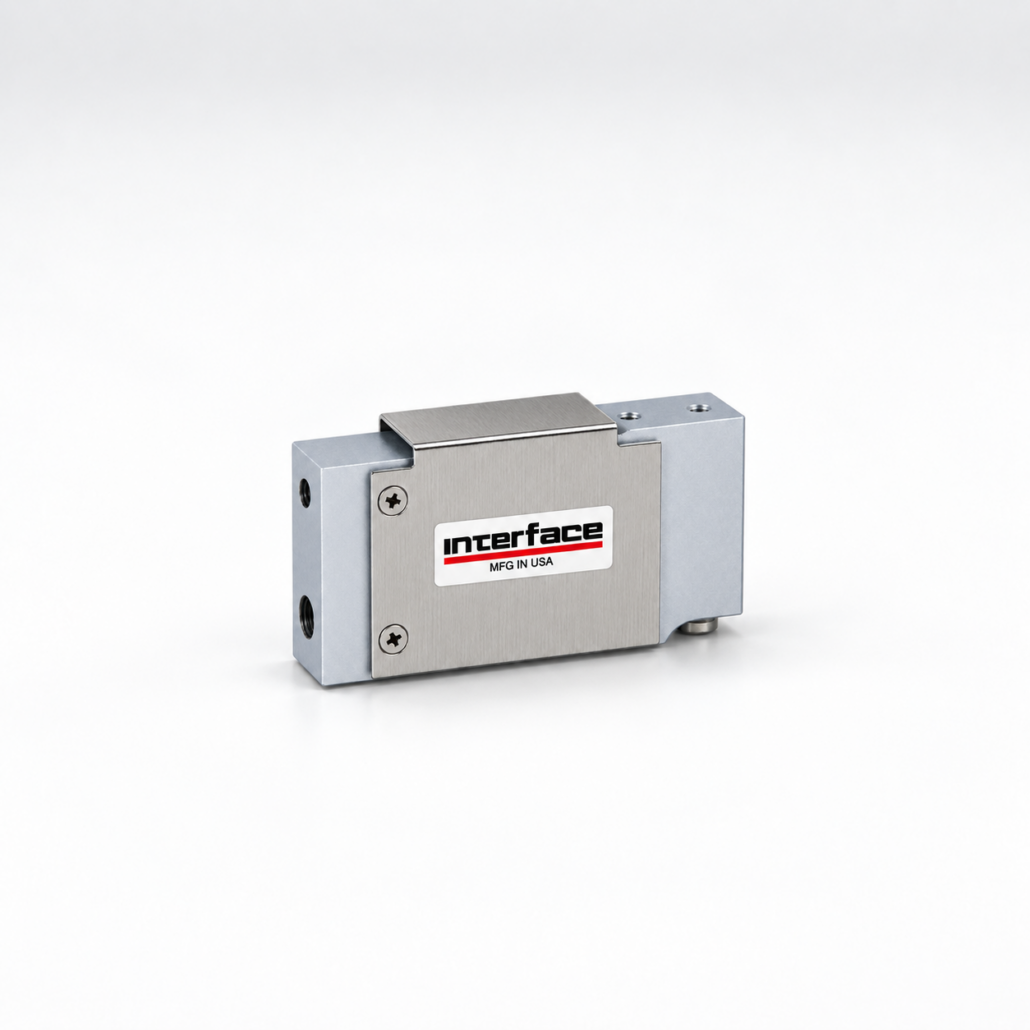

The Interface Model SP10 is an aluminum single point load cell designed for dependable off-center loading in durable weighing-platform installations. Potted-cavity models help improve environmental performance and are available in capacities from 7 to 90 kilograms with 10 feet of cable, while unpotted 3 and 5 kilogram models include 3 feet of cable.

Product Downloads

The Interface Model SP10 is an aluminum single point load cell designed for dependable off-center loading in durable weighing-platform installations.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , , , Tags: , , , , , ,

Features and Benefits

  • Capacities from 3 to 90 kg (6.6 to 198.4 lbf)
  • Off-center loading load cell design
  • Built for durable weighing platform mounts
  • Available with potted cavities for demanding environments (standard with capacities range 7 to 90 kg (15.4 to 198.4 lbf))
  • Maintains accurate performance with off-center platform loading
  • Provides long-lasting reliability in platform-scale applications
  • Potted construction helps protect the load cell in harsh environments

Options

  • Transducer Electronic Data Sheet (TEDS)
  • Add connector to cable

Accessories

  • Instrumentation

Specifications

Specifications

Capacity kg 3-5 7-90
lbf 6.6-11.0 15.4- 198.4
ACCURACY – (MAX ERROR)
Combined Error – %FS 0.02
TEMPERATURE
Compensated Range °F 14 to 104
°C -10 to 40
Operating Range °F 0 to 150
°C -18 to 65
ELECTRICAL
Rated Output – mV/V (Nominal) 2.0
Bridge Resistance – Ohm (Nominal) 350 (±3)
Excitation Voltage – MAX VDC (15 V maximum) 5 to 10
Input Resistance – Ohm 415 (±15)
Insulation Resistance – Megohm 5,000
MECHANICAL
Safe Overload – %CAP (at center of loading point, full scale) 150
Material Anodized Aluminum
IP Rating IP65 IP67
Potting Unpotted Potted
Cable Length m 0.91 3.0
ft 3 10
Cable Diameter in PVC jacket mm 5.08
in 0.20

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions

See Drawing CAPACITY
Metric (kg) U.S. (lbf)
3, 5, 7, 10, 15, 20, 30, 50, 90 6.6, 11.0, 15.4, 22.0, 33.0, 44.0, 66.1, 110.2, 198.4
mm in
(1) 118.10 4.65
(2) 34.00 1.34
(3) 3.00 0.12
(4) 110.50 4.35
(5) 66.00 2.60
(6) 80.00 3.15
(7) 25.00 0.98
(8) 1/4-20 UNC × 13 DP THD x 4
(9) 7.5 x 2 0.30 x 2
(10) 19.1 x 2 0.75 x 2
(11) 25.40 1.00
(12) 33.5 1.32
(13) Factory Adjusted Overload Stop

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CABLE CONNECTION
Color Function
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense

Additional Information

Dimensions 0.62 × 5.13 × 2.99 in

Product Video

Features and Benefits

  • Capacities from 3 to 90 kg (6.6 to 198.4 lbf)
  • Off-center loading load cell design
  • Built for durable weighing platform mounts
  • Available with potted cavities for demanding environments (standard with capacities range 7 to 90 kg (15.4 to 198.4 lbf))
  • Maintains accurate performance with off-center platform loading
  • Provides long-lasting reliability in platform-scale applications
  • Potted construction helps protect the load cell in harsh environments

Options

  • Transducer Electronic Data Sheet (TEDS)
  • Add connector to cable

Accessories

  • Instrumentation

Specifications

Specifications

Capacity kg 3-5 7-90
lbf 6.6-11.0 15.4- 198.4
ACCURACY – (MAX ERROR)
Combined Error – %FS 0.02
TEMPERATURE
Compensated Range °F 14 to 104
°C -10 to 40
Operating Range °F 0 to 150
°C -18 to 65
ELECTRICAL
Rated Output – mV/V (Nominal) 2.0
Bridge Resistance – Ohm (Nominal) 350 (±3)
Excitation Voltage – MAX VDC (15 V maximum) 5 to 10
Input Resistance – Ohm 415 (±15)
Insulation Resistance – Megohm 5,000
MECHANICAL
Safe Overload – %CAP (at center of loading point, full scale) 150
Material Anodized Aluminum
IP Rating IP65 IP67
Potting Unpotted Potted
Cable Length m 0.91 3.0
ft 3 10
Cable Diameter in PVC jacket mm 5.08
in 0.20

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions

See Drawing CAPACITY
Metric (kg) U.S. (lbf)
3, 5, 7, 10, 15, 20, 30, 50, 90 6.6, 11.0, 15.4, 22.0, 33.0, 44.0, 66.1, 110.2, 198.4
mm in
(1) 118.10 4.65
(2) 34.00 1.34
(3) 3.00 0.12
(4) 110.50 4.35
(5) 66.00 2.60
(6) 80.00 3.15
(7) 25.00 0.98
(8) 1/4-20 UNC × 13 DP THD x 4
(9) 7.5 x 2 0.30 x 2
(10) 19.1 x 2 0.75 x 2
(11) 25.40 1.00
(12) 33.5 1.32
(13) Factory Adjusted Overload Stop

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CABLE CONNECTION
Color Function
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense

Additional Information

Dimensions 0.62 × 5.13 × 2.99 in

Product Video

Short Description Sku Price
Model SP10-10 Potted Single Point Load Cell 10 kg Capacity with 10-foot Integral Cable SP10-10 $350.00
Model SP10-15 Potted Single Point Load Cell 15 kg Capacity with 10-foot Integral Cable SP10-15 $350.00
Model SP10-15 Potted Single Point Load Cell 15 kg Capacity with 10-foot Integral Cable SP10-20 $350.00
Model SP10-3 Unpotted Single Point Load Cell 3 kg Capacity with 3-foot Integral Cable SP10-3 $300.00
Model SP10-30 Potted Single Point Load Cell 30 kg Capacity with 10-foot Integral Cable SP10-30 $350.00
Model SP10-5 Unpotted Single Point Load Cell 5 kg Capacity with 3-foot Integral Cable SP10-5 $300.00
Model SP10-50 Potted Single Point Load Cell 50 kg Capacity with 10-foot Integral Cable SP10-50 $350.00
Model SP10-7 Potted Single Point Load Cell 7 kg Capacity with 10-foot Integral Cable SP10-7 $350.00
Model SP10-90 Potted Single Point Load Cell 90 kg Capacity with 10-foot Integral Cable SP10-90 $350.00
